Power Transfer Unit - Vehicles With: Power Transfer Unit Oil-to-Coolant Cooler

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Materials

1. NOTE: This step is only necessary when installing a new component.

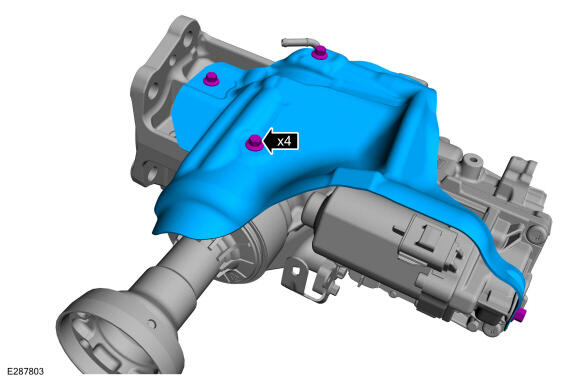

   Install the PTU heat shield.

   Torque: 10 Nm

   Courtesy of FORD MOTOR COMPANY

2. NOTE: This step is only necessary when installing a new component.

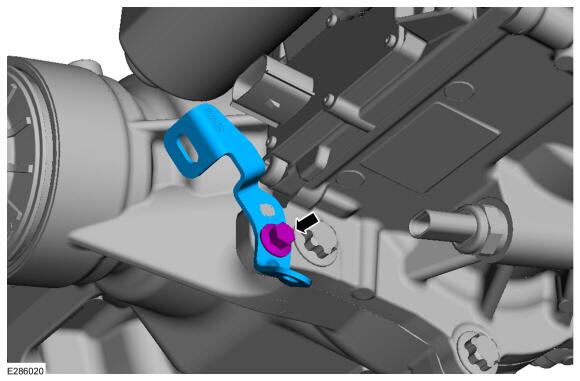

   If equipped, install the PTU temperature sensor harness bracket.

   Torque: 11 Nm

   Courtesy of FORD MOTOR COMPANY

3. If removed, lubricate and inspect the O-ring.

   Material: Gear/Transmission Fluid - SAE 75W-85 (WSS-M2C942-A)

   Courtesy of FORD MOTOR COMPANY

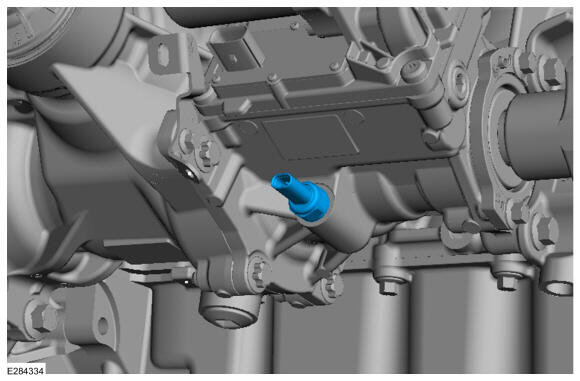

4. Install the PTU oil temperature sensor.

   Torque: 17 Nm

   Courtesy of FORD MOTOR COMPANY

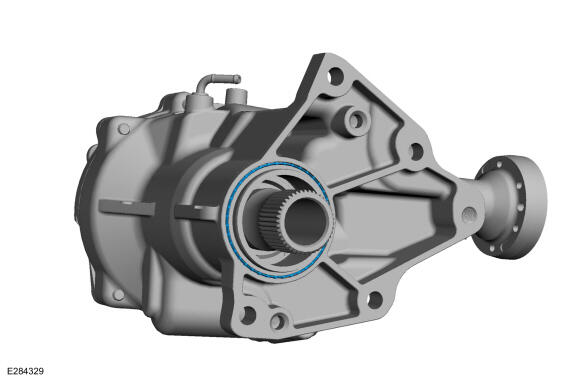

5. Install the new PTU to transmission compression seal.

   Courtesy of FORD MOTOR COMPANY

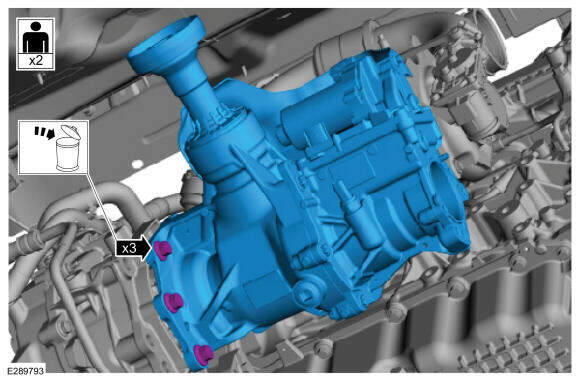

6. Install the PTU and mounting bolts.

   Torque: 103 Nm

   Courtesy of FORD MOTOR COMPANY

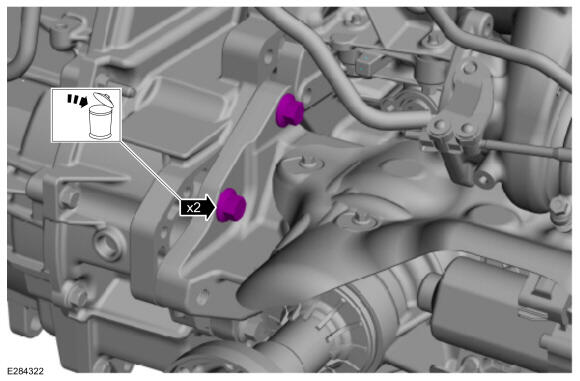

7. Install the new PTU bolts.

   Torque: 103 Nm

   Courtesy of FORD MOTOR COMPANY

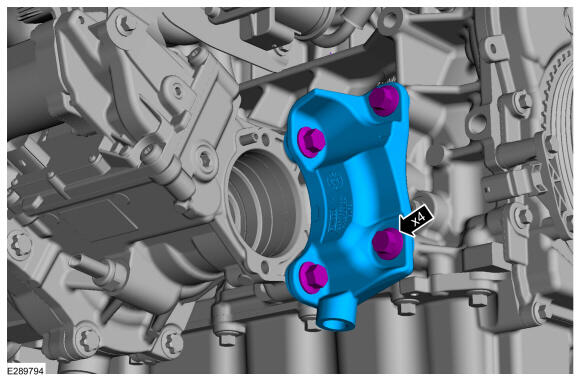

8. Install the PTU support bracket and bolts.

   Torque: 48 Nm

   Courtesy of FORD MOTOR COMPANY

9. Install the intermediate shaft. Refer to: Intermediate Shaft .

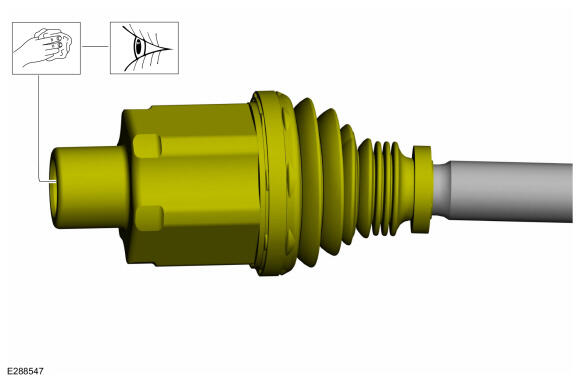

10. Clean and inspect the inboard end of the halfshaft.

    Courtesy of FORD MOTOR COMPANY

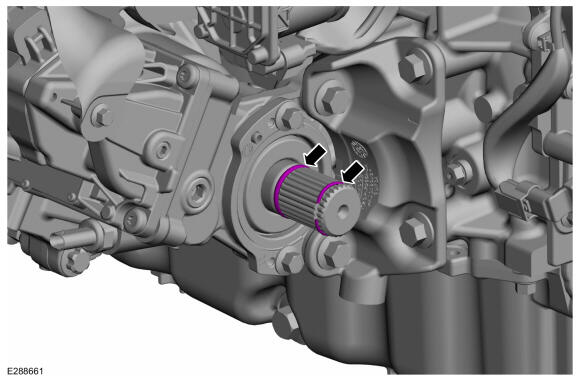

11. Install the O-Ring and circlip on the intermediate shaft.

    Courtesy of FORD MOTOR COMPANY

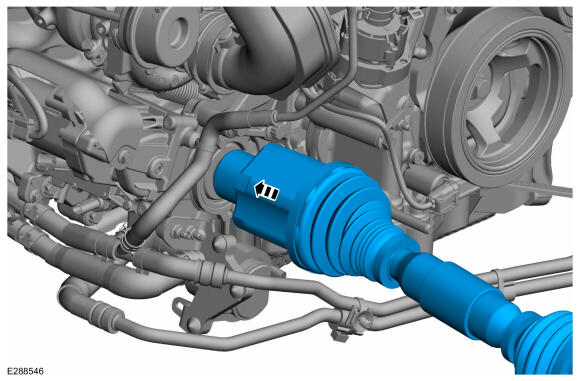

12. Install the RH halfshaft on the intermediate shaft.

    Courtesy of FORD MOTOR COMPANY

13. Install the vent hose retainer.

    Courtesy of FORD MOTOR COMPANY

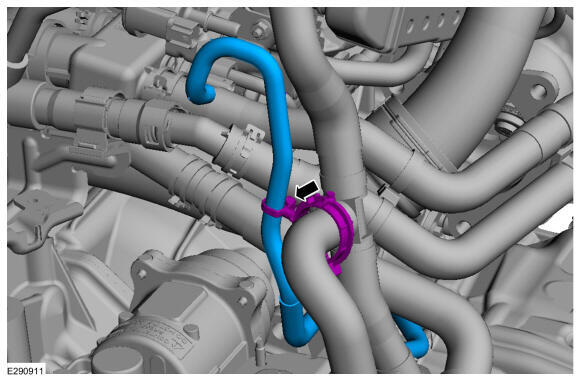

14. Connect the PTU vent hose.

    Courtesy of FORD MOTOR COMPANY

15. Install the coolant pump and hoses. Install the pump mounting nuts.

    Torque: 9 Nm

    Courtesy of FORD MOTOR COMPANY

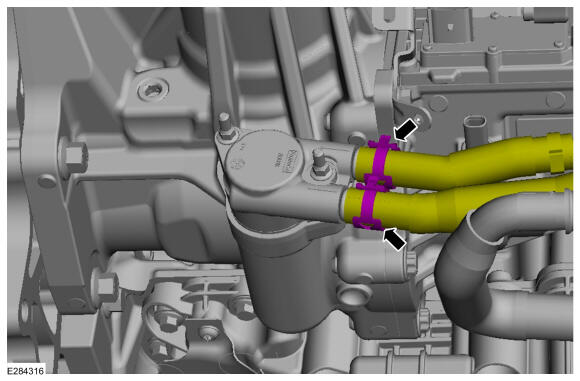

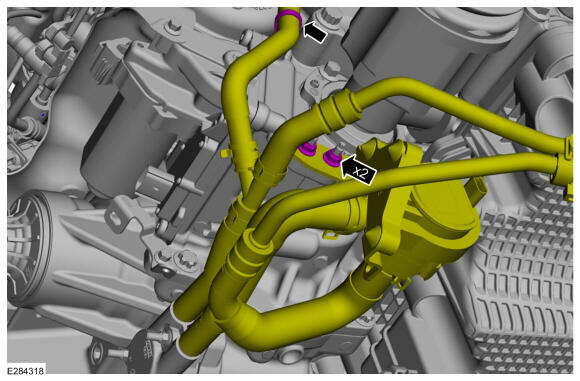

16. Install the PTU cooling system hoses and connect the hose clamps. Remove the hose clamps.

    Courtesy of FORD MOTOR COMPANY

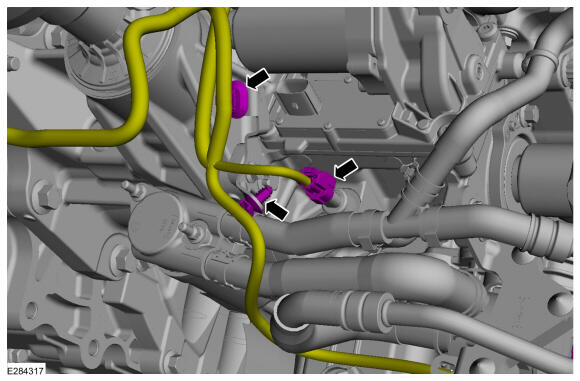

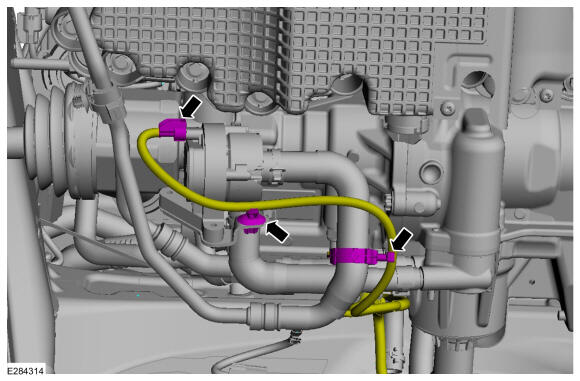

17. If equipped, connect the PTU temperature sensor and install retainers.

    Courtesy of FORD MOTOR COMPANY

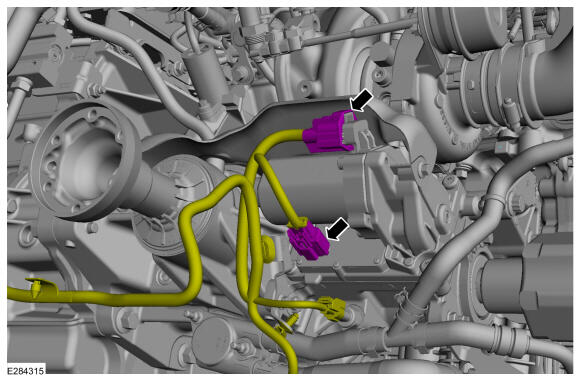

18. Connect the PTU motor connectors.

    Courtesy of FORD MOTOR COMPANY

19. Connect the auxillary pump connector and retainers.

    Courtesy of FORD MOTOR COMPANY

20. Install the catalytic converter. Refer to: Catalytic Converter .

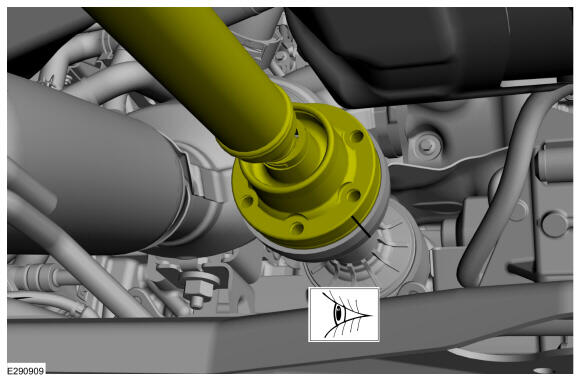

21. NOTE: Make sure that the installation marks are aligned.

    Courtesy of FORD MOTOR COMPANY

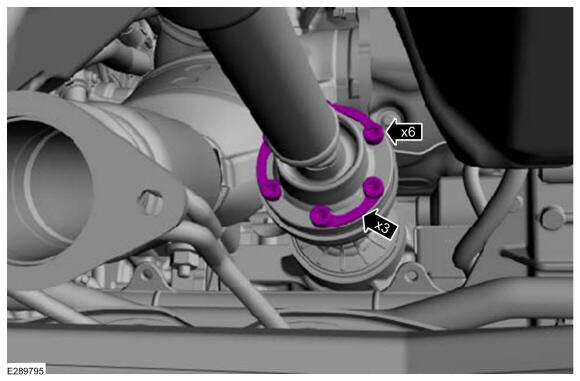

22. Install new PTU flange bolts.

    Torque: 35 Nm

    Courtesy of FORD MOTOR COMPANY

23. Check PTU fluid level and adjust as necessary. Refer to: Power Transfer Unit Fluid Level Check .
24. Install the front subframe. Refer to: Front Subframe .
25. Check engine coolant level and adjust as necessary. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
26. Check transmission fluid level and adjust as necessary. Refer to: Transmission Fluid Level Check .
