Transmission Fluid Level Check

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Materials

Check

1. Connect the diagnostic scan tool to the vehicle. Monitor the TFTPID.
2. With the engine running in PARK on a level surface make sure the transmission is at normal operating temperature 85-93deg. C (185-200deg. F). If necessary, drive the vehicle until the transmission is at normal operating temperature 85-93deg.C (185-200deg.F).
3. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview
4. Remove the air cleaner. Refer to: Air Cleaner

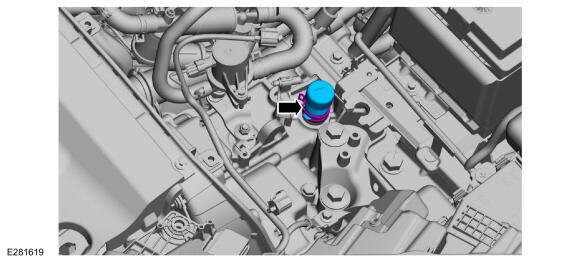

5. Remove the transmission vent.

   Courtesy of FORD MOTOR COMPANY

6. Install the air cleaner. Refer to: Air Cleaner
7. Remove the retainers and the underbody shield.

   Courtesy of FORD MOTOR COMPANY

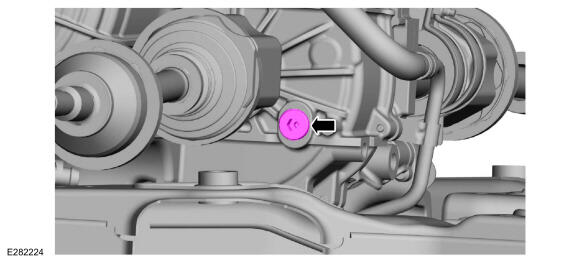

8. With the engine running in PARK, remove the oil leveling plug and check if transmission fluid seeps out of the oil leveling plug hole.

   Courtesy of FORD MOTOR COMPANY

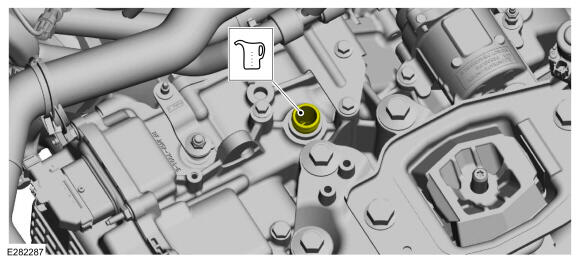

9. If the transmission fluid does not seep out of the oil leveling plug hole, add clean transmission fluid in increments of 0.25L (0.5 pt) until the transmission fluid is even with the oil leveling plug hole.Use the General Equipment: Funnel

   Material : Automatic Transmission Fluid (WSS-M2C949-A,)

   Courtesy of FORD MOTOR COMPANY

10. Install the oil leveling plug.

    Torque : 35 Nm

    Courtesy of FORD MOTOR COMPANY

11. Install the underbody shield and the retainers.

    Courtesy of FORD MOTOR COMPANY

12. Remove the air cleaner. Refer to: Air Cleaner
13. Install the transmission vent.

    Courtesy of FORD MOTOR COMPANY

14. Install the air cleaner. Refer to: Air Cleaner
