Fuel Tank: Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures may be present and may be ignited. Failure to follow these instructions may result in serious personal injury.

NOTE: Removal steps in this procedure may contain installation steps.

Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions .
Release the fuel system pressure. Refer to: Fuel System Pressure Release .
Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect - Vehicles With: Dual Batteries .
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Electric Motor (C0) - Overview .
Drain the fuel tank. Refer to: Fuel Tank Draining .

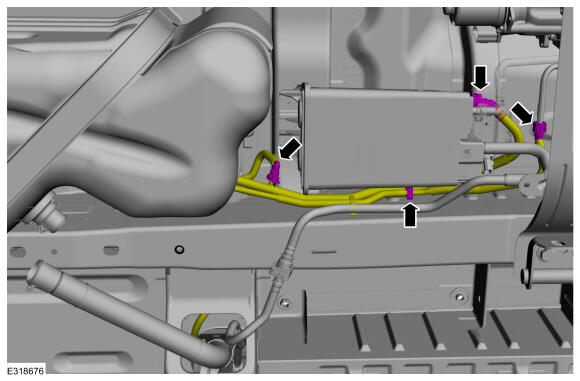

- Disconnect the quick release couplings. Refer to: Quick Release Coupling .
- Release the retainer clip.
Courtesy of FORD MOTOR COMPANY

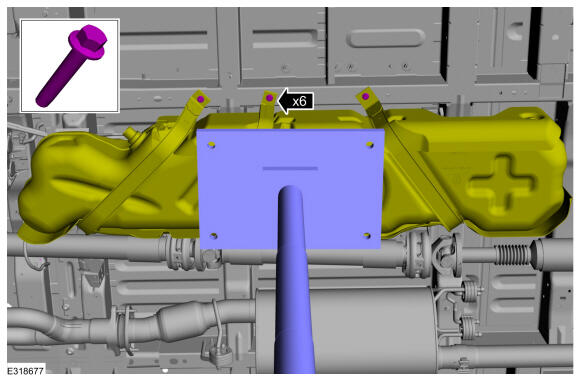

- Support the fuel tank with a transmission jack and remove the fuel tank strap bolts.Use the General Equipment: Transmission Jack
  Torque: 48 Nm
- Lower the fuel tank.
Courtesy of FORD MOTOR COMPANY

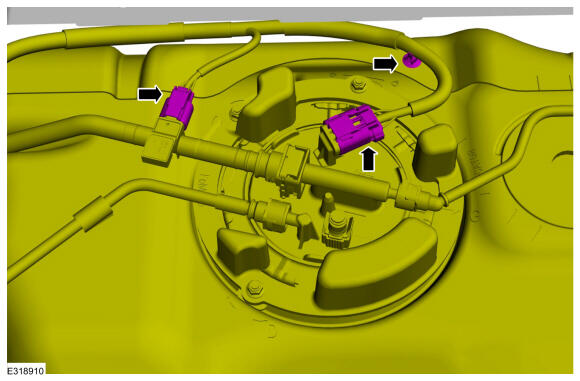

Disconnect the electrical connectors and detach the wiring harness clip.

Courtesy of FORD MOTOR COMPANY

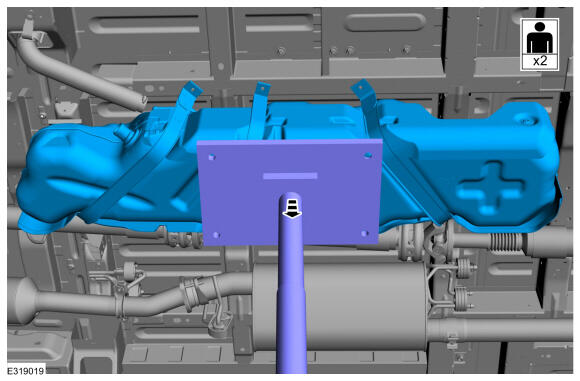

NOTE: The procedure step requires the aid of the another technician.

Remove the fuel tank.

Courtesy of FORD MOTOR COMPANY
