Fuel Tank Draining
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
Special Tool(s) / General Equipment
| 292-00004Fuel Tanker 100 GPM | |
|---|---|
Draining
- Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .
-
NOTE: The supplemental refueling adapter is located in the glove box.

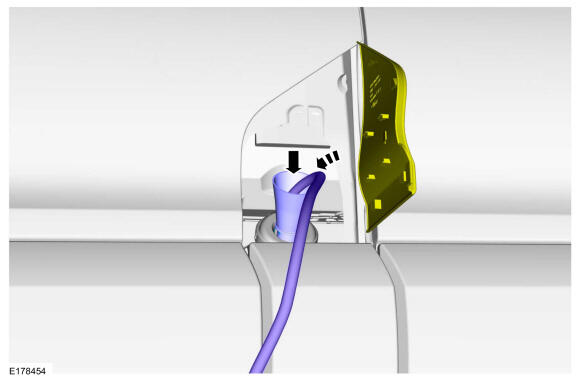

Install the supplemental refueling adapter and a length of semi-rigid fuel drain tube into the Easy Fuel ™ (capless) fuel tank filler pipe. Push the drain tube into the fuel tank and drain as much fuel as possible into the Fuel Storage Tanker, lowering the fuel level below the fuel tank inlet spout. Use Special Service Tool: 292-00004 Fuel Tanker 100 GPM.
