Quick Release Coupling

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
NOTE: Type 1
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .
    GFD839994Courtesy of FORD MOTOR COMPANY

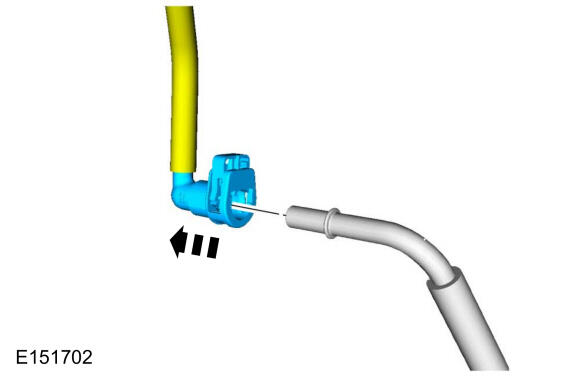

    GFD839995Courtesy of FORD MOTOR COMPANY

    Connect

  3. Push the quick release coupling onto the tube.
    GFD839996Courtesy of FORD MOTOR COMPANY

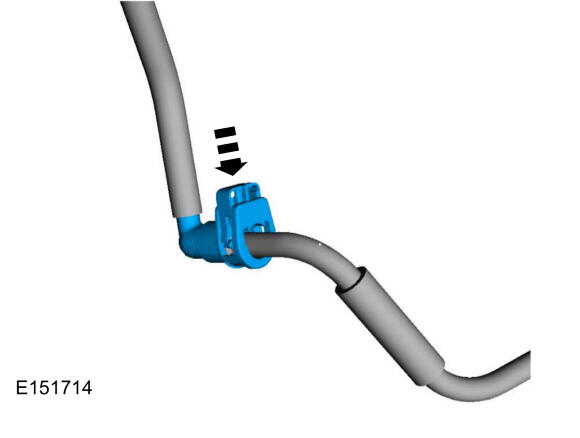

  4. NOTE: Make sure the retainer clip is fully seated and locked onto the tube by pulling on the quick connect coupling.

    Press the retainer clip into the quick release coupling body until flush and the tabs are locked in place.

    GFD839997Courtesy of FORD MOTOR COMPANY
  5. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .

    Disconnect

    NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 2
  6. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  7. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .

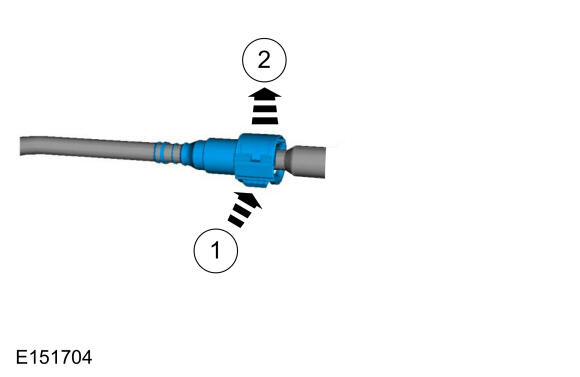

    GFD839998Courtesy of FORD MOTOR COMPANY

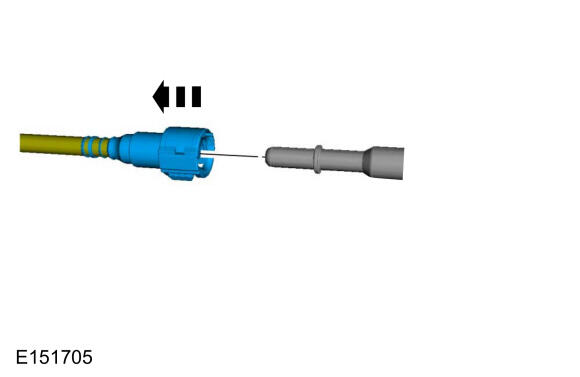

    GFD839999Courtesy of FORD MOTOR COMPANY

    Connect

    GFD840000Courtesy of FORD MOTOR COMPANY

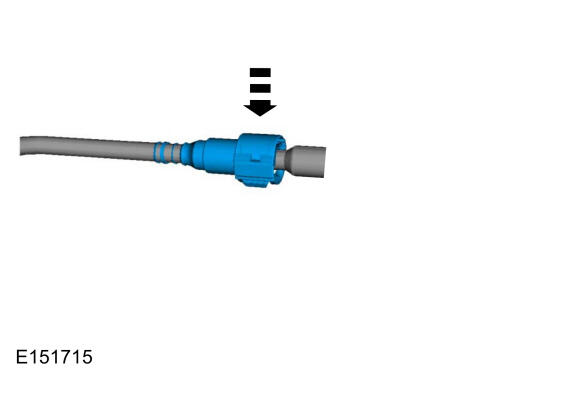

    GFD840001Courtesy of FORD MOTOR COMPANY
  8. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .

    Disconnect

    NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 3
  9. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  10. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .

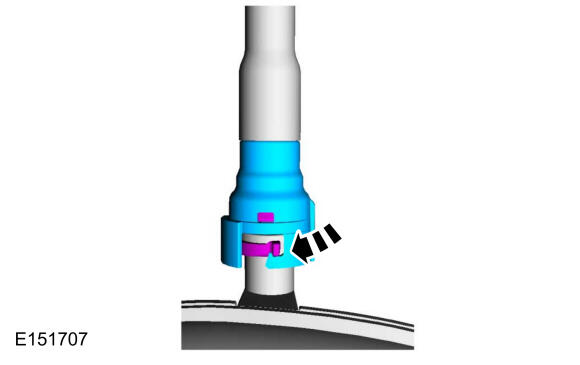

    GFD840002Courtesy of FORD MOTOR COMPANY

    Connect

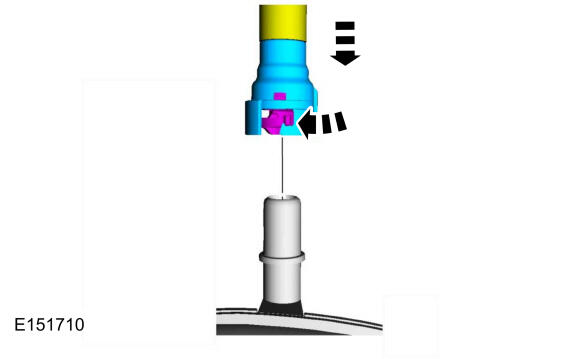

    GFD840003Courtesy of FORD MOTOR COMPANY

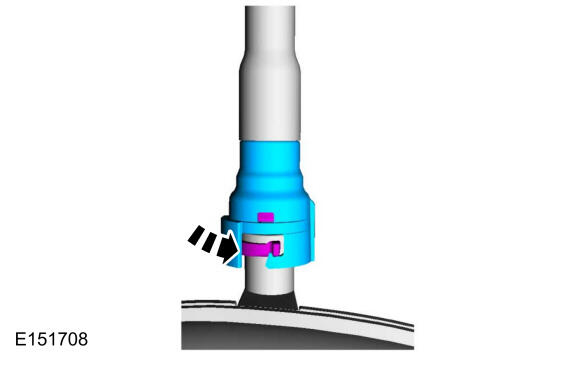

    GFD840004Courtesy of FORD MOTOR COMPANY
  11. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .

    Disconnect

    NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 4
  12. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  13. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .
    GFD840005Courtesy of FORD MOTOR COMPANY
    GFD840006Courtesy of FORD MOTOR COMPANY

    Connect

    GFD840007Courtesy of FORD MOTOR COMPANY
  1. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 5
  2. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  3. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .

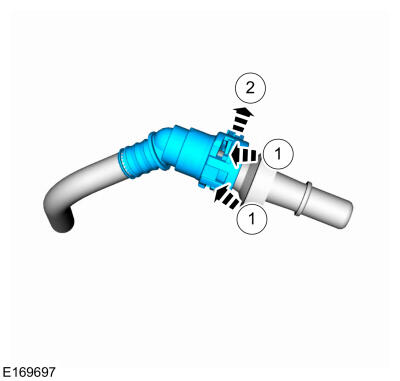

    GFD840008Courtesy of FORD MOTOR COMPANY

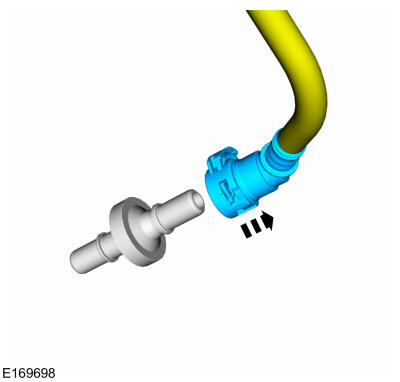

    GFD840009Courtesy of FORD MOTOR COMPANY

    Connect

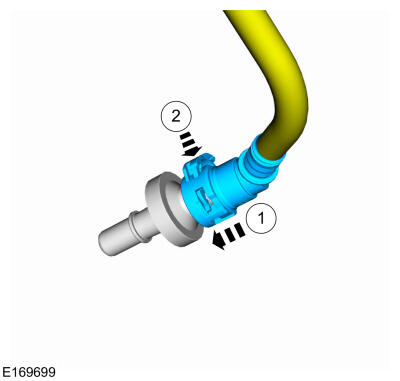

    GFD840010Courtesy of FORD MOTOR COMPANY
  4. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 6
  5. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  6. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .
  7. Press the tabs of the rear retainer clip and pull it to the outward position.

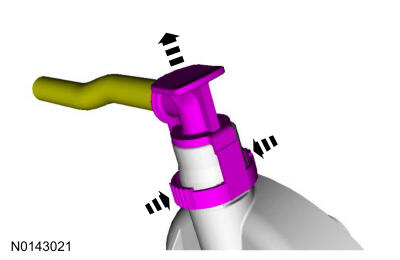

    GFD840011Courtesy of FORD MOTOR COMPANY

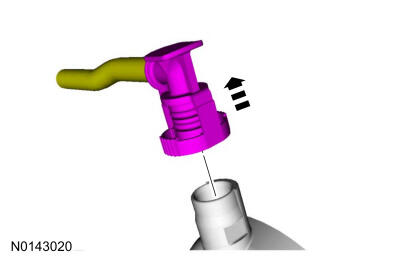

    GFD840012Courtesy of FORD MOTOR COMPANY

    Connect

  8. Pull on the quick release coupling to make sure it is securely fastened.
    GFD840013Courtesy of FORD MOTOR COMPANY
  9. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 7
  10. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  11. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .

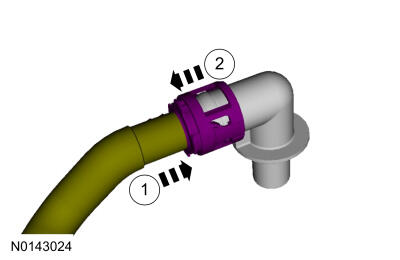

    GFD840014Courtesy of FORD MOTOR COMPANY
    GFD840015Courtesy of FORD MOTOR COMPANY

    Connect

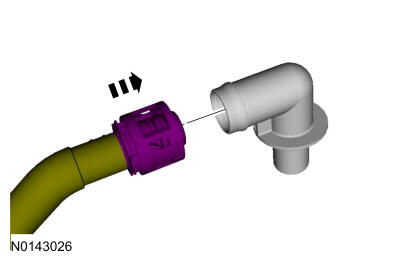

  1. Pull on the quick connect coupling to make sure it is securely fastened.
    GFD840016Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Fuel System Pressure Release  .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 8
  3. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  4. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .
    GFD840008Courtesy of FORD MOTOR COMPANY
    GFD840009Courtesy of FORD MOTOR COMPANY

    Connect

    GFD840010Courtesy of FORD MOTOR COMPANY
  5. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 9
  6. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  7. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .
    1. Release the secondary locking tab.
    2. Press the primary locking tab.
    3. Separate the quick release coupling from the tube.
    GFD840017Courtesy of FORD MOTOR COMPANY

    Connect

    1. Push the quick release coupling onto the tube.
    2. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Lock the secondary locking tab.

    GFD840018Courtesy of FORD MOTOR COMPANY
  3. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 10
  4. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  5. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .
    1. Push on the locking tab.
    2. Lift the clip.
    GFD840019Courtesy of FORD MOTOR COMPANY
    1. Press the tabs inward.
    2. Push the clip downward.
    3. Separate the quick release coupling from the fuel line.
    GFD840020Courtesy of FORD MOTOR COMPANY

    Connect

    1. Push the quick release coupling onto the tube.
    2. Push the clip down into the quick release coupling.
    3. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

    GFD840021Courtesy of FORD MOTOR COMPANY
  1. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 11
  2. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release (310-00 Fuel System - General Information - 3.0L EcoBoost).
  3. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .
    GFD840022Courtesy of FORD MOTOR COMPANY

    Connect

  4. GFD840022Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  5. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 12
  6. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  1. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .

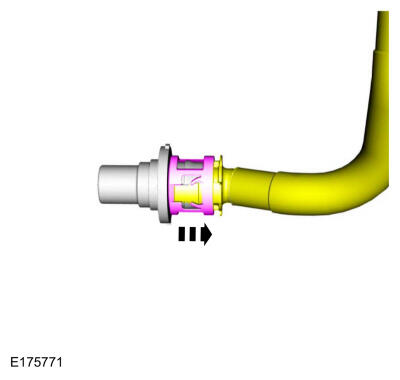

    GFD840023Courtesy of FORD MOTOR COMPANY
    GFD840024Courtesy of FORD MOTOR COMPANY

    Connect

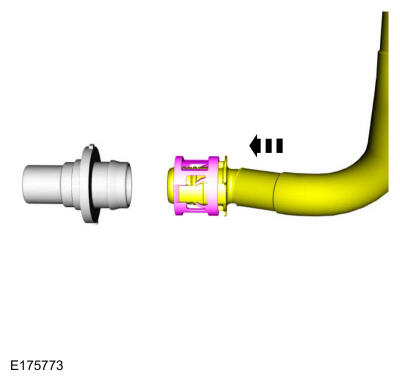

  2. GFD840025Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  3. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 13
  4. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  5. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .

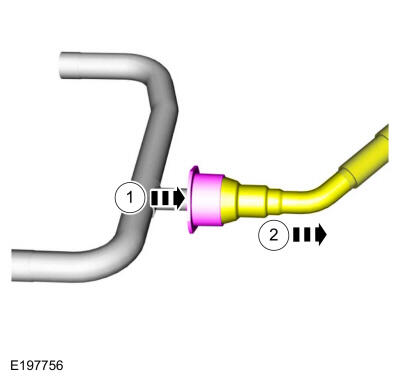

    GFD840026Courtesy of FORD MOTOR COMPANY

    Connect

  6. GFD840027Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  7. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 14
  8. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  9. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .

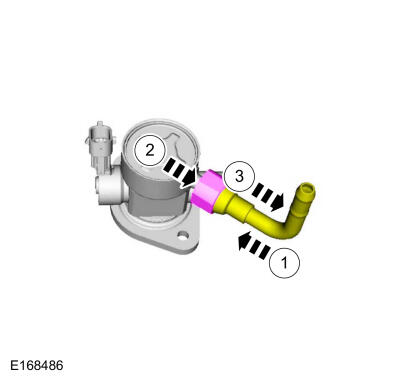

    GFD840028Courtesy of FORD MOTOR COMPANY

    Connect

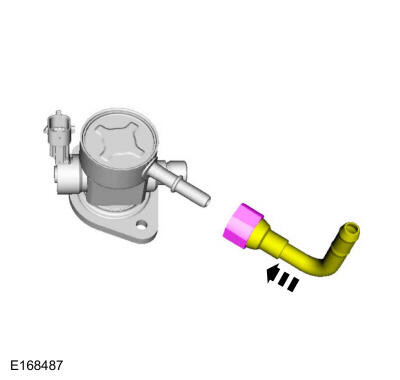

    GFD840029Courtesy of FORD MOTOR COMPANY
  10. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .

    Disconnect

    NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 15
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.

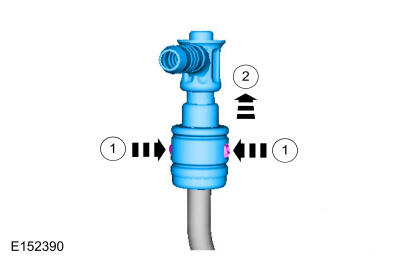

  2. Press both retaining tabs inward and remove quick release coupling from fuel tube.
    GFD840030Courtesy of FORD MOTOR COMPANY

    Connect

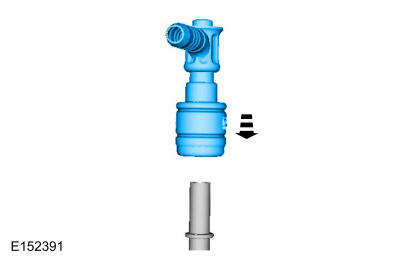

  3. NOTE: Inspect and clean both quick release coupling ends.

    Install the quick release coupling onto the tube until it is fully seated.

    GFD840031Courtesy of FORD MOTOR COMPANY
  4. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 16
  5. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  6. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .
    GFD840032Courtesy of FORD MOTOR COMPANY

    Connect

  7. GFD840032Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  8. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 17
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .
    GFD840033Courtesy of FORD MOTOR COMPANY

    Connect

  1. GFD840034Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 18
  3. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  4. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .
    GFD840035Courtesy of FORD MOTOR COMPANY

    Connect

  5. GFD840036Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  6. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 19
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .
    GFD840037Courtesy of FORD MOTOR COMPANY

    Connect

  3. GFD840038Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  4. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 20
  5. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  6. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .
    GFD840039Courtesy of FORD MOTOR COMPANY

    Connect

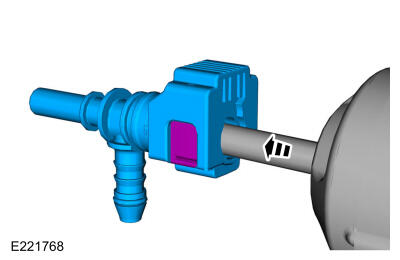

  7. GFD840040Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  8. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 21
  9. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  10. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .
    GFD840041Courtesy of FORD MOTOR COMPANY

    Connect

  1. GFD840042Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 22
  3. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  4. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .
    GFD840043Courtesy of FORD MOTOR COMPANY

    Connect

    GFD840044Courtesy of FORD MOTOR COMPANY
  5. GFD840045Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  6. NOTE: Make sure that all fuel connections are checked for leaks.
    NOTE: This step is only necessary if a new component is installed.

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

    GFD840046Courtesy of FORD MOTOR COMPANY
  7. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 23
  8. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  1. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .
    GFD840047Courtesy of FORD MOTOR COMPANY

    Connect

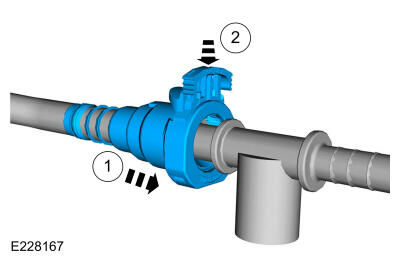

  2. NOTE: Make sure the retainer clip is fully seated and locked onto the tube by pulling on the quick connect coupling.

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

    GFD840048Courtesy of FORD MOTOR COMPANY
  3. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 24
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  1. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .

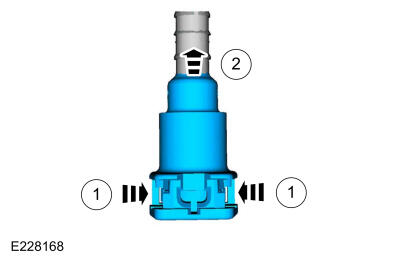

    GFD840049Courtesy of FORD MOTOR COMPANY

    Connect

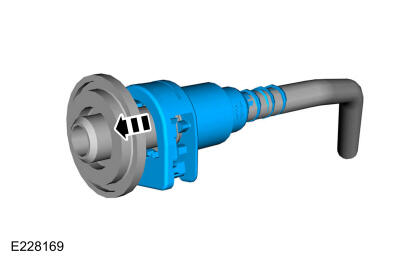

  2. GFD840050Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  3. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 25
  4. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  5. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .
    1. Press the clip into the quick release coupling.
    2. Separate the quick release coupling from the tube.
    GFD840051Courtesy of FORD MOTOR COMPANY

    Connect

  7. GFD840052Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  8. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 26
  9. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  10. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .
  1. GFD840053Courtesy of FORD MOTOR COMPANY

    Connect

    1. Remove the quick release coupling from the tube.

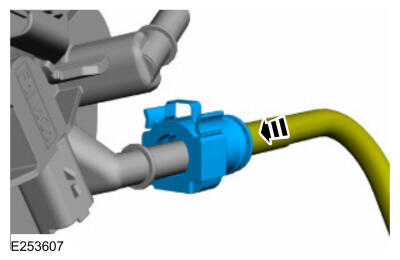

  2. GFD840054Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  3. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .

    Disconnect

    NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 27
  4. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  5. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .
    GFD840055Courtesy of FORD MOTOR COMPANY
  6. Remove the quick release coupling from the tube.
    GFD840056Courtesy of FORD MOTOR COMPANY

    Connect

  1. GFD840057Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  1. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .

    Disconnect

    NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Quick connect retainer clip is a serviceable part and can be replaced if it is lost during assembly.
    NOTE: Type 28
  2. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  3. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .

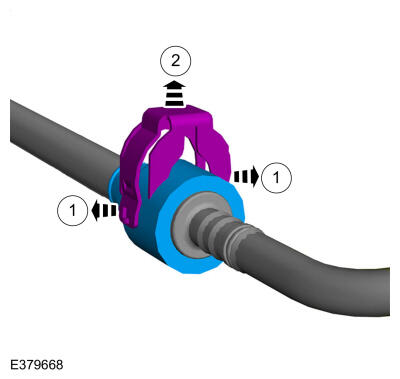

    1. Dislodge the clip.
    2. Pulling out the clip upward.
    GFD840058Courtesy of FORD MOTOR COMPANY

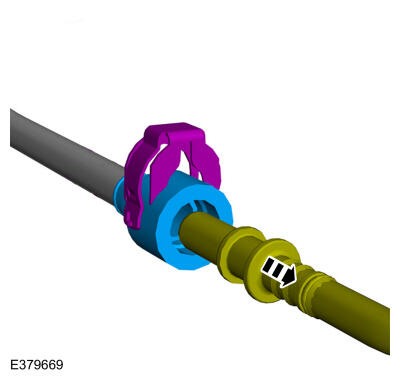

  5. Remove the tube.
    GFD840059Courtesy of FORD MOTOR COMPANY

    Connect

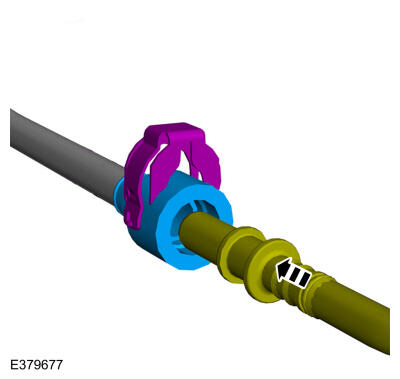

  6. Insert the tube.
    GFD840060Courtesy of FORD MOTOR COMPANY

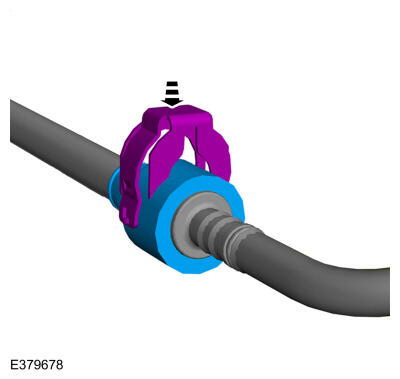

  7. NOTE: Make sure the retainer clip is fully seated and locked onto the tube by pulling on the quick connect coupling.

    Press the retainer clip into the quick release coupling body until flush and the tabs are locked in place.

    GFD840061Courtesy of FORD MOTOR COMPANY
  8. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .

    Disconnect

    NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
    NOTE: Quick connect retainer clip is a serviceable part and can be replaced if it is lost during assembly.
    NOTE: Type 29
  9. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  10. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .

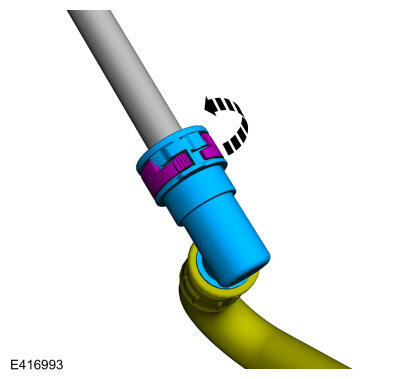

  11. Detach the retainer and then rotate counter-clockwise.
    GFD840062Courtesy of FORD MOTOR COMPANY

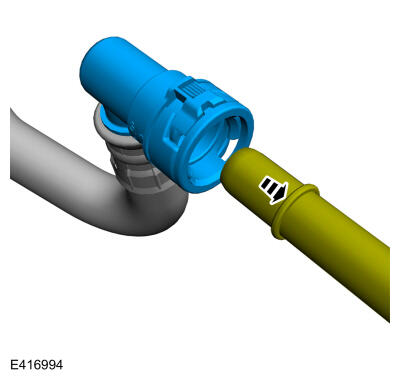

  1. Remove the tube.
    GFD840063Courtesy of FORD MOTOR COMPANY

    Connect

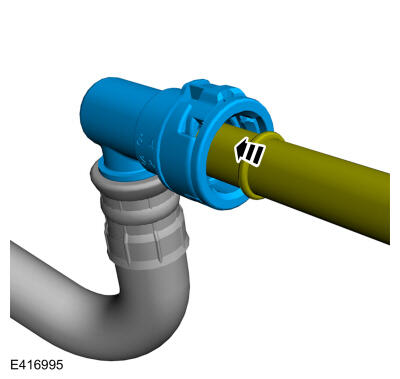

  2. Insert the tube.
    GFD840064Courtesy of FORD MOTOR COMPANY

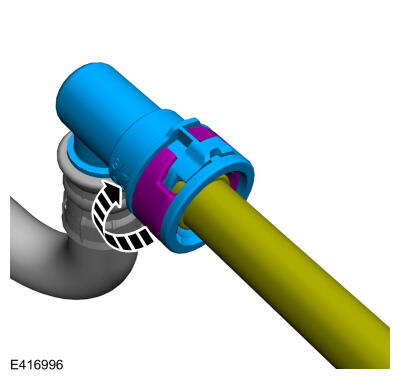

  3. Rotate the retainer clockwise into the quick release coupling and then position aside the original position.
    GFD840065Courtesy of FORD MOTOR COMPANY
  4. NOTE: Make sure the retainer clip is fully seated and locked onto the tube by pulling on the quick connect coupling.

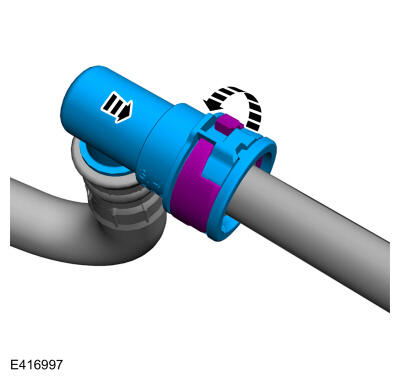

    Press the quick release coupling body and rotate the retainer counter- clockwise until the tabs are locked in place.

    GFD840066Courtesy of FORD MOTOR COMPANY
  5. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , OR BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .
scientia non olet · About LEMON Manuals
