Transmission Range (TR) Sensor: Installation

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

Install the TR sensor (7H557).

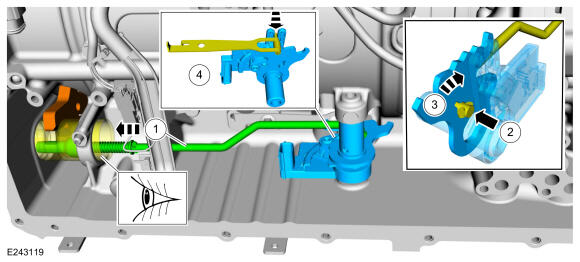

1. Position the park pawl actuator rod into the park pawl sleeve.
2. Connect the park pawl actuator rod to the TR sensor.
3. Rotate the TR sensor.
4. Align the TR sensor to the detent spring.
Courtesy of FORD MOTOR COMPANY

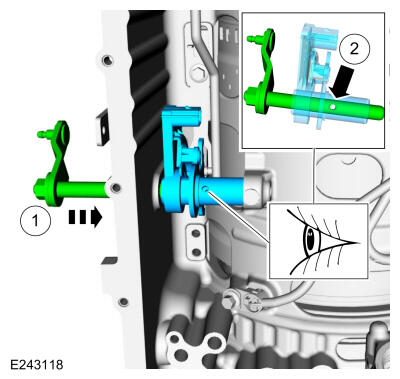

1. Slide the manual shaft and selector lever into the TR sensor.
2. Align the TR sensor roll pin hole.
Courtesy of FORD MOTOR COMPANY

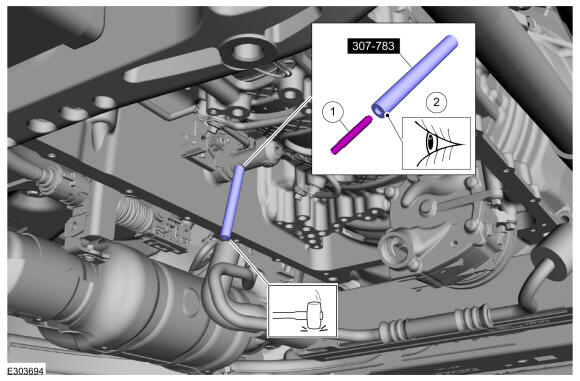

Using the cupped end of the special tool, install the new manual shaft-to-TR sensor roll pin.
1. New roll pin
2. Cupped end of special toolUse Special Service Tool: 307-783 Installer, Roll Pin.Use the General Equipment: Rubber Mallet
Courtesy of FORD MOTOR COMPANY

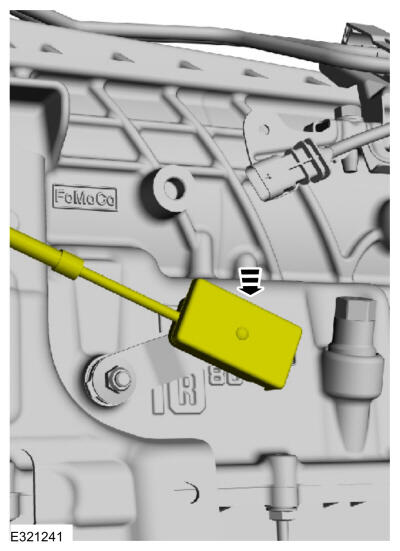

1. Align the detent spring in the center of the TR sensor.
2. Torque
  : 11 Nm
Courtesy of FORD MOTOR COMPANY

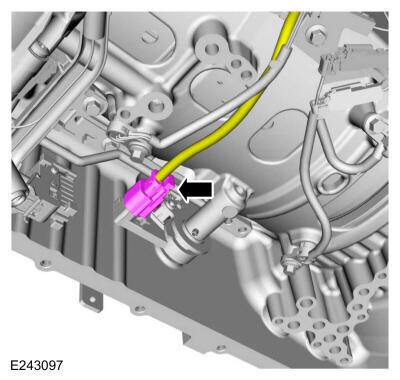

Connect the TR sensor electrical connector.

Courtesy of FORD MOTOR COMPANY

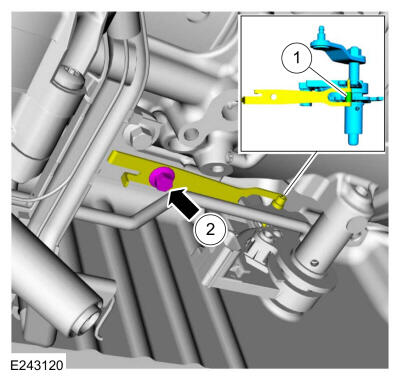

Connect the selector lever cable from the transmission manual lever.

Courtesy of FORD MOTOR COMPANY
Install the main control valve body. Refer to: Main Control Valve Body .
Install the dual catalytic converter y-pipe Refer to: Dual Catalytic Converter Y-Pipe - RWD . Refer to: Dual Catalytic Converter Y-Pipe - AWD . Refer to: Dual Catalytic Converter Y-Pipe - RWD . Refer to: Dual Catalytic Converter Y-Pipe - AWD .
Adjust the selector lever cable. Refer to: Selector Lever Cable Adjustment - 3.5L Duratec (202kW/275PS) . Refer to: Selector Lever Cable Adjustment - 3.5L EcoBoost (235kW/320PS) .
