Selector Lever Cable Adjustment - 3.5L Duratec (202kW 275PS)
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
Selector Lever Cable Adjustment - 3.5L Duratec (202kW/275PS)
Materials
| Name | Specification |
|---|---|
| Automatic Transmission Fluid | WSS-M2C949-A, |
Adjustment
- With the vehicle in Neutral, position it on a hoist. Refer to: JACKING AND LIFTING

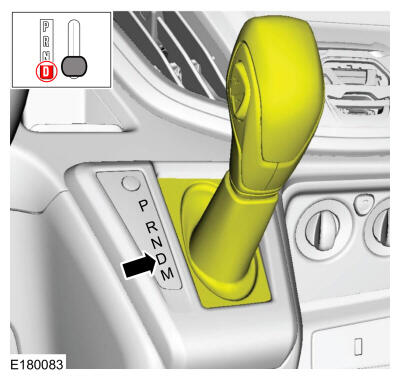

- Set the selector lever to the Drive (D) position.
Four-Wheel Drive (4WD) vehicles
- Remove the front subframe. Refer to:REMOVAL

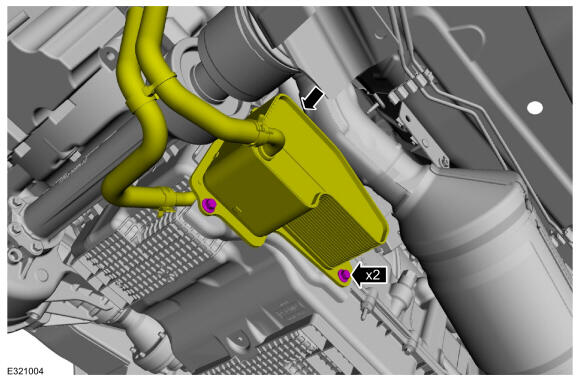

- Remove the nut, bolts and position aside the transmission fluid cooler.
All vehicles

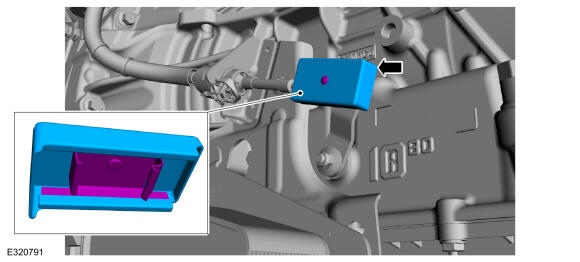

- Remove the heat shield.

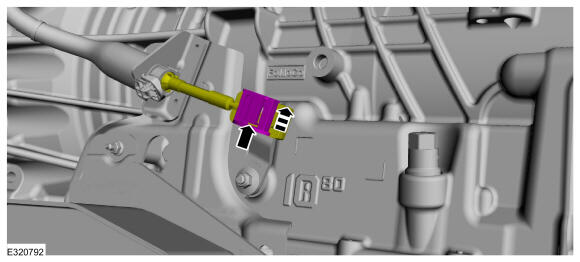

- Gently pry the latch up and slide the lock tab up.

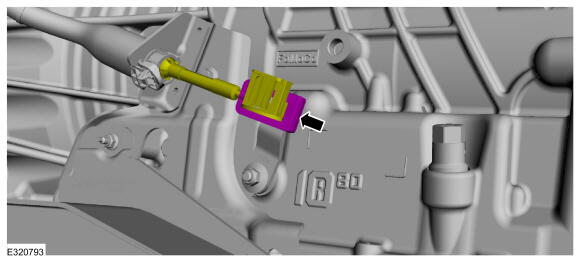

- Disconnect the selector lever cable from the manual control lever.
-
- Rotate the manual control lever clockwise until it stops.
- Rotate the manual control lever counterclockwise 3 detents.
- Connect the selector lever cable to the manual control lever.
-
NOTE: After locking the adjuster, pull back on the adjuster to make sure it is securely installed.

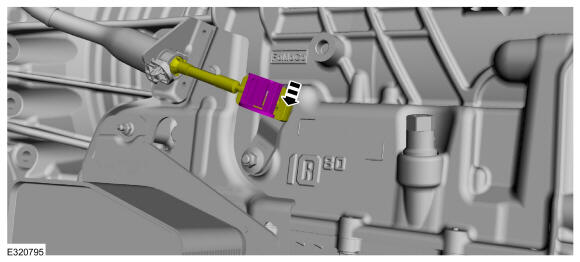

Slide the lock tab down into place.
- Install the heat shield.
Four-Wheel Drive (4WD) vehicles

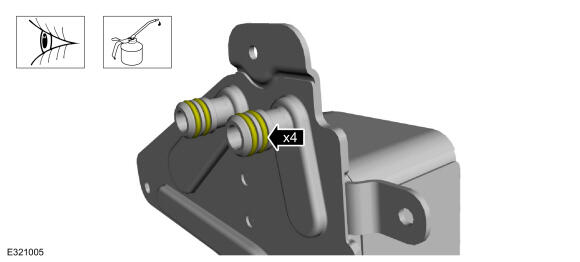

- Inspect the transmission fluid cooler O-ring seals and install new O-ring seals if necessary. Lubricate the O-ring seals.
Material: Automatic Transmission Fluid (WSS-M2C949-A,)
- Position back the transmission fluid cooler and install the bolts and the nut.
Torque: Nut: 11 Nm Bolts: 11 Nm
- Install the front subframe. Refer to: FRONT SUBFRAME
- Check the transmission fluid level and adjust as necessary. Refer to: Transmission Fluid Level Check
.
All vehicles
- Verify that the vehicle starts in PARK and NEUTRAL only and that the reverse lamps illuminate in REVERSE only.
