Transmission - LHD AWD: Installation

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Prior to installing a new transmission or an overhauled transmission with a new main control, record the solenoid strategy identification tag. If a new main control was installed, install the replacement solenoid body tag over the original identification tag.

NOTE: If the transmission is not positioned on the dowel pins, damage to the transmission may occur.

If the dowel pins were pulled out of the engine block during removal, install new dowel pins in the engine block.

Courtesy of FORD MOTOR COMPANY
Lubricate the torque converter pilot hub with multi-purpose grease.
Material: Grease - Multi Purpose (ESB-M1C93-B)

Courtesy of FORD MOTOR COMPANY

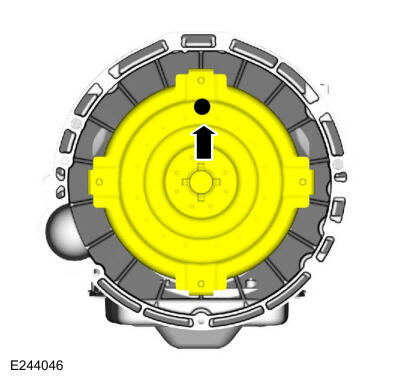

If the transmission has a new torque converter align the sticker to the 12 o'clock position.

Courtesy of FORD MOTOR COMPANY

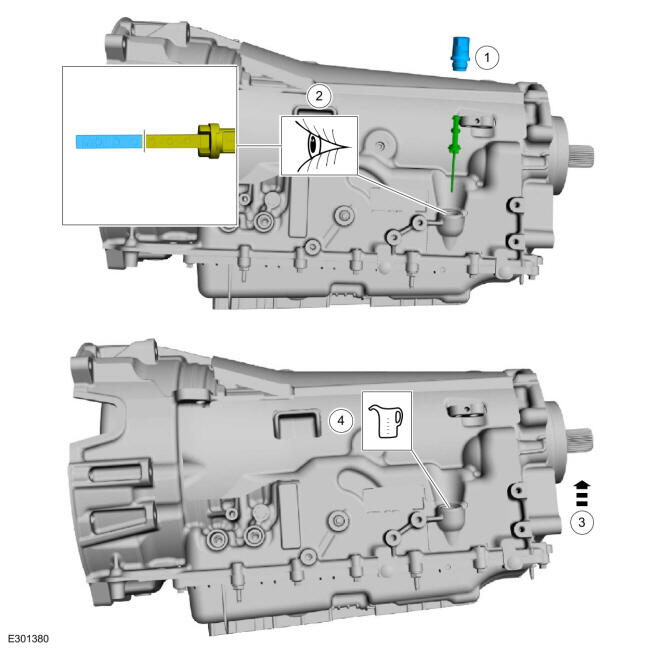

NOTE: If transmission is being replaced, remove the transmission fluid fill plug and verify that the transmission is filled with transmission fluid.

NOTE: If transmission was disassembled, add transmission fluid to the transmission.
1. Remove the transmission fluid fill plug transmission fluid level indicator assembly.
  Torque: 26 Nm
2. Verify transmission is filled with transmission fluid.
3. Slightly tilt the transmission rearward.
4. If the transmission was disassembled, add 11.35L (12 qt) of transmission fluid to the transmission through the transmission fluid fill hole.
Courtesy of FORD MOTOR COMPANY

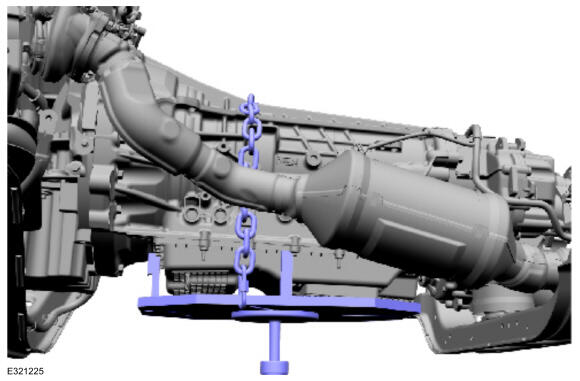

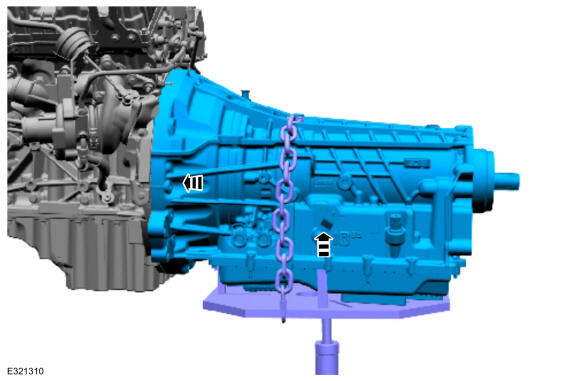

Using the high-lift transmission jack, position the transmission into the vehicle behind the engine.Use the General Equipment: Transmission Jack

Courtesy of FORD MOTOR COMPANY

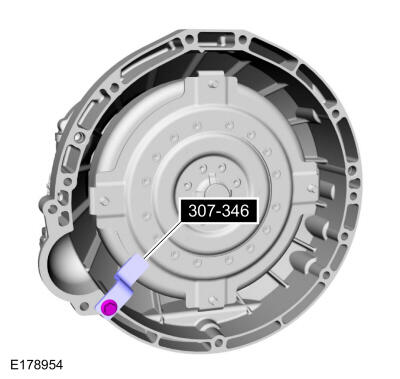

Remove the special tool.Use Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.

Courtesy of FORD MOTOR COMPANY
Align the index-mark made during removal.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure the torque converter is fully seated in the transmission before aligning the transmission to the engine.

NOTE: With the transmission in a horizontal position, move it toward the engine and position it on the dowel pins.

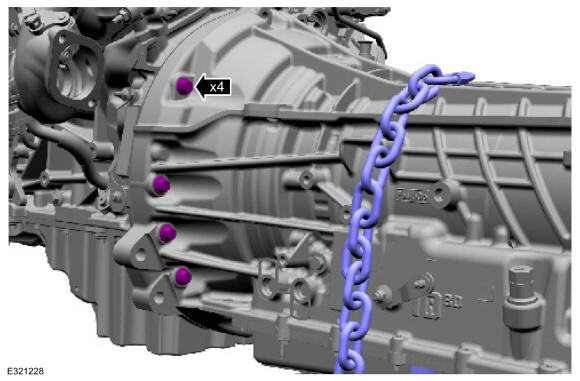

Install the RH side bellhousing bolts.

Torque: 48 Nm

Courtesy of FORD MOTOR COMPANY
Install the LH side bellhousing bolts and the selector lever cable bracket.
Torque: 48 Nm

Courtesy of FORD MOTOR COMPANY
Position the bracket and install the upper bellhousing bolts.
Torque: 48 Nm

Courtesy of FORD MOTOR COMPANY
Install the lower bellhousing bolt.
Torque: 48 Nm

Courtesy of FORD MOTOR COMPANY

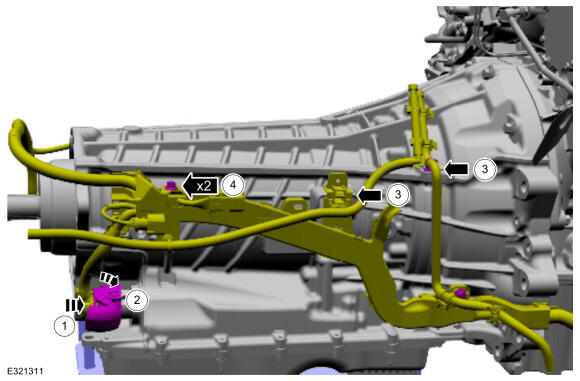

1. Connect the wiring connector.
2. Lock the electrical connector.
3. Attach the harness and vent retainers.
4. Install the harness retaining bolts.
  Torque: 35 Nm
Courtesy of FORD MOTOR COMPANY

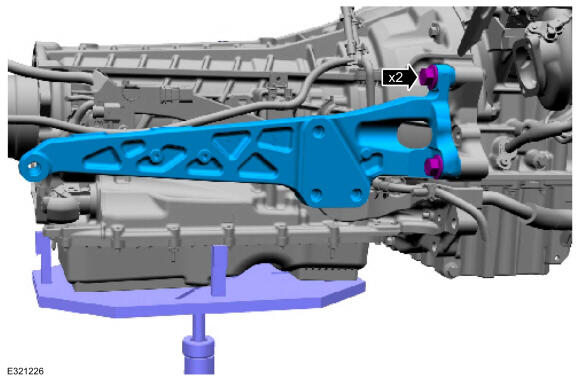

Install the support bracket and the bolts.
Torque: 400 Nm

Courtesy of FORD MOTOR COMPANY
Remove the high-lift transmission jack and support.Use the General Equipment: Transmission Jack

Courtesy of FORD MOTOR COMPANY

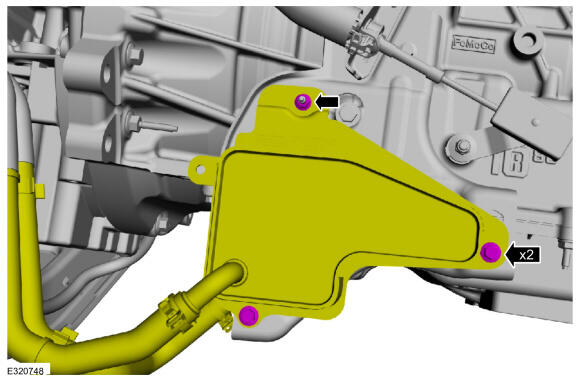

Position the bracket and install the retaining bolt.
Torque: 40 Nm

Courtesy of FORD MOTOR COMPANY

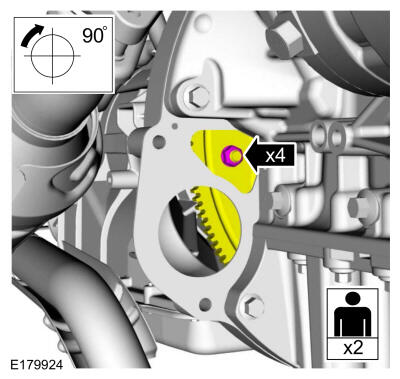

NOTE: Using the crankshaft pulley bolt, turn the engine clockwise.

Install the new torque converter nuts.

Torque: 48 Nm

Courtesy of FORD MOTOR COMPANY
Install the access cover and the pin-type retainers.

Courtesy of FORD MOTOR COMPANY
Install the starter motor. Refer to: Starter Motor . Refer to: Starter Motor .
Install the transmission fluid cooler bracket and the retainers.
Torque: 26 Nm

Courtesy of FORD MOTOR COMPANY

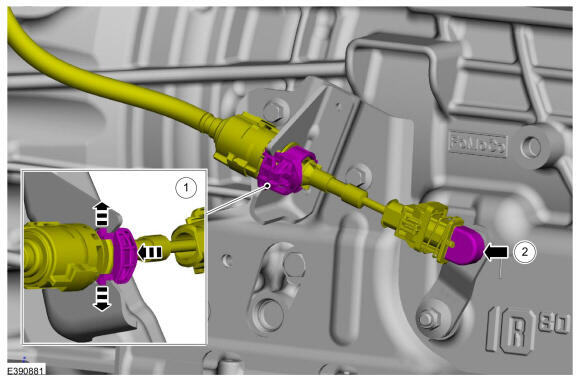

1. Connect the selector lever cable to the bracket.
2. Connect the selector lever cable to the manual control lever.
Courtesy of FORD MOTOR COMPANY

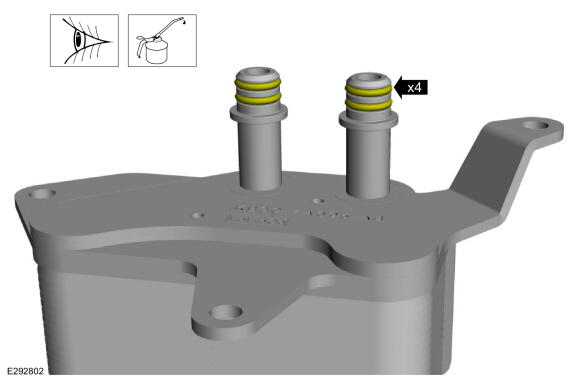

Inspect the transmission fluid cooler O-ring seals and install new O-ring seals if necessary. Lubricate the O-ring seals.
Material: Automatic Transmission Fluid (WSS-M2C949-A,)

Courtesy of FORD MOTOR COMPANY
Position the transmission fluid cooler, install the retainers.
Torque: 11 Nm

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Refer to: Axle Assembly .
2. Refer to: FRONT SUBFRAME
Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY . Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES .
Verify the selector lever cable is correctly adjusted. Refer to: Selector Lever Cable Adjustment - 3.5L EcoBoost (235kW/320PS) . Refer to: Selector Lever Cable Adjustment - 3.5L Duratec (202kW/275PS) .
After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure using a diagnostic scan tool.
If a new transmission or a new main control was installed, the solenoid body strategy must be updated. Refer to: Transmission Strategy Download .
If the transmission was overhauled, the adaptive learning drive cycle must be updated. Refer to: Adaptive Learning Drive Cycle .
While driving the vehicle, use the scan tool to verify that the TFT has reached a temperature of 96.7 deg.C-102 deg.C (206 deg.F-215 deg.F). This will circulate the transmission fluid through the torque converter and the transmission fluid cooling system, eliminating any trapped air in the transmission fluid cooling system.
Check the transmission fluid level. Refer to: Transmission Fluid Level Check .
