Cylinder Head RH: Installation

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

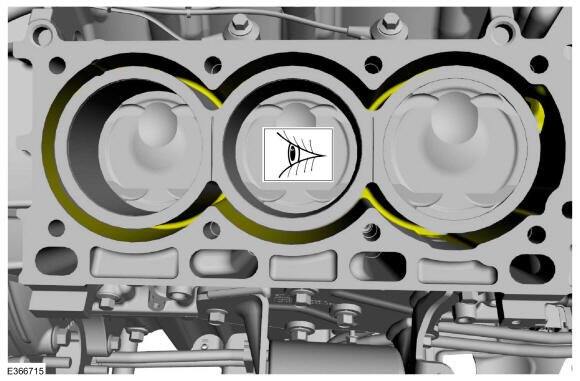

Inspect for any debri before installing the RH water jacket.

Courtesy of FORD MOTOR COMPANY

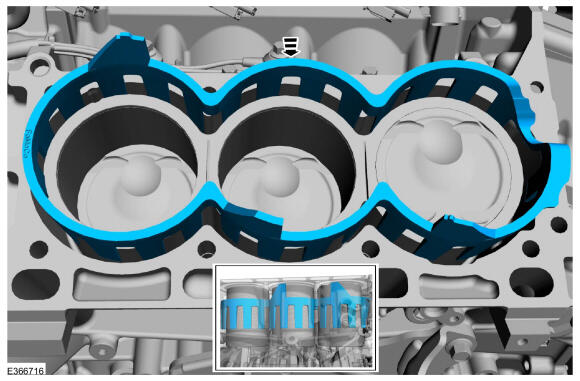

Install the RH water jacket flush with the bottom of the block.

Courtesy of FORD MOTOR COMPANY

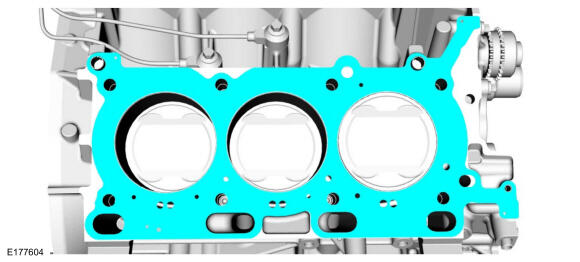

Install the cylinder head gasket.

Courtesy of FORD MOTOR COMPANY
NOTE: If the cylinder head is replaced, a new secondary timing chain tensioner will need to be installed.

NOTE: Install new cylinder head bolts.

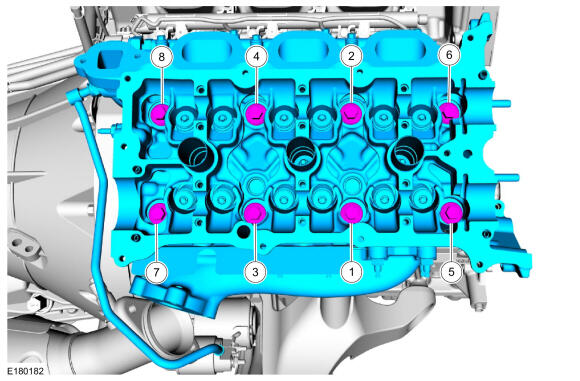

Install the cylinder head and the new bolts. Tighten in sequence in 5 stages.

Torque: Stage 1: 20 Nm Stage 2: 35 Nm Stage 3: 90deg. Stage 4: 90deg. Stage 5: 45deg.

Courtesy of FORD MOTOR COMPANY

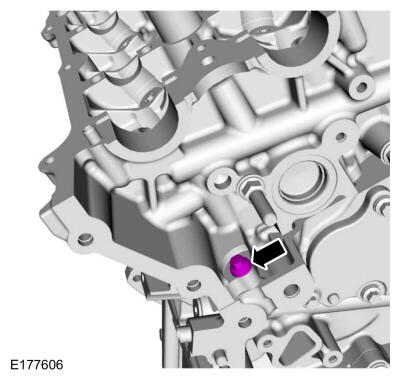

Install the M6 bolt.
Torque: 10 Nm

Courtesy of FORD MOTOR COMPANY

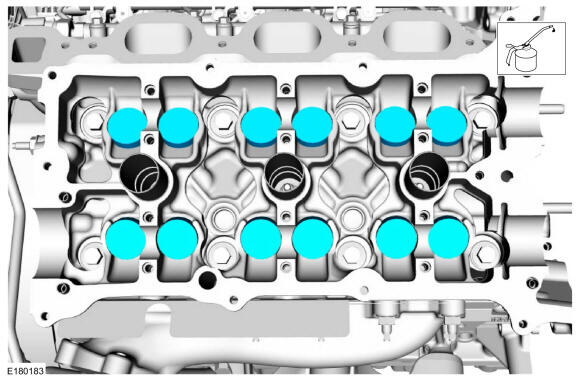

NOTE: The valve tappets must be installed in their original positions.

Lubricate the valve tappets with clean engine oil and install.

Material: Engine Oil - 5W30 - Synthetic Blend (WSS-M2C946-B1)

Courtesy of FORD MOTOR COMPANY

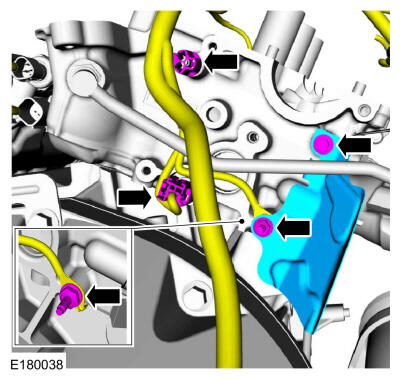

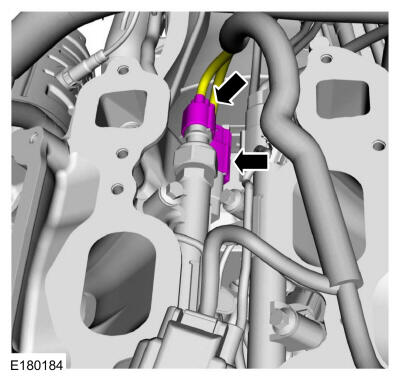

- Connect the CHT sensor electrical connector and wiring harness retainer.
- Install the stud bolt.
  Torque: 10 Nm
- Install the heat shield and retainers.
  Torque: 10 Nm
Courtesy of FORD MOTOR COMPANY
Connect the fuel rail pressure sensor and RH fuel charge harness electrical connectors.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that a new high pressure fuel tube and a new high pressure fuel tube bracket bolt are installed.

NOTE: Install the new high pressure fuel tube, the high pressure fuel tube flare nuts, and the new bracket bolt and tighten finger tight at this stage. Tighten in the sequence shown.

NOTE: Calculate the correct torque wrench setting for the following torque using the Torque Wrench Adapter Formulas.

Courtesy of FORD MOTOR COMPANY
1. Tighten the high pressure fuel tube-to-RH fuel rail tube flare nut.
  Torque: Stage 1: 15 Nm Stage 2: Tighten an additional 45 degrees or 50 Nm (37 lb-ft), whichever comes first. : 45deg.
2. Tighten the high pressure fuel tube-to-LH fuel rail tube flare nut.
  Torque: Stage 1: 15 Nm Stage 2: Tighten an additional 45 degrees or 50 Nm (37 lb-ft), whichever comes first. : 45deg.
3. Tighten the high pressure fuel tube bracket bolt.
  Torque: Stage 1: 10 Nm Stage 2: 45deg.
Courtesy of FORD MOTOR COMPANY

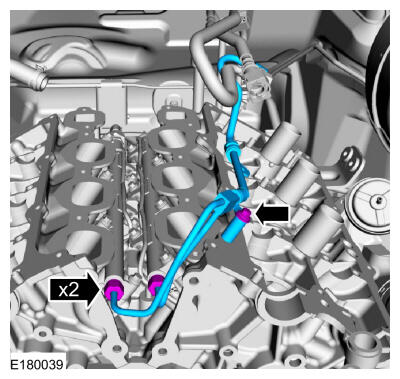

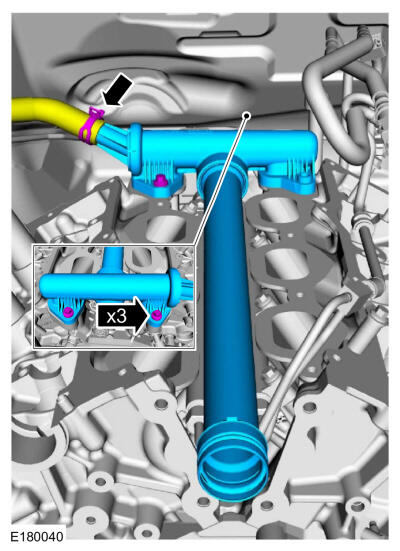

- Using new gaskets, install the coolant crossover manifold and coolant inlet tube assembly and bolts.
  Torque: Stage 1: 10 Nm Stage 2: 45deg.
- Connect the heater hose.Use the General Equipment: Hose Clamp Remover/Installer
Courtesy of FORD MOTOR COMPANY
NOTE: Do not use power tools to remove the bolt or damage to the upper RH timing chain guide may occur.

Install the RH timing chain guide and the bolt.

Torque: 10 Nm

Courtesy of FORD MOTOR COMPANY
Install the RH camshafts. Refer to: Camshafts .
Install the RH turbocharger. Refer to: INSTALLATION
Connect the battery ground cable. For Single Battery, Refer to: BATTERY - VEHICLES WITH: SINGLE BATTERY or For Dual Battery, Refer to: BATTERY - VEHICLES WITH: DUAL BATTERIES
- Remove the oil pan drain plug and drain the engine oil.Use the General Equipment: Oil Drain Equipment

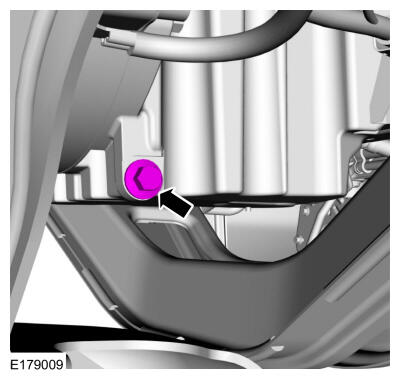

- Install the oil pan drain plug.
  Torque: 27 Nm
Courtesy of FORD MOTOR COMPANY

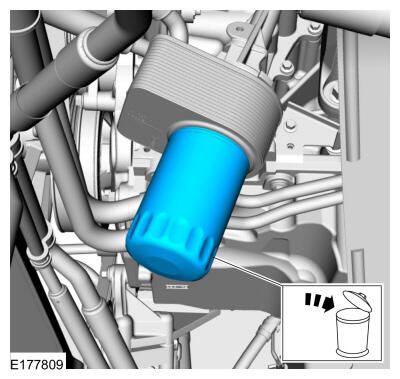

Remove and discard the engine oil filter.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not lubricate the engine oil filter seal.

Install a new engine oil filter.

Torque: Stage 1: 5 Nm Stage 2: 180deg.

Courtesy of FORD MOTOR COMPANY

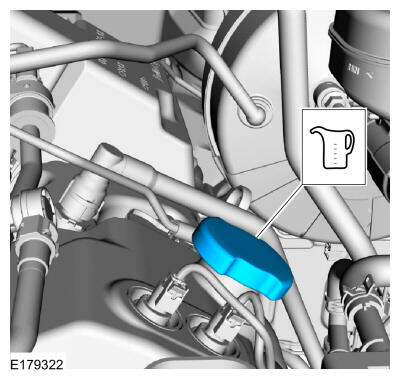

Fill the engine with clean engine oil. Refer to: Engine Oil Draining and Filling
Material: Engine Oil - 5W30 - Synthetic Blend (WSS-M2C946-B1)

Courtesy of FORD MOTOR COMPANY
Road test the vehicle.
