Engine Oil Draining and Filling
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
Special Tool(s) / General Equipment
| Oil Drain Equipment |
|---|
Activation
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: JACKING AND LIFTING
-

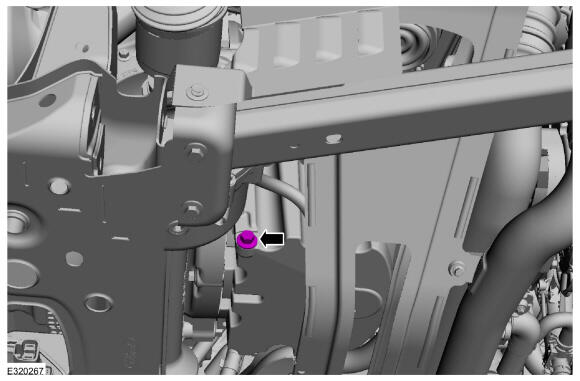

- Remove the oil pan drain plug and drain the engine oil.Use the General Equipment: Oil Drain Equipment
- Install the oil drain plug.
Torque: 27 Nm

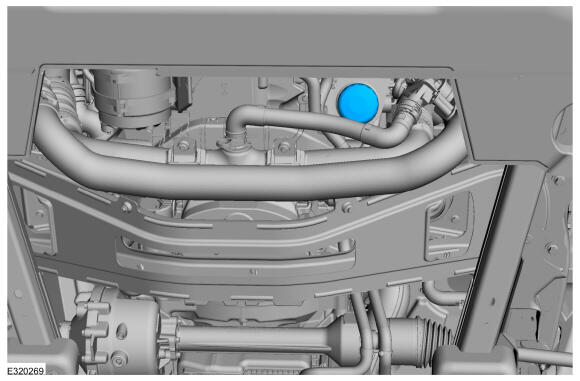

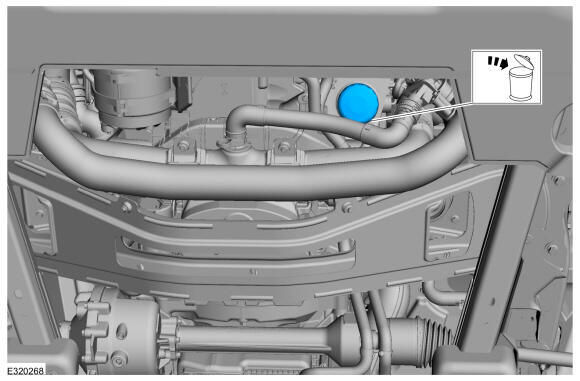

- Remove and discard the oil filter.
- Install a new oil filter.
Torque: Stage 1: 5 Nm Stage 2: 180deg.

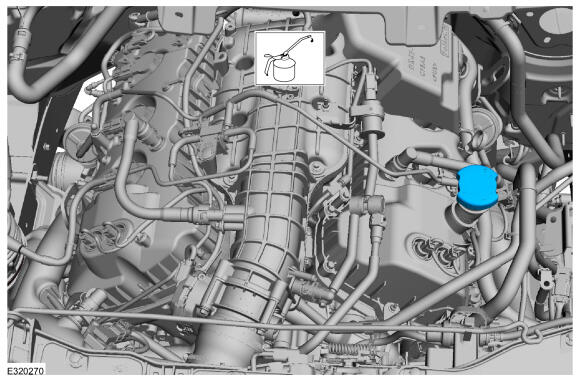

- Fill the engine with clean engine oil. Refer to: Specifications .
