Pinpoint Test A: B0001:11, B0001:12, B0001:13, B0001:1A

  1. Refer to SUPPLEMENTAL RESTRAINT SYSTEM for schematic and connector information.

    Normal Operation and Fault Conditions

    The RCM continuously monitors the driver airbag stage 1 circuits for the following faults:

    • Resistance out of range
    • Unexpected voltage
    • Short to ground
    • Faulted driver airbag

    If a fault is detected, the RCM stores DTC B0001:11, B0001:12, B0001:13 or B0001:1A in memory and sends a message to the IPC to illuminate the airbag warning indicator.

    The RCM analyzes the deployment loop resistance to determine if a fault exists. The value displayed in the PID is the deployment loop resistance measured by the RCM. If the value displayed is lower or higher than the desired range (refer to diagram below), the RCM can set a DTC. As the deployment loop resistance drifts farther outside the desired range, the chance for a DTC increases. Small variations in resistance can occur due to the effect of road vibrations on terminal fit. Crimps and terminals can be affected by stress and harness movement and can cause an increase in resistance due to wire strain. These variables can result in an intermittent fault. For this reason, the test requires the PID value to be within the desired range before the fault is considered repaired, regardless if the module is reporting an on-demand DTC at the time of diagnosis. Following this direction helps make sure that minor changes in resistance do not create a repeat concern. This test uses process of elimination to diagnose each part of the deployment loop circuit including:

    • Wiring
    • Connections
    • Clockspring
    • Driver airbag
    • RCM

    GFD769504Courtesy of FORD MOTOR COMPANY

    • 1 - May set DTC
    • 2 - Desired range

    DTC Fault Trigger Conditions

    DTC Description Fault Trigger Condition
    RCM B0001:11 Driver Frontal Stage 1 Deployment Control: Circuit Short To Ground A fault is indicated when the RCM senses a short to ground on either driver airbag stage 1 circuit for more than 6 seconds.
    RCM B0001:12 Driver Frontal Stage 1 Deployment Control: Circuit Short To Battery A fault is indicated when the RCM senses a short to voltage on either driver airbag stage 1 circuit for more than 6 seconds.
    RCM B0001:13 Driver Frontal Stage 1 Deployment Control: Circuit Open A fault is indicated when the RCM measures more than the desired resistance range between driver airbag stage 1 circuits for more than 6 seconds.
    RCM B0001:1A Driver Frontal Stage 1 Deployment Control: Circuit Resistance Below Threshold A fault is indicated when the RCM measures less than the desired resistance range between driver airbag stage 1 circuits for more than 6 seconds.

    Possible Sources

    • Wiring, terminals or connectors
    • Clockspring
    • Driver airbag
    • RCM

    WARNING: Incorrect repair techniques or actions can cause an accidental Supplemental Restraint System (SRS) deployment. Never compromise or depart from these instructions. Failure to precisely follow all instructions could result in serious personal injury from an accidental deployment.
    NOTE: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may cause damage to the connector.
    NOTE: Most faults are due to connector and/or wiring concerns. Carry out a thorough inspection and verification before proceeding with the pinpoint test.
    NOTE: Only disconnect or reconnect SRS components when instructed to do so within a pinpoint test step. Failure to follow this instruction may result in incorrect diagnosis of the SRS.
    NOTE: Always make sure the correct SRS component is being installed. Parts released for other vehicles may not be compatible even if they appear physically similar. Check the part number listed in the Ford parts catalog to make sure the correct component is being installed. If an incorrect SRS component is installed, Diagnostic Trouble Codes (DTCs) may set.
    NOTE: The SRS must be fully operational and free of faults before releasing the vehicle to the customer.

  2. A1 RETRIEVE RCM (RESTRAINTS CONTROL MODULE) DIAGNOSTIC TROUBLE CODES (DTCS)

    WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

    REFER to: Pyrotechnic Device Health and Safety Precautions .

    • Ignition ON.

    • Using a diagnostic scan tool, perform RCM self-test.

    Was DTC B0001:11, B0001:12, B0001:13 or B0001:1A retrieved on-demand during self-test?

    Yes  This fault cannot be cleared until it is corrected and the DTC is no longer retrieved on-demand during self-test.If DTC U3003:16 or U3003:17 is retrieved on-demand, DIAGNOSE those Diagnostic Trouble Codes (DTCs) first. GO to Pinpoint Test BA If DTC U3003:16 or U3003:17 is not retrieved on-demand during self-test, DIAGNOSE the driver airbag Diagnostic Trouble Codes (DTCs).For DTC B0001:13 or B0001:1A, GO to A2 For DTC B0001:11, GO to A12 For DTC B0001:12, GO to A15
    No  This is an intermittent fault when present as a CMDTC only.If DTC U3003:16 or U3003:17 is retrieved on-demand, DIAGNOSE those Diagnostic Trouble Codes (DTCs) first. GO to Pinpoint Test BA If DTC U3003:16 or U3003:17 is not retrieved on-demand during self-test, DIAGNOSE the driver airbag Continuous Memory Diagnostic Trouble Codes (CMDTCs).For DTC B0001:13 or B0001:1A, GO to A20 For DTC B0001:11, GO to A21 For DTC B0001:12, GO to A22

  3. A2 CHECK THE DRIVER FRONTAL STAGE 1 DEPLOYMENT CONTROL RESISTANCE (DEPLOY_00_R) PID (PARAMETER IDENTIFICATION)

    Access the RCM and monitor the DEPLOY_00_R (mOhm) PID

    • Monitor and record the value of the PID.

    Does the PID value read between 1.95 and 3.88 ohms?

    Yes  GO to A19
    No  GO to A3

  4. A3 CHECK THE DRIVER FRONTAL STAGE 1 DEPLOYMENT CONTROL RESISTANCE (DEPLOY_00_R) PID (PARAMETER IDENTIFICATION) WHILE CARRYING OUT THE HARNESS TEST

    • Remove the steering column shrouds to access the SCCM /clockspring connectors. REFER to: Steering Column Shrouds .

    Access the RCM and monitor the DEPLOY_00_R (mOhm) PID

    • While monitoring the PID, carry out the harness test of the driver airbag circuits and accessible connectors (including any inline connectors) by wiggling and flexing the wire harness, connectors, tilting and rotating the steering wheel frequently. Record the resistance value indicated by the PID.

    Does the PID value read between 1.95 and 3.88 ohms while carrying out the harness test?

    Yes  DEPOWER the SRS. REFER to: Supplemental Restraint System (SRS) Depowering . REPAIR the connector, terminals or wire harness or INSTALL a new clockspring as needed. Refer to OEM_CONNECTOR_REPAIR_PROCEDURES for schematic and connector information. GO to A24
    No  For PID value less than 1.95 ohms, GO to A4 For PID value greater than 3.88 ohms, GO to A8

  5. A4 CHECK THE DRIVER FRONTAL STAGE 1 DEPLOYMENT CONTROL DTC (DIAGNOSTIC TROUBLE CODE) FOR A FAULT STATUS CHANGE (LOW RESISTANCE INDICATED)

    NOTE: This pinpoint test step attempts to change the fault reported by the RCM by inducing a different fault condition. If the reported fault changes, this indicates the RCM is functioning correctly and is not the source of the fault.

    • Ignition OFF.

    • Ignition ON.

    • Using a diagnostic scan tool, perform RCM self-test.

    • DIAGNOSTIC TIP:

      When viewing Diagnostic Trouble Codes (DTCs) with the driver airbag disconnected, open circuit faults are normally retrieved on stage 1.

    Did the on-demand DTC change from B0001:1A to B0001:13?

    Yes  GO to A17
    No  GO to A5

  6. A5 CHECK THE DRIVER FRONTAL STAGE 1 DEPLOYMENT CONTROL DTC (DIAGNOSTIC TROUBLE CODE) FOR A FAULT STATUS CHANGE (LOW RESISTANCE INDICATED) (CLOCKSPRING DISCONNECTED)

    NOTE: This pinpoint test step attempts to change the fault reported by the RCM by inducing a different fault condition. If the reported fault changes, this indicates the RCM is functioning correctly and is not the source of the fault.

    • Ignition OFF.

    • Disconnect Clockspring C218A.

    • Ignition ON.

    • Using a diagnostic scan tool, perform RCM self-test.

    • DIAGNOSTIC TIP:

      When viewing Diagnostic Trouble Codes (DTCs) with the clockspring/SCCM disconnected, open circuit faults are normally retrieved on stage 1.

    Did the on-demand DTC change from B0001:1A to B0001:13?

    Yes  GO to A18
    No  GO to A6

  7. A6 CHECK FOR A SHORT BETWEEN DRIVER AIRBAG STAGE 1 CIRCUITS

    • Ignition OFF.

    • Measure:
      Positive Lead Measurement / Action Negative Lead
      C218A Pin 1
      GFD769505Courtesy of FORD MOTOR COMPANY
      		 C218A Pin 2

    Is the resistance greater than 10, 000 ohms?

    Yes  GO to A19
    No  GO to A7

  8. A7 CHECK THE RCM (RESTRAINTS CONTROL MODULE) FOR LOW RESISTANCE

    • Measure:
      Positive Lead Measurement / Action Negative Lead

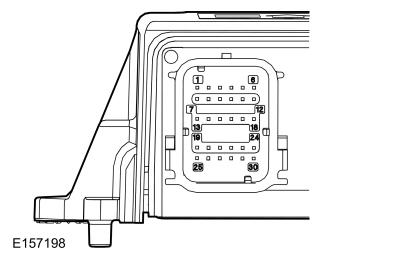

      GFD769506Courtesy of FORD MOTOR COMPANY

      C310A, pin 29, component side
      GFD769505Courtesy of FORD MOTOR COMPANY
      GFD769506Courtesy of FORD MOTOR COMPANY

      C310A, pin 30, component side

    Is the resistance greater than 10, 000 ohms?

    Yes  REPAIR the driver airbag stage 1 circuit(s) for a short together. Refer to OEM_CONNECTOR_REPAIR_PROCEDURES for schematic and connector information. GO to A24
    No  GO to A19

  9. A8 CHECK THE DRIVER AIRBAG STAGE 1 CIRCUITS FOR AN OPEN

    • Ignition OFF.

    • Measure:
      Positive Lead Measurement / Action Negative Lead
      C310A Pin 29
      GFD769505Courtesy of FORD MOTOR COMPANY
      		 C216A Pin 1
      C310A Pin 30
      GFD769505Courtesy of FORD MOTOR COMPANY
      		 C216A Pin 2

    Are the resistances less than 1 ohm?

    Yes  GO to A10
    No  GO to A9

  10. A9 CHECK THE DRIVER AIRBAG STAGE 1 CIRCUITS FOR AN OPEN (CLOCKSPRING DISCONNECTED)

    • Disconnect Clockspring C218A.

    • Measure:
      Positive Lead Measurement / Action Negative Lead
      C310A Pin 29
      GFD769505Courtesy of FORD MOTOR COMPANY
      		 C218A Pin 1
      C310A Pin 30
      GFD769505Courtesy of FORD MOTOR COMPANY
      		 C218A Pin 2

    Are the resistances less than 0.5 ohm?

    Yes  GO to A18
    No  REPAIR the circuit(s). Refer to OEM_CONNECTOR_REPAIR_PROCEDURES for schematic and connector information. GO to A24

  11. A10 CHECK THE DRIVER AIRBAG STAGE 1 DEPLOYMENT CONTROL DTC (DIAGNOSTIC TROUBLE CODE) FOR A FAULT STATUS CHANGE (OPEN INDICATED)

    NOTE: This pinpoint test step attempts to change the fault reported by the RCM by inducing a different fault condition. If the reported fault changes, this indicates the RCM is functioning correctly and is not the source of the fault.

    • Connect a fused jumper wire:
      Lead 1 Measurement / Action Lead 2
      C216A Pin 1
      GFD769507Courtesy of FORD MOTOR COMPANY
      		 C216A Pin 2

    • Ignition ON.

    • Using a diagnostic scan tool, perform RCM self-test.

    • DIAGNOSTIC TIP:

      When viewing Diagnostic Trouble Codes (DTCs) with the driver airbag stage 1 circuits shorted together, a low resistance fault is normally retrieved on stage 1.

    Was DTC B0001:1A retrieved on-demand during self-test?

    Yes  REMOVE the fused jumper wire and GO to A17
    No  REMOVE the fused jumper wire and GO to A11

  12. A11 CHECK THE DRIVER AIRBAG STAGE 1 DEPLOYMENT CONTROL DTC (DIAGNOSTIC TROUBLE CODE) FOR A FAULT STATUS CHANGE (OPEN INDICATED)

    • Ignition OFF.

    • Disconnect Clockspring C218A.

    • Connect a fused jumper wire:
      Lead 1 Measurement / Action Lead 2
      C218A Pin 1
      GFD769507Courtesy of FORD MOTOR COMPANY
      		 C218A Pin 2

    • Ignition ON.

    • Using a diagnostic scan tool, perform RCM self-test.

    • DIAGNOSTIC TIP:

      When viewing Diagnostic Trouble Codes (DTCs) with the driver airbag stage 1 circuits shorted together, a low resistance fault is normally retrieved on stage 1.

    Was DTC B0001:1A retrieved on-demand during self-test?

    Yes  REMOVE the fused jumper wire and GO to A18
    No  REMOVE the fused jumper wire and GO to A19

  13. A12 CHECK THE DRIVER FRONTAL STAGE 1 DEPLOYMENT CONTROL DTC (DIAGNOSTIC TROUBLE CODE) FOR A FAULT STATUS CHANGE (SHORT TO GROUND INDICATED)

    NOTE: This pinpoint test step attempts to change the fault reported by the RCM by inducing a different fault condition. If the reported fault changes, this indicates the RCM is functioning correctly and is not the source of the fault.

    • Ignition OFF.

    • Ignition ON.

    • Using a diagnostic scan tool, perform RCM self-test.

    • DIAGNOSTIC TIP:

      When viewing Diagnostic Trouble Codes (DTCs) with the driver airbag disconnected, open circuit faults are normally retrieved on stage 1.

    Did the on-demand DTC change from B0001:11 to B0001:13?

    Yes  GO to A17
    No  GO to A13

  14. A13 CHECK THE DRIVER FRONTAL STAGE 1 DEPLOYMENT CONTROL DTC (DIAGNOSTIC TROUBLE CODE) FOR A FAULT STATUS CHANGE (SHORT TO GROUND INDICATED) (CLOCKSPRING DISCONNECTED)

    NOTE: This pinpoint test step attempts to change the fault reported by the RCM by inducing a different fault condition. If the reported fault changes, this indicates the RCM is functioning correctly and is not the source of the fault.

    • Ignition OFF.

    • Remove the steering column shrouds to access the SCCM /clockspring connectors. REFER to: Steering Column Shrouds .

    • Disconnect Clockspring C218A.

    • Ignition ON.

    • Using a diagnostic scan tool, perform RCM self-test.

    • DIAGNOSTIC TIP:

      When viewing Diagnostic Trouble Codes (DTCs) with the clockspring/SCCM disconnected, open circuit faults are normally retrieved on stage 1.

    Did the on-demand DTC change from B0001:11 to B0001:13?

    Yes  GO to A18
    No  GO to A14

  15. A14 CHECK THE DRIVER AIRBAG STAGE 1 CIRCUITS FOR A SHORT TO GROUND

    • Ignition OFF.

    • Measure:
      Positive Lead Measurement / Action Negative Lead
      C218A Pin 1
      GFD769505Courtesy of FORD MOTOR COMPANY
      		 Ground
      C218A Pin 2
      GFD769505Courtesy of FORD MOTOR COMPANY
      		 Ground

    Are the resistances greater than 10, 000 ohms?

    Yes  GO to A19
    No  Due to the shorting bar feature in the RCM electrical connector, the fault can exist in either circuit. Do not remove or defeat the shorting bar. REPAIR the circuit(s). Refer to OEM_CONNECTOR_REPAIR_PROCEDURES for schematic and connector information. GO to A24

  16. A15 CHECK THE DRIVER FRONTAL STAGE 1 DEPLOYMENT CONTROL DTC (DIAGNOSTIC TROUBLE CODE) FOR A FAULT STATUS CHANGE (SHORT TO BATTERY INDICATED) (CLOCKSPRING DISCONNECTED)

    NOTE: This pinpoint test step attempts to change the fault reported by the RCM by inducing a different fault condition. If the reported fault changes, this indicates the RCM is functioning correctly and is not the source of the fault.

    • Ignition OFF.

    • Remove the steering column shrouds to access the SCCM /clockspring connectors. REFER to: Steering Column Shrouds .

    • Disconnect Clockspring C218A.

    • Ignition ON.

    • Using a diagnostic scan tool, perform RCM self-test.

    • DIAGNOSTIC TIP:

      When viewing Diagnostic Trouble Codes (DTCs) with the clockspring/SCCM disconnected, open circuit faults are normally retrieved on stage 1.

    Did the on-demand DTC change from B0001:12 to B0001:13?

    Yes  GO to A18
    No  GO to A16

  17. A16 CHECK THE DRIVER AIRBAG STAGE 1 CIRCUITS FOR A SHORT TO VOLTAGE

    • Ignition OFF.

    • Ignition ON.

    • Measure:
      Positive Lead Measurement / Action Negative Lead
      C218A Pin 1
      GFD769508Courtesy of FORD MOTOR COMPANY
      		 Ground
      C218A Pin 2
      GFD769508Courtesy of FORD MOTOR COMPANY
      		 Ground

    Is any voltage present?

    Yes  Due to the shorting bar feature in the RCM electrical connector, the fault can exist in either circuit. Do not remove or defeat the shorting bar. REPAIR the circuit(s). Refer to OEM_CONNECTOR_REPAIR_PROCEDURES for schematic and connector information. GO to A24
    No  GO to A19

  18. A17 CONFIRM THE DRIVER AIRBAG FAULT

    NOTE: Make sure all SRS components and the RCM electrical connectors are connected before carrying out the self-test. If not, Diagnostic Trouble Codes (DTCs) will be recorded.

    • Ignition OFF.

    • Prior to reconnecting any previously disconnected SRS component:

      • inspect connector(s) (including any inline connectors) for pushed-out, loose or spread terminals and loose or frayed wire connections at terminals.
      • inspect wire harness for any damaged, pinched, cut or pierced wires.
      • inspect RCM C310A and C310B Connector Position Assurance (CPA) lever/lock for correct operation.
      • inspect Driver Airbag C216A and make sure the Connector Position Assurance (CPA) tabs are not broken and the clip is not damaged.
      • repair any concerns found. Refer to OEM_CONNECTOR_REPAIR_PROCEDURES for schematic and connector information.

    • Ignition ON.

    • Using a diagnostic scan tool, perform RCM self-test.

    Was the original DTC retrieved on-demand during self-test?

    Yes  INSTALL a new driver airbag. REFER to: Driver Airbag . GO to A24
    No  In the process of diagnosing the fault, the fault condition has become intermittent. Do not install any new SRS components at this time. Install SRS components only when directed to do so in the pinpoint test.For DTC B0001:13 or B0001:1A, GO to A20 For DTC B0001:11, GO to A21 For DTC B0001:12, GO to A22

  19. A18 CONFIRM THE CLOCKSPRING FAULT

    NOTE: Make sure all SRS components and the RCM electrical connectors are connected before carrying out the self-test. If not, Diagnostic Trouble Codes (DTCs) will be recorded.

    • Ignition OFF.

    • Prior to reconnecting any previously disconnected SRS component:

      • inspect connector(s) (including any inline connectors) for pushed-out, loose or spread terminals and loose or frayed wire connections at terminals.
      • inspect wire harness for any damaged, pinched, cut or pierced wires.
      • inspect RCM C310A and C310B Connector Position Assurance (CPA) lever/lock for correct operation.
      • repair any concerns found. Refer to OEM_CONNECTOR_REPAIR_PROCEDURES for schematic and connector information.

    • Connect RCM C310A and C310B (if previously disconnected).

    • Ignition ON.

    • Using a diagnostic scan tool, perform RCM self-test.

    Was the original DTC retrieved on-demand during self-test?

    Yes  INSTALL a new clockspring. REFER to: Clockspring . , or REFER to: Steering Column Control Module (SCCM) . GO to A24
    No  In the process of diagnosing the fault, the fault condition has become intermittent. Do not install any new SRS components at this time. Install SRS components only when directed to do so in the pinpoint test.For DTC B0001:13 or B0001:1A, GO to A20 For DTC B0001:11, GO to A21 For DTC B0001:12, GO to A22

  20. A19 CONFIRM THE RCM (RESTRAINTS CONTROL MODULE) FAULT

    NOTE: Make sure all SRS components and the RCM electrical connectors are connected before carrying out the self-test. If not, Diagnostic Trouble Codes (DTCs) will be recorded.

    • Ignition OFF.

    • Prior to reconnecting any previously disconnected SRS component:

      • inspect connector(s) (including any inline connectors) for pushed-out, loose or spread terminals and loose or frayed wire connections at terminals.
      • inspect wire harness for any damaged, pinched, cut or pierced wires.
      • inspect RCM C310A and C310B Connector Position Assurance (CPA) lever/lock for correct operation.
      • repair any concerns found. Refer to OEM_CONNECTOR_REPAIR_PROCEDURES for schematic and connector information.

    • Install the driver airbag (if previously removed). REFER to: Driver Airbag .

    • Connect Clockspring C218A (if previously disconnected).

    • Connect RCM C310A and C310B (if previously disconnected).

    • Ignition ON.

    • Using a diagnostic scan tool, perform RCM self-test.

    Was the original DTC retrieved on-demand during self-test?

    Yes  CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new RCM. REFER to: Restraints Control Module (RCM) . GO to A24
    No  In the process of diagnosing the fault, the fault condition has become intermittent. Do not install any new SRS components at this time. Install SRS components only when directed to do so in the pinpoint test.For DTC B0001:13 or B0001:1A, GO to A20 For DTC B0001:11, GO to A21 For DTC B0001:12, GO to A22

  21. A20 CHECK THE DRIVER FRONTAL STAGE 1 DEPLOYMENT CONTROL RESISTANCE (DEPLOY_00_R) PID (PARAMETER IDENTIFICATION) FOR AN INTERMITTENT LOW RESISTANCE OR OPEN CIRCUIT FAULT

    • Ignition OFF.

    • Remove the steering column shrouds to access the SCCM /clockspring connectors. REFER to: Steering Column Shrouds .

    • Ignition ON.

    Access the RCM and monitor the DEPLOY_00_R (mOhm) PID

    • While monitoring the PID, carry out the harness test of the driver airbag circuits and accessible connectors (including any inline connectors) by wiggling and flexing the wire harness, connectors, tilting and rotating the steering wheel frequently.

    Does the PID value read between 1.95 and 3.88 ohms?

    Yes  The fault is not present and cannot be recreated at this time. Do not install any new SRS components at this time. Install SRS components only when directed to do so in the pinpoint test. GO to A23
    No  If the driver airbag PID indicates incorrect resistance only when the steering wheel is rotated, INSTALL a new clockspring. REFER to: Clockspring . , or REFER to: Steering Column Control Module (SCCM) . For all other faults, DEPOWER the SRS and REPAIR as necessary. REFER to: Supplemental Restraint System (SRS) Depowering . Refer to OEM_CONNECTOR_REPAIR_PROCEDURES for schematic and connector information. GO to A24

  22. A21 CHECK THE DRIVER FRONTAL STAGE 1 DEPLOYMENT CONTROL CIRCUITS FOR AN INTERMITTENT SHORT TO GROUND FAULT

    • Ignition OFF.

    • Remove the steering column shrouds to access the SCCM /clockspring connectors. REFER to: Steering Column Shrouds .

    • Ignition ON.

    • Attempt to recreate the fault by wiggling connectors (including any inline connectors) and flexing the wire harness, tilting and rotating the steering wheel frequently.

    • Using a diagnostic scan tool, perform RCM self-test.

    Was DTC B0001:11 retrieved on-demand during self-test?

    Yes  DEPOWER the SRS and REPAIR as necessary. REFER to: Supplemental Restraint System (SRS) Depowering . Refer to OEM_CONNECTOR_REPAIR_PROCEDURES for schematic and connector information. GO to A24
    No  The fault is not present and cannot be recreated at this time. Do not install any new SRS components at this time. Install SRS components only when directed to do so in the pinpoint test. GO to A23

  23. A22 CHECK THE DRIVER FRONTAL STAGE 1 DEPLOYMENT CONTROL CIRCUITS FOR AN INTERMITTENT SHORT TO BATTERY FAULT

    • Ignition OFF.

    • Remove the steering column shrouds to access the SCCM /clockspring connectors. REFER to: Steering Column Shrouds .

    • Ignition ON.

    • Attempt to recreate the fault by wiggling connectors (including any inline connectors) and flexing the wire harness, tilting and rotating the steering wheel frequently.

    • Using a diagnostic scan tool, perform RCM self-test.

    Was DTC B0001:12 retrieved on-demand during self-test?

    Yes  DEPOWER the SRS and REPAIR as necessary. REFER to: Supplemental Restraint System (SRS) Depowering . Refer to OEM_CONNECTOR_REPAIR_PROCEDURES for schematic and connector information. GO to A24
    No  The fault is not present and cannot be recreated at this time. Do not install any new SRS components at this time. Install SRS components only when directed to do so in the pinpoint test. GO to A23

  24. A23 CHECK THE HARNESS AND CONNECTORS

    • Ignition OFF.

    • Remove the driver airbag. REFER to: Driver Airbag .

      • Inspect connector(s) (including any inline connectors) for corrosion, loose or spread terminals and loose or frayed wire connections at terminals.
      • Inspect wire harness for any damage, pinched, cut or pierced wires.
      • Inspect RCM C310A and C310B Connector Position Assurance (CPA) lever/lock for correct operation.
      • Inspect Driver Airbag C216A Connector Position Assurance (CPA) tab to verify that it is correctly seated and free of damage.

    Were any concerns found?

    Yes  REPAIR as necessary. Refer to OEM_CONNECTOR_REPAIR_PROCEDURES for schematic and connector information. GO to A24
    No  The fault is not present and cannot be recreated at this time. Do not install any new SRS components at this time. Install SRS components only when directed to do so in the pinpoint test. GO to A24

  25. A24 CHECK FOR ADDITIONAL SRS (SUPPLEMENTAL RESTRAINT SYSTEM) DIAGNOSTIC TROUBLE CODES (DTCS)

    • Ignition OFF.

    • Connect all  previously disconnected SRS components.

    • Ignition ON.

    • NOTE: When selecting Restraints from the Self Test menu, DTCs are retrieved from the RCM, OCSM and BECMB.

      Using a diagnostic scan tool, perform

      Restraints  self-test.

    Are any RCM Diagnostic Trouble Codes (DTCs) retrieved on-demand during self-test?

    Yes  Do not clear any Diagnostic Trouble Codes (DTCs) until all SRS Diagnostic Trouble Codes (DTCs) have been resolved. DIAGNOSE and REPAIR the Diagnostic Trouble Codes (DTCs). REFER to Diagnostic Trouble Code (DTC) Chart
    No  The repair is complete. RETURN the vehicle to the customer.
scientia non olet · About LEMON Manuals
