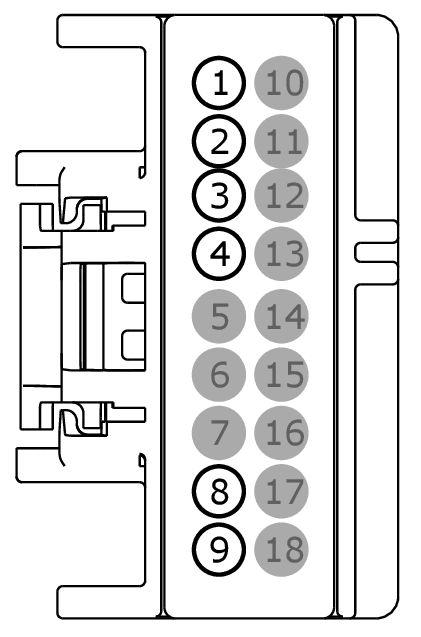

Connector End View C218A - CLOCKSPRING

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C218A	CLOCKSPRING	GY	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
1L2T-14474-CA	DU2Z-14474-BA	0.64
9U5T-14474-MA	DU2Z-14474-BA	0.64
9U5T-14474-LA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CR101 (VT-BN)	0.5	CTRL MOD. - AIR BAG DRIVER 1+	1L2T-14474-CA
2	RR101 (YE-GN)	0.5	CTRL MOD. - AIR BAG DRIVER 1 -	1L2T-14474-CA
3	CR102 (BU)	0.5	CTRL MOD. - AIR BAG DRIVER 2 +	1L2T-14474-CA
4	RR102 (WH)	0.5	CTRL MOD. - AIR BAG DRIVER 2 -	1L2T-14474-CA
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	GD215 (BK-BU)	0.5	GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT	9U5T-14474-MA
9	RRH02 (GN-WH)	0.35	CTRL MOD. - SWITCH HORN	9U5T-14474-LA
10	*	*	Not Used	N/A
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	*	*	Not Used	N/A
14	*	*	Not Used	N/A
15	*	*	Not Used	N/A
16	*	*	Not Used	N/A
17	*	*	Not Used	N/A
18	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1148

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-HKB

Gauge:

18

Pin material:

Silver

Cavities:

18

Vehicle Uses:

• Module - Tire Pressure
• Radio
