Connector End View C310B - RESTRAINTS CONTROL MODULE (RCM)

Connector: Description Color Harness Base Part # Service Pigtail
C310B RESTRAINTS CONTROL MODULE (RCM) BK 14A005 part# N/A Not Available

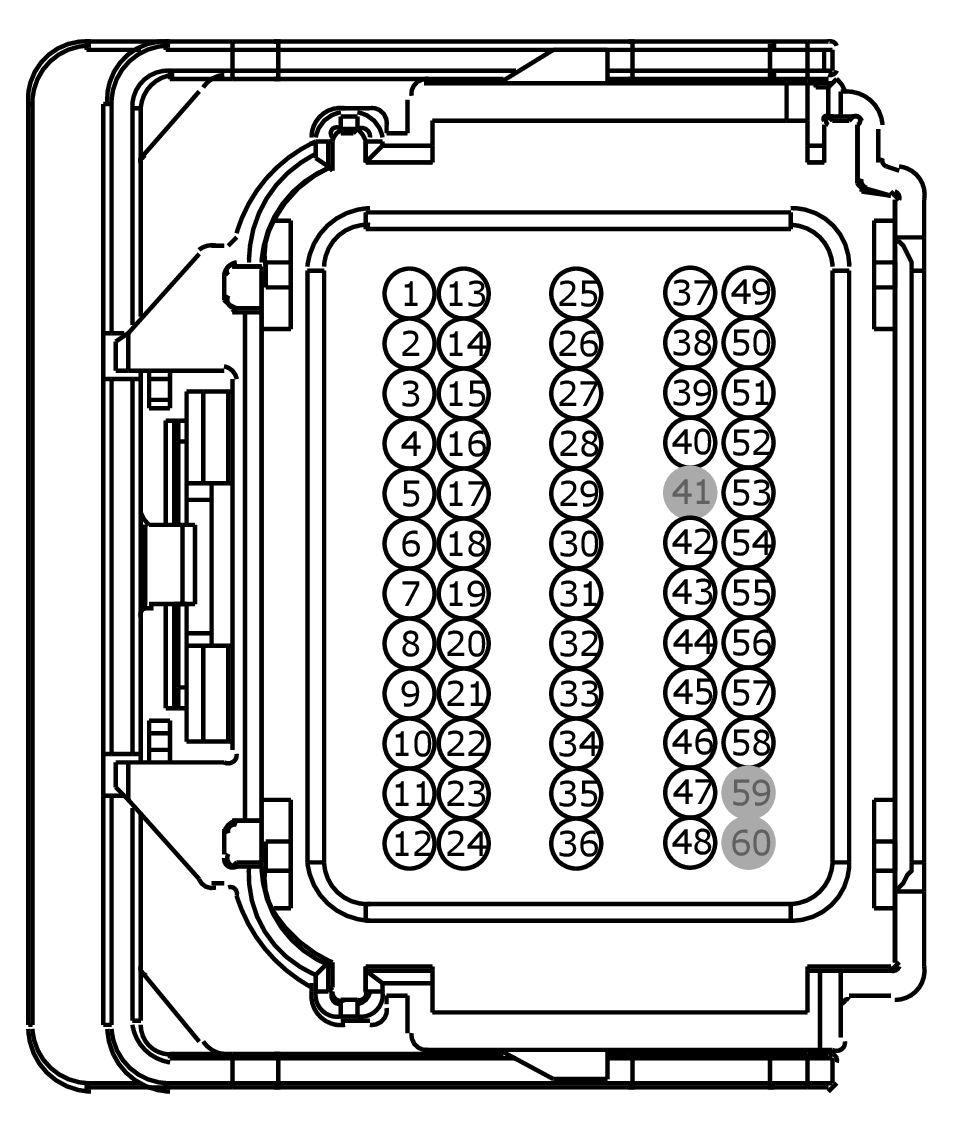

GFDWR203825Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number  Service Part Number  Size
8U5T-14474-BB DU2Z-14474-CAFC 0.64
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 CRP03 (YE-GN) 0.5 CTRL MOD. - ACTUATOR PEDESTRIAN IMPACT HOOD LEFT HAND POS 8U5T-14474-BB
1 CRP04 (BU-GN) 0.5 CTRL MOD. - ACTUATOR PEDESTRIAN IMPACT HOOD RIGHT HAND POS RHD 8U5T-14474-BB
2 RRP04 (GY-BU) 0.5 CTRL MOD. - ACTUATOR PEDESTRIAN IMPACT HOOD RIGHT HAND NEG RHD 8U5T-14474-BB
2 RRP03 (GN-VT) 0.5 CTRL MOD. - ACTUATOR PEDESTRIAN IMPACT HOOD LEFT HAND NEG 8U5T-14474-BB
3 RRP04 (GY-BU) 0.5 CTRL MOD. - ACTUATOR PEDESTRIAN IMPACT HOOD RIGHT HAND NEG 8U5T-14474-BB
3 RRP03 (GN-VT) 0.5 CTRL MOD. - ACTUATOR PEDESTRIAN IMPACT HOOD LEFT HAND NEG RHD 8U5T-14474-BB
4 CRP04 (BU-GN) 0.5 CTRL MOD. - ACTUATOR PEDESTRIAN IMPACT HOOD RIGHT HAND POS 8U5T-14474-BB
4 CRP03 (YE-GN) 0.5 CTRL MOD. - ACTUATOR PEDESTRIAN IMPACT HOOD LEFT HAND POS RHD 8U5T-14474-BB
5 CR1C1 (GY-BU) 0.5 CTRL MOD. - SEAT BELT PRETENSIONER RETRACTOR ROW 2 PASSENGER LH OUTBOARD + 8U5T-14474-BB
5 CR1C2 (BU-GY) 0.5 CTRL MOD. - SEAT BELT PRETENSIONER RETRACTOR ROW 2 PASSENGER RH OUTBOARD + RHD 8U5T-14474-BB
6 RR1C1 (BN-GN) 0.5 CTRL MOD. - SEAT BELT PRETENSIONER RETRACTOR ROW 2 PASSENGER LH OUTBOARD - 8U5T-14474-BB
6 RR1C2 (GN) 0.5 CTRL MOD. - SEAT BELT PRETENSIONER RETRACTOR ROW 2 PASSENGER RH OUTBOARD - RHD 8U5T-14474-BB
7 RR1C2 (GN) 0.5 CTRL MOD. - SEAT BELT PRETENSIONER RETRACTOR ROW 2 PASSENGER RH OUTBOARD - 8U5T-14474-BB
7 RR1C1 (BN-GN) 0.5 CTRL MOD. - SEAT BELT PRETENSIONER RETRACTOR ROW 2 PASSENGER LH OUTBOARD - RHD 8U5T-14474-BB
8 CR1C2 (BU-GY) 0.5 CTRL MOD. - SEAT BELT PRETENSIONER RETRACTOR ROW 2 PASSENGER RH OUTBOARD + 8U5T-14474-BB
8 CR1C1 (GY-BU) 0.5 CTRL MOD. - SEAT BELT PRETENSIONER RETRACTOR ROW 2 PASSENGER LH OUTBOARD + RHD 8U5T-14474-BB
9 CR179 (BU) 0.5 CTRL MOD. - SEAT BELT PRETENSIONER RETRACTOR FRONT PASSENGER OUTBOARD + RHD 8U5T-14474-BB
9 RR179 (GY-BU) 0.5 CTRL MOD. - SEAT BELT PRETENSIONER RETRACTOR FRONT PASSENGER OUTBOARD - Europe 8U5T-14474-BB
10 CR179 (BU) 0.5 CTRL MOD. - SEAT BELT PRETENSIONER RETRACTOR FRONT PASSENGER OUTBOARD + Europe 8U5T-14474-BB
10 RR179 (GY-BU) 0.5 CTRL MOD. - SEAT BELT PRETENSIONER RETRACTOR FRONT PASSENGER OUTBOARD - RHD 8U5T-14474-BB
11 CRP10 (YE-OG) 0.5 SENSOR - PEDESTRIAN CRASH LEFT HAND + 8U5T-14474-BB
11 VRP09 (VT-GN) 0.5 SENSOR - PEDESTRIAN CRASH PASSENGER INNER + RHD 8U5T-14474-BB
12 RRP09 (BU) 0.5 SENSOR - PEDESTRIAN CRASH PASSENGER INNER - RHD 8U5T-14474-BB
12 RRP10 (WH-OG) 0.5 SENSOR - PEDESTRIAN CRASH LEFT HAND - 8U5T-14474-BB
13 CR107 (BU-WH) 0.5 CTRL MOD. - AIR BAG SIDE SEAT MOUNTED ROW 2 DRIVER SIDE + 8U5T-14474-BB
14 RR107 (GN-WH) 0.5 CTRL MOD. - AIR BAG SIDE SEAT MOUNTED ROW 2 DRIVER SIDE - 8U5T-14474-BB
15 RR108 (VT-OG) 0.5 CTRL MOD. - AIR BAG SIDE SEAT MOUNTED ROW 2 PASSENGER SIDE OUTBOARD - 8U5T-14474-BB
16 CR108 (GY-BN) 0.5 CTRL MOD. - AIR BAG SIDE SEAT MOUNTED ROW 2 PASSENGER SIDE OUTBOARD + 8U5T-14474-BB
17 CR111 (BN-WH) 0.5 CTRL MOD. - INFLATABLE CURTAIN PASSENGER SIDE + 8U5T-14474-BB
18 RR111 (YE-VT) 0.5 CTRL MOD. - INFLATABLE CURTAIN PASSENGER SIDE - 8U5T-14474-BB
19 RR188 (WH-VT) 0.5 CTRL MOD. - SEAT BELT PRETENSIONER RETRACTOR FRONT DRIVER OUTBOARD - 8U5T-14474-BB
20 CR188 (VT-GN) 0.5 CTRL MOD. - SEAT BELT PRETENSIONER RETRACTOR FRONT DRIVER OUTBOARD + 8U5T-14474-BB
21 RRP10 (WH-OG) 0.5 SENSOR - PEDESTRIAN CRASH LEFT HAND - RHD 8U5T-14474-BB
21 RRP09 (BU) 0.5 SENSOR - PEDESTRIAN CRASH PASSENGER INNER - 8U5T-14474-BB
22 VRP09 (VT-GN) 0.5 SENSOR - PEDESTRIAN CRASH PASSENGER INNER + 8U5T-14474-BB
22 CRP10 (YE-OG) 0.5 SENSOR - PEDESTRIAN CRASH LEFT HAND + RHD 8U5T-14474-BB
23 VRP02 (BN-WH) 0.5 SENSOR - PEDESTRIAN CRASH RIGHT HAND + 8U5T-14474-BB
24 RRP02 (GN-BN) 0.5 SENSOR - PEDESTRIAN CRASH RIGHT HAND - 8U5T-14474-BB
25 CR109 (BN-BU) 0.5 CTRL MOD. - INFLATABLE CURTAIN DRIVER SIDE + 8U5T-14474-BB
26 RR109 (BU-GN) 0.5 CTRL MOD. - INFLATABLE CURTAIN DRIVER SIDE - 8U5T-14474-BB
27 VR215 (YE-VT) 0.5 SENSOR - SEAT TRACK POSITION DRIVER 8U5T-14474-BB
28 VR216 (GN-OG) 0.5 SENSOR - SEAT TRACK POSITION FRONT PASSENGER 8U5T-14474-BB
28 CR196 (VT-GY) 0.5 CTRL MOD. - PASSENGER PRESENCE DETECTION SENSOR Europe 8U5T-14474-BB
29 RRP01 (VT-WH) 0.5 SENSOR - PEDESTRIAN CRASH LEFT HAND - 8U5T-14474-BB
30 VRP01 (WH-GN) 0.5 SENSOR - PEDESTRIAN CRASH LEFT HAND + 8U5T-14474-BB
31 VR237 (BN-WH) 0.5 SENSOR - SIDE IMPACT PRESSURE FRONT PASSENGER SIDE 8U5T-14474-BB
32 RR175 (YE-OG) 0.5 CTRL MOD. - SENSOR SIDE IMPACT PRESSURE FRONT PASSENGER SIDE - 8U5T-14474-BB
33 RR174 (WH-OG) 0.5 CTRL MOD. - SENSOR SIDE IMPACT PRESSURE FRONT DRIVER SIDE - 8U5T-14474-BB
34 VR236 (BU-OG) 0.5 SENSOR - SIDE IMPACT PRESSURE FRONT DRIVER SIDE 8U5T-14474-BB
35 VRP06 (YE-GY) 0.5 SENSOR - PEDESTRIAN CRASH CENTER + 8U5T-14474-BB
36 RRP06 (BU-BN) 0.5 SENSOR - PEDESTRIAN CRASH CENTER - 8U5T-14474-BB
37 CR106 (GY-VT) 0.5 CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT PASSENGER OUTBOARD + 8U5T-14474-BB
38 RR106 (YE-OG) 0.5 CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT PASSENGER OUTBOARD - 8U5T-14474-BB
39 RR105 (GY-YE) 0.5 CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT DRIVER SIDE - 8U5T-14474-BB
40 CR105 (GN-BU) 0.5 CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT DRIVER SIDE + 8U5T-14474-BB
41 * * Not Used N/A
42 CR167 (YE-VT) 0.5 CTRL MOD. - FUEL SHUTOFF EVENT NOTIFICATION SIGNAL (ENS) 8U5T-14474-BB
43 VR220 (VT-OG) 0.5 SENSOR - SIDE IMPACT ROW 2 PASSENGER SIDE 8U5T-14474-BB
43 VR219 (GN-WH) 0.5 SENSOR - SIDE IMPACT ROW 2 DRIVER SIDE RHD 8U5T-14474-BB
44 RR133 (GY-BN) 0.5 CTRL MOD. - SENSOR SIDE IMPACT ROW 2 DRIVER SIDE - RHD 8U5T-14474-BB
44 RR134 (BN-BU) 0.5 CTRL MOD. - SENSOR SIDE IMPACT ROW 2 PASSENGER SIDE - 8U5T-14474-BB
45 RR133 (GY-BN) 0.5 CTRL MOD. - SENSOR SIDE IMPACT ROW 2 DRIVER SIDE - 8U5T-14474-BB
45 RR134 (BN-BU) 0.5 CTRL MOD. - SENSOR SIDE IMPACT ROW 2 PASSENGER SIDE - RHD 8U5T-14474-BB
46 VR220 (VT-OG) 0.5 SENSOR - SIDE IMPACT ROW 2 PASSENGER SIDE RHD 8U5T-14474-BB
46 VR219 (GN-WH) 0.5 SENSOR - SIDE IMPACT ROW 2 DRIVER SIDE 8U5T-14474-BB
47 VDB26 (GY-BU) 0.35 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW 8U5T-14474-BB
48 VDB25 (GN-OG) 0.35 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH 8U5T-14474-BB
49 CR1B5 (GN-OG) 0.5 CTRL MOD. - SEAT BELT PRETENSIONER ANCHOR FRONT PASSENGER OUTBOARD + 8U5T-14474-BB
50 RR1B5 (BN-BU) 0.5 CTRL MOD. - SEAT BELT PRETENSIONER ANCHOR FRONT PASSENGER OUTBOARD - 8U5T-14474-BB
51 RR1B4 (GY-VT) 0.5 CTRL MOD. - SEAT BELT PRETENSIONER ANCHOR FRONT DRIVER OUTBOARD - 8U5T-14474-BB
52 CR1B4 (GY-YE) 0.5 CTRL MOD. - SEAT BELT PRETENSIONER ANCHOR FRONT DRIVER OUTBOARD + 8U5T-14474-BB
53 RR172 (GN-VT) 0.5 CTRL MOD. - COMMON RETURN FOR RESTRAINTS SENSORS/SWITCHES 8U5T-14474-BB
54 CR201 (GN-BU) 0.5 SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) FRONT DRIVER SIDE 8U5T-14474-BB
55 CR203 (GY-VT) 0.5 SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) FRONT PASSENGER OUTBOARD 8U5T-14474-BB
56 CR204 (BU-GN) 0.5 SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) ROW 2 DRIVER SIDE 8U5T-14474-BB
56 CR206 (BN) 0.5 SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) ROW 2 PASSENGER SIDE OUTBOARD RHD 8U5T-14474-BB
57 CR205 (WH-OG) 0.5 SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) ROW 2 MIDDLE 8U5T-14474-BB
58 CR206 (BN) 0.5 SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) ROW 2 PASSENGER SIDE OUTBOARD 8U5T-14474-BB
58 CR204 (BU-GN) 0.5 SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) ROW 2 DRIVER SIDE RHD 8U5T-14474-BB
59 * * Not Used N/A
60 * * Not Used N/A
