Main Control Valve Body: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The Solenoid Body Strategy Data Download procedure must be performed if a new main control valve body is installed.
- Remove the transmission fluid pan gasket and filter. Refer to: Transmission Fluid Pan, Gasket and Filter .
- Place the vehicle in manual park overide. Refer to: Transmission Park by Wire Manual Release .
- Disconnect the internal wiring harness electrical connector.

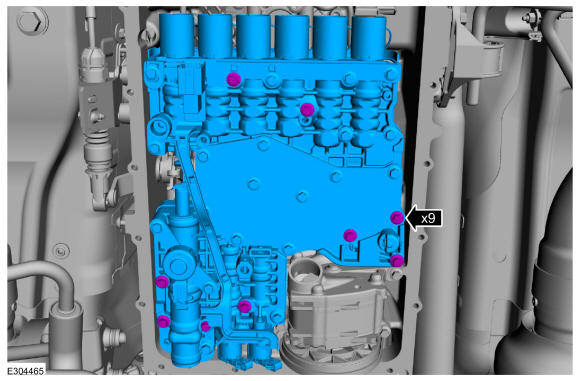

- Remove the main control-to-transmission case bolts and the main control valve body.
- Remove the main control assembly to transmission fluid pump seal.
