Crankcase Vent Oil Separator: Installation
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Do not lubricate the O-ring seal or gasket prior to installation.

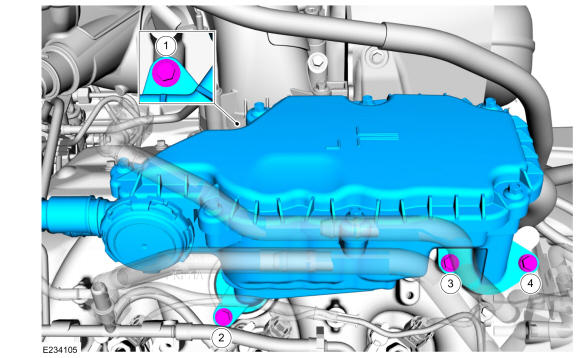

- Install the new crankcase vent oil separator, then install and tighten the crankcase vent oil separator bolts in the sequence shown.
Torque: Stage 1: 89 lb.in (10 Nm) | Stage 2: 45 deg.
-

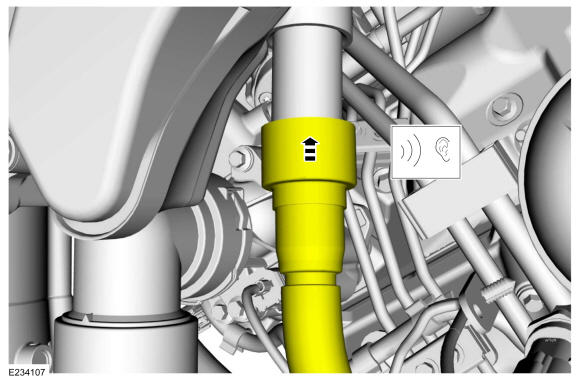

NOTE: The quick connections must be installed onto the tube end along the centerline. The assembly is complete when the tube end bottoms out on the connector with an audible click-snap feel. Correct assembly should be verified by pulling back on the quick connection end.
Connect the crankcase vent oil separator outlet hose to the intake manifold.

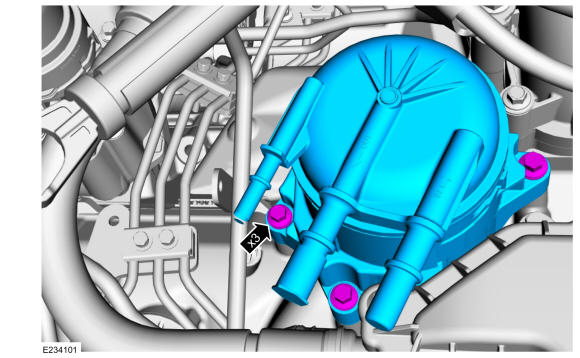

- Install the fuel filter and bracket assembly, then install and tighten the fuel filter and bracket assembly bolts.
Torque: Stage 1: 71 lb.in (8 Nm) | Stage 2: 45 deg.

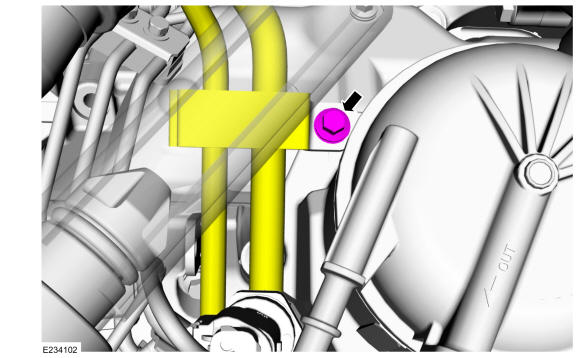

- Install and tighten the new fuel injection pump supply tube assembly bracket bolt in the following 2 stages.
Torque: Stage 1: 89 lb.in (10 Nm) | Stage 2: 45 deg.

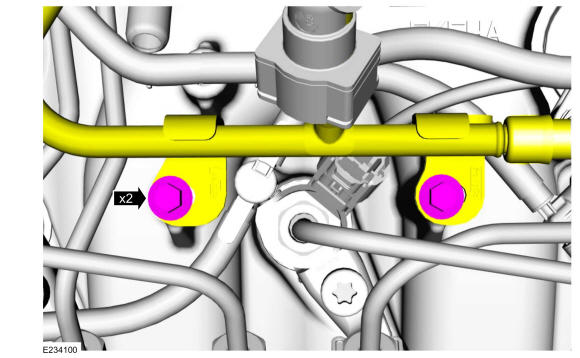

- Install and tighten the new left fuel supply tube bolts in the following 2 stages.
Torque: Stage 1: 89 lb.in (10 Nm) | Stage 2: 45 deg.

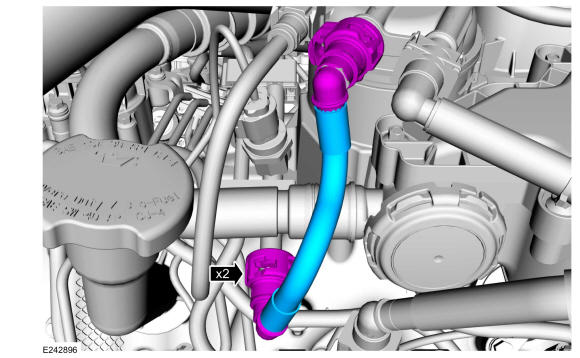

- Connect the fuel filter injector return tube. Refer to: Quick Release Coupling
.

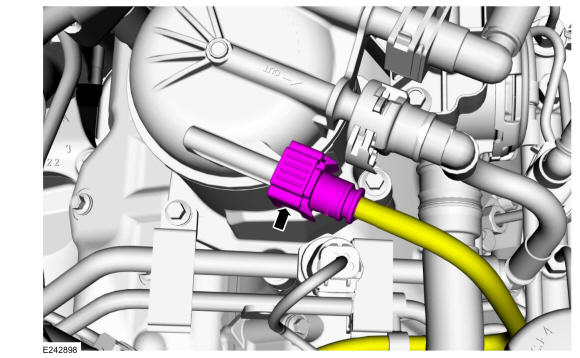

- Connect the fuel filter inlet tube. Refer to: Quick Release Coupling
.

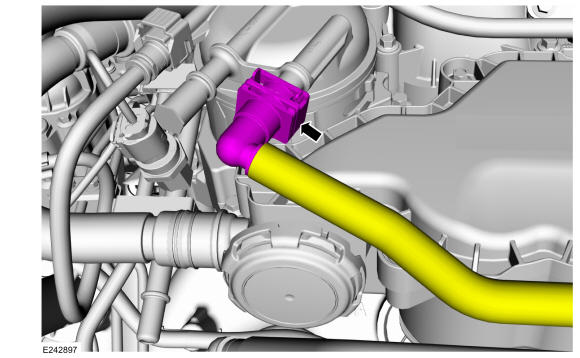

- Install the fuel filter outlet tube. Refer to: Quick Release Coupling
.
- Install the Charge Air Cooler (CAC) intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .
- Connect the battery. Refer to: Battery Disconnect and Connect .
- Bleed the fuel system. Refer to: Fuel System Bleeding .
