Section 16 (Engine - 5.2L 32V Ti-VCT - Supercharged): Removal: Engine

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	303-050 (T70P-6000)Lifting Bracket, Engine
Courtesy of FORD MOTOR COMPANY	303-F047Lifting Bracket, Engine
Courtesy of FORD MOTOR COMPANY	303-F070Support Bar, EngineTKIT-1999A-F/LTTKIT-1999A-FM/FLM
Floor Crane
Trolley Jack
Wooden Block

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - GT500 - Overview .
Release the fuel system pressure. Refer to: Fuel System Pressure Release .
Disconnect the battery ground and positive cables. Refer to: Battery Disconnect and Connect .
Drain the engine cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
Drain the supercharger cooling system. Refer to: Supercharger Cooling System Draining, Filling and Bleeding .
NOTE: Make sure to minimize damage to sealer foam and avoid pulling apart dash seal brackets from retainer pins. Excessive damage may allow engine noise, fumes, air or water to enter the passenger compartment.
1. Remove the steering column dash seal nuts.
2. Loosen the dash seal.
3. Hand start the dash seal nuts.
Courtesy of FORD MOTOR COMPANY
Using a holding device, hold the steering wheel in the straight-ahead position.

Courtesy of FORD MOTOR COMPANY
Remove the following items:
1. NOTE: No disassembly of the hood is required after the hood is removed.

  Hood. Refer to: Hood .
2. Strut tower cross brace. Refer to: Strut Tower Cross Brace - GT500 .
3. Air cleaner outlet pipe.
4. Air cleaner. Refer to: Air Cleaner .
5. Engine cooling system degas bottle. Refer to: Degas Bottle .
6. Cooling fan motor and shroud. Refer to: Cooling Fan Motor and Shroud .
7. Supercharger belt. Refer to: Supercharger Belt .
8. If equipped, remove the crankcase vent oil separator. Refer to: Crankcase Vent Oil Separator - Vehicles With: Race Track Pack .
Remove the fasteners and the battery heat shield.

Courtesy of FORD MOTOR COMPANY

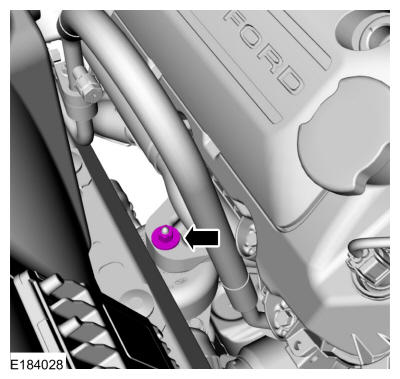

Remove the nut and the engine ground wire from the cowl.

Courtesy of FORD MOTOR COMPANY
Remove the supercharger. Refer to: Supercharger .
Disconnect the PCM electrical connector, the 16 pin electrical connector and detach the wiring harness retainers from the bracket.

Courtesy of FORD MOTOR COMPANY
1. Disconnect the quick release coupling and remove the degas bottle hose. Refer to: Quick Release Coupling .
2. Release the clamp and disconnect the lower radiator hose from the engine.
3. Release the clamp and disconnect the upper radiator hose from the engine.
Courtesy of FORD MOTOR COMPANY
1. Disconnect the quick release couplings and remove the heater hoses from the engine. Refer to: Quick Release Coupling .
2. Release the clamp and remove the degas bottle hose from the engine.
3. Disconnect the engine wiring harness electrical connectors.
4. Disconnect the quick release coupling and remove the crankcase vent hose from the engine. Refer to: Quick Release Coupling .
Courtesy of FORD MOTOR COMPANY
Remove the fasteners and the thermostat housing.

Courtesy of FORD MOTOR COMPANY

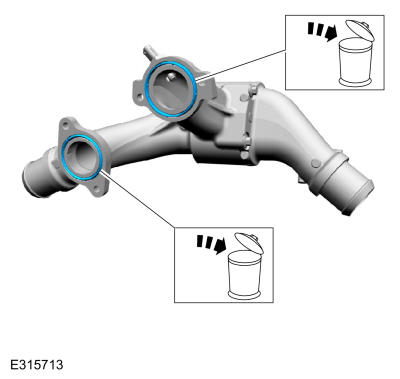

Remove and discard the gaskets.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the coolant outlet.

Courtesy of FORD MOTOR COMPANY

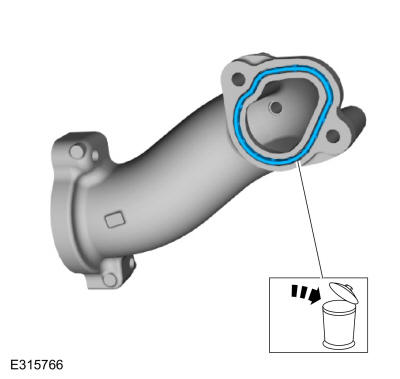

Remove and discard the gasket.

Courtesy of FORD MOTOR COMPANY

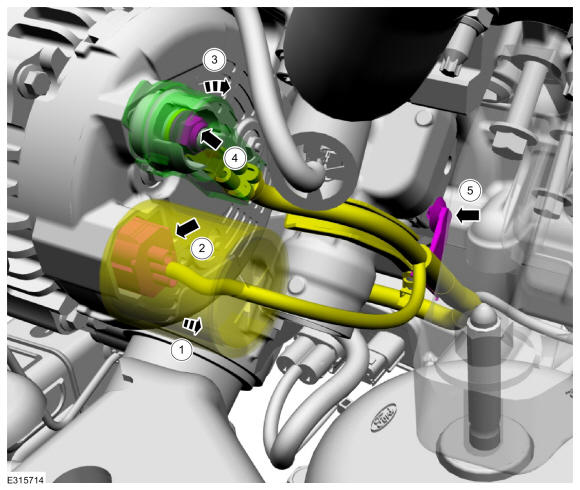

1. Position the insulator aside.
2. Disconnect the wiring harness electrical connector.
3. Position the cover aside.
4. Remove the nut and disconnect the B+ cable.
5. Detach the wiring harness retainer.
Courtesy of FORD MOTOR COMPANY
Remove the following items:
1. LH catalytic converter. Refer to: Catalytic Converter LH .
2. RH catalytic converter. Refer to: Catalytic Converter RH .
3. Transmission fluid cooler tubes. Refer to: Transmission Fluid Cooler Tubes .
4. Starter motor. Refer to: Starter Motor .
Drain the engine oil and remove and discard the oil filter. Refer to: Engine Oil Draining and Filling .

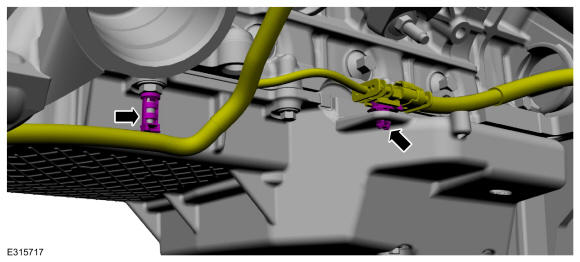

Remove the bolts and disconnect the oil cooler hoses.

Courtesy of FORD MOTOR COMPANY
Detach the wiring harness retainers.

Courtesy of FORD MOTOR COMPANY
1. Remove the nut and disconnect the ground cable.
2. Remove the nut and detach the wiring harness bracket from the oil pan stud bolt.
3. Disconnect the wiring harness electrical connectors.
4. Detach the wiring harness retainers.
Courtesy of FORD MOTOR COMPANY

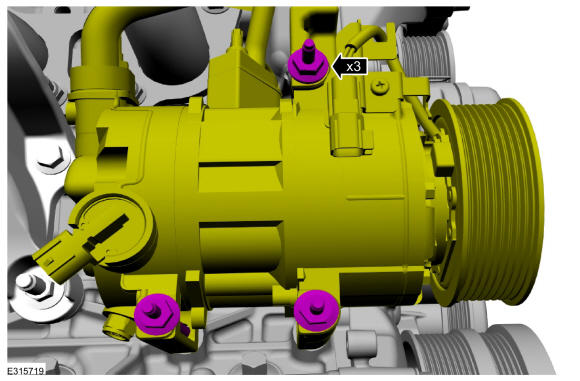

Remove the stud bolts and position the A/C compressor aside.

Courtesy of FORD MOTOR COMPANY
WARNING: Do not reuse steering column shaft bolts. This may result in fastener failure and steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

WARNING: DO NOT hammer, pry or force steering column and column shafts during installation or removal. Failure to follow this instruction may cause damage to steering components that could lead to loss of steering control during vehicle operation and could result in serious personal injury or death.

WARNING: DO NOT attempt to remove or install the steering column lower u-joint at the steering gear without first loosening the steering column dash seal and fasteners. Failure to follow this instruction may cause damage to steering components that could lead to loss of steering control during vehicle operation and could result in serious personal injury or death.

Detach the steering column lower shaft from the lower coupling.
1. Remove and discard the steering column shaft bolt.
2. Pull apart the steering column shaft from the coupling.
3. Secure the lower shaft to the frame rail to avoid damage to the shaft.
Courtesy of FORD MOTOR COMPANY
Position the wiring harness bracket aside and remove the top transmission-to-engine stud bolts.

Courtesy of FORD MOTOR COMPANY
Remove the LH engine mount nut.

Courtesy of FORD MOTOR COMPANY
Remove the RH engine mount nut.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not position the legs of the Engine Support Bar on the fenders. Instead, the legs should be positioned on the body structure. Failure to follow these instructions may result in body damage.

Install Special Service Tool: 303-F047 Lifting Bracket, Engine., 303-050 (T70P-6000) Lifting Bracket, Engine., 303-F070 Support Bar, Engine.

Courtesy of FORD MOTOR COMPANY

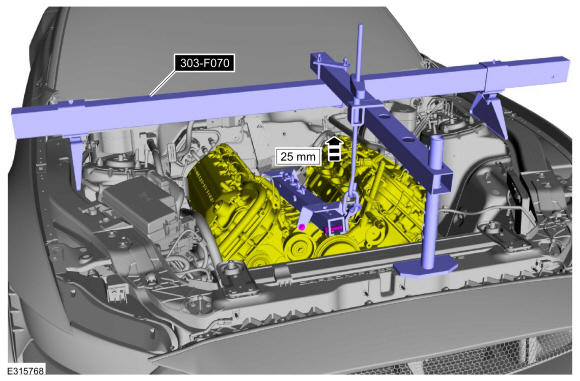

Using the special tools, raise the engine 25 mm (1 inch). Use Special Service Tool: 303-F070 Support Bar, Engine., 303-050 (T70P-6000) Lifting Bracket, Engine., 303-F047 Lifting Bracket, Engine.

Courtesy of FORD MOTOR COMPANY
Remove the fasteners and the RH engine mount bracket.

Courtesy of FORD MOTOR COMPANY
Remove the fasteners and the LH motor mount bracket.

Courtesy of FORD MOTOR COMPANY
- Remove the nut and the wiring harness retaining clip.
- Remove RH transmission-to-engine stud bolt.
Courtesy of FORD MOTOR COMPANY
Remove LH transmission-to-engine bolt and stud bolt.

Courtesy of FORD MOTOR COMPANY

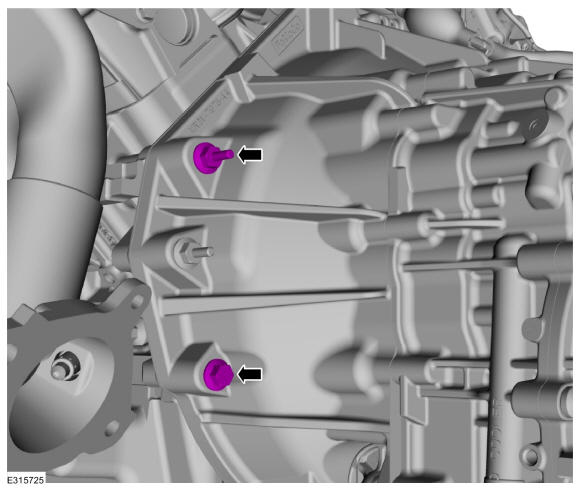

Remove the transmission-to-engine stud bolts.

Courtesy of FORD MOTOR COMPANY

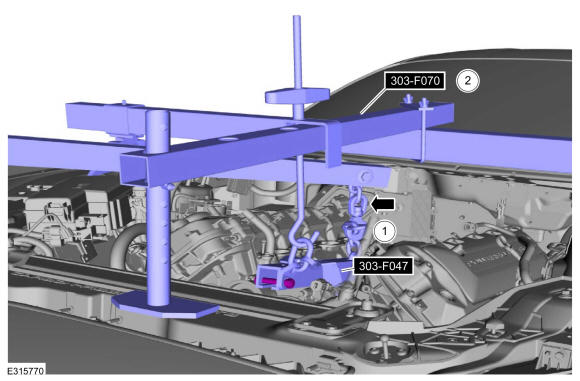

1. Attach the Floor Crane to the Engine Lifting Bracket. Use Special Service Tool: 303-F047 Lifting Bracket, Engine.Use the General Equipment: Floor Crane
2. Once the engine is supported by the Floor Crane, remove the special tool. Remove Special Service Tool: 303-F070 Support Bar, Engine.
Courtesy of FORD MOTOR COMPANY

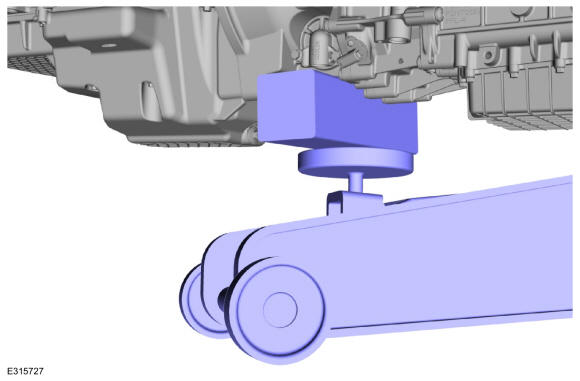

NOTE: Do not support the transmission by the fluid pan, failure to follow this instruction may result in serious damage to the transmission.

Install a jack and wooden block under the transmission bell housing to support the transmission. Use the General Equipment: Wooden BlockUse the General Equipment: Trolley Jack

Courtesy of FORD MOTOR COMPANY

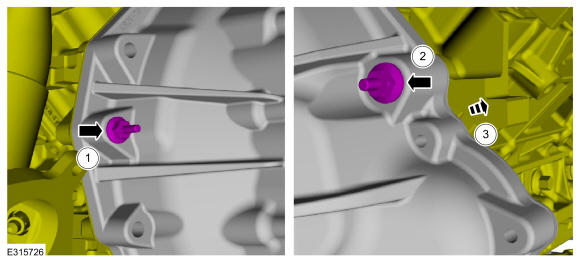

1. Remove the LH transmission-to-engine bolt and stud bolt.
2. Remove theRH transmission-to-engine bolt and stud bolt.
3. Separate the engine from the transmission.
Courtesy of FORD MOTOR COMPANY

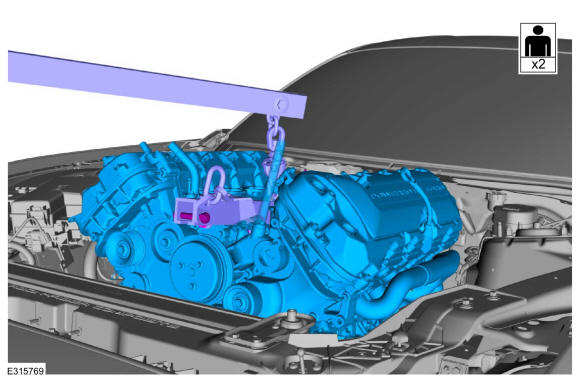

With the aid of an assistant, use the Floor Crane to lift the engine from the vehicle. Use the General Equipment: Floor Crane

Courtesy of FORD MOTOR COMPANY
