Fuel System Pressure Release

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Pressure release

NOTE: The fuel pump driver module assembly is located in the luggage compartment, behind the left side luggage compartment carpet.

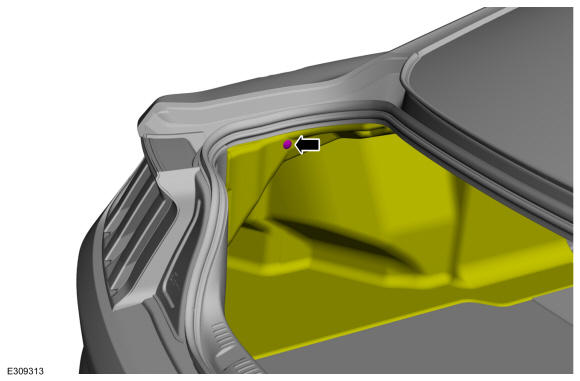

Remove the luggage compartment left side carpet retainer, then position the carpet aside.

Courtesy of FORD MOTOR COMPANY

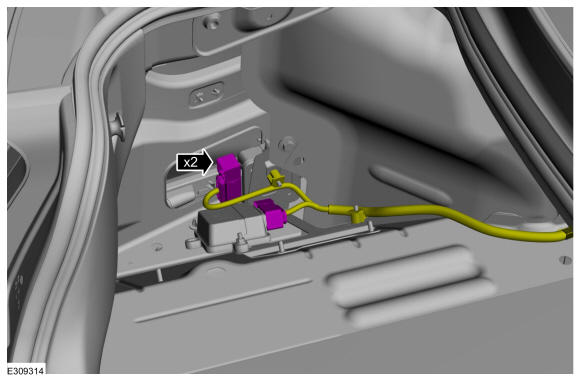

Disconnect the fuel pump driver module electrical connectors.

Courtesy of FORD MOTOR COMPANY
Start the engine and allow it to idle until the engine stalls.
Turn the ignition switch to the off position.
When the fuel system service is complete, reconnect the two Fuel Pump Control Module electrical connectors.

Courtesy of FORD MOTOR COMPANY
Install the left side luggage compartment carpet, then install the retainer.

Courtesy of FORD MOTOR COMPANY
Cycle the ignition key and wait 3 seconds to pressurize the fuel system. Check for leaks before starting the engine.
When service on the fuel system is complete, start the engine and check for leaks.
