Cylinder Head RH: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the new cylinder head gasket.
    GFD716695Courtesy of FORD MOTOR COMPANY
  2. NOTE: The cylinder head bolts are torque-to-yield and must not be reused. New cylinder head bolts must be installed.

    Install the cylinder head and the new bolts.

    Torque: Stage 1: 22 lb.ft (30 Nm) | Stage 2: 37 lb.ft (50 Nm) | Stage 3: Tighten an additional : 90° | Stage 4: Tighten an additional : 90° | Stage 5: Tighten an additional : 90°

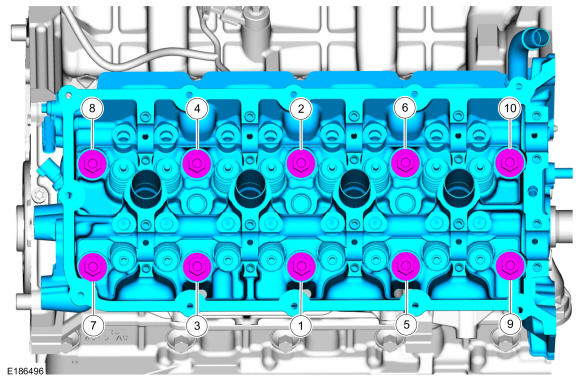

    Fig 1: RH Cylinder Head Tightening Sequence
    GFD717198Courtesy of FORD MOTOR COMPANY
  3. NOTE: Do not position the legs of the Engine Support Bar on the fenders. Instead, the legs should be positioned on the body structure. Failure to follow these instructions may result in body damage.

    Install Special Service Tool: 303-639 Support Bracket, Engine., 303-F070 Support Bar, Engine.

    GFD717170Courtesy of FORD MOTOR COMPANY
  4. Using the special tools, raise the engine 25 mm (1 inch). Use Special Service Tool: 303-F070 Support Bar, Engine., 303-639 Support Bracket, Engine.
    GFD717171Courtesy of FORD MOTOR COMPANY
  5. Remove the fasteners and the RH engine mount bracket.
    GFD717192Courtesy of FORD MOTOR COMPANY
  6. Install new studs.

    Torque: 18 lb.ft (25 Nm)

    GFD717199Courtesy of FORD MOTOR COMPANY
  7. Install a new gasket.
    GFD717200Courtesy of FORD MOTOR COMPANY
    1. Position the RH exhaust manifold onto the engine and finger-tighten the nuts.
    2. Tighten the nuts in the sequence shown.

      Torque: Stage 1: 18 lb.ft (24 Nm) | Stage 2: 24 lb.ft (32 Nm)

    GFD717201Courtesy of FORD MOTOR COMPANY
  8. Install the RH engine mount bracket and the fasteners.

    Torque: Bolts: 41 lb.ft (55 Nm) Stud bolts: 46 lb.ft (63 Nm)

    GFD717192Courtesy of FORD MOTOR COMPANY

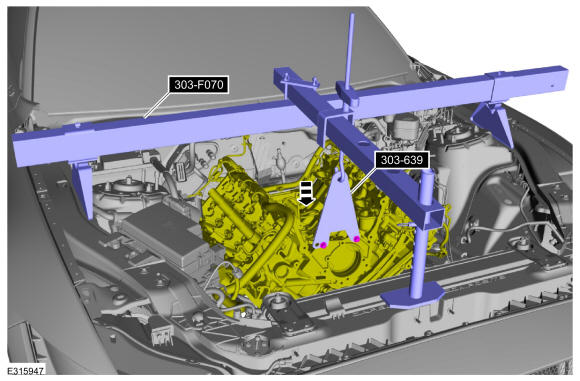

  9. Using the special tools, lower the engine onto the engine mounts. Use Special Service Tool: 303-F070 Support Bar, Engine., 303-639 Support Bracket, Engine.
    GFD717196Courtesy of FORD MOTOR COMPANY
  10. Remove Special Service Tool: 303-F070 Support Bar, Engine., 303-639 Support Bracket, Engine.
    GFD717170Courtesy of FORD MOTOR COMPANY

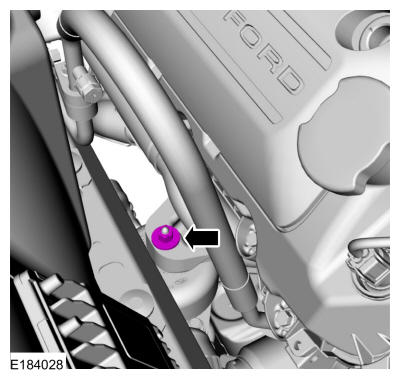

  11. Install the RH engine mount nut.

    Torque: 46 lb.ft (63 Nm)

    GFD717191Courtesy of FORD MOTOR COMPANY
  12. Install the LH engine mount nut.

    Torque: 46 lb.ft (63 Nm)

    GFD717168Courtesy of FORD MOTOR COMPANY

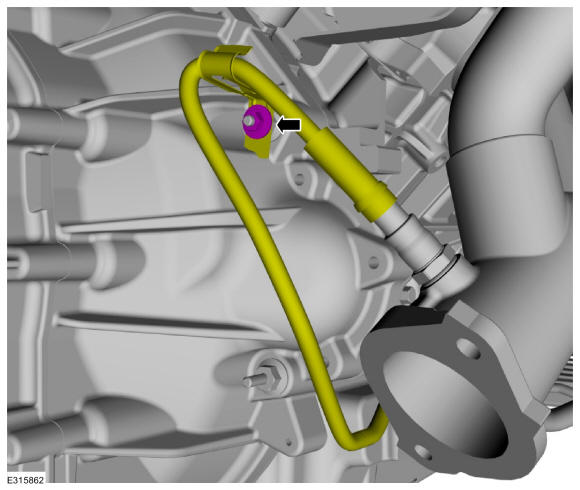

  13. Position the HO2S wiring harness and install the nut.

    Torque: 97 lb.in (11 Nm)

    GFD717190Courtesy of FORD MOTOR COMPANY

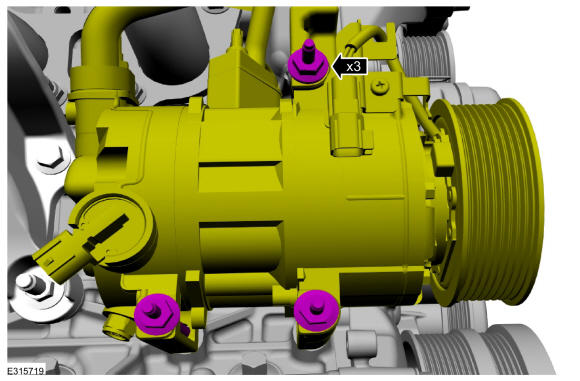

  14. Install the A/C compressor and the stud bolts.

    Torque: 18 lb.ft (25 Nm)

    GFD717189Courtesy of FORD MOTOR COMPANY

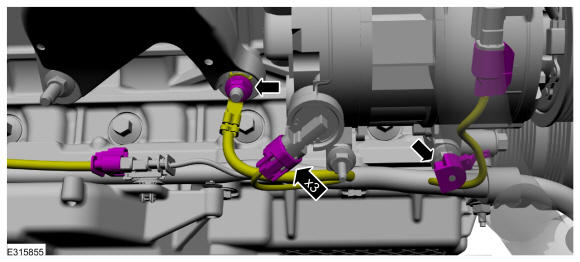

    1. Attach the wiring harness retainers.
    2. Connect the wiring harness electrical connectors.
    3. Install the ground cable and the nut.

      Torque: 35 lb.ft (48 Nm)

    GFD717188Courtesy of FORD MOTOR COMPANY
  15. Connect the oil cooler hoses and install the bolts.

    Torque: 22 lb.ft (30 Nm)

    GFD717167Courtesy of FORD MOTOR COMPANY
  16. Install the following items:

    1. Transmission fluid cooler tubes. Refer to: Transmission Fluid Cooler Tubes .
    2. RH catalytic converter. Refer to: Catalytic Converter RH .

  17. Install a new gasket.
    GFD717202Courtesy of FORD MOTOR COMPANY
  18. Install the coolant outlet and the bolts.

    Torque: 89 lb.in (10 Nm)

    GFD717165Courtesy of FORD MOTOR COMPANY

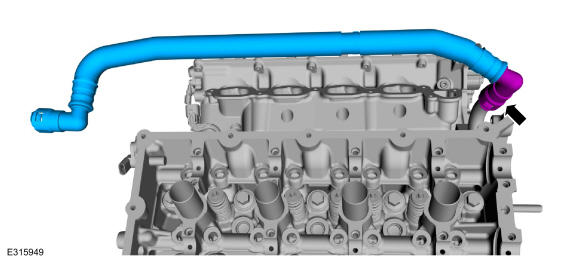

  19. Position the heater hose and connect the quick release coupling.
    GFD717187Courtesy of FORD MOTOR COMPANY

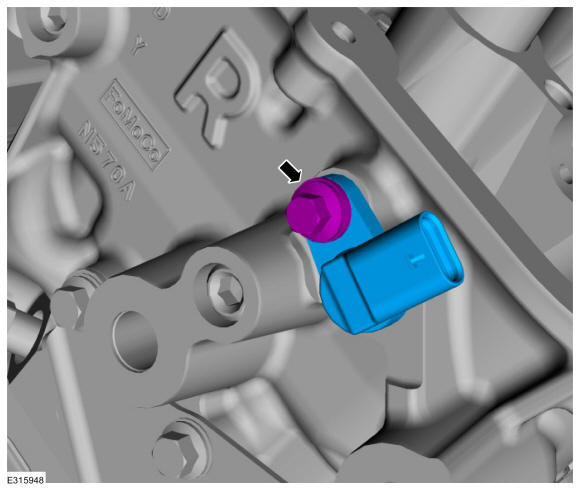

  20. Install the CMP sensor and the bolt.

    Torque: 89 lb.in (10 Nm)

    GFD717186Courtesy of FORD MOTOR COMPANY
    1. Connect the CHT sensor and the intake CMP sensor.
    2. Connect the exhaust CMP sensor and position the insulator.
    GFD717184Courtesy of FORD MOTOR COMPANY
  21. Install the following items:

    1. RH camshafts. Refer to: Camshaft RH .
    2. Supercharger. Refer to: Supercharger .
    3. Hood. Refer to: Hood .

  22. Drain the engine oil, install a new engine oil filter and refill the engine with clean engine oil. Refer to: Engine Oil Draining and Filling .
  23. Connect the battery ground and positive cables. Refer to: Battery Disconnect and Connect .
  24. Pressurize the fuel system pressure. Refer to: Fuel System Pressure Release .
  25. Fill and bleed the supercharger cooling system. Refer to: Supercharger Cooling System Draining, Filling and Bleeding .
  26. Fill and bleed the engine cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
  27. Start and check the exhaust system for leaks.
  28. Check the transmission fluid level and adjust as necessary. Refer to: Transmission Fluid Level Check .
  29. Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
