Cylinder Head LH: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the cylinder head gasket.
    GFD716675Courtesy of FORD MOTOR COMPANY
  2. NOTE: The cylinder head bolts are torque-to-yield and must not be reused. New cylinder head bolts must be installed.

    Install the cylinder head and the new bolts.

    Torque: Stage 1: 22 lb.ft (30 Nm) | Stage 2: 37 lb.ft (50 Nm) | Stage 3: Tighten an additional : 90° | Stage 4: Tighten an additional : 90° | Stage 5: Tighten an additional : 90°

    Fig 1: LH Cylinder Head Tightening Sequence
    GFD717179Courtesy of FORD MOTOR COMPANY
  3. NOTE: Do not position the legs of the Engine Support Bar on the fenders. Instead, the legs should be positioned on the body structure. Failure to follow these instructions may result in body damage.

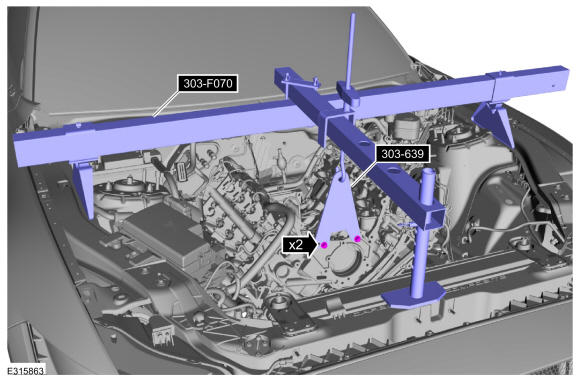

    Install Special Service Tool: 303-639 Support Bracket, Engine., 303-F070 Support Bar, Engine.

    GFD717170Courtesy of FORD MOTOR COMPANY

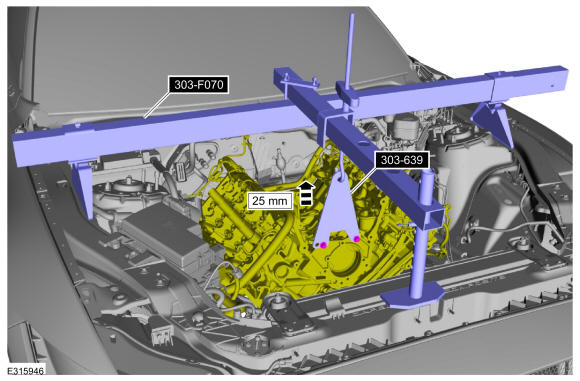

  4. Using the special tools, raise the engine 25 mm (1 inch). Use Special Service Tool: 303-F070 Support Bar, Engine., 303-639 Support Bracket, Engine.
    GFD717171Courtesy of FORD MOTOR COMPANY
  5. Remove the fasteners and the LH motor mount bracket.
    GFD717172Courtesy of FORD MOTOR COMPANY

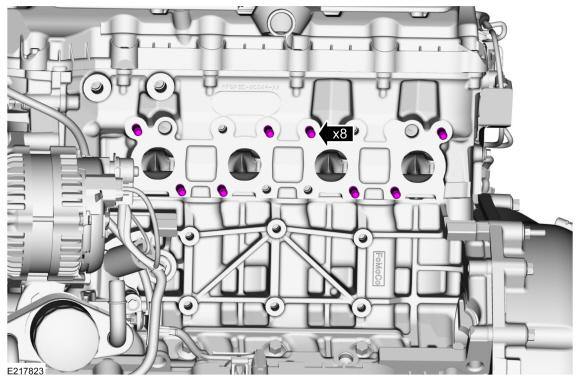

  6. Install new studs.

    Torque: 18 lb.ft (25 Nm)

    GFD717180Courtesy of FORD MOTOR COMPANY

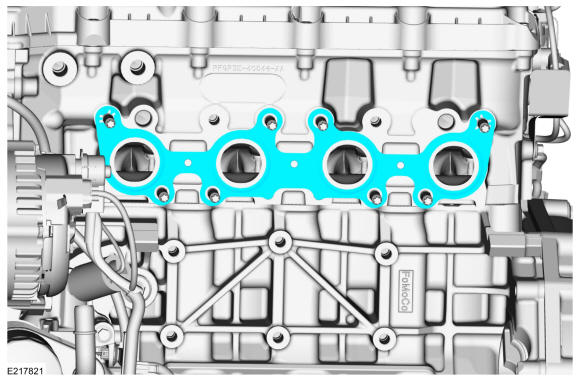

  7. Install a new gasket.
    GFD717181Courtesy of FORD MOTOR COMPANY
    1. Position the LH exhaust manifold onto the engine and finger-tighten the nuts.
    2. Tighten the nuts in the sequence shown.

      Torque: Stage 1: 18 lb.ft (24 Nm) | Stage 2: 24 lb.ft (32 Nm)

    GFD717182Courtesy of FORD MOTOR COMPANY

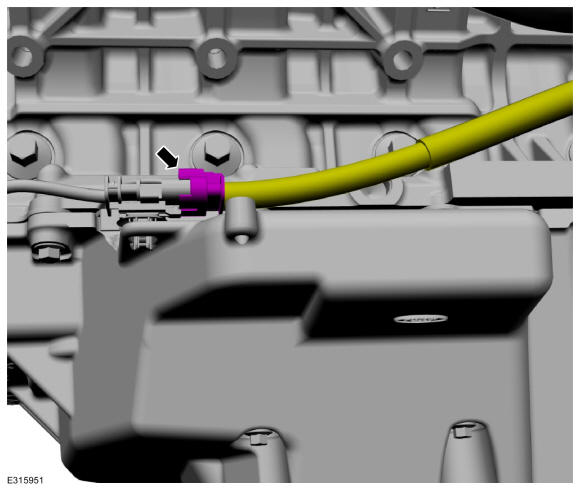

  9. Connect the LH HO2S sensor.
    GFD717173Courtesy of FORD MOTOR COMPANY
  10. Install the LH engine mount bracket and the fasteners.

    Torque: Bolts: 41 lb.ft (55 Nm) Stud bolt: 46 lb.ft (63 Nm)

    GFD717172Courtesy of FORD MOTOR COMPANY
  11. WARNING: DO NOT hammer, pry or force steering column and column shafts during installation or removal. Failure to follow this instruction may cause damage to steering components that could lead to loss of steering control during vehicle operation and could result in serious personal injury or death.
    WARNING: DO NOT attempt to remove or install the steering column lower u-joint at the steering gear without first loosening the steering column dash seal and fasteners. Failure to follow this instruction may cause damage to steering components that could lead to loss of steering control during vehicle operation and could result in serious personal injury or death.

    1. Connect the steering column shaft to the steering gear universal joint.
    2. Install the new steering column shaft bolt.

      Torque: 22 lb.ft (30 Nm)

    GFD715935Courtesy of FORD MOTOR COMPANY
  12. Inspect the steering column lower shaft. Refer to: Steering Column Collapsed Check .

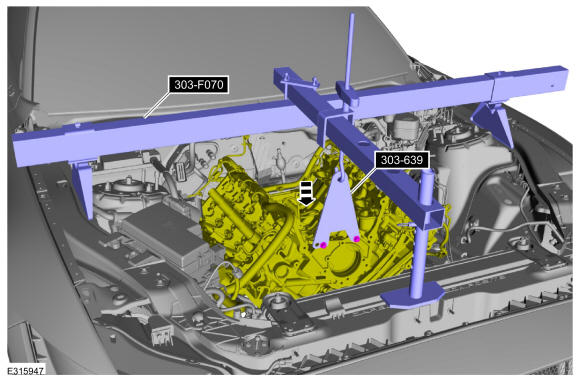

  13. Using the special tools, lower the engine onto the engine mounts. Use Special Service Tool: 303-F070 Support Bar, Engine., 303-639 Support Bracket, Engine.
    GFD717177Courtesy of FORD MOTOR COMPANY
  14. Remove Special Service Tool: 303-F070 Support Bar, Engine., 303-639 Support Bracket, Engine.
    GFD717170Courtesy of FORD MOTOR COMPANY

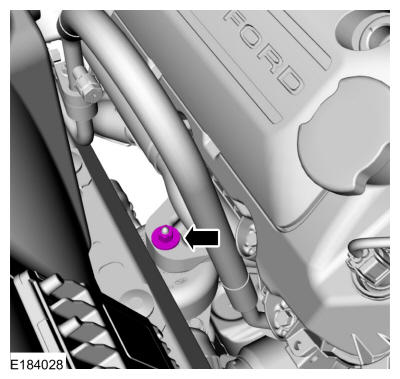

  15. Install the RH engine mount nut.

    Torque: 46 lb.ft (63 Nm)

    GFD717169Courtesy of FORD MOTOR COMPANY
  16. Install the LH engine mount nut.

    Torque: 46 lb.ft (63 Nm)

    GFD717168Courtesy of FORD MOTOR COMPANY
  17. Connect the oil cooler hoses and install the bolts.

    Torque: 22 lb.ft (30 Nm)

    GFD717167Courtesy of FORD MOTOR COMPANY
  18. Install the LH catalytic converter. Refer to: Catalytic Converter LH .
  19. Install a new gasket.
    GFD717183Courtesy of FORD MOTOR COMPANY
  20. Install the coolant outlet and the bolts.

    Torque: 89 lb.in (10 Nm)

    GFD717165Courtesy of FORD MOTOR COMPANY

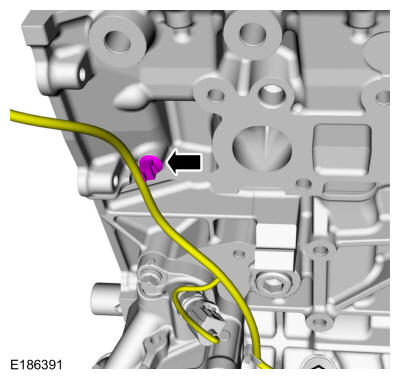

  21. Attach the wiring harness retainer to the cylinder head.
    GFD716671Courtesy of FORD MOTOR COMPANY

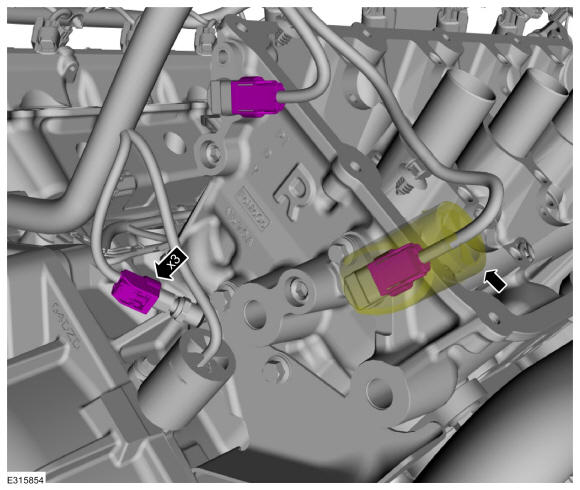

    1. Connect the RFI capacitor and the intake CMP sensor.
    2. Connect the exhaust CMP sensor and position the insulator.
    3. Connect the ground strap and install the nut.

      Torque: 97 lb.in (11 Nm)

    GFD717184Courtesy of FORD MOTOR COMPANY
  23. Install the following items:

    1. LH camshafts. Refer to: Camshaft LH .
    2. Supercharger. Refer to: Supercharger .
    3. Hood. Refer to: Hood .

  24. Remove the holding device.
    GFD715211Courtesy of FORD MOTOR COMPANY
    1. Position the steering column dash seal.
    2. Tighten the steering column dash seal nuts.

      Torque: 80 lb.in (9 Nm)

    GFD715938Courtesy of FORD MOTOR COMPANY
  26. Drain the engine oil, install a new engine oil filter and refill the engine with clean engine oil. Refer to: Engine Oil Draining and Filling .
  27. Connect the battery ground and positive cables. Refer to: Battery Disconnect and Connect .
  28. Pressurize the fuel system pressure. Refer to: Fuel System Pressure Release .
  29. Fill and bleed the supercharger cooling system. Refer to: Supercharger Cooling System Draining, Filling and Bleeding .
  30. Fill and bleed the engine cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
  31. Start and check the exhaust system for leaks.
  32. Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
