Section 16 (Engine - 5.2L 32V Ti-VCT - Supercharged): Installation: Engine

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	303-050 (T70P-6000)Lifting Bracket, Engine
Courtesy of FORD MOTOR COMPANY	303-F047Lifting Bracket, Engine
Courtesy of FORD MOTOR COMPANY	303-F070Support Bar, EngineTKIT-1999A-F/LTTKIT-1999A-FM/FLM
Floor Crane
Trolley Jack
Wooden Block

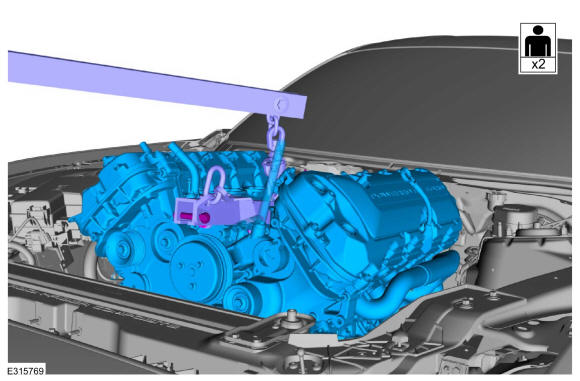

1. With the aid of an assistant, use the Floor Crane to lower the engine into the vehicle. Use the General Equipment: Floor Crane

   Courtesy of FORD MOTOR COMPANY

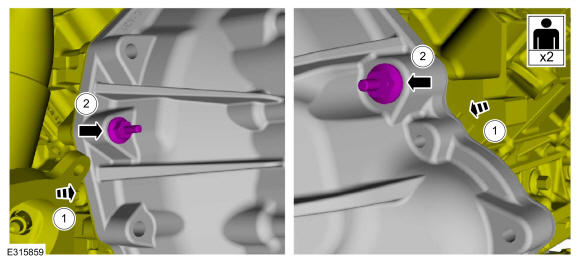

2. 1. With the aid of an assistant, align the engine to the transmission.
   2. Install the stud bolts.

      Torque: 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

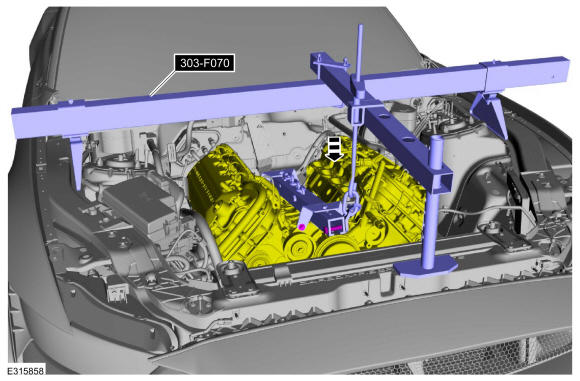

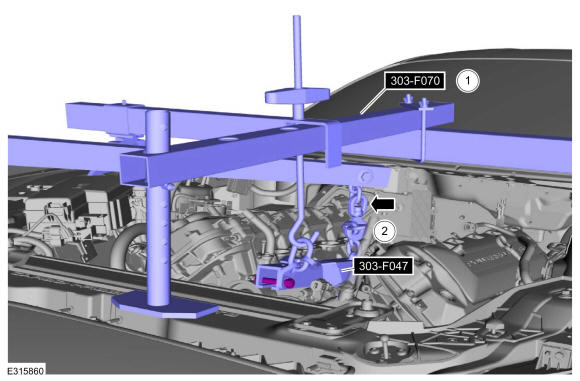

3. 1. Install the special tool. Install Special Service Tool: 303-F070 Support Bar, Engine.
   2. Once the engine is supported by the Engine Support Bar, remove the Floor Crane from the Engine Lifting Bracket. Use Special Service Tool: 303-F047 Lifting Bracket, Engine., 303-050 (T70P-6000) Lifting Bracket, Engine.Use the General Equipment: Floor Crane

   Courtesy of FORD MOTOR COMPANY

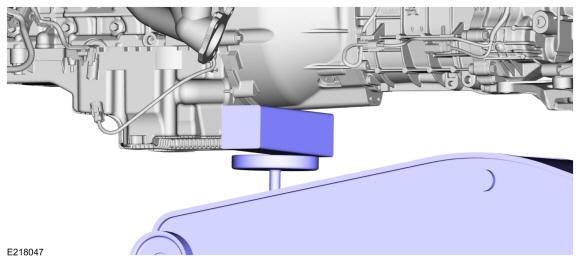

4. Remove the jack and wooden block. Use the General Equipment: Wooden BlockUse the General Equipment: Trolley Jack

   Courtesy of FORD MOTOR COMPANY

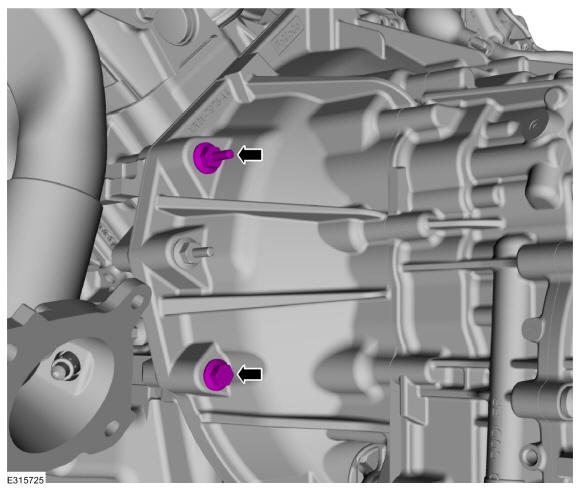

5. Install the transmission-to-engine stud bolts.

   Torque: 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

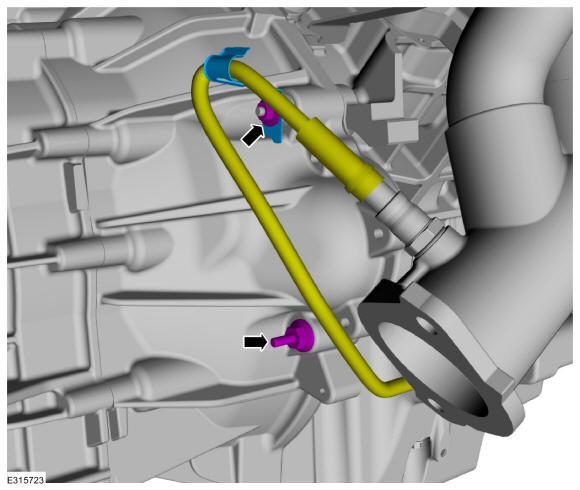

6. Install LH transmission-to-engine bolt and stud bolt.

   Torque: 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

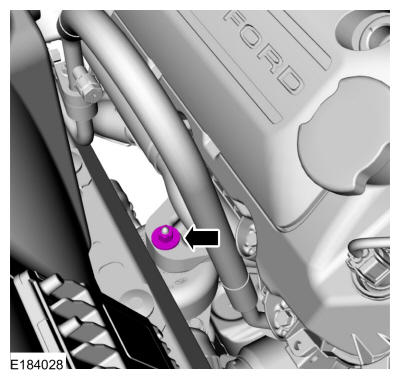

7. • Install RH transmission-to-engine stud bolt.

     Torque: 35 lb.ft (48 Nm)

   • Install the wiring harness retaining clip and the nut.

     Torque: 97 lb.in (11 Nm)

   Courtesy of FORD MOTOR COMPANY

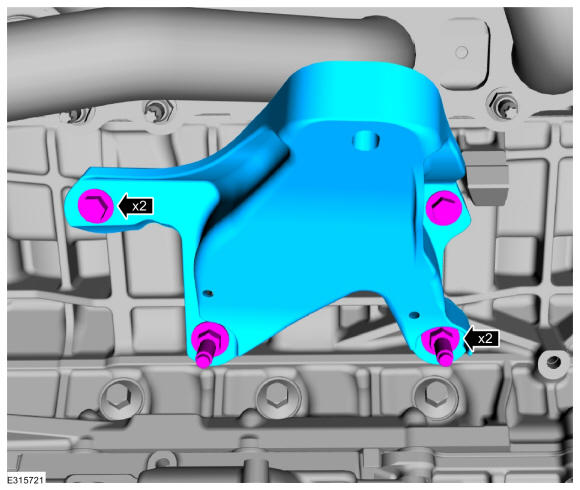

8. Install the LH engine mount bracket and the fasteners.

   Torque: Bolts: 41 lb.ft (55 Nm) Stud bolt: 46 lb.ft (63 Nm)

   Courtesy of FORD MOTOR COMPANY

9. Install the RH engine mount bracket and the fasteners.

   Torque: Bolts: 41 lb.ft (55 Nm) Stud bolts: 46 lb.ft (63 Nm)

   Courtesy of FORD MOTOR COMPANY

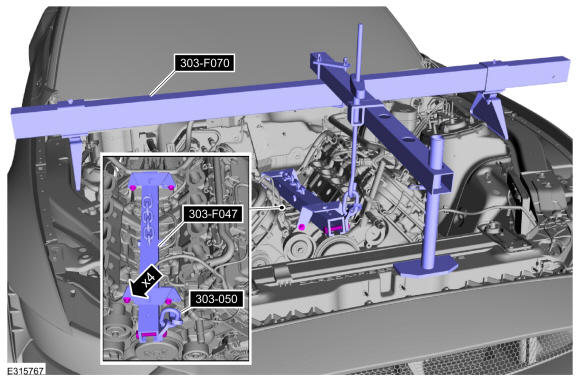

10. Using the special tools, lower the engine onto the engine mounts. Use Special Service Tool: 303-F070 Support Bar, Engine., 303-050 (T70P-6000) Lifting Bracket, Engine., 303-F047 Lifting Bracket, Engine.

    Courtesy of FORD MOTOR COMPANY

11. Remove Special Service Tool: 303-F070 Support Bar, Engine., 303-050 (T70P-6000) Lifting Bracket, Engine., 303-F047 Lifting Bracket, Engine.

    Courtesy of FORD MOTOR COMPANY

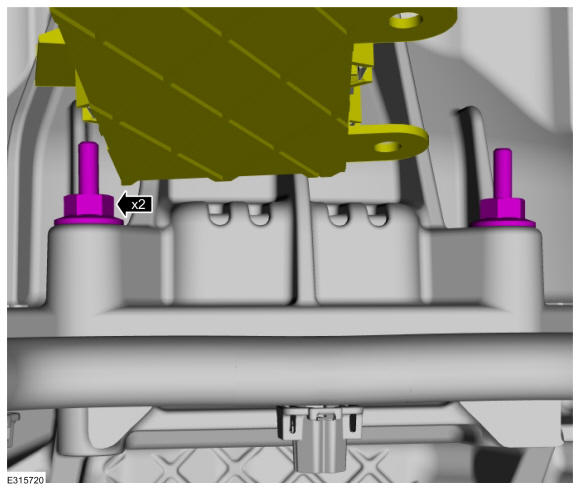

12. Install the RH engine mount nut.

    Torque: 46 lb.ft (63 Nm)

    Courtesy of FORD MOTOR COMPANY

13. Install the LH engine mount nut.

    Torque: 46 lb.ft (63 Nm)

    Courtesy of FORD MOTOR COMPANY

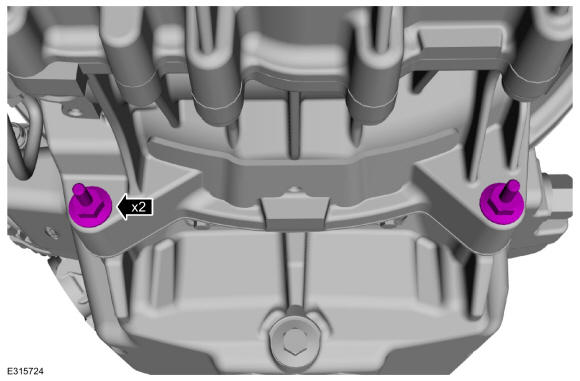

14. Install the top transmission-to-engine stud bolts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

15. WARNING: DO NOT hammer, pry or force steering column and column shafts during installation or removal. Failure to follow this instruction may cause damage to steering components that could lead to loss of steering control during vehicle operation and could result in serious personal injury or death.
    WARNING: DO NOT attempt to remove or install the steering column lower u-joint at the steering gear without first loosening the steering column dash seal and fasteners. Failure to follow this instruction may cause damage to steering components that could lead to loss of steering control during vehicle operation and could result in serious personal injury or death.
    1. Connect the steering column shaft to the steering gear universal joint.
    2. Install the new steering column shaft bolt.

       Torque: 22 lb.ft (30 Nm)

    Courtesy of FORD MOTOR COMPANY

16. Inspect the steering column lower shaft. Refer to: Steering Column Collapsed Check .

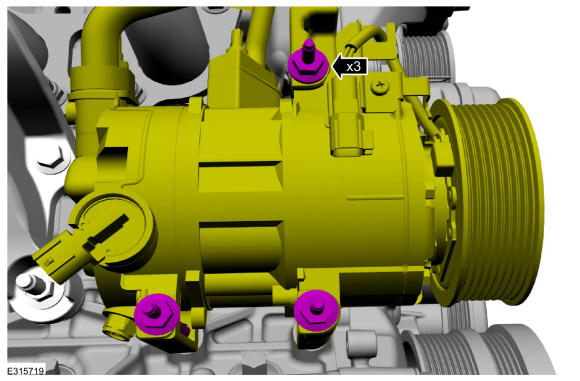

17. Install the A/C compressor and the stud bolts.

    Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

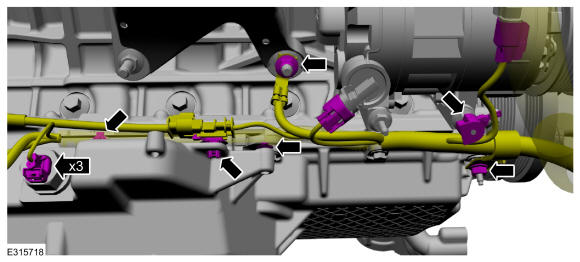

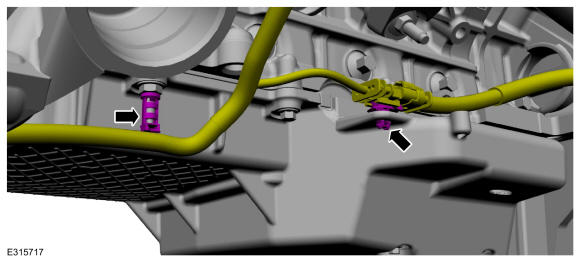

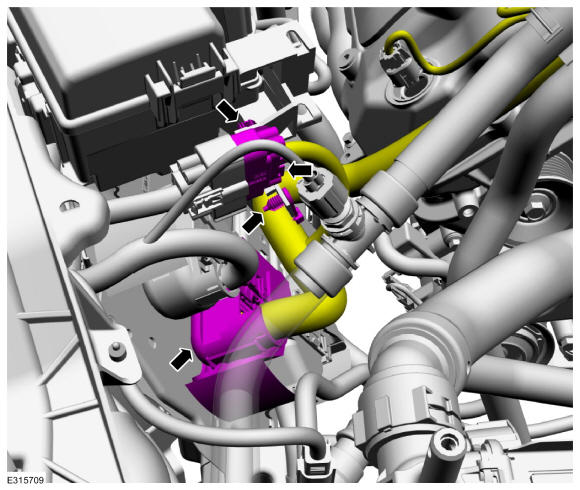

18. 1. Attach the wiring harness retainers.
    2. Connect the wiring harness electrical connectors.
    3. Attach the wiring harness bracket to the oil pan stud bolt and install the nut.

       Torque: 124 lb.in (14 Nm)

    4. Install the ground cable and the nut.

       Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

19. Attach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

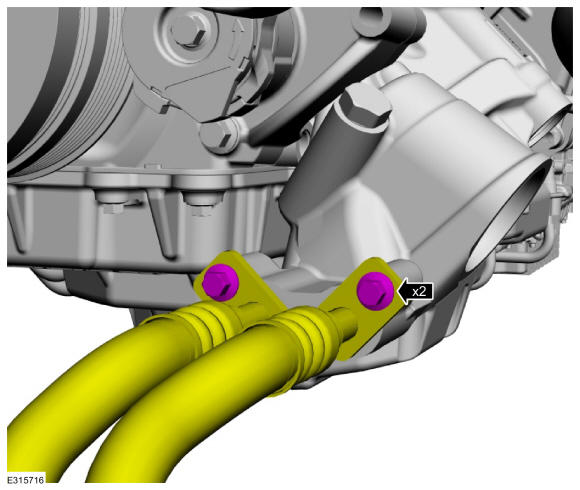

20. Connect the oil cooler hoses and install the bolts.

    Torque: 22 lb.ft (30 Nm)

    Courtesy of FORD MOTOR COMPANY

21. Install a new oil filter. Refer to: Engine Oil Draining and Filling .
22. Install the following items:
    1. Starter motor. Refer to: Starter Motor .
    2. Transmission fluid cooler tubes. Refer to: Transmission Fluid Cooler Tubes .
    3. RH catalytic converter. Refer to: Catalytic Converter RH .
    4. LH catalytic converter. Refer to: Catalytic Converter LH .
    5. Engine front undershield. Refer to: Engine Front Undershield - GT500 .

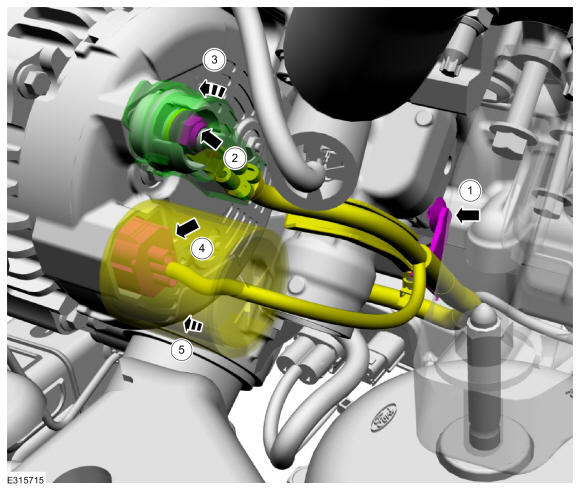

23. 1. Attach the wiring harness retainer.
    2. NOTE: When installing the B+ terminal nut to the generator, finger-start the nut before tightening or component damage may occur.

       Connect the B+ cable and install the nut.

       Torque: 150 lb.in (17 Nm)

    3. Position the cover.
    4. Connect the wiring harness electrical connector.
    5. Position the insulator.

    Courtesy of FORD MOTOR COMPANY

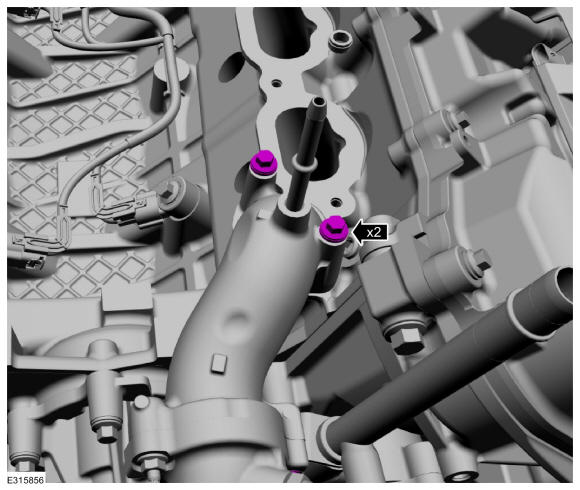

24. Install a new gasket.

    Courtesy of FORD MOTOR COMPANY

25. NOTE: Do not final tighten the bolts at this time.

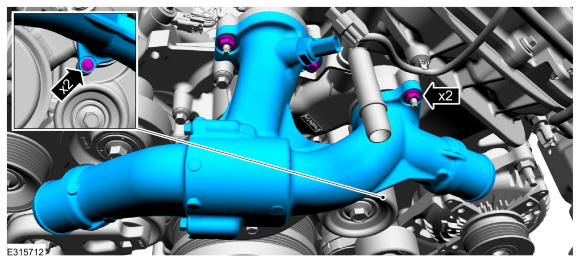

    Install the coolant outlet and the bolts finger tight.

    Courtesy of FORD MOTOR COMPANY

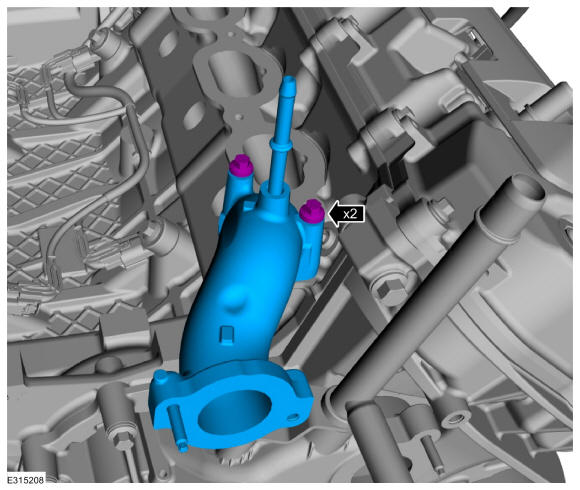

26. Install new gaskets.

    Courtesy of FORD MOTOR COMPANY

27. Install the thermostat housing and the fasteners finger tight.

    Torque: Bolts: 89 lb.in (10 Nm) Nuts: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

28. Final tighten the coolant outlet bolts.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

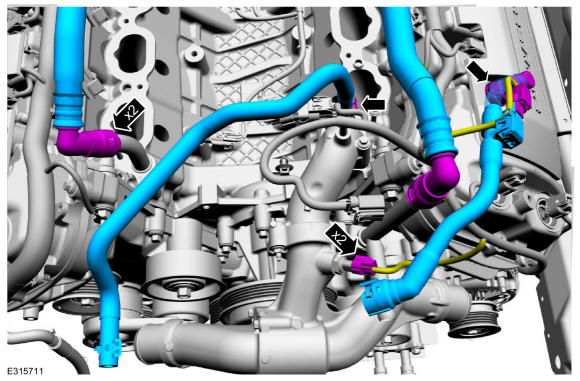

29. 1. Position the crankcase vent hose and connect the quick release coupling. Refer to: Quick Release Coupling .
    2. Connect the engine wiring harness electrical connectors.
    3. Install the degas bottle and the clamp.
    4. Install the heater hoses and connect the quick release couplings. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

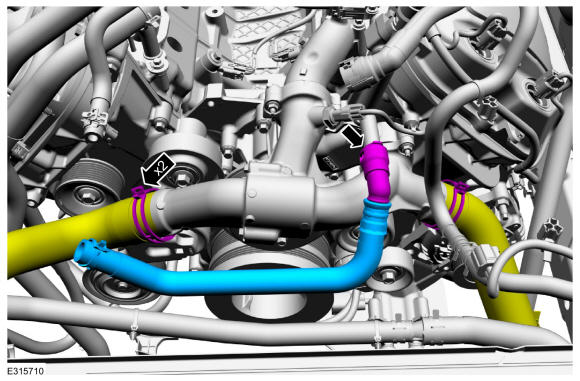

30. 1. Position the degas bottle hose and connect the quick release coupling. Refer to: Quick Release Coupling .
    2. Install the lower radiator hose and the clamp.
    3. Install the upper radiator hose and the clamp.

    Courtesy of FORD MOTOR COMPANY

31. Connect the PCM electrical connector, the 16 pin electrical connector and attach the wiring harness retainers to the bracket.

    Courtesy of FORD MOTOR COMPANY

32. Install the supercharger. Refer to: Supercharger .
33. Install the engine ground wire and nut.

    Torque: 80 lb.in (9 Nm)

    Courtesy of FORD MOTOR COMPANY

34. Install the battery heat shield and fasteners.

    Torque: 80 lb.in (9 Nm)

    Courtesy of FORD MOTOR COMPANY

35. Install the following items:
    1. If equipped, crankcase vent oil separator. Refer to: Crankcase Vent Oil Separator - Vehicles With: Race Track Pack .
    2. Battery tray. Refer to: Battery Tray .
    3. Supercharger belt. Refer to: Supercharger Belt .
    4. Cooling fan motor and shroud. Refer to: Cooling Fan Motor and Shroud .
    5. Engine cooling system degas bottle. Refer to: Degas Bottle .
    6. Air cleaner. Refer to: Air Cleaner .
    7. Air cleaner outlet pipe.
    8. Strut tower cross brace. Refer to: Strut Tower Cross Brace - GT500 .
    9. Hood. Refer to: Hood .

36. Remove the holding device.

    Courtesy of FORD MOTOR COMPANY

37. 1. Position the steering column dash seal.
    2. Tighten the steering column dash seal nuts.

       Torque: 80 lb.in (9 Nm)

    Courtesy of FORD MOTOR COMPANY

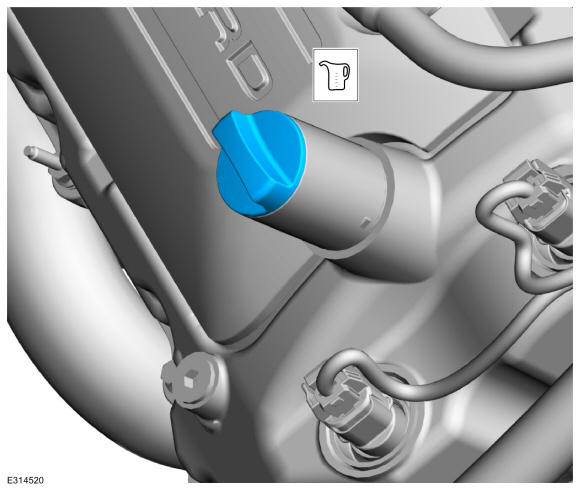

38. Fill the engine with clean engine oil. Refer to: Specifications .

    Courtesy of FORD MOTOR COMPANY

39. Connect the battery ground and positive cables. Refer to: Battery Disconnect and Connect .
40. Pressurize the fuel system pressure. Refer to: Fuel System Pressure Release .
41. Fill and bleed the supercharger cooling system. Refer to: Supercharger Cooling System Draining, Filling and Bleeding .
42. Fill and bleed the engine cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
43. Start and check the exhaust system for leaks.
44. Check the transmission fluid level and adjust as necessary. Refer to: Transmission Fluid Level Check .
45. Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
