Intake Manifold: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Apply clean engine oil to the O-ring and install a new gasket.

    Material: Motorcraft® SAE 5W-40 Full Synthetic Diesel Motor Oil / XO-5W40-5Q3SD (WSS-M2C171-F1)

    GFD307889Courtesy of FORD MOTOR COMPANY
  2. NOTE: During installation of the intake manifold, the mixer tube will have to be installed into the intake manifold.

    Position the mixer tube in the vehicle. Install the intake manifold and the bolts.

    Torque: Stage 1: 44 lb.in (5 Nm) Stage 2: 115 lb.in (13 Nm) Stage 3: 142 lb.in (16 Nm)

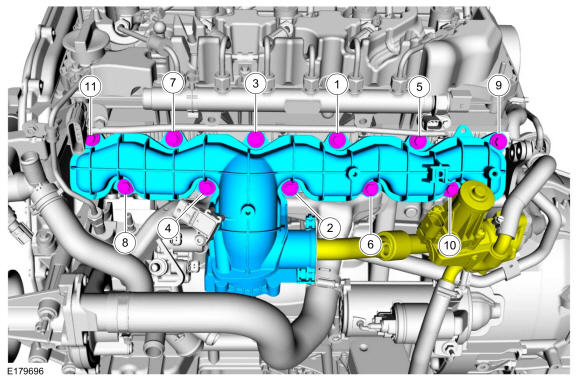

    Fig 1: Intake Manifold Tightening Sequence
    GFD307890Courtesy of FORD MOTOR COMPANY

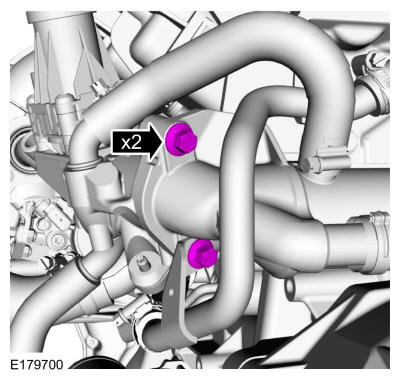

  3. Using a new gasket, install the EGR valve bolts.

    Torque: 17 lb.ft (23 Nm)

    GFD307891Courtesy of FORD MOTOR COMPANY

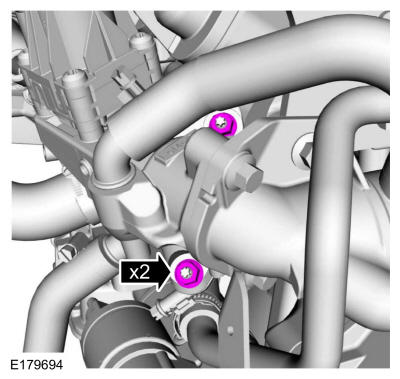

  4. Install the mixer tube nuts at the EGR valve.

    Torque: Stage 1: 44 lb.in (5 Nm) Stage 2: 89 lb.in (10 Nm)

    GFD307892Courtesy of FORD MOTOR COMPANY

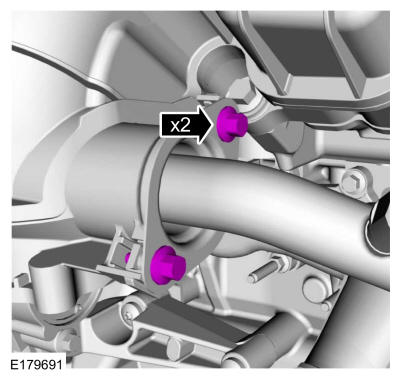

  5. Install the mixer tube bolts at the intake manifold.

    Torque: 89 lb.in (10 Nm)

    GFD307885Courtesy of FORD MOTOR COMPANY

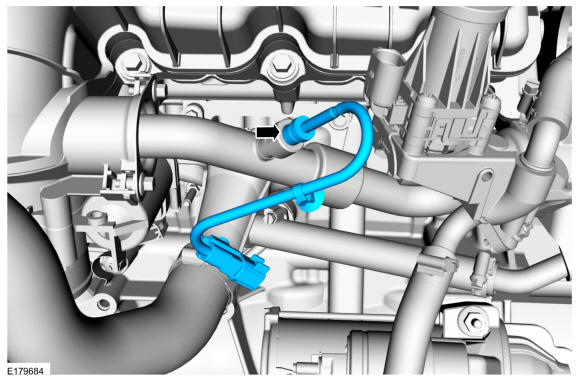

  6. NOTE: During the installation of the EGRT sensor, the threaded bushing must be held with a wrench to prevent damage to the connecting EGR tube.
    NOTE: Before installing the EGRT sensor apply a light coat of anti-seize lubricant to the threads of the EGRT sensor.

    Install the EGRT sensor.

    Material: Motorcraft® High Temperature Nickel Anti-Seize Lubricant / XL-2

    Torque: 32 lb.ft (44 Nm)

    GFD307882Courtesy of FORD MOTOR COMPANY
  7. Install the throttle body (TB). Refer to: Throttle Body .

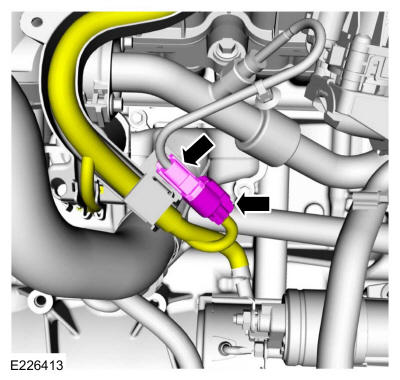

  8. Connect the EGRT sensor electrical connector and the wire retainer.
    GFD307881Courtesy of FORD MOTOR COMPANY

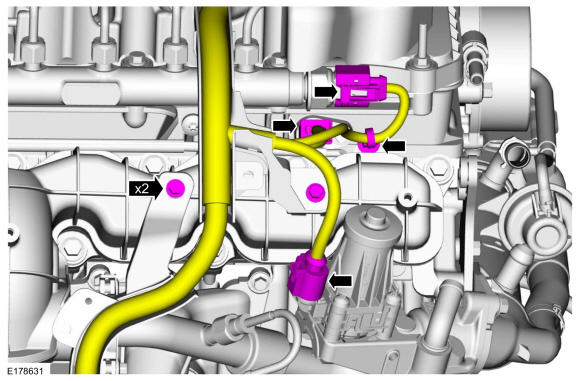

  9. Install the bolts. Connect the electrical connectors and the wire retainer.

    Torque: Front bolt: 44 lb.in (5 Nm) Rear bolt: 89 lb.in (10 Nm)

    GFD307880Courtesy of FORD MOTOR COMPANY

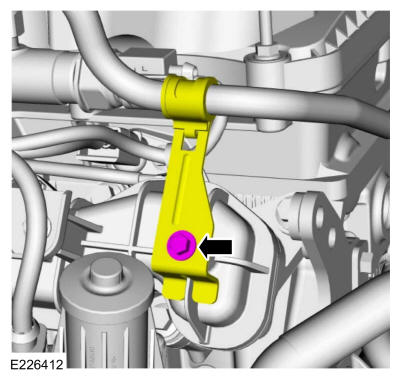

  10. Position back the brake booster tube bracket and install the bolt.

    Torque: 35 lb.in (4 Nm)

    GFD307879Courtesy of FORD MOTOR COMPANY

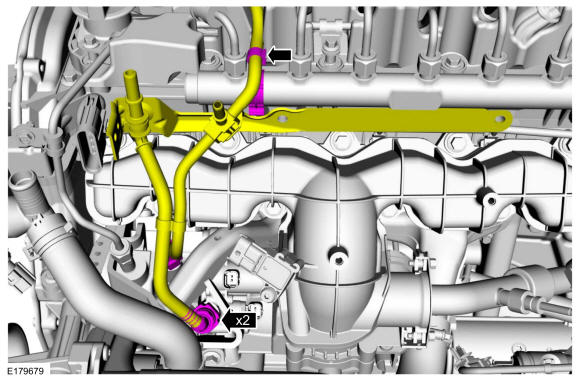

  11. Position back the fuel tubes and connect the retaining clip. Connect the fuel tubes at the fuel injection pump. Refer to: Quick Release Coupling .
    GFD307878Courtesy of FORD MOTOR COMPANY

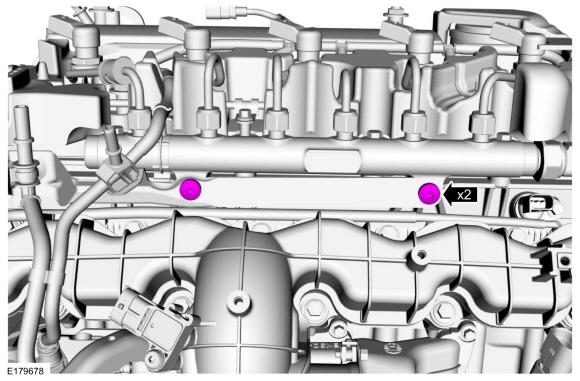

  12. Install the bolts for the fuel rail.

    Torque: 17 lb.ft (23 Nm)

    GFD307877Courtesy of FORD MOTOR COMPANY

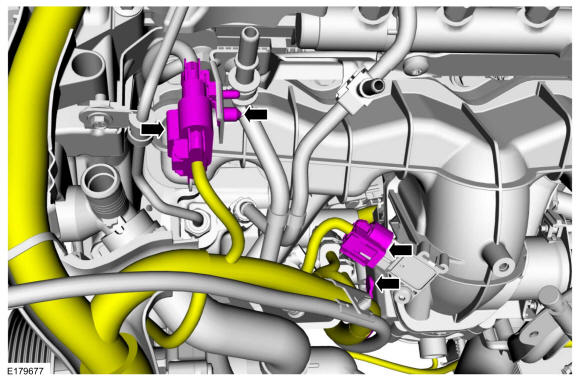

  13. Connect the glow plug connector to the bracket. Connect the electrical connectors and the wire harness retainer.
    GFD307876Courtesy of FORD MOTOR COMPANY

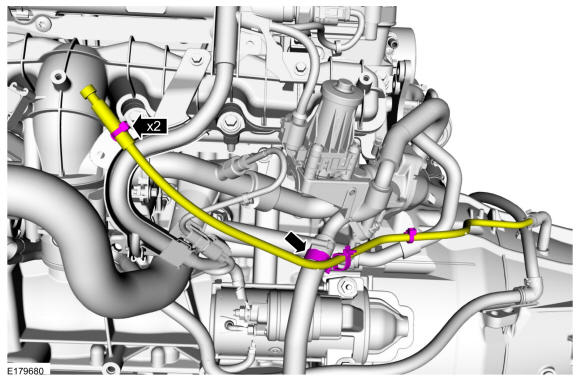

  14. Position back the transmission vent tube and connect the retainers.
    GFD307875Courtesy of FORD MOTOR COMPANY

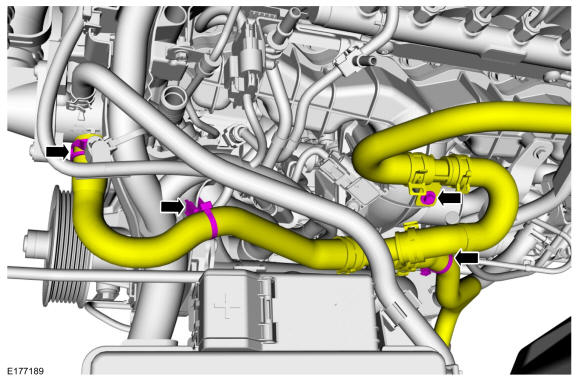

  15. NOTE: Vehicle with rear climate control shown, others similar.

    Position back the coolant hose and install the bolt. Connect the retainers and the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer

    Torque: 35 lb.in (4 Nm)

    GFD307874Courtesy of FORD MOTOR COMPANY

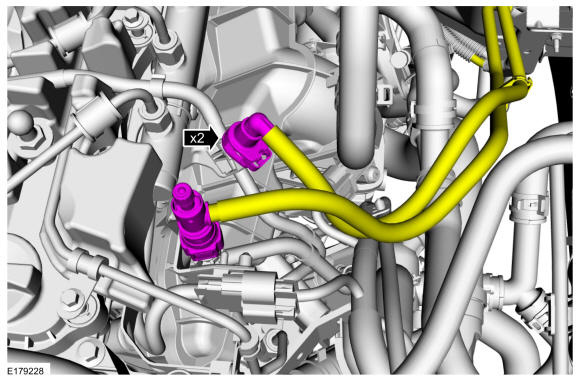

  16. Position back and connect the fuel tubes. Refer to: Quick Release Coupling .
    GFD307873Courtesy of FORD MOTOR COMPANY

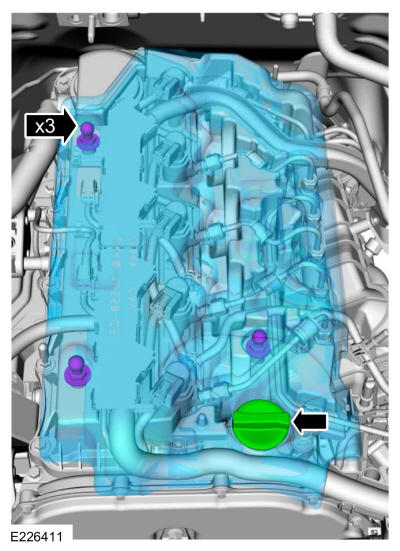

  17. Remove the oil filler cap and install the engine appearance cover. Install the oil filler cap.
    GFD307872Courtesy of FORD MOTOR COMPANY

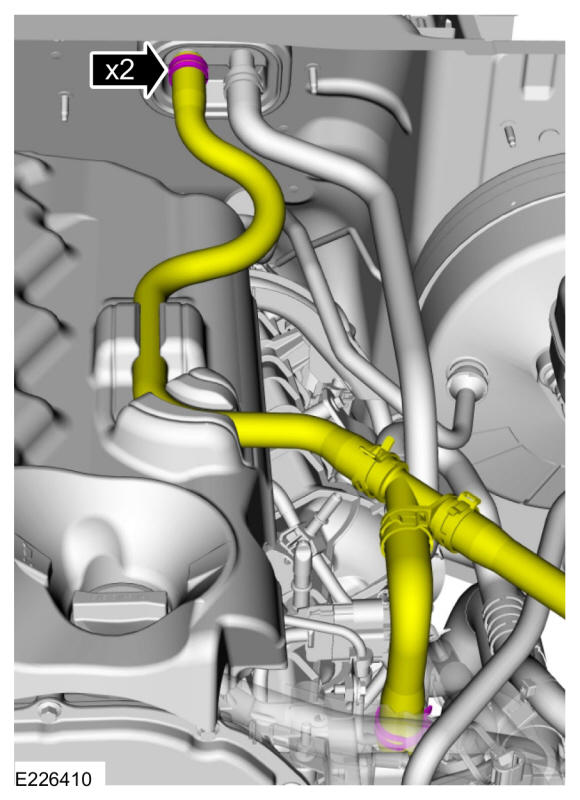

  18. Position back the coolant hose and connect. Install the coolant hose into the engine appearance cover. Use the General Equipment: Hose Clamp Remover/Installer
    GFD307893Courtesy of FORD MOTOR COMPANY
  19. Fill the engine cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
  20. Connect the battery ground cable. Refer to: Battery Disconnect and Connect - Vehicles With: Dual Batteries .
  21. Bleed the fuel system. Refer to: Fuel System Bleeding .
