Quick Release Coupling

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 1
  1. If servicing a fuel vapor line, disconnect the battery ground cable. Refer to: Battery Disconnect and Connect - Vehicles With: Dual Batteries .
  2. Spread the tabs of the retainer clip and pull it to the outward position in the quick release coupling.
    GFD311035Courtesy of FORD MOTOR COMPANY
  3. Depress the retainer clip and disconnect the quick release coupling from the tube.
GFD311036Courtesy of FORD MOTOR COMPANY

Connect

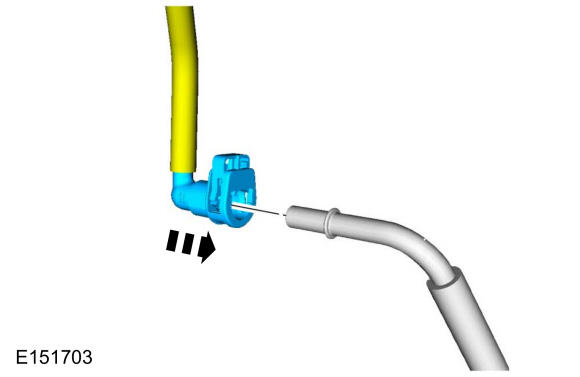

  1. Install the quick release coupling onto the tube until fully seated.
    GFD311037Courtesy of FORD MOTOR COMPANY
  2. NOTE: Pull on the quick release coupling and the tube to make sure it is securely fastened.

    Press the retainer clip into the quick release coupling body until flush and the tabs are locked in place.

    GFD311038Courtesy of FORD MOTOR COMPANY
  3. Connect the battery ground cable. Refer to: Battery Disconnect and Connect - Vehicles With: Dual Batteries .

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 2
  1. If servicing a fuel vapor line, disconnect the battery ground cable. Refer to: Battery Disconnect and Connect - Vehicles With: Dual Batteries .

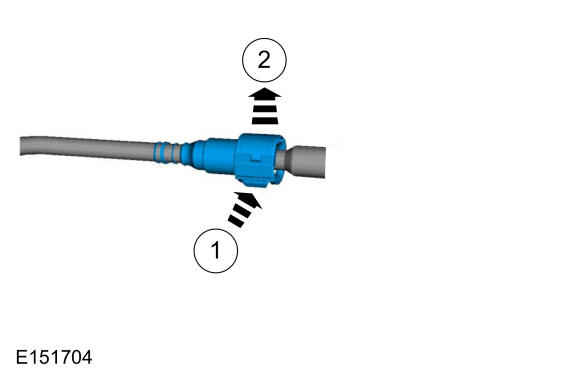

  2. Squeeze the quick release coupling retainer locking tabs to release the locking mechanism and push the locking mechanism outward to release the tube.
    GFD311039Courtesy of FORD MOTOR COMPANY

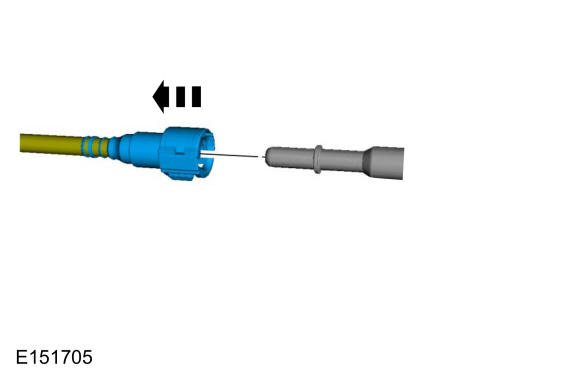

  3. Remove the quick release coupling from the tube.
GFD311040Courtesy of FORD MOTOR COMPANY

Connect

  1. NOTE: Visually inspect and verify that the locking mechanism is flush with the quick connect coupling housing and that the locking tabs are securely fastened.

    Install the quick release coupling onto the tube until fully seated.

    GFD311041Courtesy of FORD MOTOR COMPANY
  2. NOTE: Pull on the quick release coupling and the tube to make sure it is securely fastened.

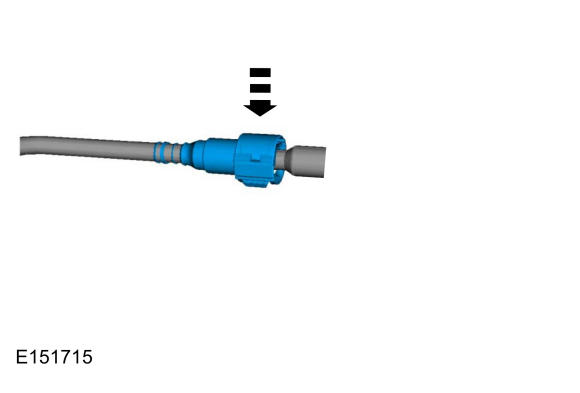

    Depress the quick release coupling locking mechanism into the locked position.

    GFD311042Courtesy of FORD MOTOR COMPANY
  3. Connect the battery ground cable. Refer to: Battery Disconnect and Connect - Vehicles With: Dual Batteries .

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 3
  1. If servicing a fuel vapor line, disconnect the battery ground cable. Refer to: Battery Disconnect and Connect - Vehicles With: Dual Batteries .

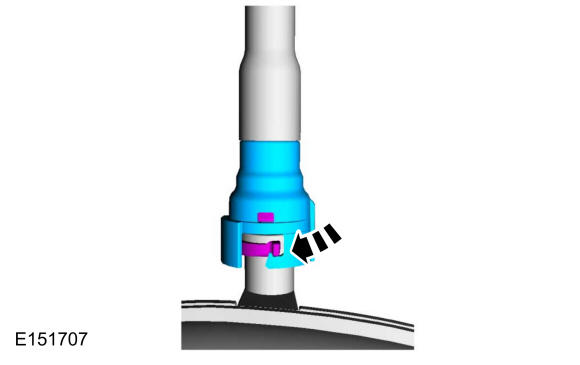

  2. Release the locking tab on the quick release coupling and separate from the fitting.
GFD311043Courtesy of FORD MOTOR COMPANY

Connect

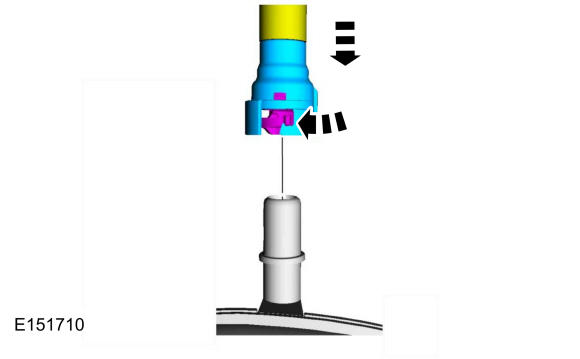

  1. Release the locking tab and install the quick release coupling onto the fitting.
    GFD311044Courtesy of FORD MOTOR COMPANY
  2. NOTE: Make sure the fuel tube clicks into place when installing the tube. To make sure that the fuel tube is fully seated, pull on the tube.

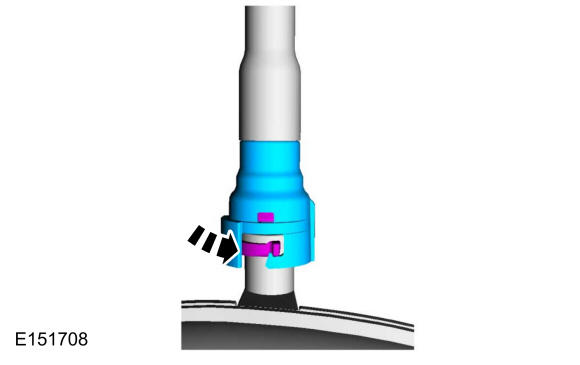

    Position the locking tab into the locked position.

    GFD311045Courtesy of FORD MOTOR COMPANY
  3. Connect the battery ground cable. Refer to: Battery Disconnect and Connect - Vehicles With: Dual Batteries .

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 4
  1. If servicing a fuel vapor line, disconnect the battery ground cable. Refer to: Battery Disconnect and Connect - Vehicles With: Dual Batteries .
  2. Squeeze the quick release coupling retainer locking tabs to release the locking mechanism and push the locking mechanism outward to release the tube.
    GFD311046Courtesy of FORD MOTOR COMPANY
  3. Remove the quick release coupling from the tube.
GFD311047Courtesy of FORD MOTOR COMPANY

Connect

  1. NOTE: Pull on the quick release coupling and the tube to make sure it is securely fastened.

    Install the quick release coupling onto the tube.

    GFD311048Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Disconnect and Connect - Vehicles With: Dual Batteries .

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 5
  1. If servicing a fuel vapor line, disconnect the battery ground cable. Refer to: Battery Disconnect and Connect - Vehicles With: Dual Batteries .

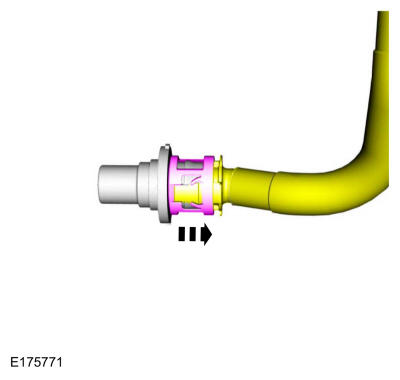

  2. Pull the locking tab on the quick release coupling away from the tube.
    GFD311049Courtesy of FORD MOTOR COMPANY

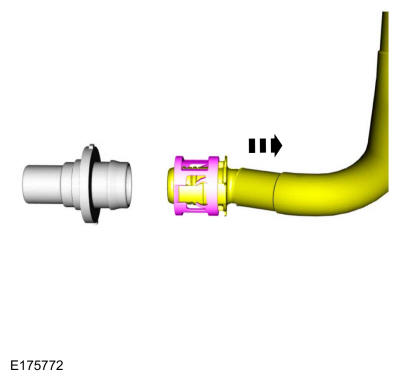

  3. Separate the quick release coupling from the tube.
GFD311050Courtesy of FORD MOTOR COMPANY

Connect

  1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

    Install the quick release coupling onto the tube.

    GFD311051Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Disconnect and Connect - Vehicles With: Dual Batteries .

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 6
  1. If servicing a fuel vapor line, disconnect the battery ground cable. Refer to: Battery Disconnect and Connect - Vehicles With: Dual Batteries .
    1. Release the secondary locking tab.
    2. Depress the primary locking tab.
    3. Separate the quick release coupling from the tube.
GFD311052Courtesy of FORD MOTOR COMPANY

Connect

    1. Push the quick release coupling onto the tube.
    2. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Lock the secondary locking tab.

    GFD311053Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Disconnect and Connect - Vehicles With: Dual Batteries .

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 7
  1. If servicing a fuel vapor line, disconnect the battery ground cable. Refer to: Battery Disconnect and Connect - Vehicles With: Dual Batteries .
    1. Depress the fuel tube quick release coupling retainer.
    2. Separate the fuel tube from the fuel pump.
GFD311054Courtesy of FORD MOTOR COMPANY

Connect

    1. Push the fuel tube quick release coupling into the fuel pump.
    2. Pull on the fuel tube to make sure the fitting is securely fastened.
    GFD311054Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Disconnect and Connect - Vehicles With: Dual Batteries .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 8
  1. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect - Vehicles With: Dual Batteries .
    1. Push on the locking tab.
    2. Lift the clip.
    GFD311055Courtesy of FORD MOTOR COMPANY
    1. Depress the tabs inward.
    2. Push the clip downward.
    3. Separate the quick release coupling from the fuel line.
GFD311056Courtesy of FORD MOTOR COMPANY

Connect

    1. Push the quick release coupling onto the tube.
    2. Push the clip down into the quick release coupling.
    3. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

    GFD311057Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Disconnect and Connect - Vehicles With: Dual Batteries .
