Fuel System Bleeding

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Bleeding

NOTE: It may require several attempts of this step before the engine will start. If the engine will not start proceed to steps 7-9.

Turn the ignition key to the ON position. Wait 30 seconds and attempt to start the engine.
If the engine starts hold at 1500 rpm.
Wait for 20 seconds.
If the engine is running smoothly, reduce the rpm to idle speed.
Check for fuel leaks.
Turn the engine off.
NOTE: It is only necessary to follow steps 7-9 if the engine does not start after following steps 1-6.

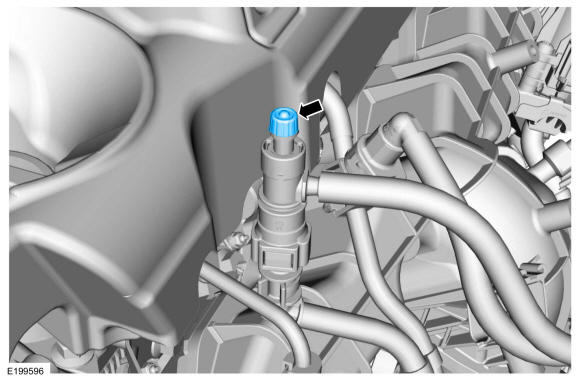

Remove the Schrader valve cap.

Courtesy of FORD MOTOR COMPANY

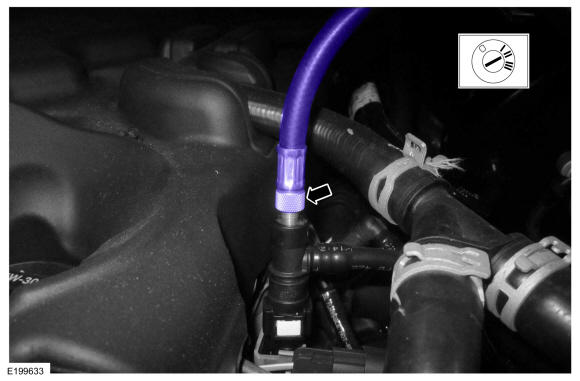

- Install a suitable drain hose.
- Turn the key to the ON position and drain into a suitable container until a clean stream of diesel fuel exists.
Courtesy of FORD MOTOR COMPANY
Turn the key to the OFF position, remove the hose and start the vehicle.
