Section 14 (Engine - 3.2L DURATORQ-TDCI (148KW/200PS) - Puma): Installation: Engine

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

GFD307953Courtesy of FORD MOTOR COMPANY
307-346 (T97T-7902-A)
Retainer, Torque Converter
TKIT-1998-LM (NavigatoR)
TKIT-1997-F/FLM/LT
Strap Wrench
Floor Crane
Adjustable Mounting Arm
Vehicle/Axle Stands
Hose Clamp Remover/Installer

Materials

Name Specification
Motorcraft® Multi-Purpose Grease Spray
XL-5-A
ESB-M1C93-B
Motorcraft® SAE 5W-40 Full Synthetic Diesel Motor Oil
XO-5W40-5Q3SD
WSS-M2C171-F1
Motorcraft® MERCON® LV Automatic Transmission Fluid
XT-10-QLVC
WSS-M2C938-AMERCON® LV,
  1. NOTE: Failure to inspect the components for debris may result in repeat failures.
    NOTE: It may be necessary to use a borescope to inspect the components.

    When an engine or turbocharger is replaced due to a failure, inspect the following components for potential metal debris. If evidence of debris is found, clean or replace the components as needed.

    • CAC and the CAC tubes

    • Intake air system

    • Exhaust manifolds

    • EGR cooler and pipes

    • Diesel Oxidation Catalyst (DOC)

    • Turbocharger (on engine failure only)

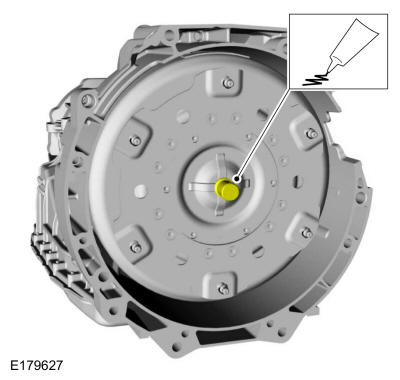

  2. Lubricate the torque converter pilot hub with multi-purpose grease.

    Material: Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

    GFD308279Courtesy of FORD MOTOR COMPANY
  3. Verify that the component alignment dowels are installed in the engine block.

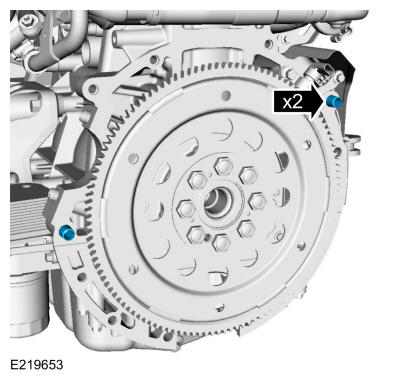

    GFD308280Courtesy of FORD MOTOR COMPANY
    • Align the flexplate-to-converter marks made during the removal.

    • Align the torque converter stud and flexplate hole near the paint marks to the 12 o'clock position.

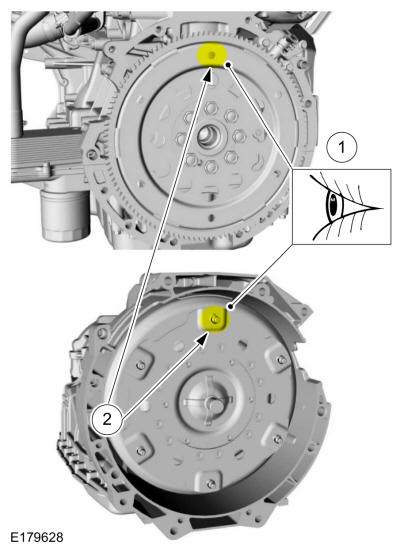

    GFD308281Courtesy of FORD MOTOR COMPANY
    • Using the floor crane, lower the engine onto the engine crossmember. Use the General Equipment: Floor Crane

    • Install the new engine mount nuts.

      Torque: 85 lb.ft (115 Nm)

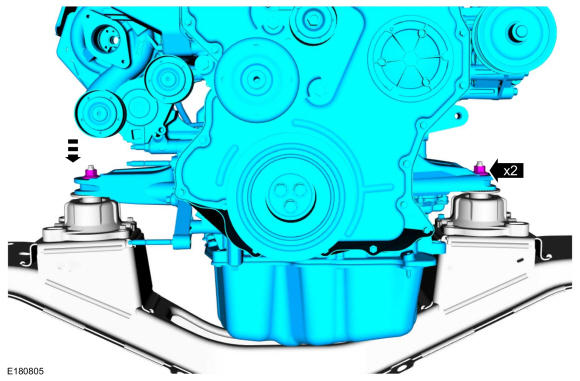

    GFD308282Courtesy of FORD MOTOR COMPANY

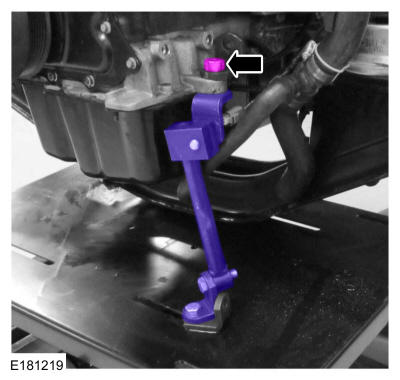

  4. Install the nut for the adjustable mounting arm.
    GFD308010Courtesy of FORD MOTOR COMPANY
  5. Remove the floor crane. Use the General Equipment: Floor Crane
    GFD308009Courtesy of FORD MOTOR COMPANY
  6. Using the powertrain lift table, raise the engine into the vehicle.

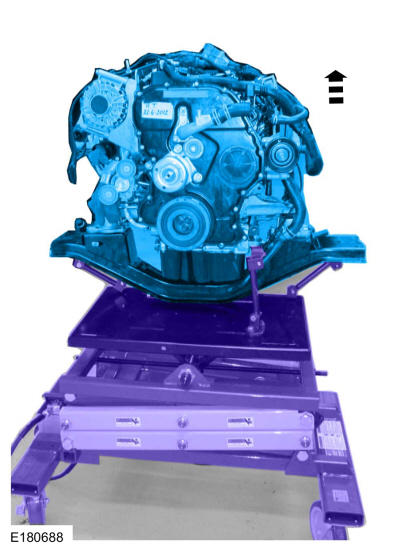

    GFD308283Courtesy of FORD MOTOR COMPANY

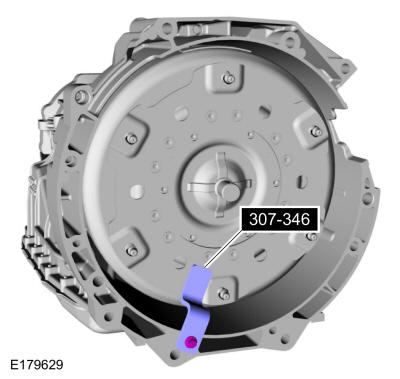

  7. Remove Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.
    GFD308007Courtesy of FORD MOTOR COMPANY
  8. NOTE: Make sure the torque converter studs are aligned with the holes in the flexplate.

    Align the engine to the transmission. Draw the engine to the transmission using the bolts.

    Torque: 35 lb.ft (48 Nm)

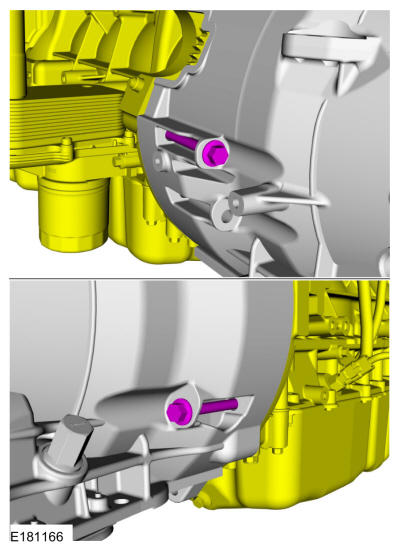

    GFD308284Courtesy of FORD MOTOR COMPANY
  9. Install the new engine crossmember bolts.

    Torque: 46 lb.ft (63 Nm)

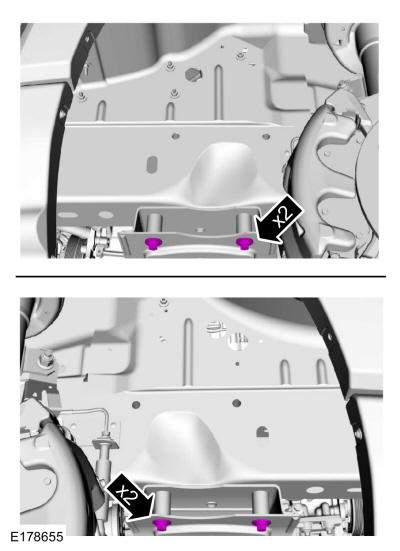

    GFD308285Courtesy of FORD MOTOR COMPANY

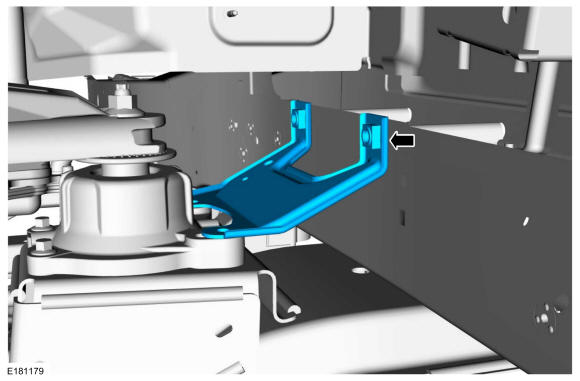

  10. Position the engine crossmember brackets for both sides.
    GFD308004Courtesy of FORD MOTOR COMPANY
  11. NOTE: Do not tighten the bolts at this time.

    Install the new engine mount bolts for both sides.

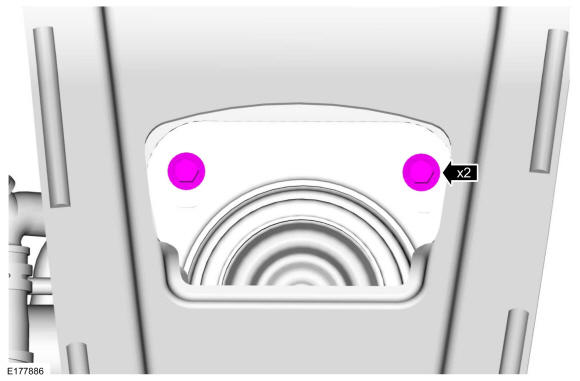

    GFD307834Courtesy of FORD MOTOR COMPANY

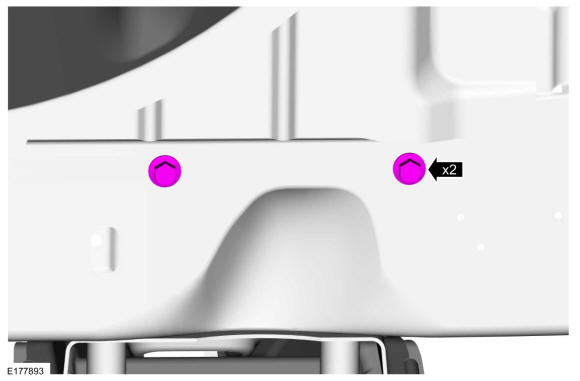

  12. Install the new frame bolts for both sides.

    Torque: 46 lb.ft (63 Nm)

    GFD307835Courtesy of FORD MOTOR COMPANY
  13. Tighten the bolts for the engine mount for both sides.

    Torque: 22 lb.ft (30 Nm)

    GFD307834Courtesy of FORD MOTOR COMPANY

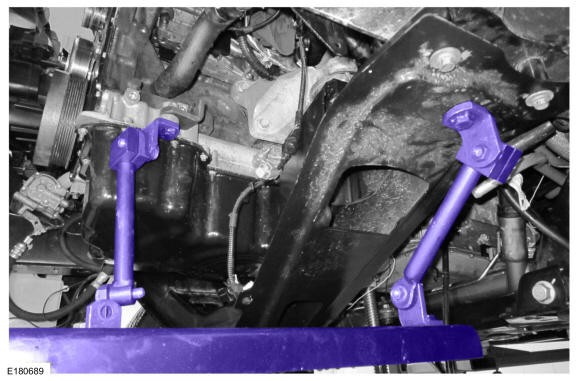

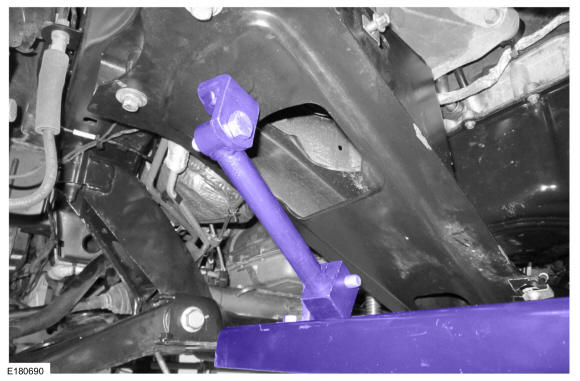

  14. Remove the adjustable mounting arm from the RH side of the engine crossmember. Use the General Equipment: Adjustable Mounting Arm
    GFD308001Courtesy of FORD MOTOR COMPANY
    • Remove the adjustable mounting arm from the left front corner of the engine. Use the General Equipment: Adjustable Mounting Arm

    • Remove the adjustable mounting arm from the LH side of the engine crossmember. Remove the powertrain lift table. Use the General Equipment: Adjustable Mounting Arm

    GFD308000Courtesy of FORD MOTOR COMPANY
  15. Install the LH side engine-to-transmission bolt.

    Torque: 35 lb.ft (48 Nm)

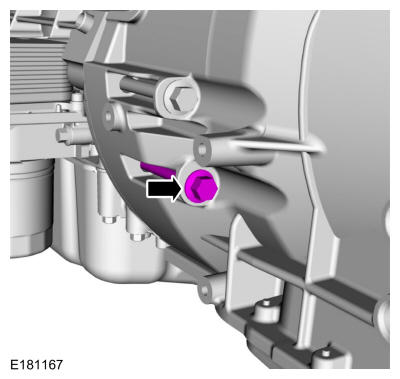

    GFD308286Courtesy of FORD MOTOR COMPANY

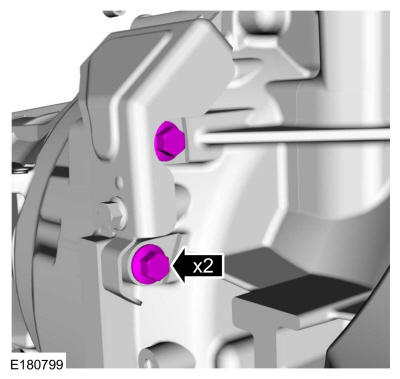

  16. Install the RH upper engine-to-transmission bolts.

    Torque: 35 lb.ft (48 Nm)

    GFD307997Courtesy of FORD MOTOR COMPANY
  17. NOTE: Engine removed for clarity.

    Remove the wooden boards and the ratchet strap.

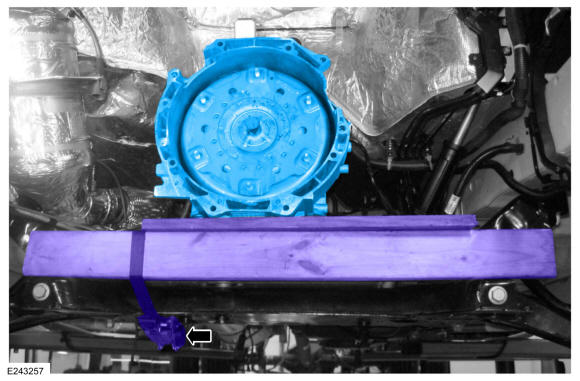

    GFD307996Courtesy of FORD MOTOR COMPANY
  18. Position a stand under the transmission crossmember. Use the General Equipment: Vehicle/Axle Stands

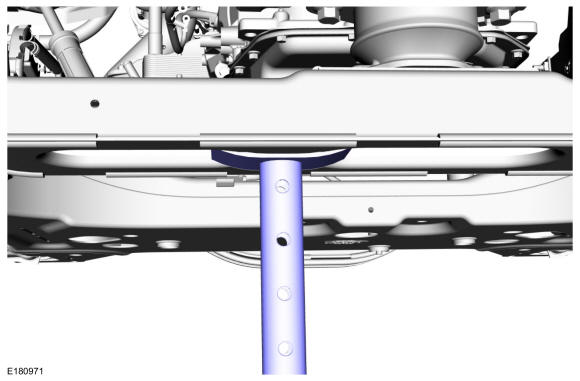

    GFD307992Courtesy of FORD MOTOR COMPANY
    • Remove the bolts and the front subframe braces for the transmission crossmember. Discard the bolts.

    • Lower the transmission crossmember 25 mm (1 inch).

    GFD308287Courtesy of FORD MOTOR COMPANY

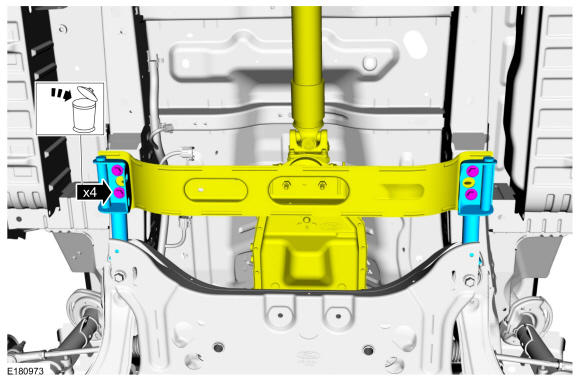

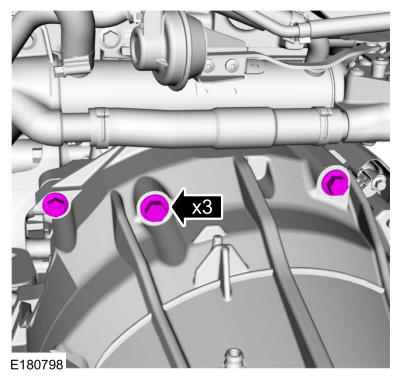

  19. Install the upper engine-to-transmission bolts.

    Torque: 35 lb.ft (48 Nm)

    GFD307994Courtesy of FORD MOTOR COMPANY

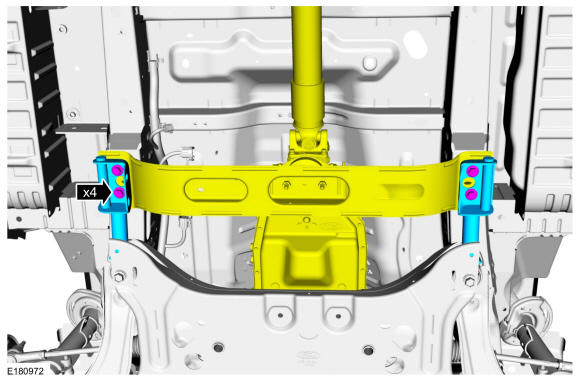

    • Raise the transmission crossmember.

    • Install the front subframe braces and new bolts for the transmission crossmember.

      Torque: 148 lb.ft (200 Nm)

    GFD307993Courtesy of FORD MOTOR COMPANY
  20. Remove the stand from the transmission crossmember.
    GFD307992Courtesy of FORD MOTOR COMPANY

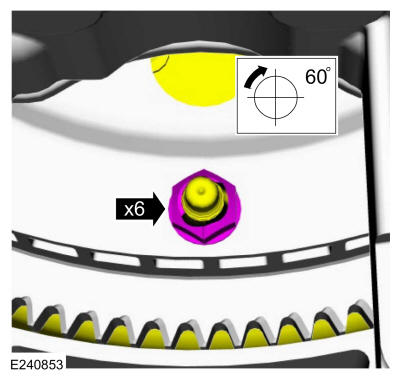

  21. NOTE: Using a strap wrench, rotate the engine clockwise.

    Install the new torque converter nuts. Use the General Equipment: Strap Wrench

    Torque: 35 lb.ft (48 Nm)

    GFD308288Courtesy of FORD MOTOR COMPANY

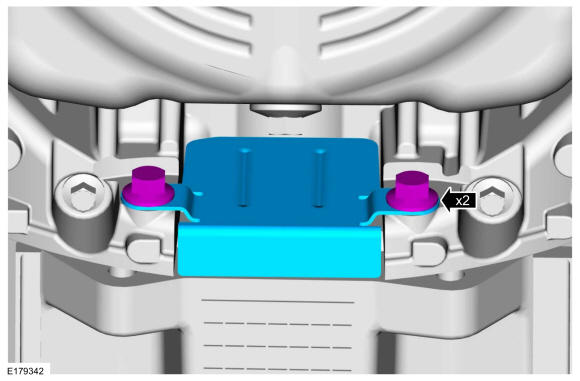

  22. Install the torque converter cover.

    Torque: 35 lb.ft (48 Nm)

    GFD307990Courtesy of FORD MOTOR COMPANY
  23. If equipped with rear heat, connect the coolant hoses.

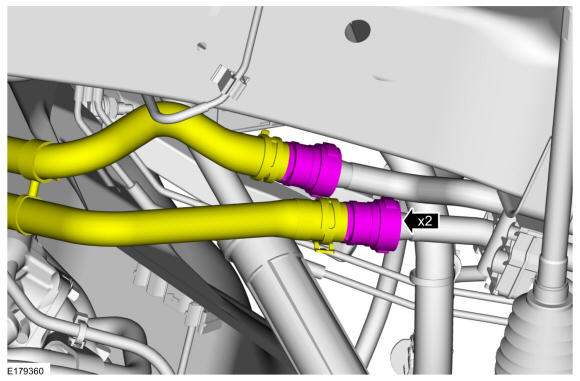

    GFD307989Courtesy of FORD MOTOR COMPANY
  24. NOTE: Body removed for clarity.

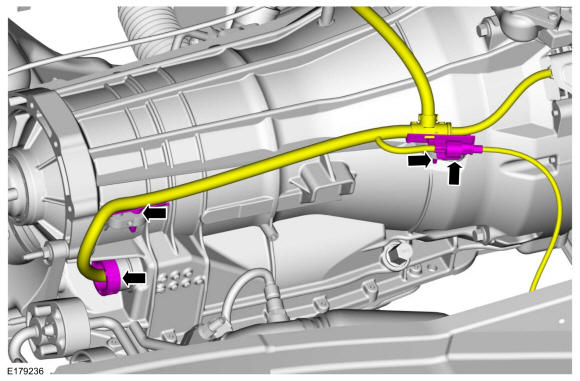

    Connect the transmission electrical connectors and wire retainers.

    GFD307988Courtesy of FORD MOTOR COMPANY
  25. Connect the transmission wire retainers.

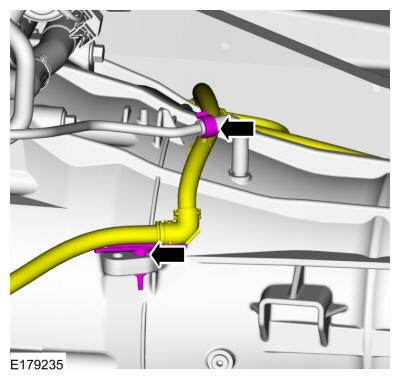

    GFD307987Courtesy of FORD MOTOR COMPANY
  26. Install the starter. Refer to: Starter Motor .

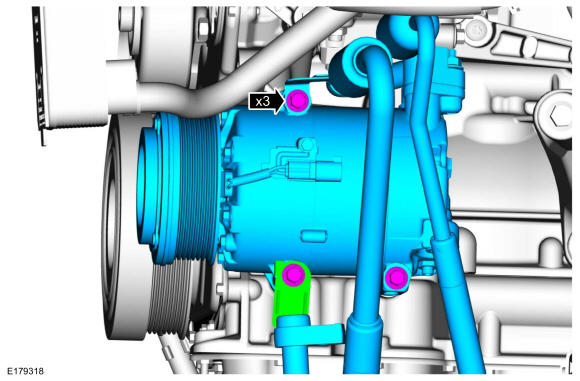

  27. Install the A/C compressor and the bolts.

    Torque: 18 lb.ft (25 Nm)

    GFD307986Courtesy of FORD MOTOR COMPANY

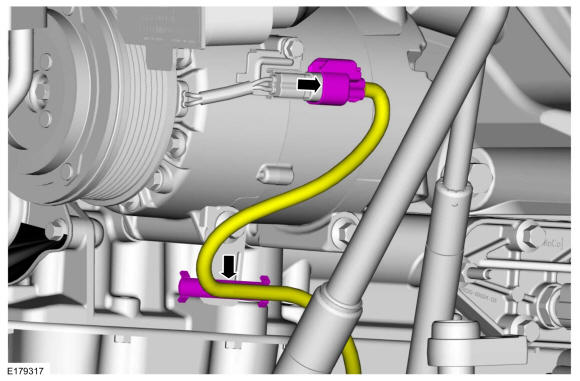

  28. Connect the A/C electrical connector and retainer.
    GFD307985Courtesy of FORD MOTOR COMPANY

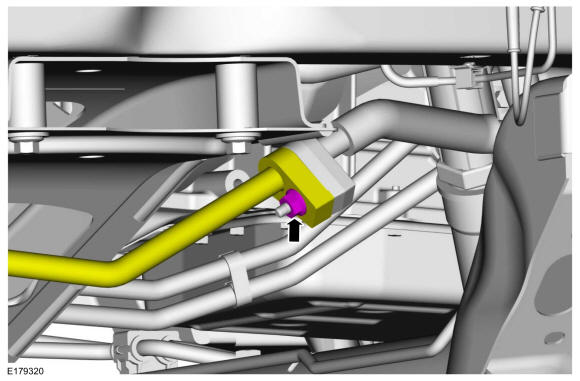

  29. If equipped with rear A/C, connect the A/C tube and install the nut.

    Torque: 133 lb.in (15 Nm)

    GFD307984Courtesy of FORD MOTOR COMPANY

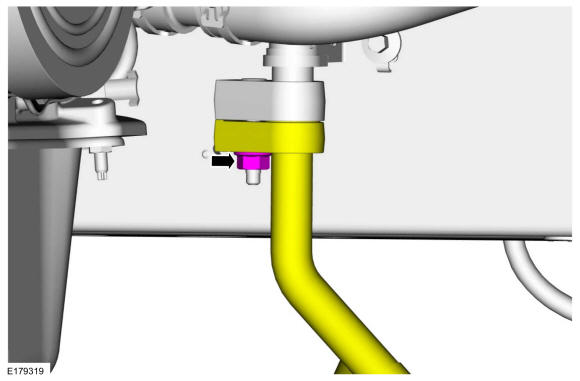

  30. Connect the A/C tube and install the nut.

    Torque: 133 lb.in (15 Nm)

    GFD307983Courtesy of FORD MOTOR COMPANY
  31. Install the CAC pipe and tighten the clamp.

    Torque: 44 lb.in (5 Nm)

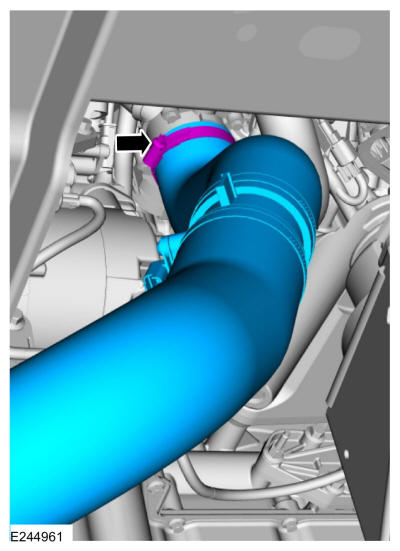

    GFD308289Courtesy of FORD MOTOR COMPANY

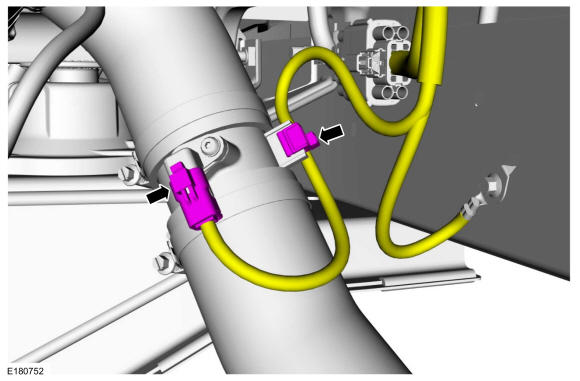

  32. Connect the CAC temperature sensor electrical connector and the wire retainer.
    GFD308290Courtesy of FORD MOTOR COMPANY

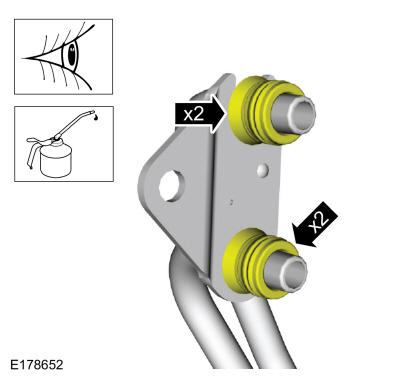

  33. NOTE: Transmission side shown, transmission cooler side similar.
    NOTE: Lubricate with clean transmission oil.

    Inspect the transmission cooler tube seals and backing rings, replace if necessary.

    Material: Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV,)

    GFD308291Courtesy of FORD MOTOR COMPANY

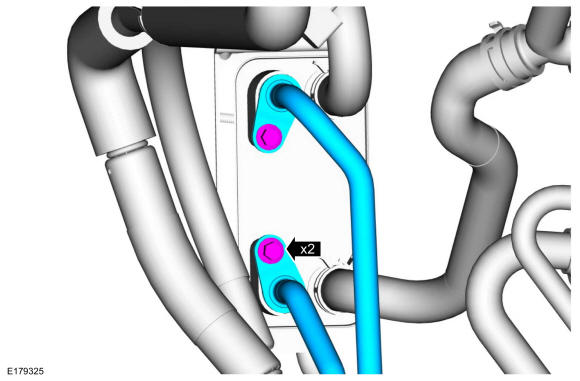

  34. Install the transmission cooler tubes and bolts.

    Torque: 97 lb.in (11 Nm)

    GFD307980Courtesy of FORD MOTOR COMPANY
  35. Position the transmission cooler tube bracket and install the nut.

    Torque: 97 lb.in (11 Nm)

    GFD307894Courtesy of FORD MOTOR COMPANY
  36. Install the transmission cooler tube bolt at the transmission.

    Torque: 18 lb.ft (25 Nm)

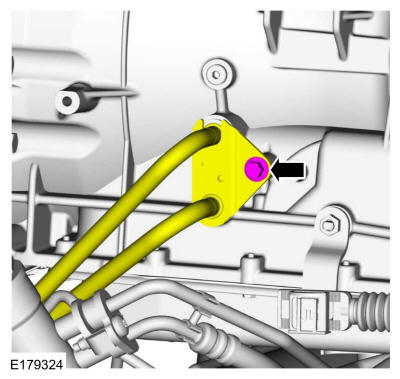

    GFD307979Courtesy of FORD MOTOR COMPANY

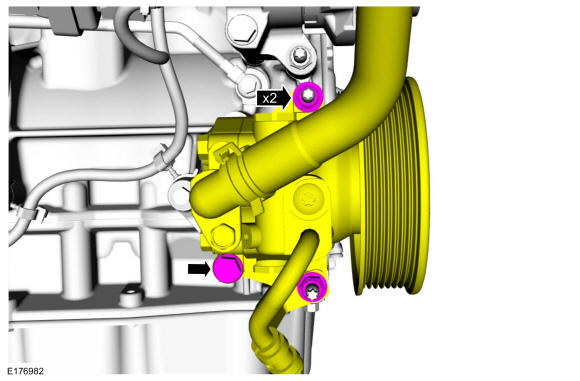

  37. Position the power steering pump and install the nuts and bolt.

    Torque: 22 lb.ft (30 Nm)

    GFD308292Courtesy of FORD MOTOR COMPANY

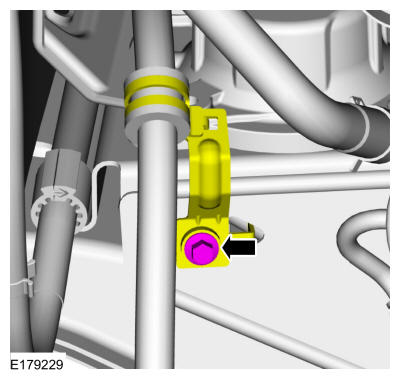

  38. Position back the bracket and install the bolt.

    Torque: 106 lb.in (12 Nm)

    GFD307977Courtesy of FORD MOTOR COMPANY

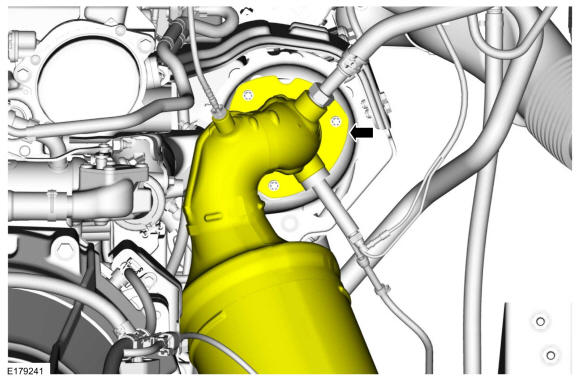

  39. Using a new turbocharger gasket, position back the catalytic converter.
    GFD307976Courtesy of FORD MOTOR COMPANY
  40. Using a new gasket, install the exhaust heat shield and bolts.

    Torque: 30 lb.ft (40 Nm)

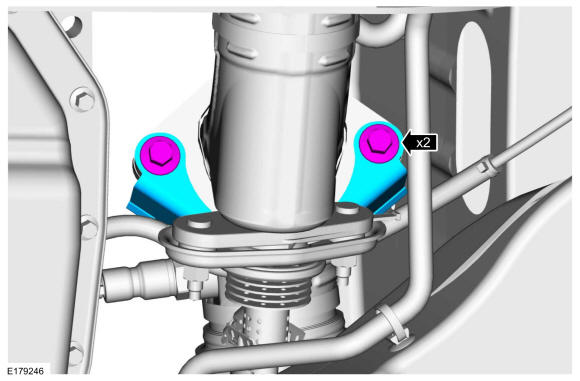

    GFD308293Courtesy of FORD MOTOR COMPANY

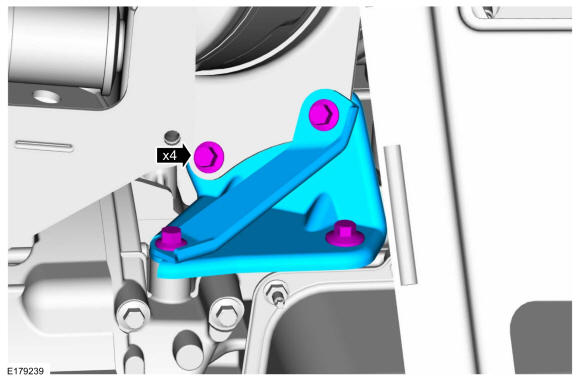

  41. NOTE: The catalytic converter bracket bolts are 2 different sizes. Install the bolts in the same location as they were removed.

    Install the catalytic converter bracket and the bolts.

    Torque: 18 lb.ft (25 Nm)

    GFD307974Courtesy of FORD MOTOR COMPANY
  42. Position back the transmission vent tube and connect the retainers.
    GFD307875Courtesy of FORD MOTOR COMPANY

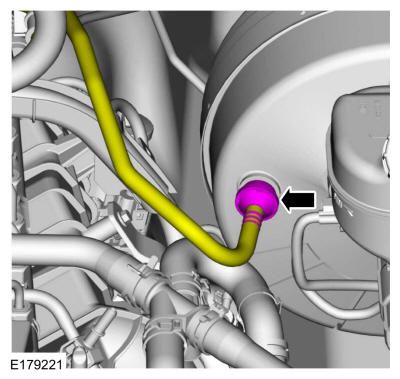

  43. Connect the brake booster hose.
    GFD307973Courtesy of FORD MOTOR COMPANY

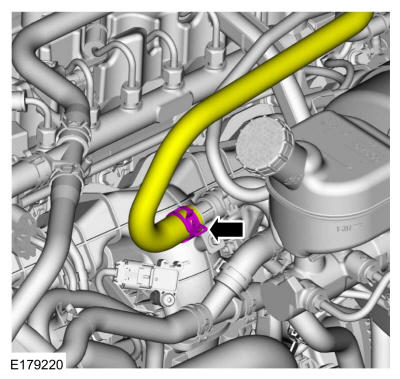

  44. Connect the heater hose at the intake. Use the General Equipment: Hose Clamp Remover/Installer
    GFD307972Courtesy of FORD MOTOR COMPANY
  45. Connect the coolant connector. Use the General Equipment: Hose Clamp Remover/Installer

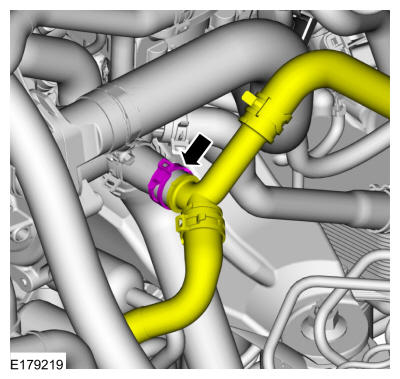

    GFD307971Courtesy of FORD MOTOR COMPANY
  46. Position the engine wire harness and connect the retainer.

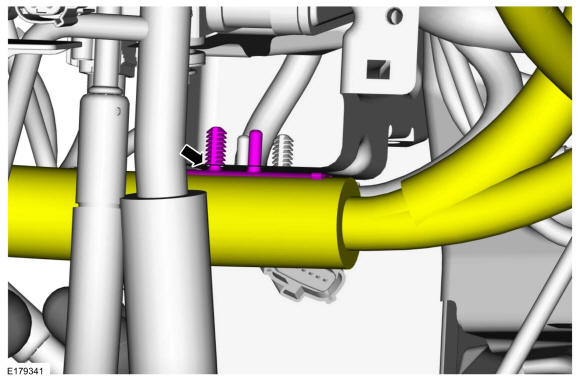

    GFD307970Courtesy of FORD MOTOR COMPANY

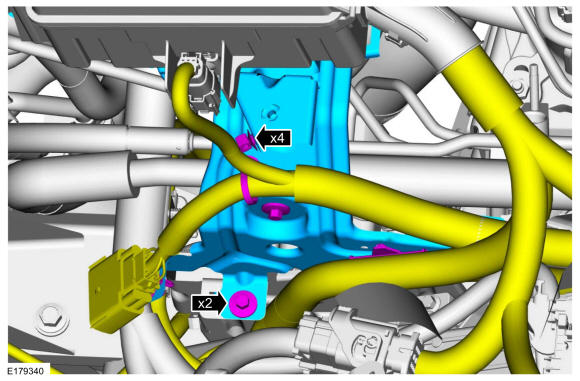

  47. Install the BJB bracket and the bolts. Connect the wire harness retainers.

    Torque: 89 lb.in (10 Nm)

    GFD307969Courtesy of FORD MOTOR COMPANY

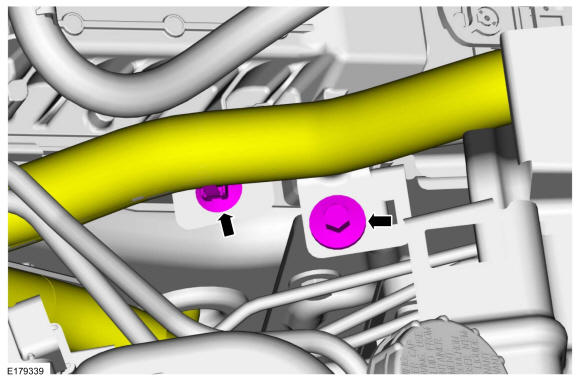

  48. Install the bolt and connect the wire harness retainer.

    Torque: 89 lb.in (10 Nm)

    GFD307968Courtesy of FORD MOTOR COMPANY
  49. Install the bolts for the A/C tubes.

    Torque: 97 lb.in (11 Nm)

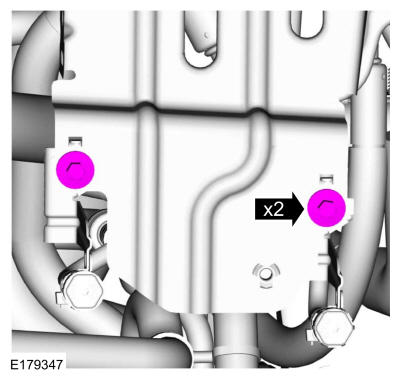

    GFD307967Courtesy of FORD MOTOR COMPANY

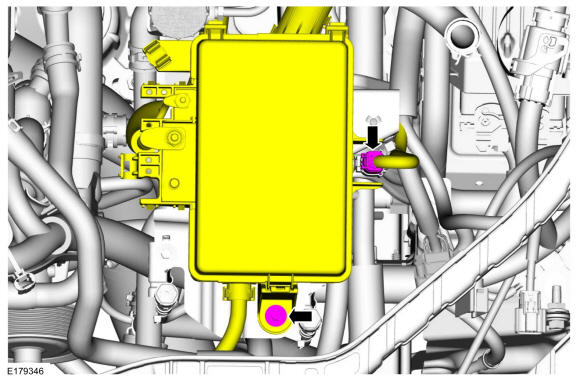

  50. Position back the BJB and install the bolt. Connect the electrical connector.

    Torque: 53 lb.in (6 Nm)

    GFD307966Courtesy of FORD MOTOR COMPANY
  51. Connect the wire retainer to the BJB bracket.

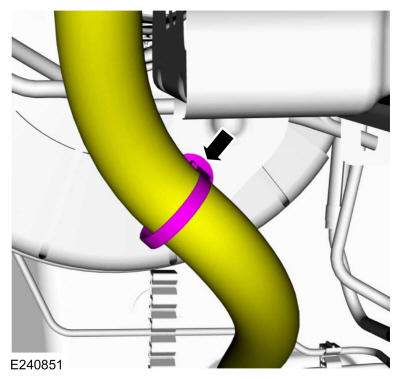

    GFD307965Courtesy of FORD MOTOR COMPANY

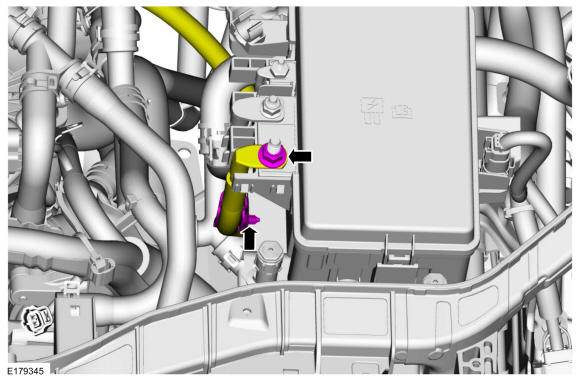

  52. Position back the cable and connect the wire retainer. Install the nut.

    Torque: 106 lb.in (12 Nm)

    GFD307964Courtesy of FORD MOTOR COMPANY

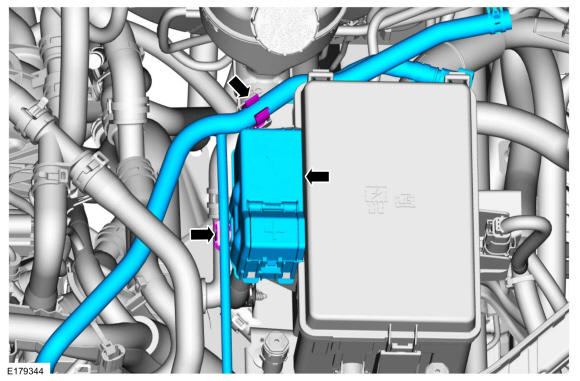

  53. Install the cable cover. Install the coolant hoses.
    GFD307963Courtesy of FORD MOTOR COMPANY

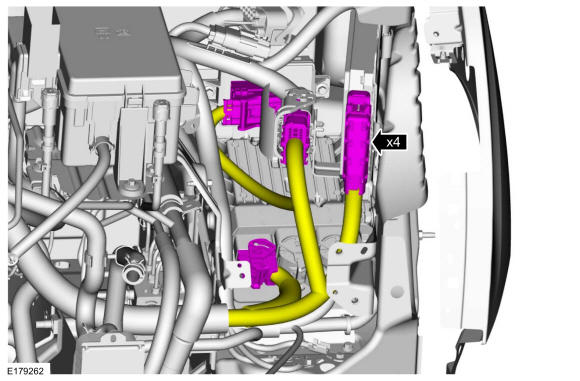

  54. Connect the electrical connectors.
    GFD307962Courtesy of FORD MOTOR COMPANY
  55. Install the degas bottle. Refer to: Degas Bottle .
  56. Connect the fuel tubes. Refer to: Quick Release Coupling .
    GFD307873Courtesy of FORD MOTOR COMPANY

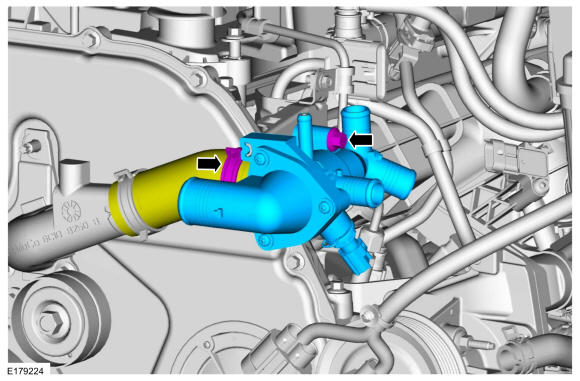

  57. Install the thermostat assembly and the bolt. Connect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer

    Torque: 17 lb.ft (23 Nm)

    GFD307961Courtesy of FORD MOTOR COMPANY

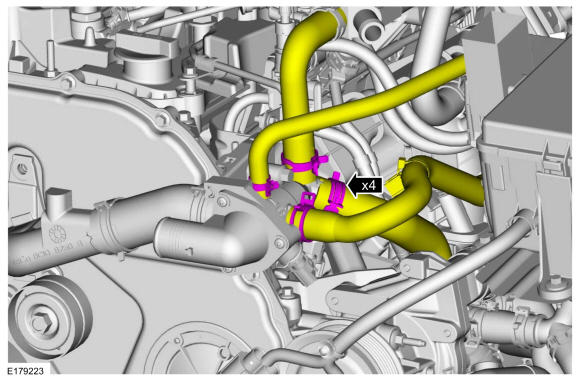

  58. Connect the coolant hoses to the thermostat assembly. Use the General Equipment: Hose Clamp Remover/Installer
    GFD307960Courtesy of FORD MOTOR COMPANY
  59. Position back the engine wire harness and install the nut. Connect the ECT sensor electrical connector.

    Torque: 89 lb.in (10 Nm)

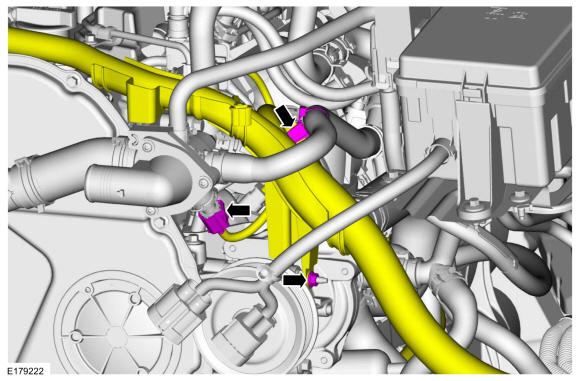

    GFD307959Courtesy of FORD MOTOR COMPANY

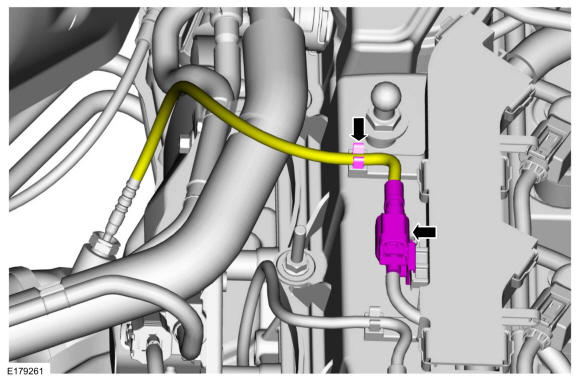

  60. Connect the electrical connector and wire retainer.
    GFD307958Courtesy of FORD MOTOR COMPANY
  61. Remove the oil filler cap and install the engine appearance cover. Install the oil filler cap and position back the coolant hose.

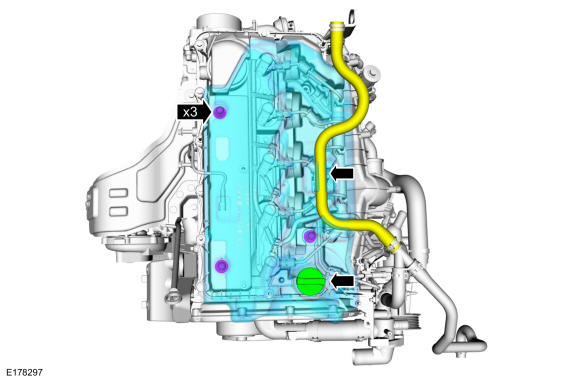

    GFD308294Courtesy of FORD MOTOR COMPANY

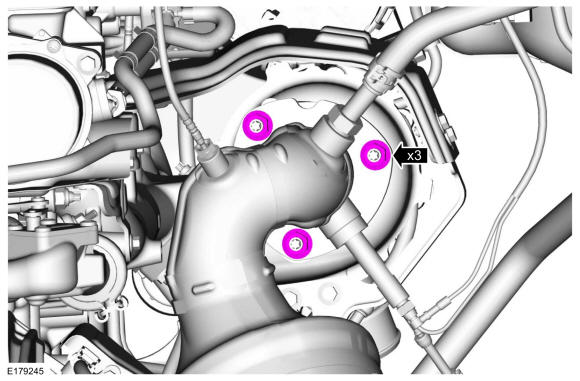

  62. Install the catalytic converter nuts.

    Torque: 30 lb.ft (40 Nm)

    GFD308295Courtesy of FORD MOTOR COMPANY
  63. Install the fuel vaporizer system glow plug. Refer to: Fuel Vaporizer System Glow Plug .
  64. Position back and connect the hose to the air cleaner.

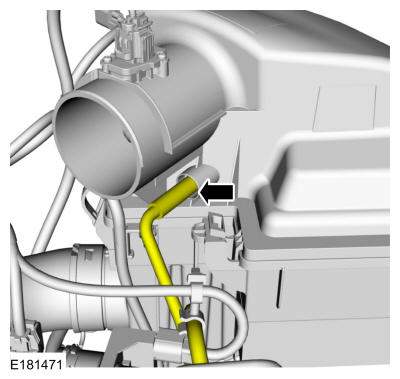

    GFD307955Courtesy of FORD MOTOR COMPANY
  65. Install the CAC pipe.

    Torque: 48 lb.in (5.4 Nm)

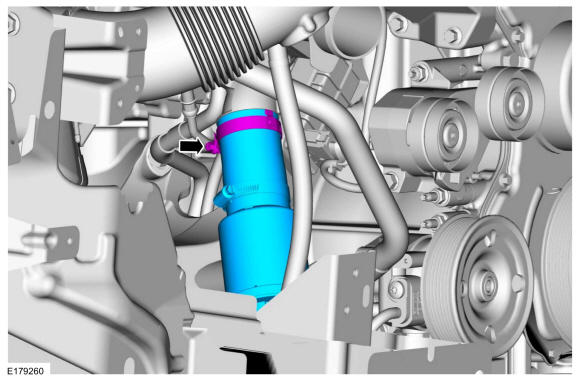

    GFD307954Courtesy of FORD MOTOR COMPANY
  66. Install the oil filter.

    Material: Motorcraft® SAE 5W-40 Full Synthetic Diesel Motor Oil / XO-5W40-5Q3SD (WSS-M2C171-F1)

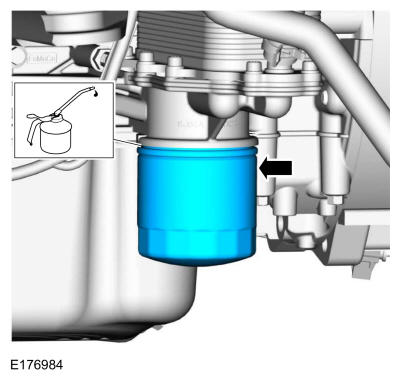

    GFD307903Courtesy of FORD MOTOR COMPANY
  67. Fill the engine with clean engine oil.

    Material: Motorcraft® SAE 5W-40 Full Synthetic Diesel Motor Oil / XO-5W40-5Q3SD (WSS-M2C171-F1)

  68. Install the following items:

    1. Install the air cleaner outlet tube. Refer to: Air Cleaner Outlet Pipe .
    2. Install the cooling module. Refer to: Cooling Module .
    3. Install the accessory drive belt. Refer to: Accessory Drive Belt .

  69. Connect the battery ground cable. Refer to: Battery Disconnect and Connect - Vehicles With: Dual Batteries .
  70. Bleed the fuel system. Refer to: Fuel System Bleeding .
  71. Check the transmission fluid level. Refer to: Transmission Fluid Level Check .
  72. Start the engine and check the exhaust for leaks.
