Front Subframe: Installation

All vehicles

1. WARNING: WARNING: Make sure that new bolts are installed.
   NOTE: This step is only necessary when installing a new component.

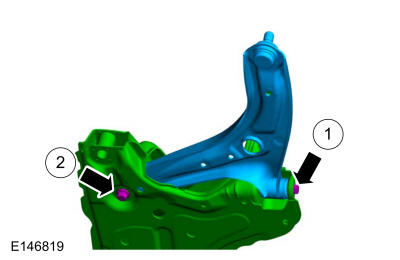

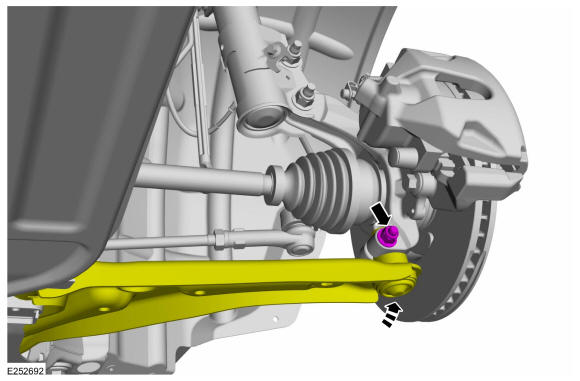

   Install the lower arm.

   1. Install the lower arm forward bolt.

      Torque: Stage 1: 76 lb.ft (103 Nm) Stage 2: 180 deg.

   2. Install the lower arm rearward bolt.

      Torque: Stage 1: 46 lb.ft (63 Nm) Stage 2: 180 deg.

   Courtesy of FORD MOTOR COMPANY

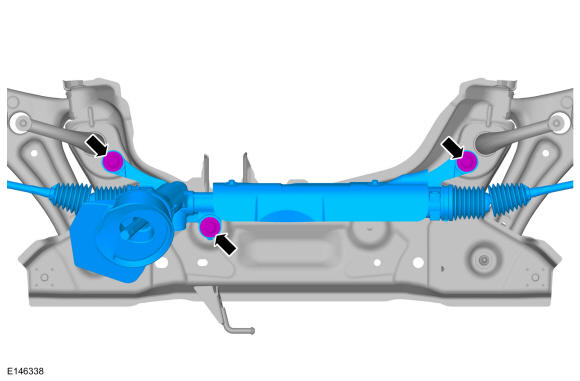

2. Install the steering gear and steering gear mounting bolts.

   Torque: 66 lb.ft (90 Nm)

   Courtesy of FORD MOTOR COMPANY

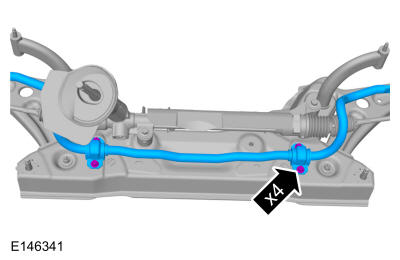

3. Install the stabilizer bar and the stabilizer bar bracket bolts.

   Torque: 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

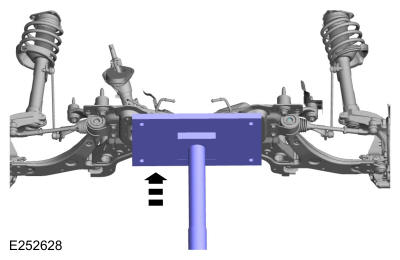

4. Partially raise the subframe and position it to the vehicle. Use the General Equipment: Transmission Jack

   Courtesy of FORD MOTOR COMPANY

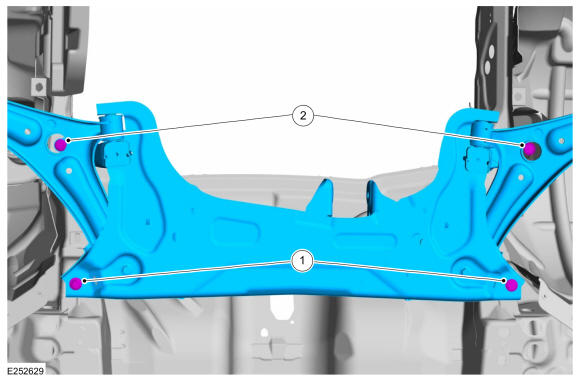

5. NOTE: Do not tighten the bolts at this stage.

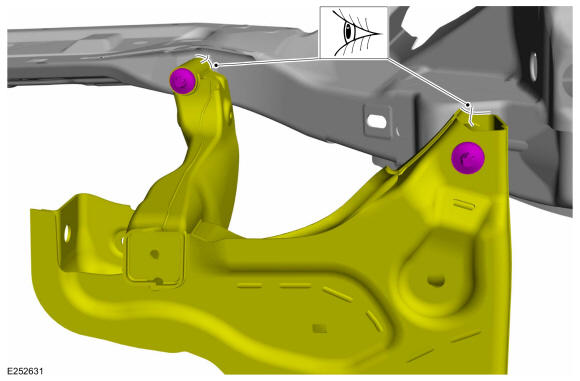

   1. Install the new rearward front subframe bolts.
   2. Install the new forward front subframe bolts.

   Courtesy of FORD MOTOR COMPANY

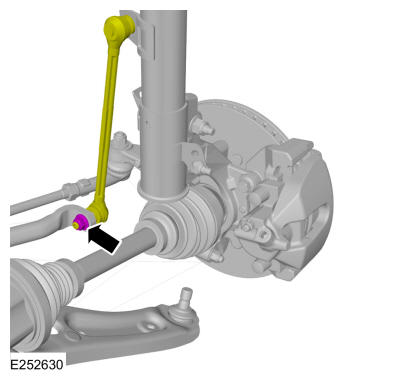

6. On both sides. Position the stabilizer bar links and install the new stabilizer bar link lower nut.

   Torque: 46 lb.ft (63 Nm)

   Courtesy of FORD MOTOR COMPANY

7. NOTE: If installing the subframe that was previously removed.

   On both sides. Align the index marks made during removal.

   Courtesy of FORD MOTOR COMPANY

8. 1. Tighten the new rearward front subframe bolts.

      Torque: Stage 1: 74 lb.ft (100 Nm) Stage 2: 240 deg.

   2. Tighten the new forward front subframe bolts.

      Torque: Stage 1: 46 lb.ft (63 Nm) Stage 2: 60 deg.

   Courtesy of FORD MOTOR COMPANY

   1.5L

9. Attach the exhaust hanger isolator.

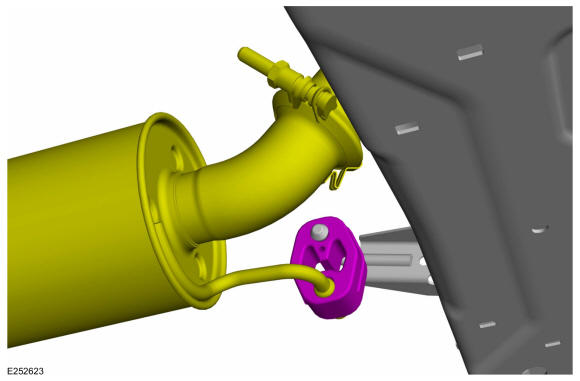

   Courtesy of FORD MOTOR COMPANY

   Vehicles with 1.0L EcoBoost, 1.5L Duratorq-TDCi

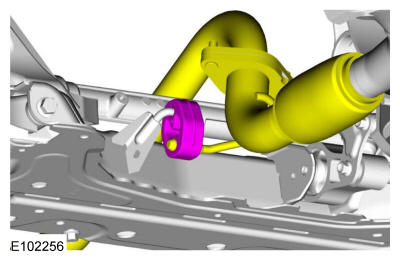

10. Attach the exhaust hanger isolator.

    Courtesy of FORD MOTOR COMPANY

    All vehicles

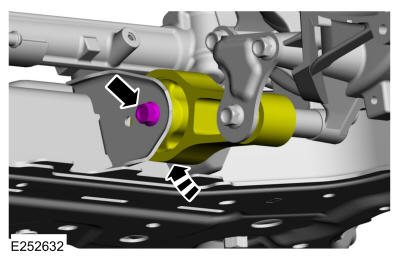

11. Position the engine roll restrictor and install the engine roll restrictor bolt.

    Torque: 59 lb.ft (80 Nm)

    Courtesy of FORD MOTOR COMPANY

12. • Attach the tie rod to the wheel knuckle.
    • Install the new tie rod nut.

      Torque: 39 lb.ft (53 Nm)

    Courtesy of FORD MOTOR COMPANY

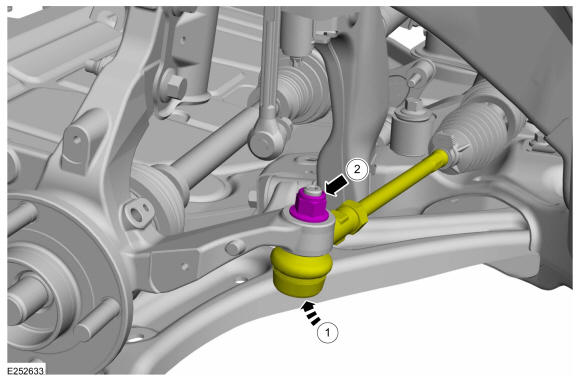

13. On both sides. Connect the lower ball joint to the wheel knuckle and install the new ball joint pinch bolt and nut.

    Torque: 38 lb.ft (52 Nm)

    Courtesy of FORD MOTOR COMPANY

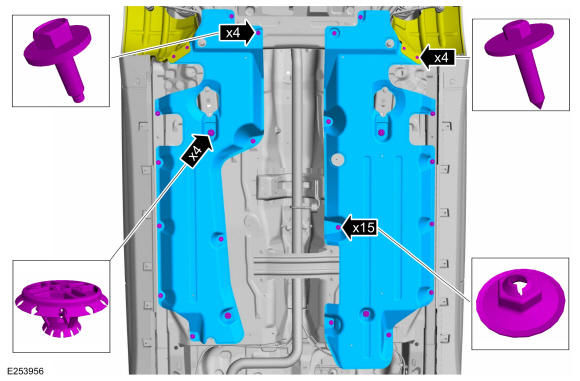

14. Install the underbody side panels and the retainers.

    Torque: 13 lb.in (1.5 Nm)

    Courtesy of FORD MOTOR COMPANY

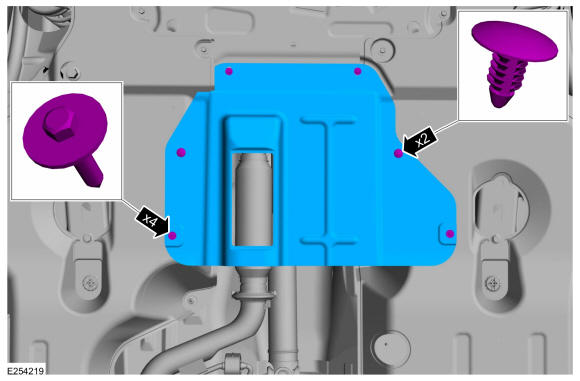

15. Install the under body air deflector shield and the retainers.

    Courtesy of FORD MOTOR COMPANY

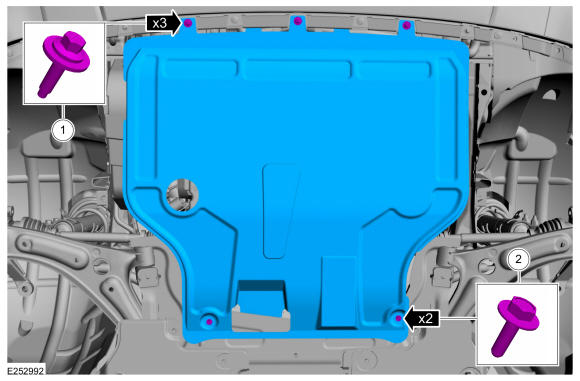

16. Install the under body shield and the retainers.

    Torque: 1: 13 lb.in (1.5 Nm) 2: 22 lb.in (2.5 Nm)

    Courtesy of FORD MOTOR COMPANY

17. Install the wheels and tires. Refer to: Wheel and Tire .

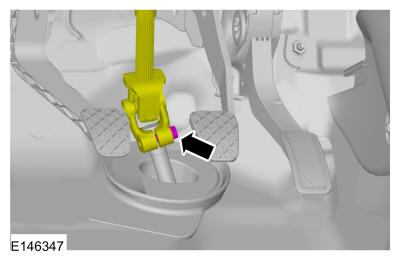

18. WARNING: WARNING: Do not reuse steering column shaft bolts. This may result in fastener failure and steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

    Position the steering shaft coupler and install the new steering shaft coupler bolt.

    Torque: 25 lb.ft (34 Nm)

    Courtesy of FORD MOTOR COMPANY

19. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
20. Check and if necessary adjust front toe. Refer to: Front Toe Adjustment .
