Front Toe Adjustment

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations Refer to OEM Color Coding

Special Tool(s) / General Equipment

Wheel Alignment System

Adjustment

NOTE: Make sure that the vehicle is standing on a level surface.

NOTE: Make sure that the steering wheel lock is engaged.

NOTE: Make sure that the road wheels are in the straight ahead position.

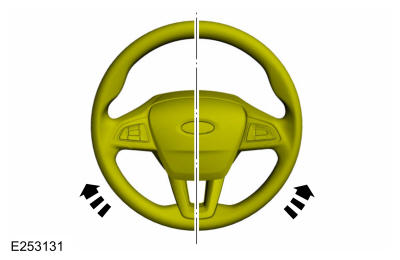

Steering wheel in straight ahead position.

Courtesy of FORD MOTOR COMPANY
Using alignment equipment and the manufacturer's instructions, measure the front toe. Use the General Equipment: Wheel Alignment System
NOTE: Hold the tie-rod end stationary with a wrench while loosening the nut or damage to the boot can occur.

On both sides.

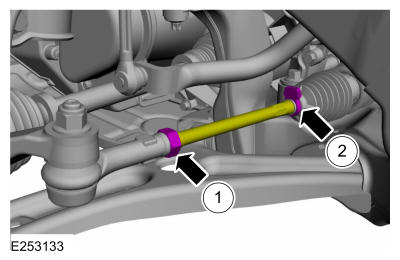

1. Position aside the steering gear boot clamp.
2. Loosen the outer tie rod end jamb nut.
3. NOTE: Do not allow the steering gear bellows to twist when the inner tie rod is rotated.

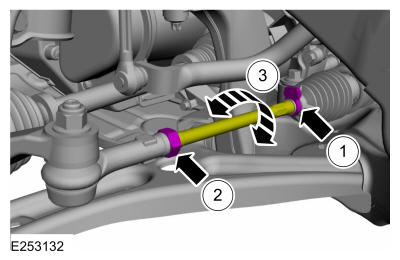

  Rotate the inner tie-rods an equal amount in either a clockwise or a counterclockwise direction to adjust the toe setting on both sides.
Courtesy of FORD MOTOR COMPANY
NOTE: Do not disturb the toe settings while tightening the nut(s).

On both sides.
1. Tighten the outer tie rod end jamb nut.
  Torque: 46 lb.ft (63 Nm)
2. Position the steering gear boot clamp.
Courtesy of FORD MOTOR COMPANY
Recheck the toe settings and adjust as necessary.
