Battery Disconnect and Connect

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

Special Tool(s) / General Equipment

Adhesive Tape

Disconnect

NOTE: When the battery is disconnected and connected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven to allow the PCM to relearn the adaptive strategy values.

NOTE: When disconnecting the battery ground cable to interrupt power to the vehicle electrical system, disconnect the battery ground cable only. It is not necessary to disconnect the positive battery cable.

Disconnecting the battery ground cable to interrupt power to the vehicle electrical system only

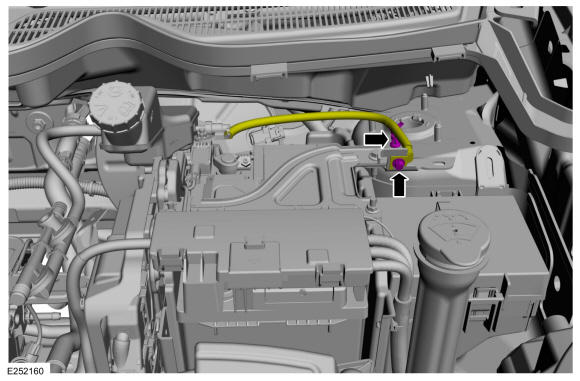

Remove the bolt and detach the negative battery cable from the LH strut tower.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

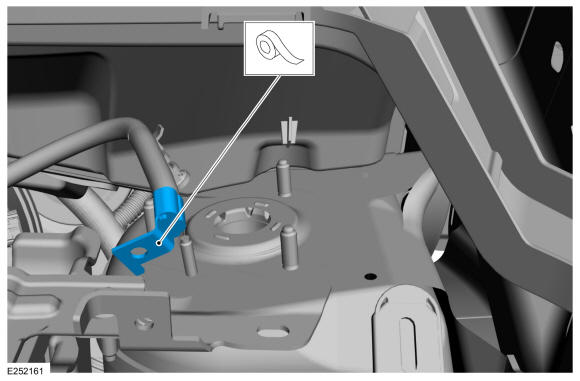

Using electrical tape, cover the negative battery cable terminal. Use the General Equipment: Adhesive Tape

Courtesy of FORD MOTOR COMPANY

Disconnecting the battery cables

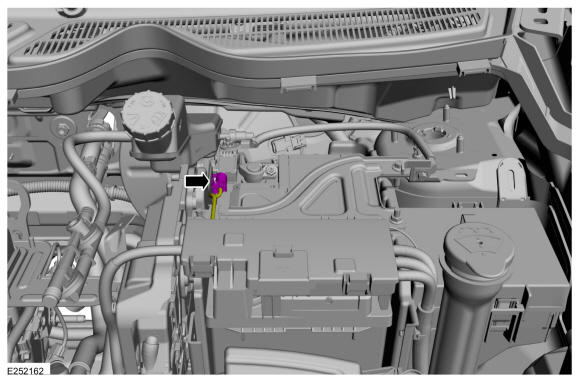

Disconnect the battery monitoring sensor electrical connector.

Courtesy of FORD MOTOR COMPANY
NOTE: Be careful not to damage the battery monitoring sensor when removing the terminal from the battery post. Do not pry on the terminals or component damage may occur.

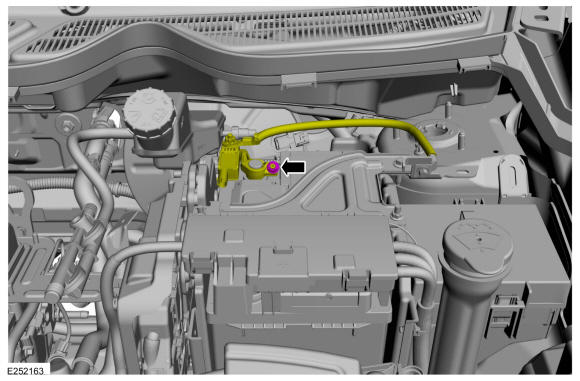

Loosen the nut and position the negative battery cable aside.

Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

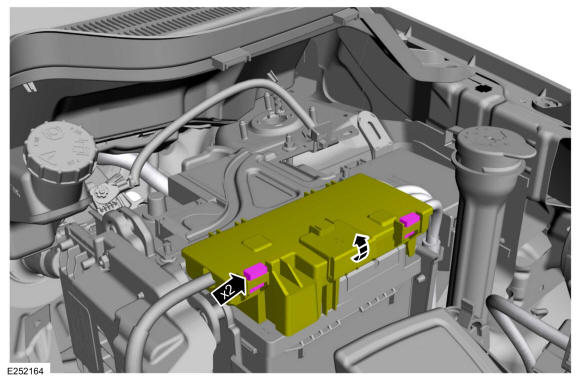

Release the tabs and position the BJB cover.

Courtesy of FORD MOTOR COMPANY

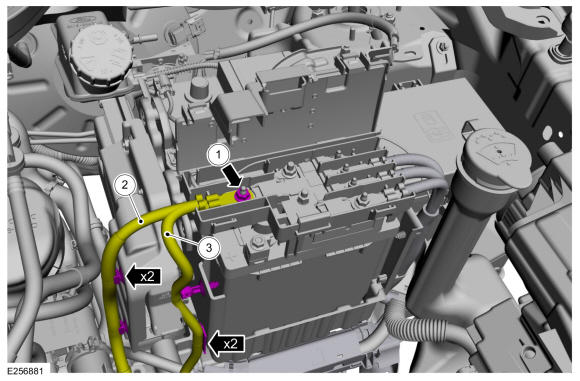

1. Detach the battery cable retainers. Remove the nut and position the cable aside.
  Torque: 89 lb.in (10 Nm)
2. Vehicles with automatic transmission
3. Vehicles with manual transmission
Courtesy of FORD MOTOR COMPANY

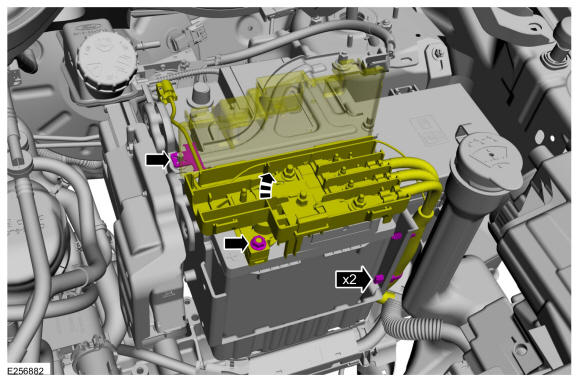

Detach the battery cable retainers. Loosen the nut and position the BJB aside.
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

Connect

Reverse the disconnect procedure.
If equipped with one-touch open and close driver window, perform the window motor initialization. Refer to: Power Door Window Initialization .
