Section 54 (Engine - 2.0L DURATEC-He (129KW/175PS)): Removal: Engine

For information on Ford Color Coded Illustrations, refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	307-566Retainer, Torque Converter TKIT-2006C-FFMFLM TKIT-2006C-LM TKIT-2006C-ROW
Magnetic Socket
Floor Crane
Adjustable Mounting Arm
Oil Drain Equipment
Hose Clamp Remover/Installer
Powertrain Jack
Wooden Block

All vehicles

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
2. NOTE: Do not pull the engine appearance cover forward or sideways to remove. Failure to press straight upward on the underside of the cover at the attachment points may result in damage to the cover or engine components.
   1. Place your hand under the engine appearance cover at each grommet location and push straight up to release each grommet from the studs.
   2. After all of the grommets have been released from the studs, remove the appearance cover from the engine.

   Courtesy of FORD MOTOR COMPANY

3. Evacuate the A/C system. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging - Vehicles With: R134A Refrigerant .
4. Release the fuel system pressure. Refer to: Fuel System Pressure Release .
5. If equipped, remove the bolts and the underbody shield.

   Courtesy of FORD MOTOR COMPANY

6. Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
7. Remove the following items:
   1. Remove the RH headlight assembly. Refer to: Headlamp Assembly .
   2. Remove the air cleaner and the air cleaner outlet pipe. Refer to: Air Cleaner . Refer to: Air Cleaner Outlet Pipe .
   3. Remove the battery tray. Refer to: Battery Tray .

8. • Detach the coolant hose retainer.

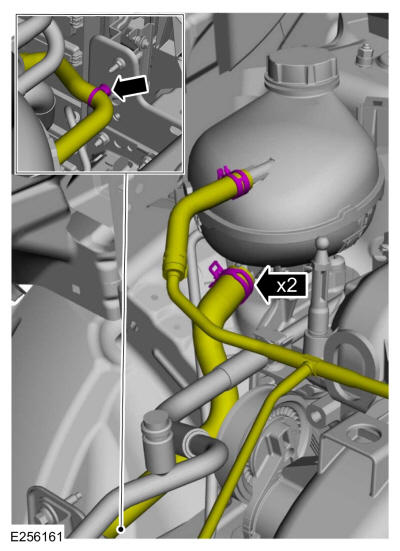

   • Remove the coolant hoses from the degas bottle. Use the General Equipment: Hose Clamp Remover/Installer

   Courtesy of FORD MOTOR COMPANY

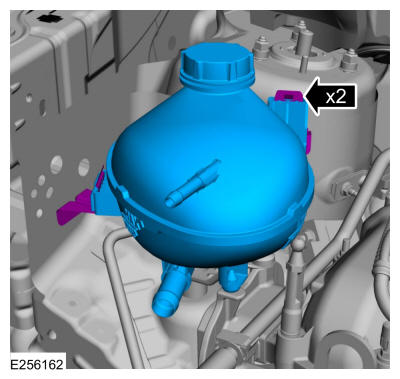

9. Release the tabs and remove the degas bottle.

   Courtesy of FORD MOTOR COMPANY

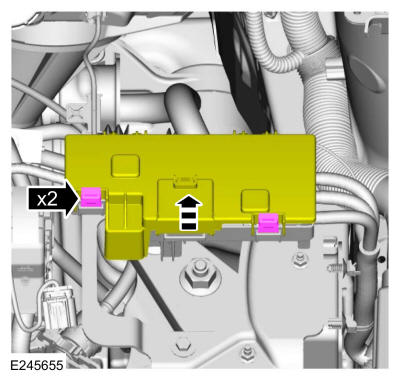

10. Release the tabs and open the junction box cover.

    Courtesy of FORD MOTOR COMPANY

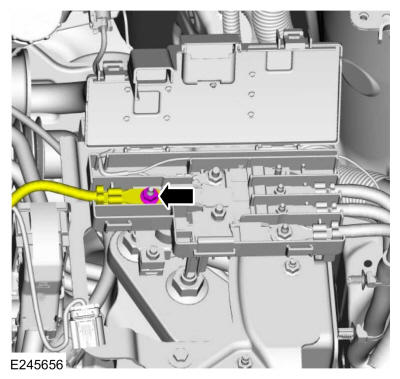

11. Remove the nut and the battery feed wiring harness from the junction box.

    Courtesy of FORD MOTOR COMPANY

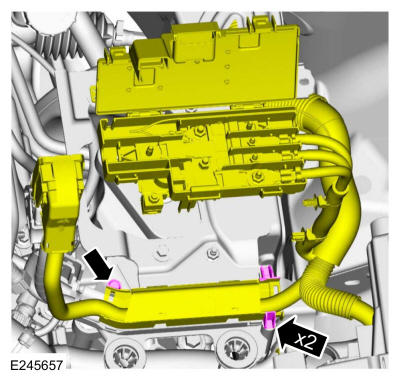

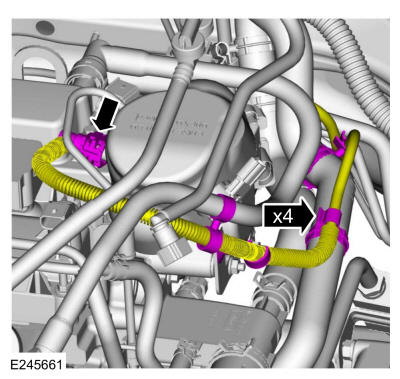

12. Separate and detach the wire harness retainers from the plastic housing on battery tray bracket.

    Courtesy of FORD MOTOR COMPANY

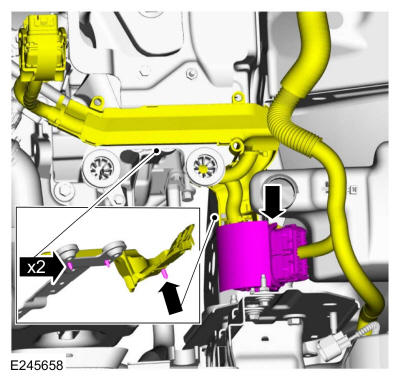

13. • Detach the plastic housing from battery tray bracket.
    • Disconnect the engine harness connector.

    Courtesy of FORD MOTOR COMPANY

14. Remove the nuts and the battery tray bracket.

    Courtesy of FORD MOTOR COMPANY

15. If equipped cabin heater coolant pump, disconnect the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

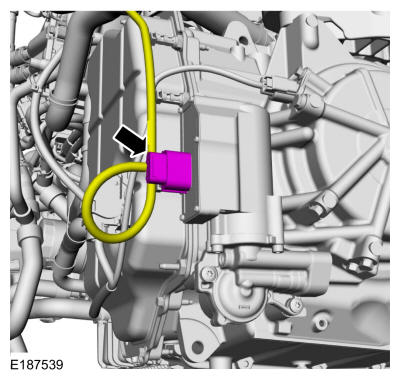

16. If equipped, disconnect the block heater wiring harness electrical connector.

    Courtesy of FORD MOTOR COMPANY

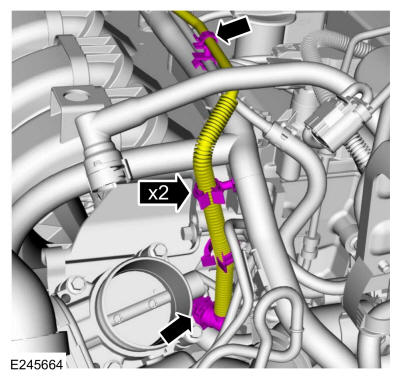

17. If equipped, detach the block heater wiring harness retainers and remove.

    Courtesy of FORD MOTOR COMPANY

18. • Disconnect the selector lever cable end from the manual control lever.
    • Remove the bolt and position the shift cable aside.

    Courtesy of FORD MOTOR COMPANY

19. Disconnect the fuel tube quick release coupling and the retainers. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

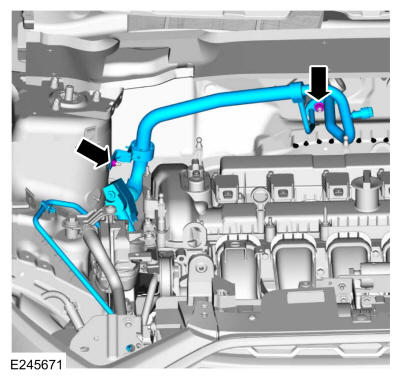

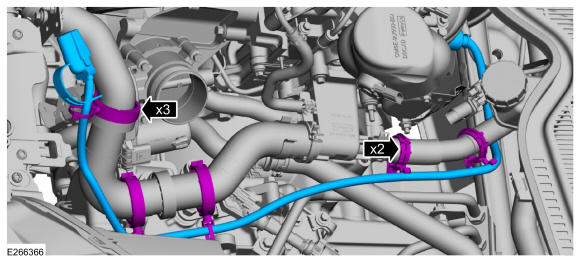

20. • Detach the retainer and release the clamps and remove the upper radiator hose. Use the General Equipment: Hose Clamp Remover/Installer
    • Release the clamp and position the degas bottle hose aside. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

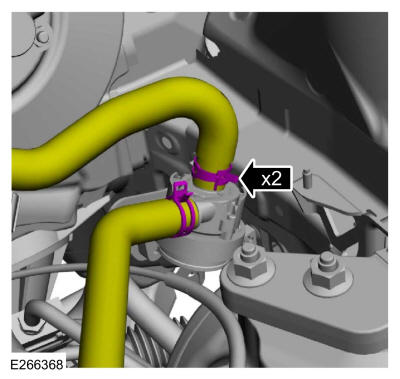

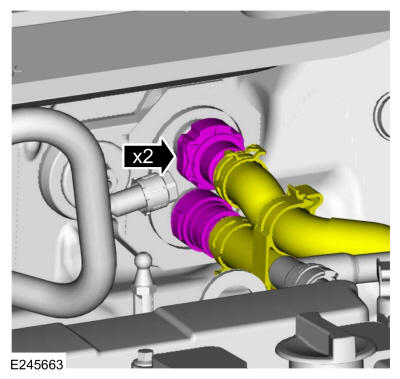

21. Disconnect the coolant hoses from the heater core.

    Courtesy of FORD MOTOR COMPANY

22. Disconnect the brake vacuum tube from the intake manifold.

    Courtesy of FORD MOTOR COMPANY

    Engine mounted evaporative emission canister purge valve

23. • Disconnect the EVAP canister purge valve wiring harness electrical connector.
    • Disconnect the EVAP canister purge valve quick connect couplings. Refer to: Quick Release Coupling .
    • Detach the retainers.
    • Remove the nuts and the EVAP canister purge valve.

    Courtesy of FORD MOTOR COMPANY

    All vehicles

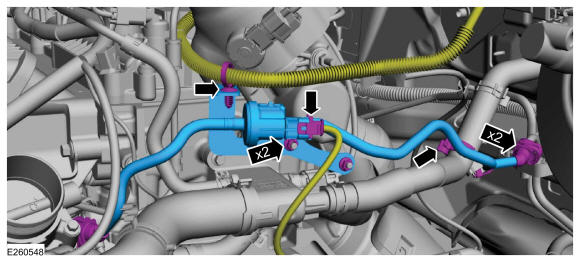

24. • Disconnect the EVAP canister purge valve tube quick release coupling from the intake manifold. Refer to: Quick Release Coupling .
    • Release the EVAP canister purge valve tube retainers.

    Courtesy of FORD MOTOR COMPANY

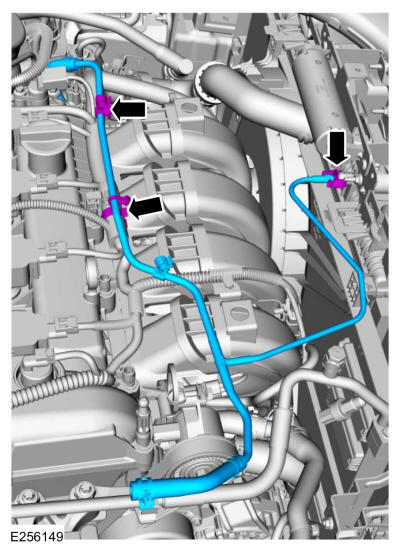

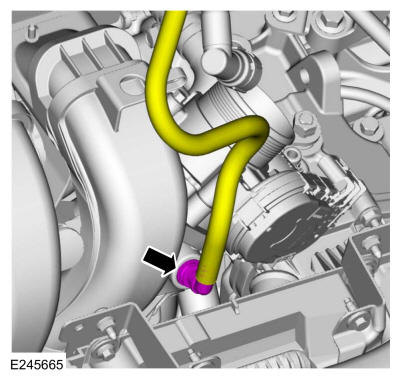

25. • Release the EVAP canister purge valve tube retainers.
    • Disconnect the EVAP canister purge valve tube quick release coupling and remove the EVAP canister purge valve tube. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

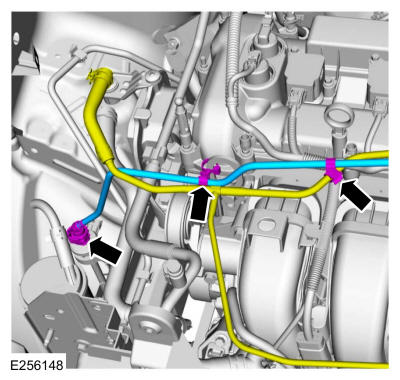

26. • Release the degas bottle coolant tube retainers.
    • Release the pinch clamp and remove the degas bottle coolant tube from the radiator.

    Courtesy of FORD MOTOR COMPANY

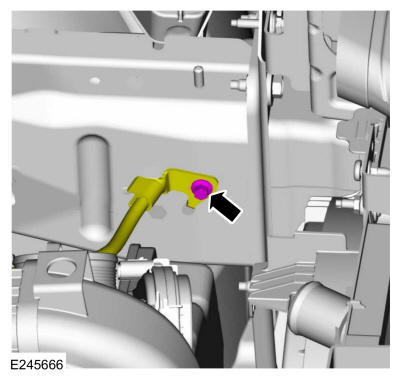

27. Remove the bolt from side rail and position the ground cable aside.

    Courtesy of FORD MOTOR COMPANY

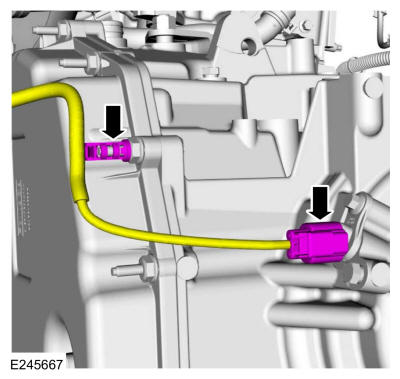

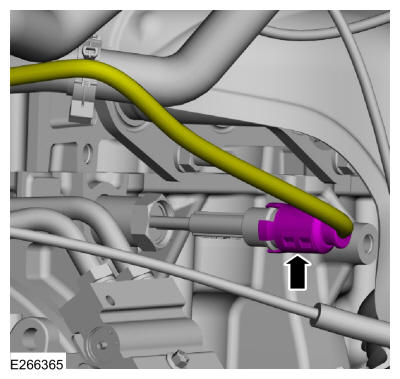

28. Disconnect the transmission TSS sensor wiring harness electrical connector and retainer.

    Courtesy of FORD MOTOR COMPANY

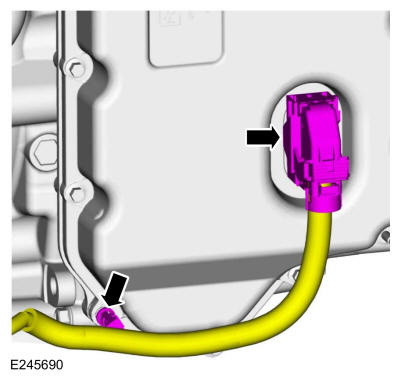

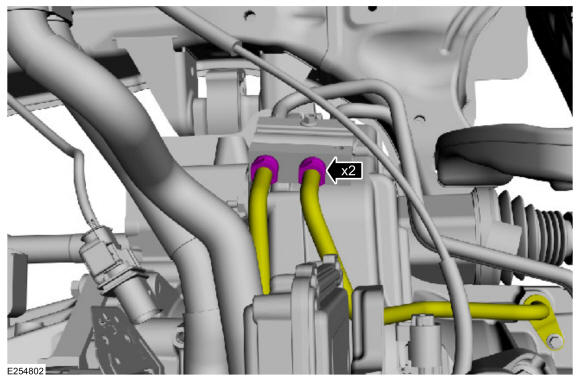

29. Disconnect the transmission fluid auxiliary pump electrical connector.

    Courtesy of FORD MOTOR COMPANY

30. NOTE: During the removal of components, cap, tape or otherwise appropriately protect all openings to prevent the ingress of dirt or other contamination. Remove protective materials prior to installation.

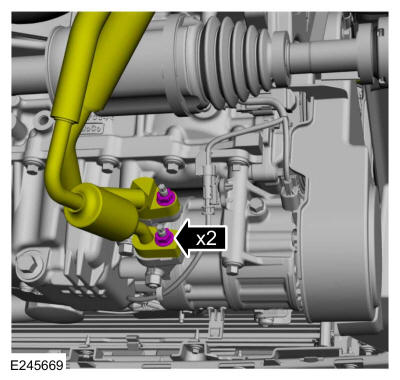

    • Remove the nuts and position the A/C lines aside.
    • Discard the O-ring seals.
    • Make sure to cover any open ports to prevent debris from entering the system.

    Courtesy of FORD MOTOR COMPANY

31. NOTE: During the removal of components, cap, tape or otherwise appropriately protect all openings to prevent the ingress of dirt or other contamination. Remove protective materials prior to installation.
    • Remove the nut and position the A/C line aside.
    • Discard the O-ring seal.
    • Make sure to cover any open ports to prevent debris from entering the system.

    Courtesy of FORD MOTOR COMPANY

32. NOTE: During the removal of components, cap, tape or otherwise appropriately protect all openings to prevent the ingress of dirt or other contamination. Remove protective materials prior to installation.
    • Detach the A/C line retainers.
    • Disconnect the A/C pressure switch wiring harness electrical connector.
    • Remove the nut and the A/C line.
    • Discard the O-ring seal.
    • Make sure to cover any open ports to prevent debris from entering the system.

    Courtesy of FORD MOTOR COMPANY

33. NOTE: During the removal of components, cap, tape or otherwise appropriately protect all openings to prevent the ingress of dirt or other contamination. Remove protective materials prior to installation.
    • Remove the nuts and the A/C line.
    • Discard the O-ring seal.
    • Make sure to cover any open ports to prevent debris from entering the system.

    Courtesy of FORD MOTOR COMPANY

34. Remove the following items:
    1. Remove the RH fender splash shield. Refer to: Fender Splash Shield .
    2. Remove the A/C compressor belt. Refer to: Air Conditioning (A/C) Compressor Belt .
    3. Remove the HO2S. Refer to: Heated Oxygen Sensor (HO2S) .

35. Disconnect the catalyst monitor sensor electrical connector and wire retainer.

    Courtesy of FORD MOTOR COMPANY

36. NOTE: Typical catalytic converter shown, sensor position may vary by application.

    Detach and position the catalyst monitor sensor wiring harness aside and remove the bolts and the catalytic converter heat shield.

    Courtesy of FORD MOTOR COMPANY

37. Remove the bolts for the catalytic converter support bracket.

    Courtesy of FORD MOTOR COMPANY

38. NOTE: Clean the catalytic converter-to-muffler sealing surfaces.
    1. Loosen the catalytic converter-to-muffler and tailpipe nut and separate.
    2. Detach the muffler and tailpipe hanger.

    Courtesy of FORD MOTOR COMPANY

39. • Remove and discard the nuts.
    • Position the catalytic converter aside and support.

    Courtesy of FORD MOTOR COMPANY

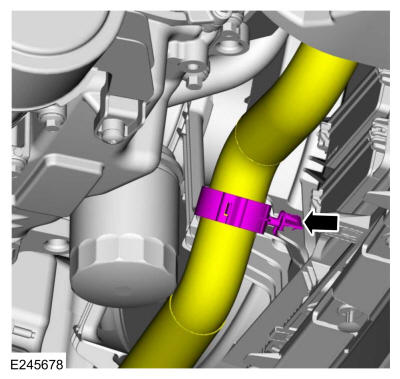

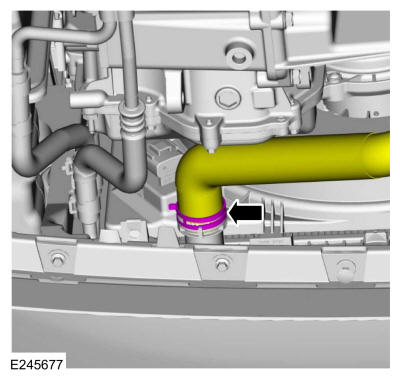

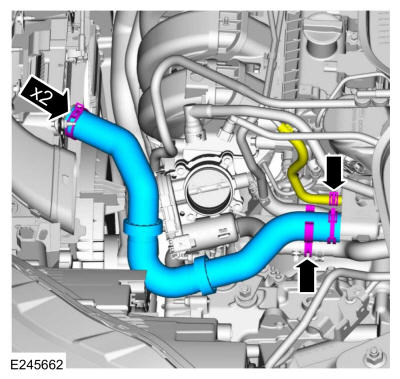

40. Release the clamp and remove the lower radiator coolant hose. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

41. Detach the lower radiator coolant hose retainer from the coolant fan motor and shroud.

    Courtesy of FORD MOTOR COMPANY

42. Remove the coolant fan motor and shroud. Refer to: Cooling Fan Motor and Shroud .
43. • Remove the drain plug and drain the engine oil. Use the General Equipment: Oil Drain Equipment
    • Install drain plug.

      Torque 20 lb.ft (27 Nm)

    Courtesy of FORD MOTOR COMPANY

44. Remove and discard the engine oil filter. Use the General Equipment: Oil Drain Equipment

    Courtesy of FORD MOTOR COMPANY

    All Wheel Drive (AWD) vehicles

45. Remove the transfer case. Refer to: Transfer Case .
46. Remove the LH halfshaft. Refer to: Front Halfshaft LH - 6-Speed Automatic Transmission - 6F15 .

    All vehicles

47. Remove the LH and RH halfshafts. Refer to: Front Halfshaft LH - 6-Speed Automatic Transmission - 6F15 . Refer to: Front Halfshaft RH - 2.0L Duratec-HE (125kW/170PS) - MI4, FWD .
48. NOTE: Be prepared to collect escaping fluid.

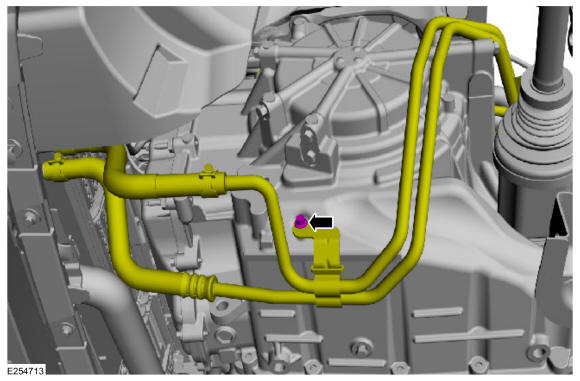

    Completely loosen the transmission fluid cooler tubes fittings from the cooler bypass valve.

    Courtesy of FORD MOTOR COMPANY

49. NOTE: Be prepared to collect escaping fluid.

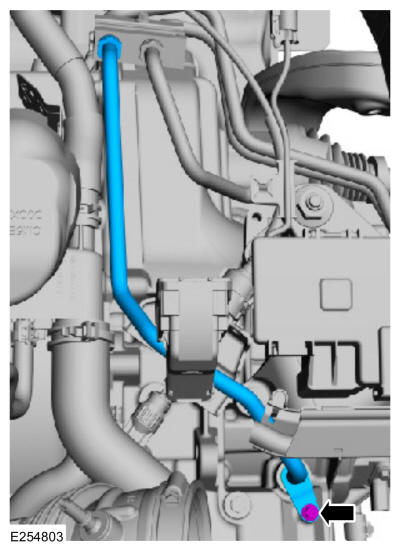

    Remove the bolt and the transmission-to-cooler bypass valve tube.

    Courtesy of FORD MOTOR COMPANY

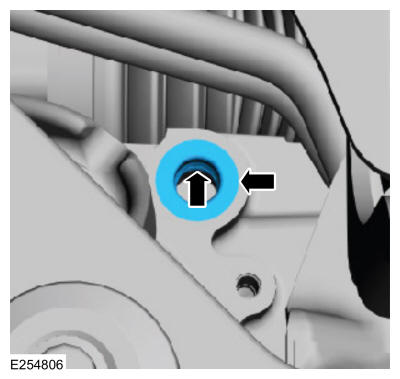

50. Inspect the transmission to be sure the transmission fluid tube seal and backing ring were removed with the transmission fluid tube and are not stuck in the transmission. If the transmission fluid tube seal or backing ring is stuck in the transmission, remove the seal and backing ring.

    Courtesy of FORD MOTOR COMPANY

51. NOTE: Be prepared to collect escaping fluid.

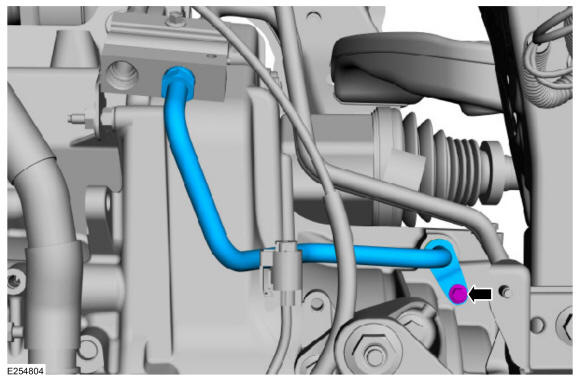

    Remove the bolt and the cooler bypass valve-to-transmission fluid tube.

    Courtesy of FORD MOTOR COMPANY

52. Inspect the transmission to be sure the transmission fluid tube seal and backing ring were removed with the transmission fluid tube and are not stuck in the transmission. If the transmission fluid tube seal or backing ring is stuck in the transmission, remove the seal and backing ring.

    Courtesy of FORD MOTOR COMPANY

53. Remove the transmission fluid cooler tubes bracket bolt.

    Courtesy of FORD MOTOR COMPANY

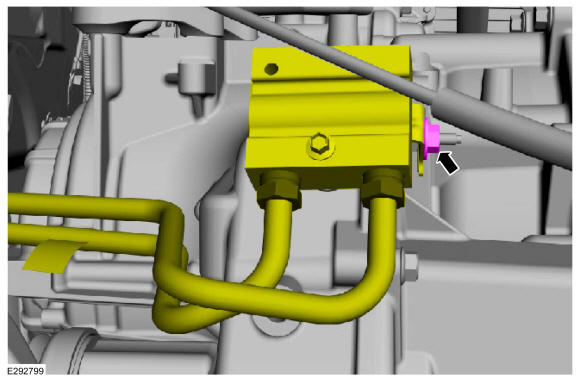

54. Remove the cooler bypass valve nut.

    Courtesy of FORD MOTOR COMPANY

55. NOTE: Be prepared to collect escaping fluid.

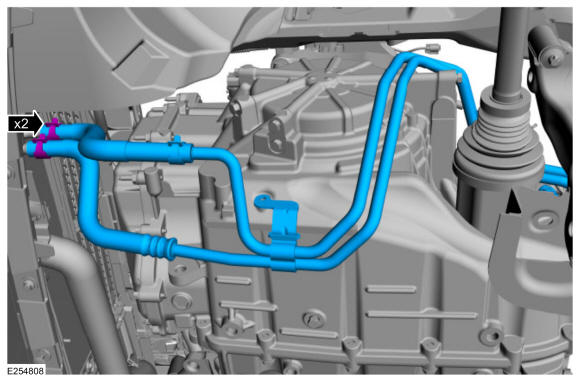

    Release the clamps and remove the transmission fluid cooler tubes.

    Courtesy of FORD MOTOR COMPANY

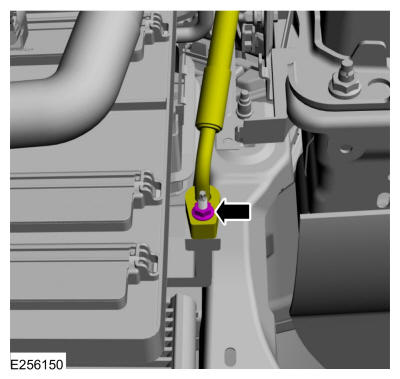

56. Remove the nut and position the ground wire aside.

    Courtesy of FORD MOTOR COMPANY

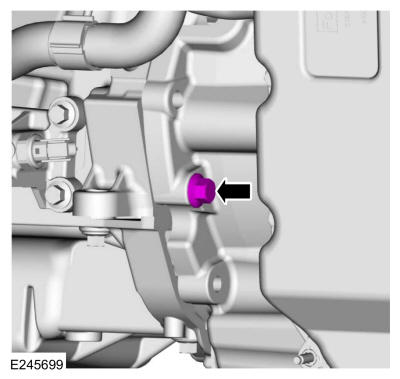

57. Remove the oil pan-to-transmission stud bolt and bolt.

    Courtesy of FORD MOTOR COMPANY

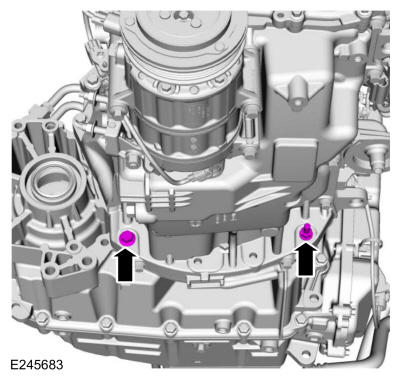

58. Remove the transmission-to-oil pan bolts.

    Courtesy of FORD MOTOR COMPANY

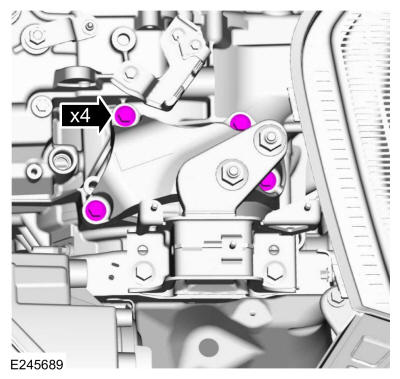

59. Remove the bolts and the engine roll restrictor.

    Courtesy of FORD MOTOR COMPANY

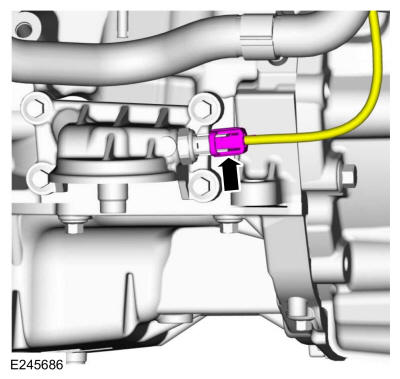

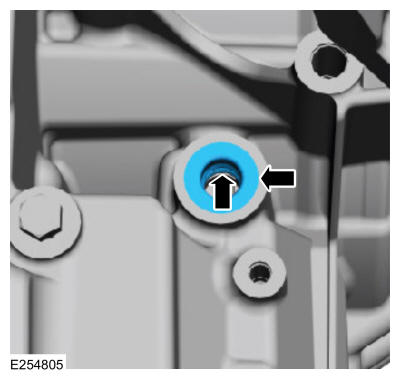

60. NOTE: The oil pressure switch needs to be disconnected to install adjustable mounting arm.

    Disconnect the oil pressure switch wiring harness electrical connector.

    Courtesy of FORD MOTOR COMPANY

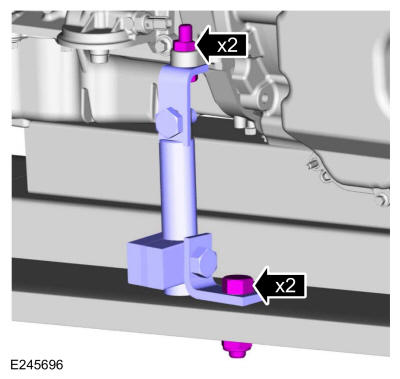

61. • Position the powertrain jack and boards under the engine and transmission. Use the General Equipment: Powertrain Jack. Use the General Equipment: Wooden Block
    • Install adjustable mounting arm. Use the General Equipment: Adjustable Mounting Arm

    Courtesy of FORD MOTOR COMPANY

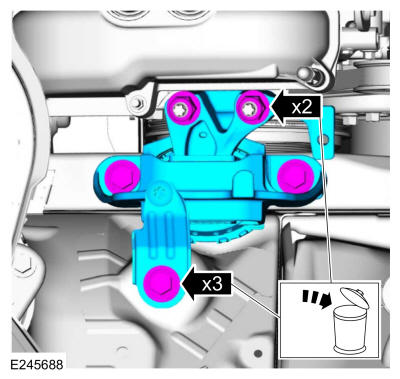

62. • Remove the nuts, bolts and the engine mount.
    • Discard the nuts and bolts.

    Courtesy of FORD MOTOR COMPANY

63. Remove the transmission mount bolts.

    Courtesy of FORD MOTOR COMPANY

64. Lower the powertrain from the vehicle.

    Courtesy of FORD MOTOR COMPANY

65. Remove and discard the catalytic converter manifold stud bolts and gasket.

    Courtesy of FORD MOTOR COMPANY

66. Clean and inspect the catalytic converter manifold. Refer to: Exhaust Manifold Cleaning and Inspection .
67. Disconnect the transmission wiring harness electrical connector and retainer.

    Courtesy of FORD MOTOR COMPANY

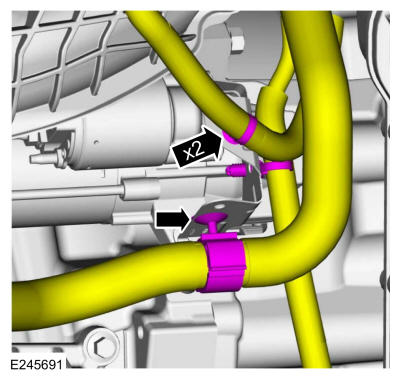

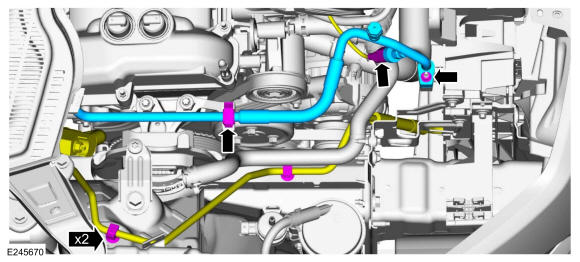

68. • Detach the coolant hose retainer.
    • Detach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

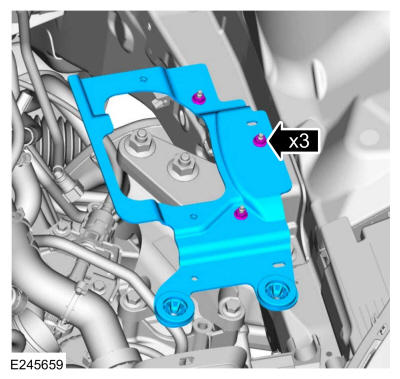

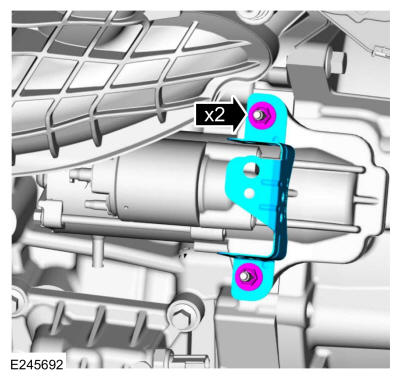

69. Remove the nuts and the starter motor bracket.

    Courtesy of FORD MOTOR COMPANY

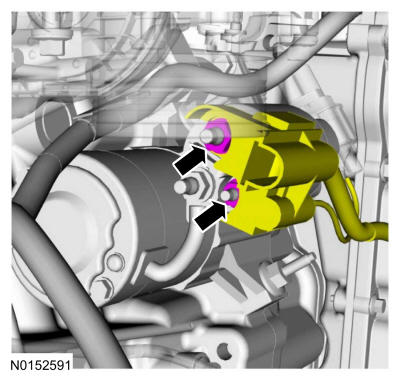

70. Remove the nuts and disconnect starter motor battery positive cable and motor control wire housing.

    Courtesy of FORD MOTOR COMPANY

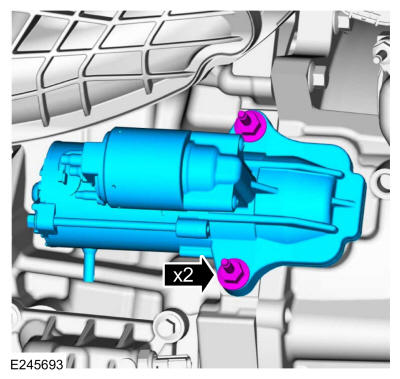

71. Remove the stud bolts and the starter motor.

    Courtesy of FORD MOTOR COMPANY

72. Remove the starter motor isolator.

    Courtesy of FORD MOTOR COMPANY

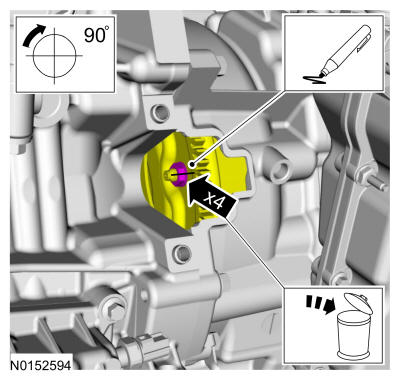

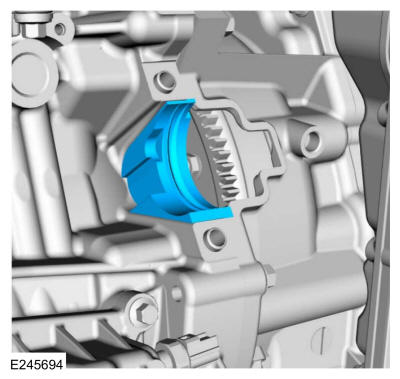

73. NOTE: Rotate the engine in a clockwise direction only or engine damage may occur.
    NOTE: Note the position of the components before removal.

    Remove the torque converter nuts and discard. Use the General Equipment: Magnetic Socket

    Courtesy of FORD MOTOR COMPANY

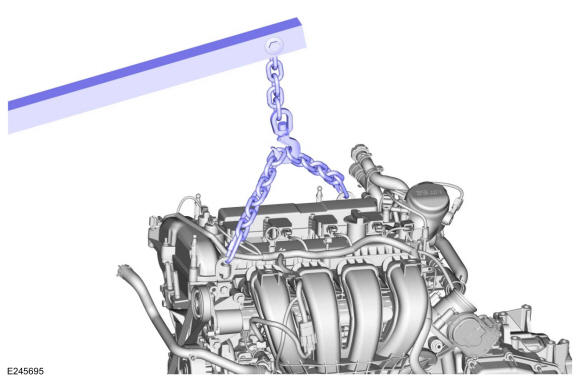

74. Install the floor crane and engine lift equipment. Use the General Equipment: Floor Crane

    Courtesy of FORD MOTOR COMPANY

75. Remove adjustable mounting arm. Use the General Equipment: Adjustable Mounting Arm

    Courtesy of FORD MOTOR COMPANY

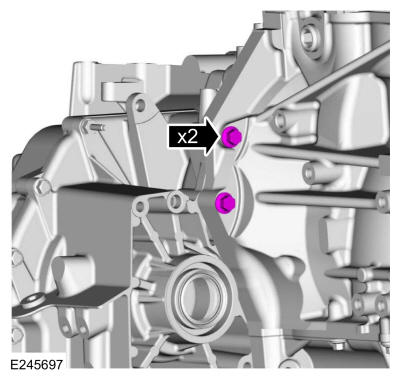

76. Remove the engine-to-transmission bolts.

    Courtesy of FORD MOTOR COMPANY

77. Remove the transmission-to-engine bolts.

    Courtesy of FORD MOTOR COMPANY

78. Remove the transmission-to-engine bolt.

    Courtesy of FORD MOTOR COMPANY

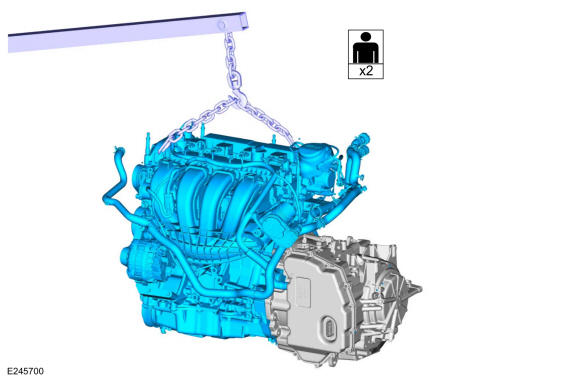

79. Using the floor crane and engine lift equipment, separate the engine from the transmission. Use the General Equipment: Floor Crane

    Courtesy of FORD MOTOR COMPANY

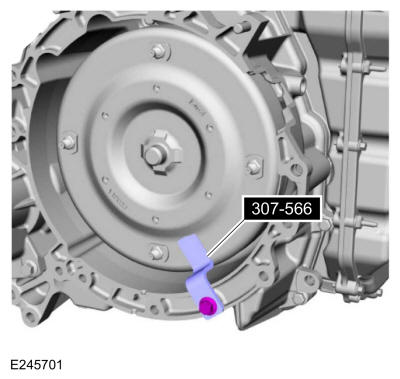

80. Install Special Service Tool: 307-566 Retainer, Torque Converter.

Courtesy of FORD MOTOR COMPANY
