Transfer Case

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

Special Tool(s) / General Equipment

Cable Ties

Refer to: Health and Safety Precautions .
Remove the rear driveshaft. Refer to: Driveshaft .
Remove the RH front halfshaft. Refer to: Front Halfshaft RH - 2.0L Duratec-HE (125kW/170PS) - MI4, AWD .
Remove the HO2S. Refer to: Heated Oxygen Sensor (HO2S) .
Remove the catalyst monitor sensor.

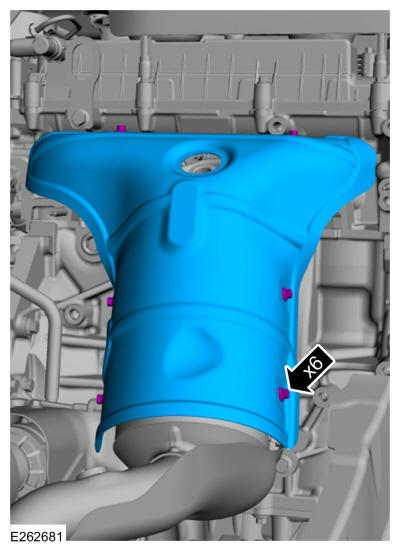

Remove the fasteners and catalytic converter shield.

Courtesy of FORD MOTOR COMPANY

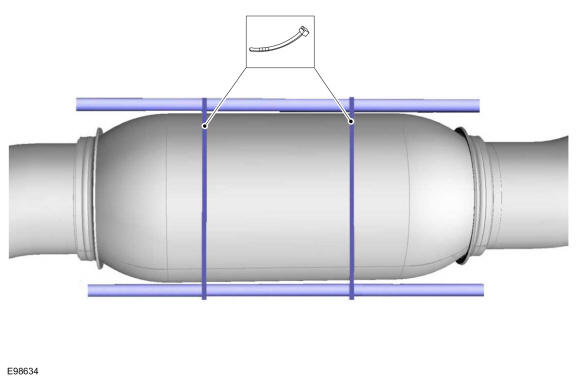

NOTE: Make sure that the exhaust flexible pipe is not forcibly bent or twisted.

Use the General Equipment: Cable Ties

Courtesy of FORD MOTOR COMPANY

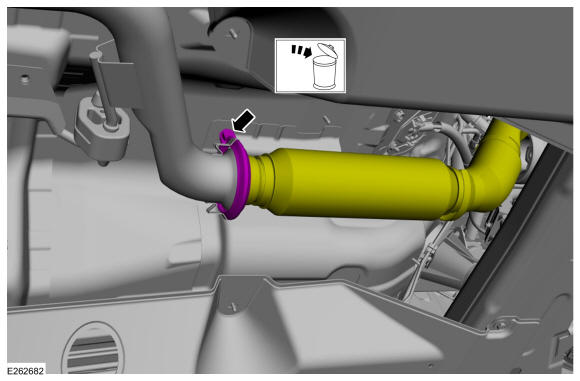

Remove and discard the muffler and catalytic converter flange clamp.

Courtesy of FORD MOTOR COMPANY

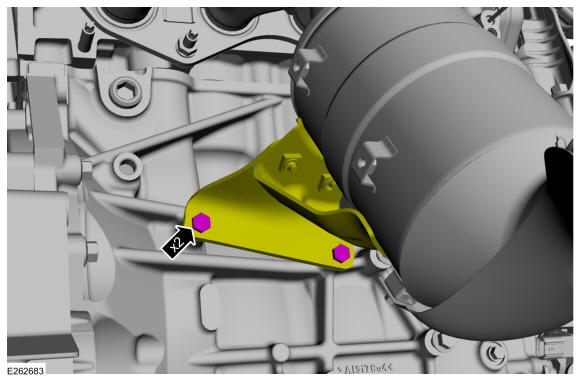

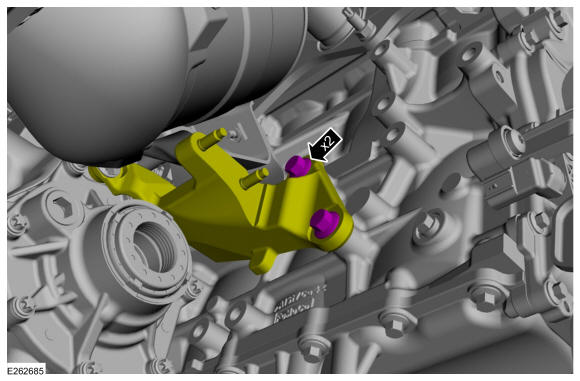

Remove the bolts and position aside catalytic converter mounting bracket.

Courtesy of FORD MOTOR COMPANY

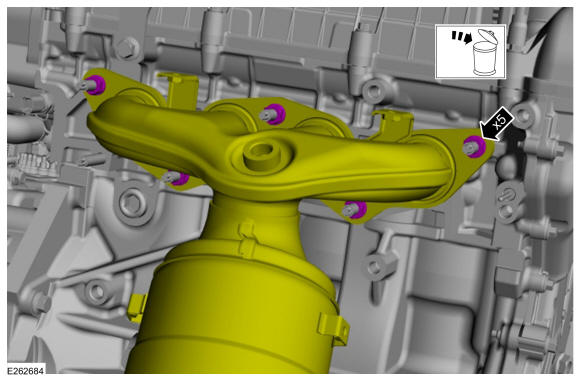

Remove and discard the bolts.

Courtesy of FORD MOTOR COMPANY

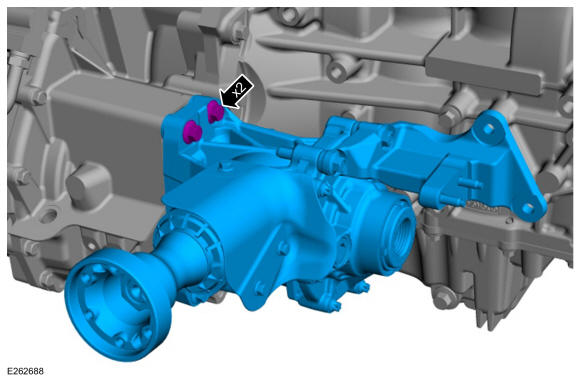

Remove the PTU to engine mounting bracket bolts.

Courtesy of FORD MOTOR COMPANY

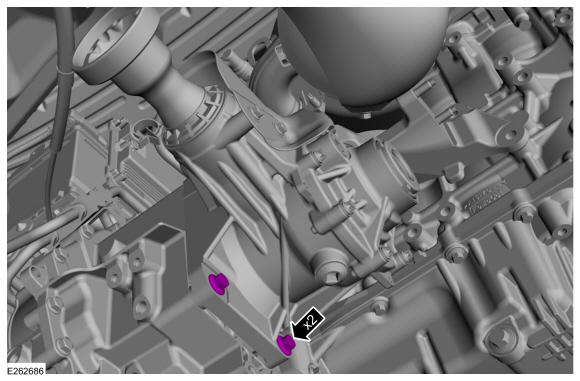

Remove the PTU mounting bolts.

Courtesy of FORD MOTOR COMPANY

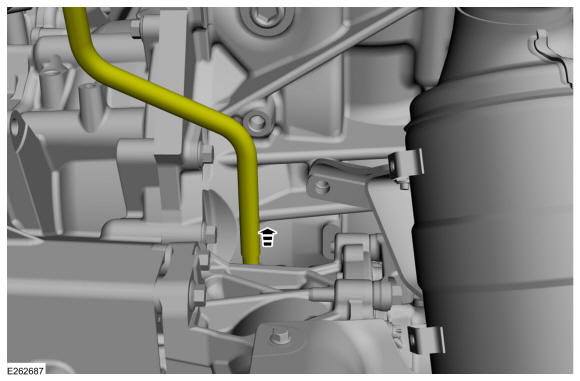

Disconnect PTU vent hose.

Courtesy of FORD MOTOR COMPANY
Remove the PTU mounting bolts and PTU.

Courtesy of FORD MOTOR COMPANY

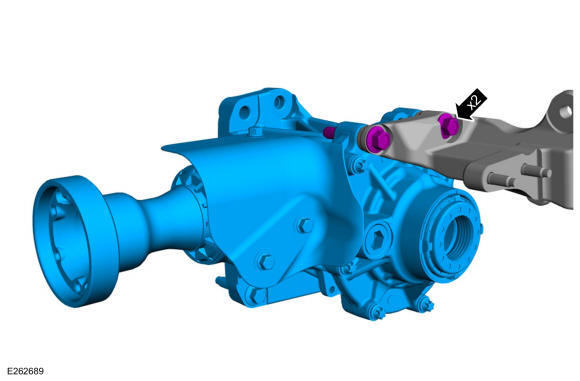

Remove the PTU to engine mounting bracket bolts and remove the PTU.

Courtesy of FORD MOTOR COMPANY
