Halfshaft Seal RH - AWD: Installation

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a new halfshaft seal on the special tools. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 307-718-01 Adapter, 307-718., 307-718 Installer, Axle Seal.
    GFD327291Courtesy of FORD MOTOR COMPANY

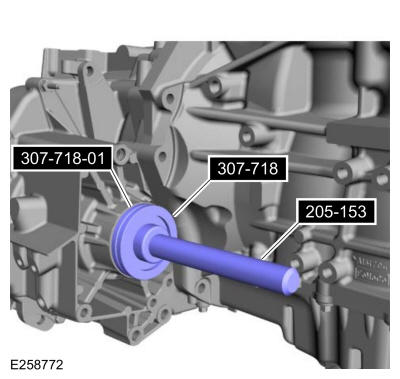

  2. Using the special tools, install the RH halfshaft seal. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 307-718-01 Adapter, 307-718., 307-718 Installer, Axle Seal.
    GFD327308Courtesy of FORD MOTOR COMPANY
  3. Install the transfer case assembly. Refer to: Transfer Case .
  4. Check the transmission fluid level. Refer to: Transmission Fluid Level Check .
