Transmission Fluid Level Check

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Materials

Name Specification
Motorcraft® MERCON® LV Automatic Transmission Fluid XT-10-QLVC WSS-M2C938-A MERCON® LV,

Check

  1. Connect the diagnostic scan tool to the vehicle. Monitor the TFT PID.
  2. With the engine running in PARK on a level surface make sure the transmission is at normal operating temperature 85-93 deg. C (185-200 deg. F). If necessary, drive the vehicle until the transmission is at normal operating temperature 85-93 deg.C (185-200 deg.F).
  3. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  4. If equipped, remove the bolts and the underbody shield.

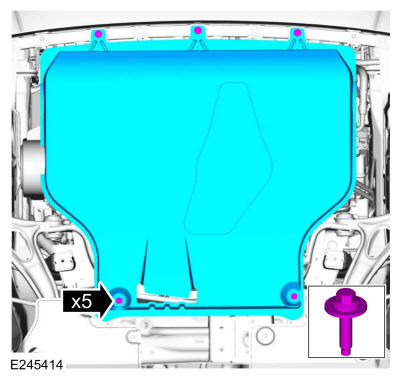

    GFD327293Courtesy of FORD MOTOR COMPANY
  5. Start the engine and slowly select each gear position, stopping in each position and allowing the transmission to engage.
  6. With the engine running in PARK on a level hoist make sure the transmission is at normal operating temperature 85-93 deg. C (185-200 deg. F). Check the transmission fluid is even with the oil leveling plug hole.

    1. Standard transmission case (M10 plug)
    2. Fuel economy transmission case (M20 plug)

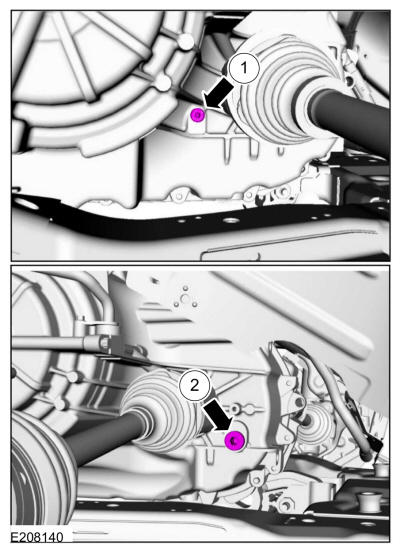

    GFD327298Courtesy of FORD MOTOR COMPANY
  7. Release the clips and position aside the air cleaner cover.

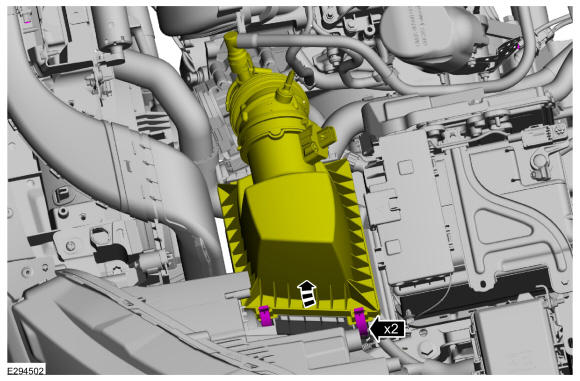

    GFD327294Courtesy of FORD MOTOR COMPANY
  8. NOTE: With the lower air cleaner assembly removed, only idle the engine with the vehicle on a hoist. Do not drive vehicle with the lower air cleaner assembly removed or engine damage may occur.

    • Remove the pushpin retainer.

    • Remove the isolator.

    • Disconnect the resonator pipe.

    • Remove the air lower cleaner assembly.

    GFD327295Courtesy of FORD MOTOR COMPANY
  9. Disconnect the vent tube retainer.

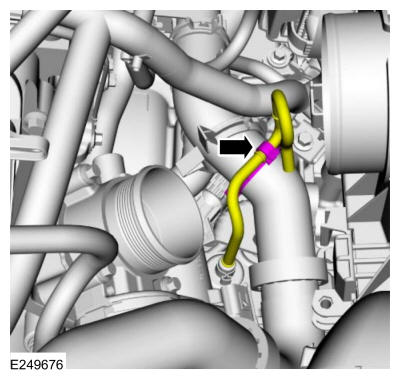

    GFD327296Courtesy of FORD MOTOR COMPANY
  10. Compress the constant tension clamp and remove the transmission vent from the fill tube.

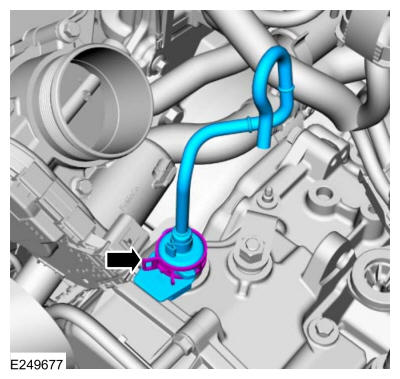

    GFD327297Courtesy of FORD MOTOR COMPANY
  11. Add clean transmission fluid in increments of 0.25L (0.5 pt) until the transmission fluid is even with the oil leveling plug hole.

    Material : Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV,)

    GFD326726Courtesy of FORD MOTOR COMPANY
  12. Install the oil leveling plug.

    1. Standard transmission case (M10 plug)

      Torque : 71 lb.in (8 Nm)

    2. Fuel economy transmission case (M20 plug)

      Torque : 26 lb.ft (35 Nm)

    GFD327298Courtesy of FORD MOTOR COMPANY
  13. With the clamp facing the front of the vehicle, compress the constant tension clamp and install the transmission vent on the fill tube.
    GFD327297Courtesy of FORD MOTOR COMPANY
  14. Connect the vent tube retainer.
    GFD327296Courtesy of FORD MOTOR COMPANY
    • Install the air lower cleaner assembly.

    • Connect the resonator pipe.

    • Install the isolator.

    • Install the pushpin retainer.

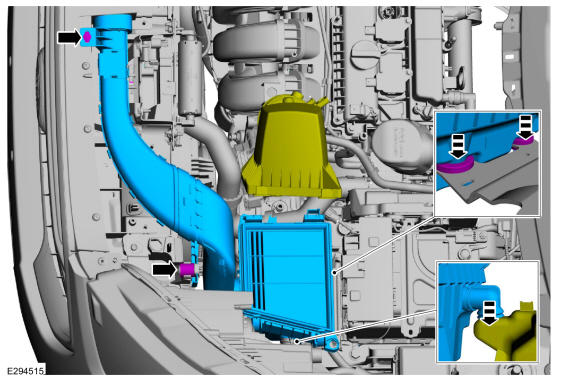

    GFD327299Courtesy of FORD MOTOR COMPANY
  16. Position back the air cleaner cover and attach the clips.

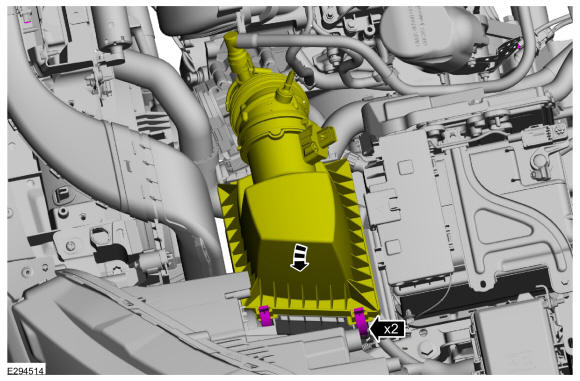

    GFD327300Courtesy of FORD MOTOR COMPANY
  17. If equipped, install the underbody shield and the bolts.
GFD327293Courtesy of FORD MOTOR COMPANY
