Transfer Case

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

Special Tool(s) / General Equipment

Cable Ties

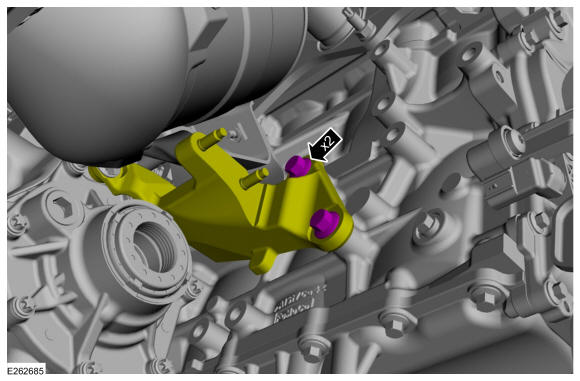

Install the Power Transfer Unit (PTU) and engine mounting bracket bolts.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

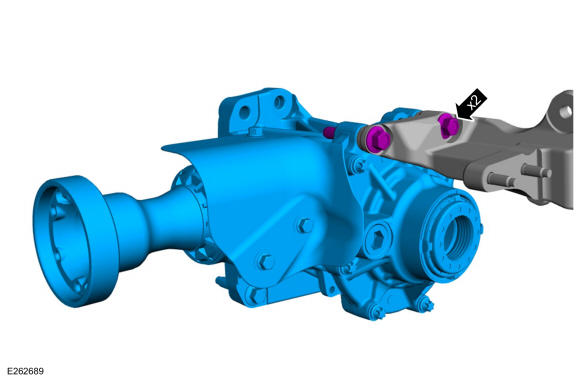

Install the PTU and the PTU mounting bolts.
Torque: 59 lb.ft (80 Nm)

Courtesy of FORD MOTOR COMPANY

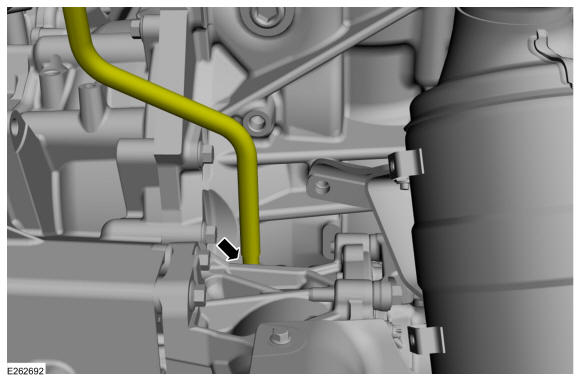

Connect PTU vent hose.

Courtesy of FORD MOTOR COMPANY

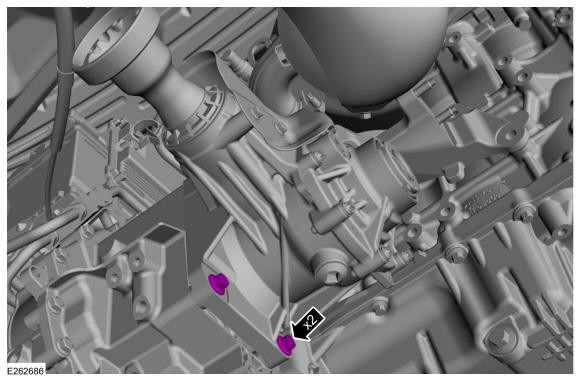

Install the PTU mounting bolts.
Torque: 59 lb.ft (80 Nm)

Courtesy of FORD MOTOR COMPANY

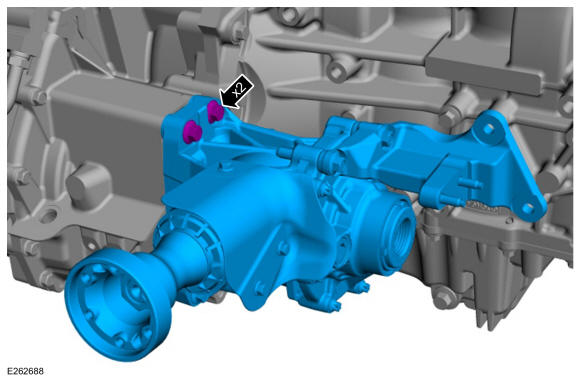

Install the PTU to engine mounting bracket bolts.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

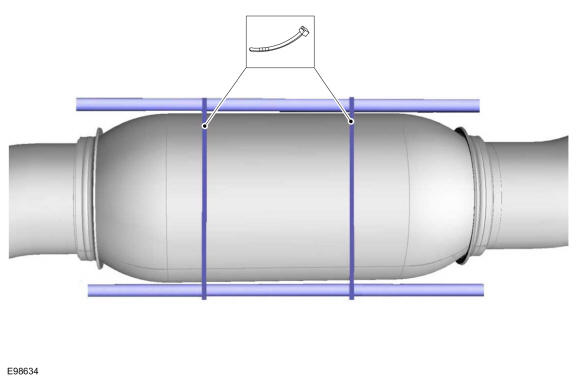

NOTE: Make sure the exhaust flexible pipe is not forcibly bent or twisted.

Use the General Equipment: Cable Ties

Courtesy of FORD MOTOR COMPANY

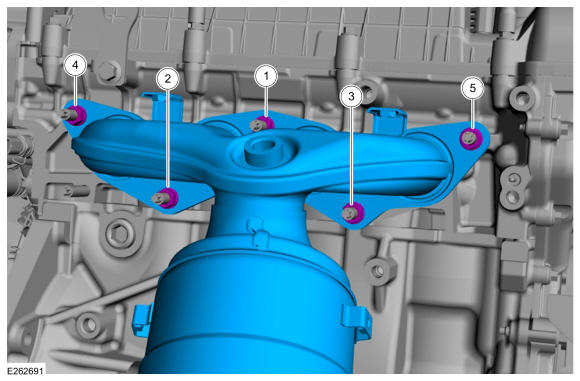

NOTE: Tighten the catalytic converter bolts in this sequence.
1. Position the catalytic converter and install the nuts.
  Torque: 177 lb.in (20 Nm)
2. Torque: 41 lb.ft (55 Nm)
Courtesy of FORD MOTOR COMPANY

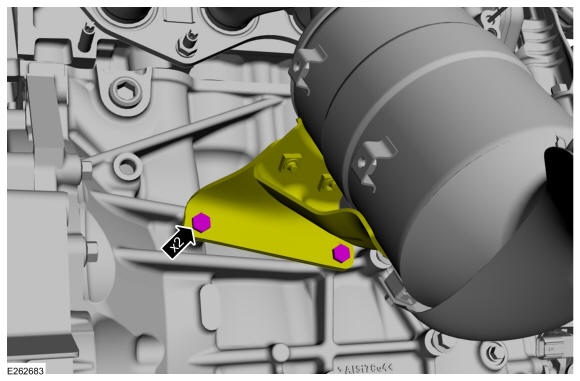

Install the bolt and position back catalytic converter mounting bracket.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

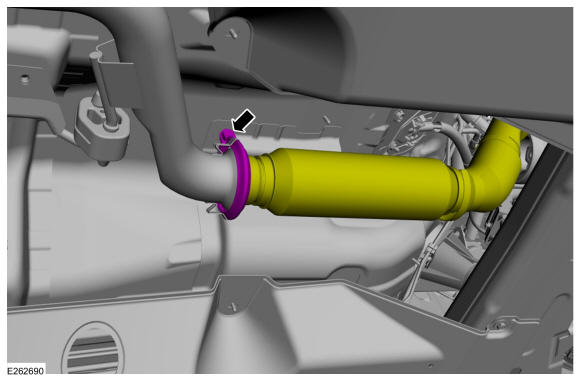

Position the pipe and install the new catalytic converter flange clamp.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

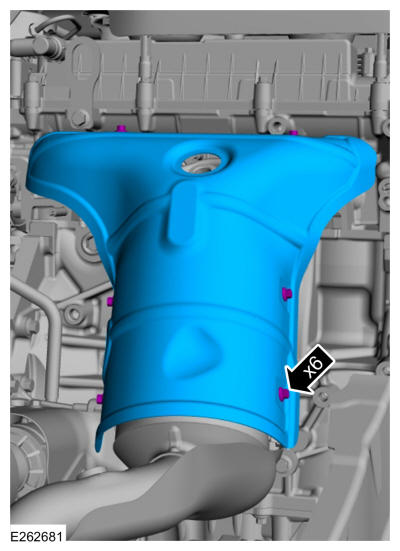

Install the catalytic converter shield and bolts.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
Install the catalyst monitor sensor. Refer to: Catalyst Monitor Sensor .
Install the HO2S. Refer to: Heated Oxygen Sensor (HO2S) .
Install the rear driveshaft. Refer to: Driveshaft .
Install the RH front halfshaft. Refer to: Front Halfshaft RH - 2.0L Duratec-HE (125kW/170PS) - MI4, AWD .
Check the Transfer Case Fluid Level. Refer to: Transfer Case Fluid Level Check .
