Engine Front Cover: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install new gaskets on the engine front cover.
    GFD286365Courtesy of FORD MOTOR COMPANY
  2. NOTE: The VCT variable force solenoid pins must be fully depressed to avoid interference with the VCT valve tips when installing the engine front cover. Failure to follow these instructions can result in damage to the engine.
    NOTE: RH shown, LH similar.

    Fully depress the VCT variable force solenoid pins.

    GFD286366Courtesy of FORD MOTOR COMPANY
  3. NOTE: The engine front cover must be installed and all fasteners final tightened within 5 minutes of applying the sealer. If this cannot be accomplished, install the engine front cover and tighten fasteners 6, 7, 8, 9, 10 and 11 to 8 Nm (71 lb-in) within 5 minutes of applying the sealer. All of the fasteners must then be final tightened within 1 hour of applying the sealer. If this time limit is exceeded, all sealant must be removed and the sealing area cleaned. Failure to follow this procedure can cause future oil leakage.

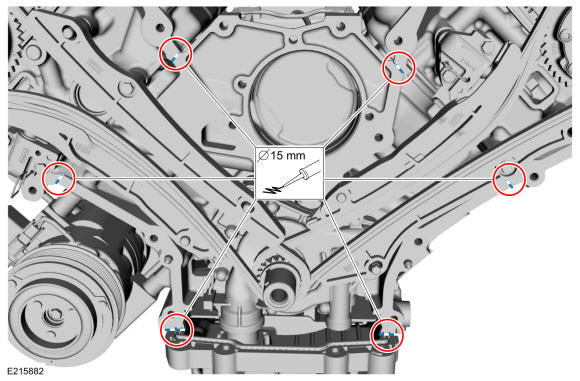

    Apply a 15 mm (0.59 in) diameter drop of silicone gasket and sealant to the cylinder head-to-cylinder block joints and the oil pan-to-cylinder block joints.

    Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    GFD286367Courtesy of FORD MOTOR COMPANY
  4. NOTE: Care must be taken to not damage the oil pan gasket.
    NOTE: Oil filter adapter and timing drive components removed from view for clarity.

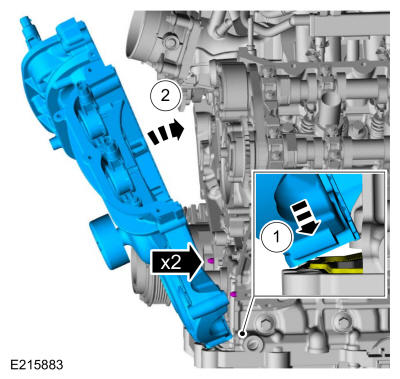

    • Lower the engine front of the oil pan.

    • Rock the top of the engine front cover back onto the 2 dowels.

    GFD286368Courtesy of FORD MOTOR COMPANY
  5. NOTE: The engine front cover must be installed and all fasteners final tightened within 5 minutes of applying the sealer. If this cannot be accomplished, install the engine front cover and tighten fasteners 6, 7, 8, 9, 10 and 11 to 8 Nm (71 lb-in) within 5 minutes of applying the sealer. All of the fasteners must then be final tightened within 1 hour of applying the sealer. If this time limit is exceeded, all sealant must be removed and the sealing area cleaned. Failure to follow this procedure can cause future oil leakage.

    Install the bolts and stud bolts.

    Torque: Stage 1: Fasteners 1-15 : 18 lb.ft (25 Nm) Stage 2: Fasteners 16-19 : 89 lb.in (10 Nm) Stage 3: Fasteners 1-15 : 60 deg. Stage 4: Fasteners 16-19 : 45 deg.

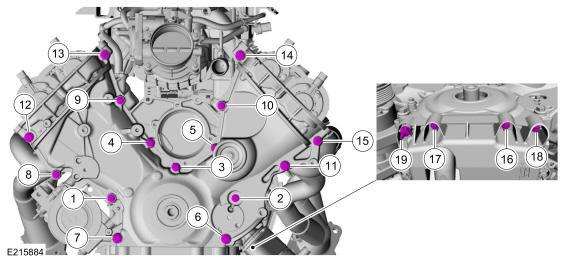

    Fig 1: Engine Front Cover Tightening Sequence
    GFD286369Courtesy of FORD MOTOR COMPANY
  6. Install the wiring harness retainer and the nut.

    Torque: 71 lb.in (8 Nm)

    GFD286359Courtesy of FORD MOTOR COMPANY
  7. Install the generator and the fasteners

    Torque: 35 lb.ft (48 Nm)

    GFD286358Courtesy of FORD MOTOR COMPANY
  8. Install the accessory drive belt tensioner and bolt.

    Torque: 35 lb.ft (48 Nm)

    GFD286357Courtesy of FORD MOTOR COMPANY
  9. Attach the wiring harness retainers to the engine front cover and stud bolt.
    GFD286356Courtesy of FORD MOTOR COMPANY
    • Install the ground wire and nut.

      Torque: 89 lb.in (10 Nm)

    • Attach the wiring harness retainer.

    • Connect the throttle body and the EVAP purge valve electrical connectors.

    GFD286355Courtesy of FORD MOTOR COMPANY
  10. Install a new coolant pump O-ring seal and lubricate with clean engine coolant.

    Material: Motorcraft® Orange Concentrated Antifreeze/Coolant / VC-3-B (WSS-M97B44-D)

    GFD286370Courtesy of FORD MOTOR COMPANY
  11. Install the coolant pump and bolts.

    Torque: Stage 1: 177 lb.in (20 Nm) Stage 2: 60 deg.

    GFD286353Courtesy of FORD MOTOR COMPANY
  12. Install the coolant pump pulley and the bolts.

    Torque: 18 lb.ft (25 Nm)

    GFD286352Courtesy of FORD MOTOR COMPANY
  13. Connect the heater hose.
    GFD286351Courtesy of FORD MOTOR COMPANY

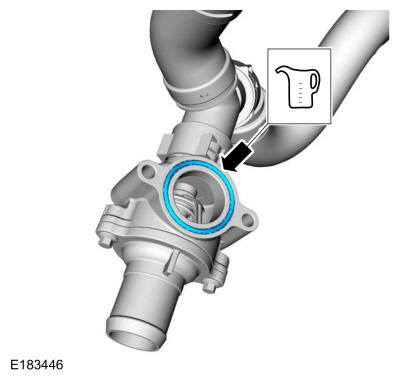

  14. Install a new thermostat housing O-ring seal and lubricate with clean engine coolant.

    Material: Motorcraft® Orange Concentrated Antifreeze/Coolant / VC-3-B (WSS-M97B44-D)

    GFD286371Courtesy of FORD MOTOR COMPANY
    • Install the upper radiator hose T-connector/thermostat housing assembly and clamp.

    • Install the degas bottle coolant hose and clamp.

    GFD286349Courtesy of FORD MOTOR COMPANY
  15. Install the thermostat housing bolts.

    Torque: 89 lb.in (10 Nm)

    GFD286348Courtesy of FORD MOTOR COMPANY
  16. Connect the lower radiator hose to the thermostat housing assembly.
    GFD286347Courtesy of FORD MOTOR COMPANY
  17. Install the following items:

    1. Refer to: Valve Cover LH .
    2. Refer to: Valve Cover RH .
    3. Refer to: Crankshaft Front Seal .
    4. Refer to: Air Cleaner .
    5. Refer to: Air Cleaner Outlet Pipe .
    6. Refer to: Degas Bottle .

  18. Drain and fill the engine oil and replace the oil filter. Refer to: Engine Oil Draining and Filling .
  19. Connect the battery positive and ground cables. Refer to: Battery Disconnect and Connect .
  20. Fill and bleed the engine cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
  21. Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
