Battery Disconnect and Connect

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Disconnect

NOTE: When the battery is disconnected and connected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven to allow the PCM to relearn the adaptive strategy values.

NOTE: The following 2 steps are for disconnecting the negative battery cable to interrupt power to the vehicle electrical system. It is not necessary to disconnect the positive battery cable.

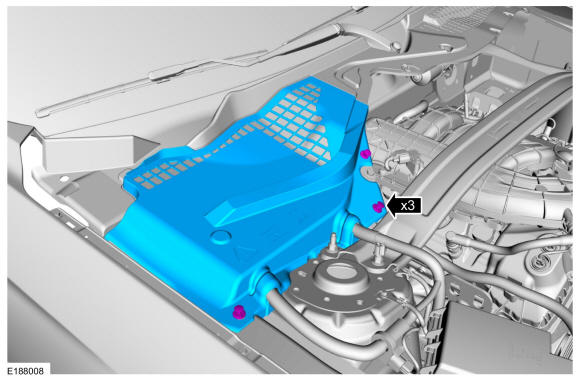

Remove the retainers and the battery cover.

Courtesy of FORD MOTOR COMPANY

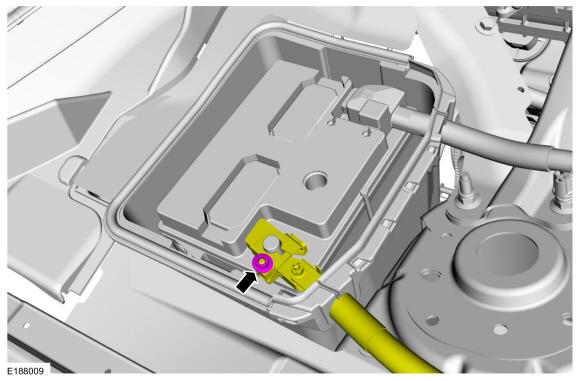

Loosen the nut and position the negative battery cable.
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

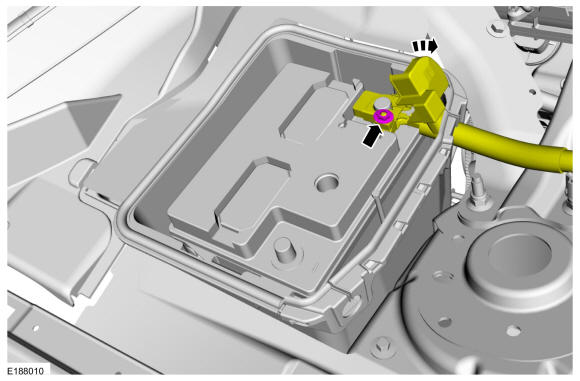

Position the positive battery cable cover, loosen the nut and position the positive battery cable.
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

Connect

To connect, reverse the disconnect procedure.
