Transmission - 3.5L Duratec (212kW/278PS): Installation

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

NOTE: If removed, inspect the transmission mounted transmission fluid cooler tube backing rings and seals for damage and install new backing rings or seals if necessary.
1. Install the backing ring (7J324)
2. Lubricate and install the seal (7D258)
  Material

  : Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV,)
Courtesy of FORD MOTOR COMPANY
Install the transmission mounted transmission fluid cooler tubes, the new bolts and the nuts.
1. Torque
  : 97 lb.in (11 Nm)
2. Torque
  : 80 lb.in (9 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that when installing the manual control lever, it is fully seated onto the manual control lever shaft. Damage to the manual control lever shaft will occur and the manual lever will come loose.

NOTE: Make sure to hold the manual control lever while tightening the manual control lever nut or damage to the manual control lever and park components will occur.

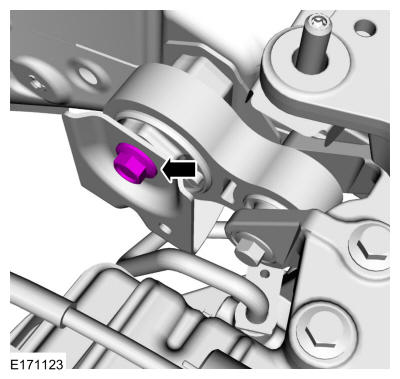

Install the manual control lever and nut.

Torque

: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY

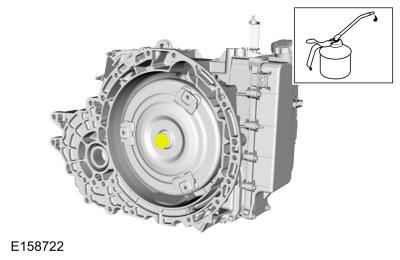

Lubricate the torque converter pilot hub with Multi-Purpose Grease.
Material

: Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

Courtesy of FORD MOTOR COMPANY
If the dowel pins were pulled out of the engine block during removal, install new dowel pins in the engine block.

Courtesy of FORD MOTOR COMPANY
Position the transmission behind the engine and remove the special tool. Use Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.

Courtesy of FORD MOTOR COMPANY
Using a transmission jack, support the transmission. Use the General Equipment: Transmission Jack

Courtesy of FORD MOTOR COMPANY

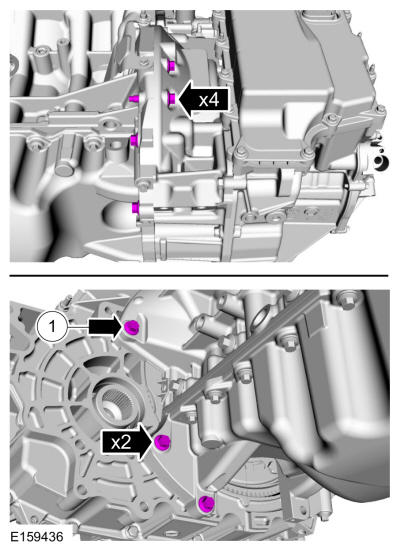

Position the transmission on the dowel pins and install the lower torque converter housing bolts.
1. If equipped.
  Torque

  : 35 lb.ft (48 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: Vehicles equipped with active warm up.

Install the transmission fluid warmer.

Torque

: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
Install the transmission fluid cooler tube.
1. Install a new bolt.
  Torque

  : 97 lb.in (11 Nm)
2. Tighten the fitting.
  Torque

  : 22 lb.ft (30 Nm)
Courtesy of FORD MOTOR COMPANY
Install the transmission fluid cooler tube.
Torque

: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the transmission fluid cooler tubes to the transmission fluid cooler thermal bypass valve.

Courtesy of FORD MOTOR COMPANY
Install the transmission fluid cooler tube secondary latches.

Courtesy of FORD MOTOR COMPANY
Install the wiring retainers and connect the transmission electrical connector.

Courtesy of FORD MOTOR COMPANY

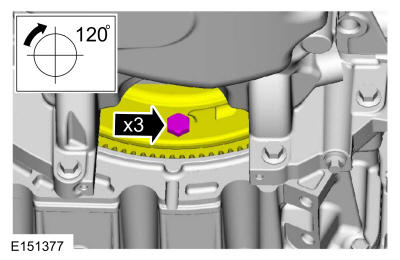

Install new torque converter bolts.
Torque

: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY

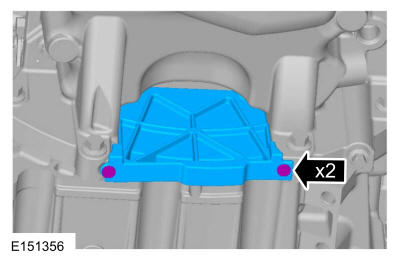

Install the inspection cover and fasteners.

Courtesy of FORD MOTOR COMPANY
Install the transfer case. Refer to: Transfer Case .
Inspect the inboard end of the halfshaft.

Courtesy of FORD MOTOR COMPANY
NOTE: If the transmission has been replaced or overhauled, the halfshaft seals do not need to be replaced.

Replace the RH halfshaft seal. Refer to: Halfshaft Seal RH - FWD .
NOTE: Do not fully install the shaft at this time.

Using part: 4W1W-4N206-A, install the inboard splines of the halfshaft through the halfshaft seal protector and the new halfshaft seal.

Courtesy of FORD MOTOR COMPANY

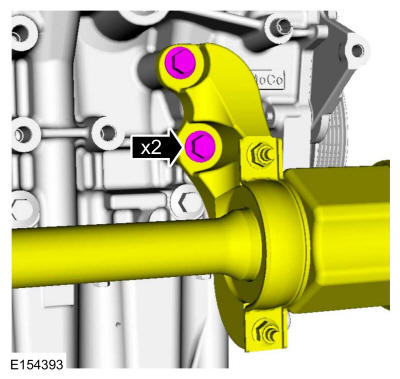

Install the halfshaft and the intermediate shaft bearing bracket bolts.
Torque

: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

All vehicles

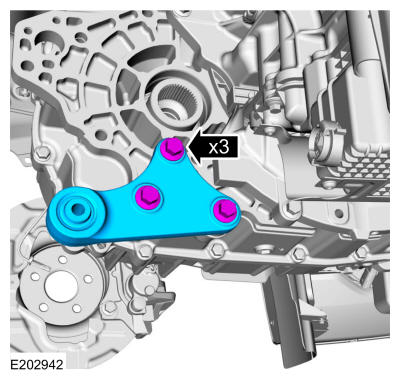

Install the roll restrictor bracket and bolts.
Torque

: 92 lb.ft (125 Nm)

Courtesy of FORD MOTOR COMPANY
Install a new circlip on the stub shaft.

Courtesy of FORD MOTOR COMPANY
NOTE: If the transmission has been replaced or overhauled, the halfshaft seals do not need to be replaced.

Replace the LH halfshaft seal. Refer to: Halfshaft Seal LH .
NOTE: Do not fully install shaft at this time.

Using part: AA5P-4N206-A, install the splines of the halfshaft through the halfshaft seal protector and the new halfshaft seal.

Courtesy of FORD MOTOR COMPANY
NOTE: Insert shaft until circlip is fully seated. When checking if circlip is seated do not pull on CV (constant velocity) joints or damage can result.

Install the halfshaft.

Courtesy of FORD MOTOR COMPANY
Install the subframe. Refer to: Front Subframe .
Install the transmission support insulator and new bolts.
Torque

: 59 lb.ft (80 Nm)

Courtesy of FORD MOTOR COMPANY
Install the rear roll restrictor bolt.
Torque

: 111 lb.ft (150 Nm)

Courtesy of FORD MOTOR COMPANY

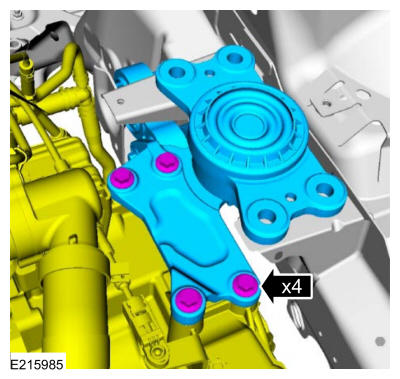

1. Install the transmission support insulator bracket and new bolts.
  Torque

  : 66 lb.ft (90 Nm)
2. Install the transmission support insulator bracket bolt.
  Torque

  : 97 lb.in (11 Nm)
Courtesy of FORD MOTOR COMPANY

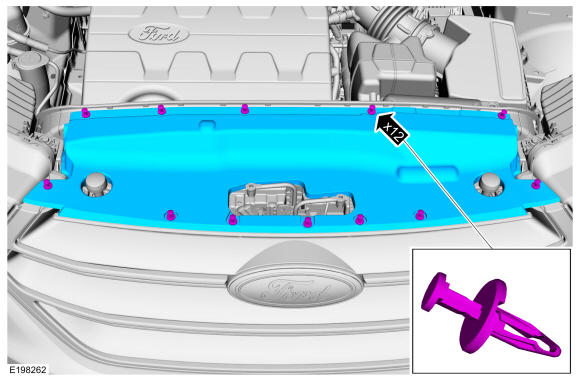

Install the upper air deflector and the retainers.

Courtesy of FORD MOTOR COMPANY
Install the RH and LH cowl filler panels and the retainers.

Courtesy of FORD MOTOR COMPANY

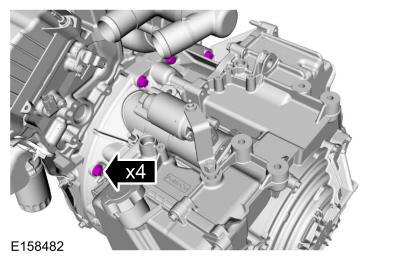

Install the top torque converter housing bolts.
Torque

: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

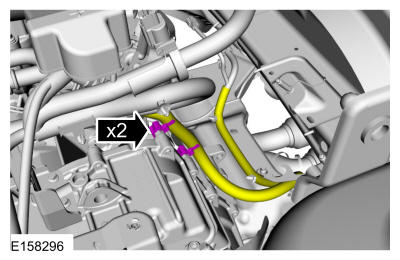

Connect the wiring harness retainers on the transmission.

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Refer to: Starter Motor .
2. Refer to: Cowl Panel .
3. Refer to: Upper Intake Manifold .
4. Refer to: Battery Tray .
Adjust the selector lever cable. Refer to: Selector Lever Cable Adjustment - 6-Speed Automatic Transmission - 6F50/6F55 .
Fill with transmission fluid to the correct level. Refer to: Transmission Fluid Drain and Refill .
After completing the repairs perform the Misfire Monitor Neutral Profile Correction procedure.
If a replacement transmission assembly is being installed or a new solenoid body is installed, the solenoid body strategy will need to be updated. Refer to: Transmission Strategy Download .
