Transfer Case

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

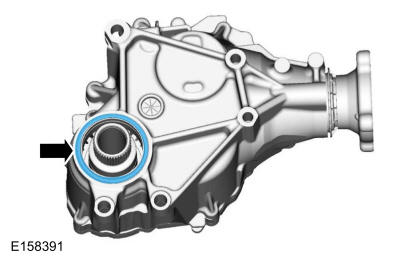

Install the new compression seal.

Courtesy of FORD MOTOR COMPANY
NOTE: This is a tight fit, use care to not damage the transmission and PTU mating surfaces.

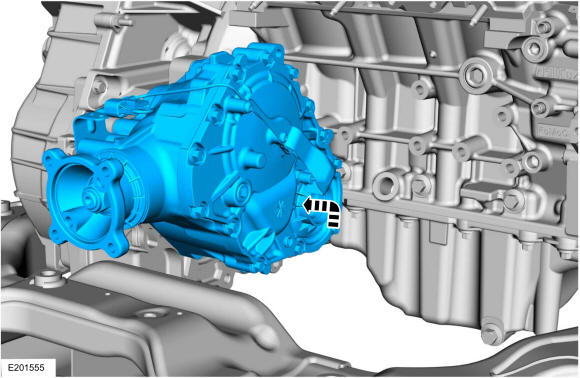

Install the PTU.

Courtesy of FORD MOTOR COMPANY

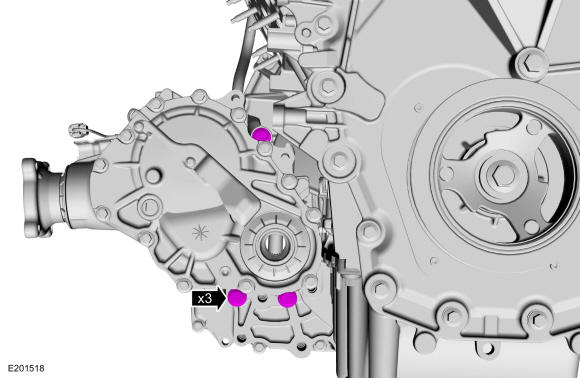

Install the PTU bolts.
Torque: 66 lb.ft (90 Nm)

Courtesy of FORD MOTOR COMPANY

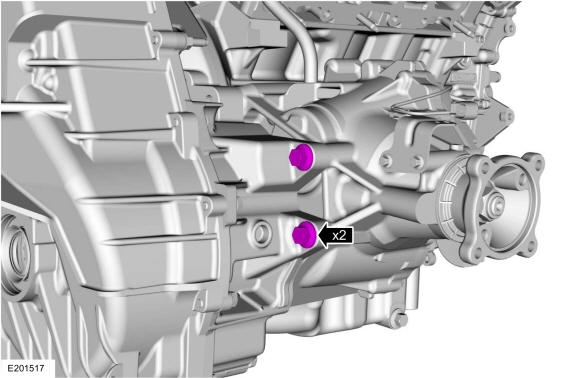

Install the PTU bolts.
Torque: 66 lb.ft (90 Nm)

Courtesy of FORD MOTOR COMPANY

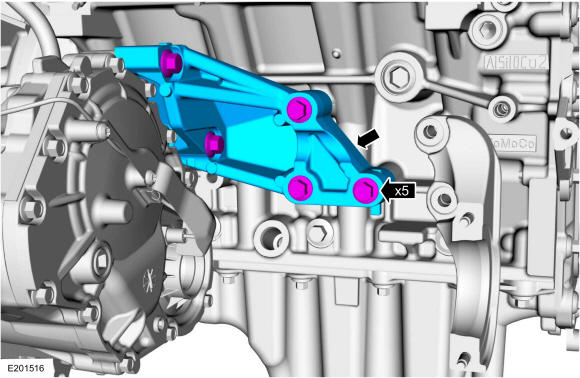

Install the PTU support bracket and the PTU support bracket bolts.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: The PTU vent hose should be replaced whenever a new PTU is installed.

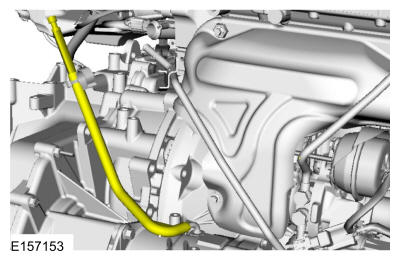

Connect the PTU vent hose.

Courtesy of FORD MOTOR COMPANY
NOTE: Inspect the O-ring seals and replace as necessary.

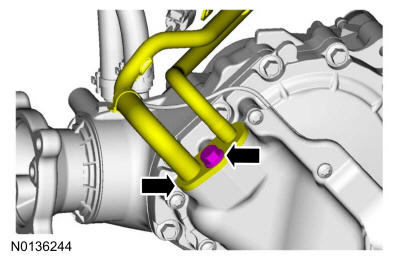

If equipped with PTU cooling system, install the PTU coolant tubes and the bolt.

Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

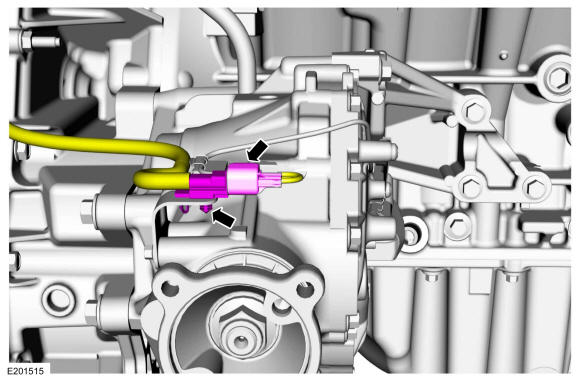

If equipped with PTU cooling system, connect the PTU temperature sensor.

Courtesy of FORD MOTOR COMPANY

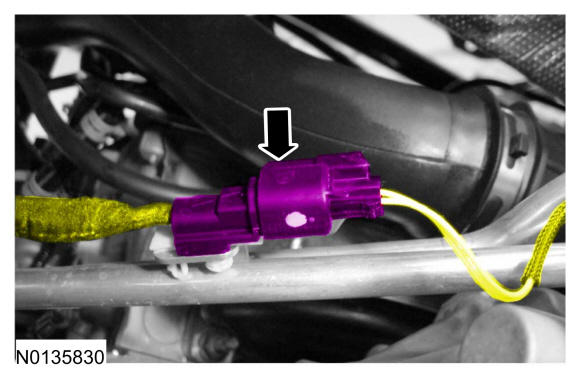

Connect the PTU temperature sensor. Connect the PTU sensor connector to the bracket.

Courtesy of FORD MOTOR COMPANY

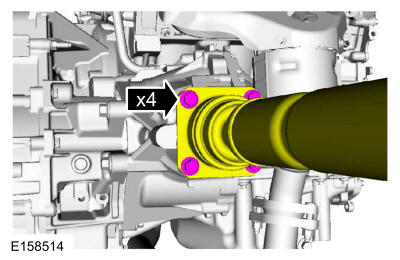

Using the index mark, position the driveshaft and install the new driveshaft-to-PTU output flange bolts.
Torque: 52 lb.ft (70 Nm)

Courtesy of FORD MOTOR COMPANY
Fill the PTU fluid. Refer to: Transfer Case Draining and Filling .
Install the catalytic converter RH. Refer to: Catalytic Converter RH .
Install the RH halfshaft. Refer to: Front Halfshaft RH - 3.5L Duratec (212kW/278PS), All-Wheel Drive (AWD) .
If equipped with PTU cooling system, fill the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
