Selector Lever Cable Adjustment - 6-Speed Automatic Transmission - 6F50/6F55

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Adjustment

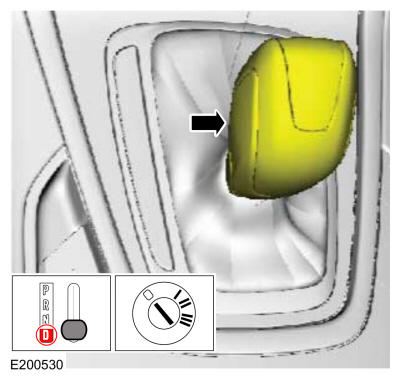

Position the selector lever in D. Turn the ignition off.

Courtesy of FORD MOTOR COMPANY
Remove the air cleaner. For 2.7L, Refer to: Air Cleaner . For 3.5L, Refer to: Air Cleaner .

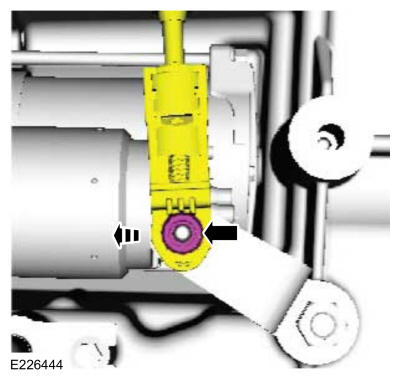

Disconnect the selector lever cable from the manual lever.

Courtesy of FORD MOTOR COMPANY

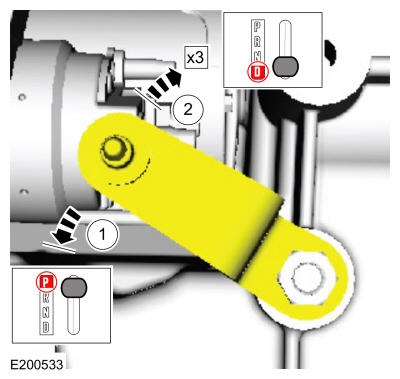

Position the manual lever in D.
1. Rotate the manual lever counterclockwise until it stops.
2. Rotate the manual lever 3 detents into D.
Courtesy of FORD MOTOR COMPANY

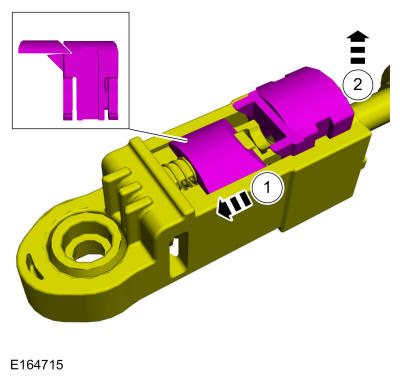

Unlock the adjuster.
1. Slide the spring-loaded tab forward.
2. Lift up the adjuster lock.
Courtesy of FORD MOTOR COMPANY
Connect the selector lever cable to the manual lever.

Courtesy of FORD MOTOR COMPANY

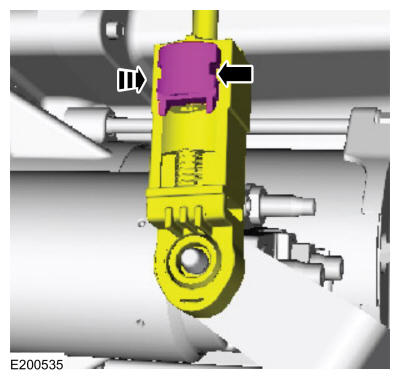

Push the adjuster lock into place.

Courtesy of FORD MOTOR COMPANY
Install the air cleaner. For 2.7L, Refer to: Air Cleaner . For 3.5L, Refer to: Air Cleaner .
Verify the engine starts only in P and N and the reverse lamps illuminate only in R.
