Transmission - 2.7L EcoBoost (238kW/324PS): Installation

All vehicles

1. NOTE: If removed, inspect the transmission mounted transmission fluid cooler tube backing rings and seals for damage and install new backing rings or seals if necessary.
   1. Install the backing ring (7J324)
   2. Lubricate and install the seal (7D258)

      Material

      : Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV,)

   Courtesy of FORD MOTOR COMPANY

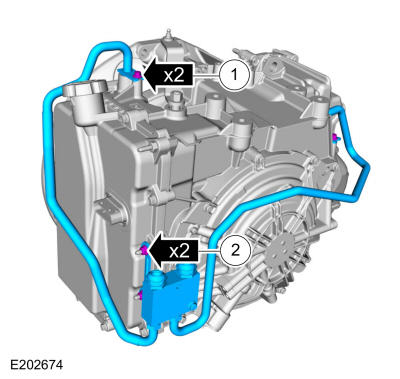

2. Install the transmission mounted transmission fluid cooler tubes, the new bolts and the nuts.
   1. Torque

      : 97 lb.in (11 Nm)

   2. Torque

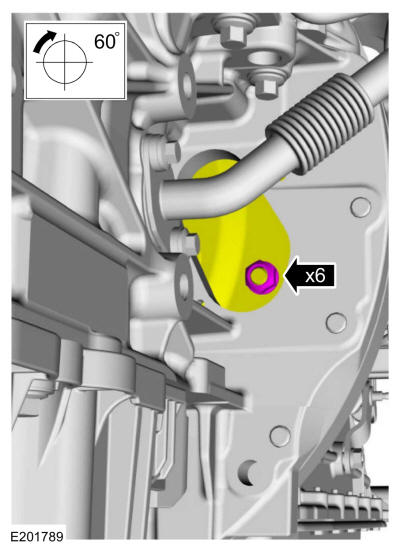

      : 80 lb.in (9 Nm)

   Courtesy of FORD MOTOR COMPANY

3. NOTE: Make sure that when installing the manual control lever, it is fully seated onto the manual control lever shaft. Damage to the manual control lever shaft will occur and the manual lever will come loose.
   NOTE: Make sure to hold the manual control lever while tightening the manual control lever nut or damage to the manual control lever and park components will occur.

   Install the manual control lever and nut.

   Torque

   : 159 lb.in (18 Nm)

   Courtesy of FORD MOTOR COMPANY

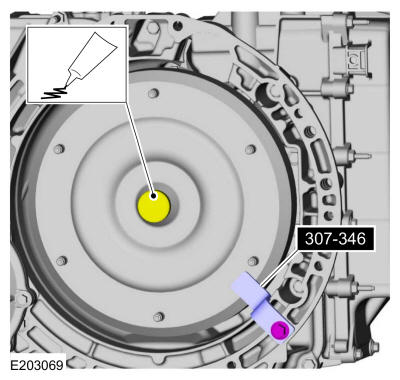

4. Lubricate the torque converter pilot hub with Multi-Purpose Grease. Use Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.

   Material

   : Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

   Courtesy of FORD MOTOR COMPANY

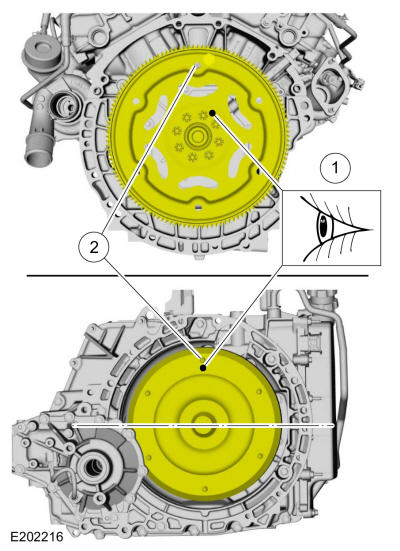

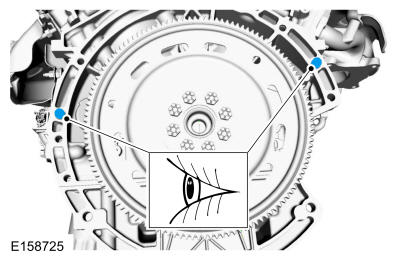

5. 1. Inspect the torque converter stud and flexplate for paint marks.
   2. Align the torque converter stud and flexplate hole paint marks and position above the centerline.

   Courtesy of FORD MOTOR COMPANY

6. NOTE: If the transmission is not positioned on the dowel pins, damage to the transmission may occur.

   If the dowel pins were pulled out of the engine block during removal, install new dowel pins in the engine block.

   Courtesy of FORD MOTOR COMPANY

7. NOTE: Secure the transmission to the transmission jack with a safety strap.

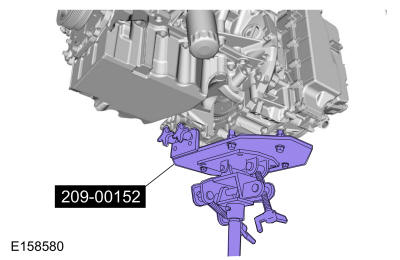

   Using a transmission jack, support the transmission. Use the General Equipment: Transmission Jack

   Courtesy of FORD MOTOR COMPANY

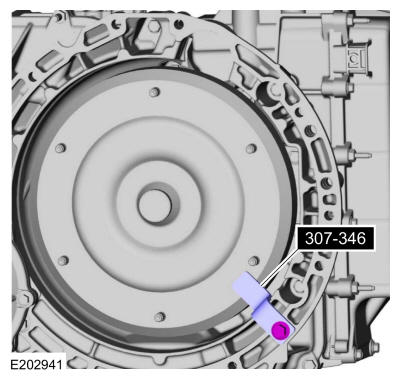

8. Position the transmission behind the engine and remove the special tool. Use Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.

   Courtesy of FORD MOTOR COMPANY

9. Position the transmission on the dowel pins and install the lower transmission-to-engine bolts.

   Torque

   : 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

10. Install the LH transmission-to-engine bolts.

    Torque

    : 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

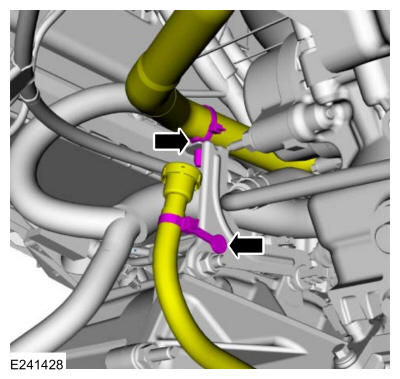

11. Connect the PTU vent hose and the coolant tube.

    Courtesy of FORD MOTOR COMPANY

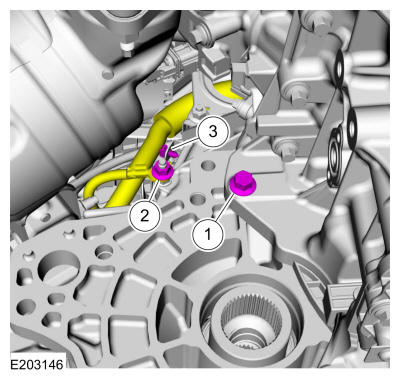

12. 1. Install the RH transmission-to-engine bolt.

       Torque

       : 35 lb.ft (48 Nm)

    2. Install the ground cable and nut.

       Torque

       : 133 lb.in (15 Nm)

    3. Connect the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

13. NOTE: Using the crankshaft pulley bolt, turn the engine clockwise.

    Install the new torque converter nuts.

    Torque

    : 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

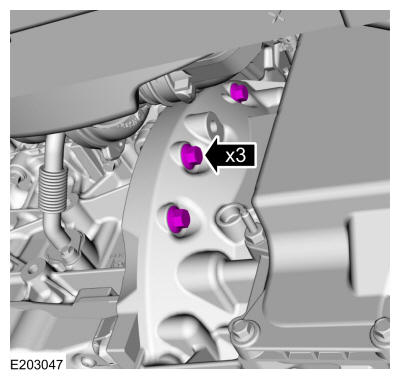

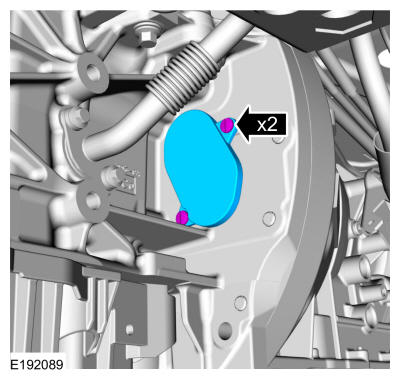

14. Install the access cover and the retainers.

    Courtesy of FORD MOTOR COMPANY

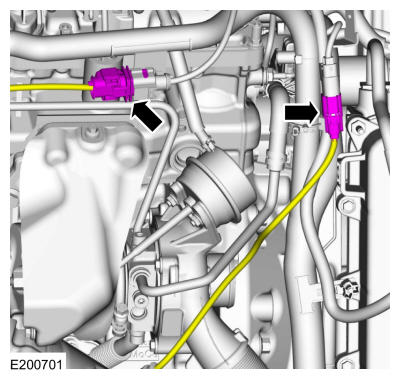

15. Connect the electrical connector and the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

16. Install the roll restrictor bracket and new bolts.

    Torque

    : 92 lb.ft (125 Nm)

    Courtesy of FORD MOTOR COMPANY

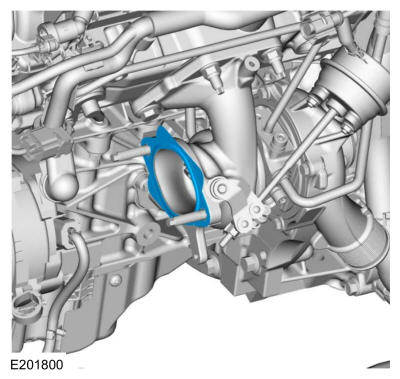

17. Install a new LH catalytic converter gasket.

    Courtesy of FORD MOTOR COMPANY

18. NOTE: Evenly tighten the fasteners during installation.

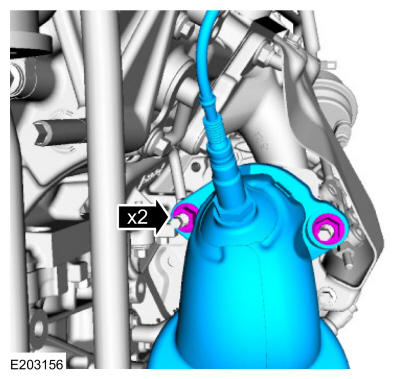

    Install the LH catalytic converter and the new nuts.

    Torque

    : 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

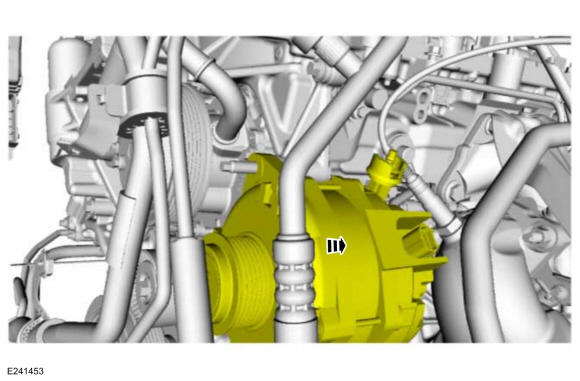

19. Position back the generator.

    Courtesy of FORD MOTOR COMPANY

20. Position the A/C line bracket on the generator stud.

    Courtesy of FORD MOTOR COMPANY

21. Tighten the A/C compressor bolts and studbolt in the sequence shown.
    1. Torque

       : 18 lb.ft (25 Nm)

    2. Torque

       : 18 lb.ft (25 Nm)

    3. Torque

       : 18 lb.ft (25 Nm)

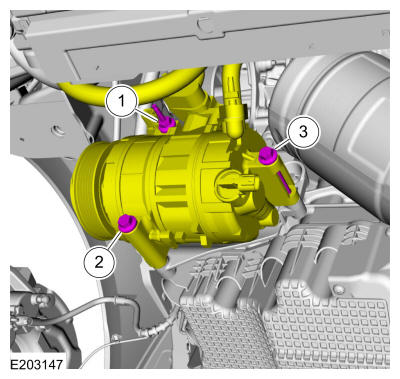

    Fig 1: A/C Compressor Bolts Tightening Sequence

    Courtesy of FORD MOTOR COMPANY

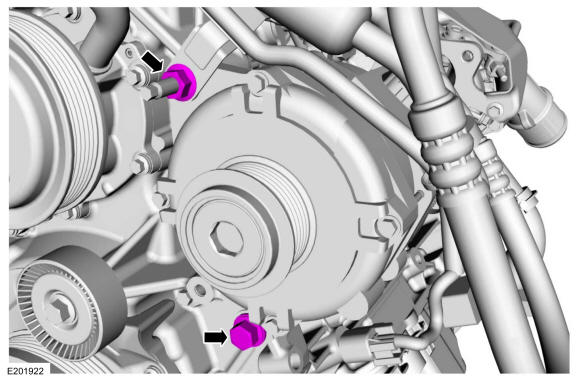

22. Install the generator bolt and nut.

    Torque

    : 35 lb.ft (47 Nm)

    Courtesy of FORD MOTOR COMPANY

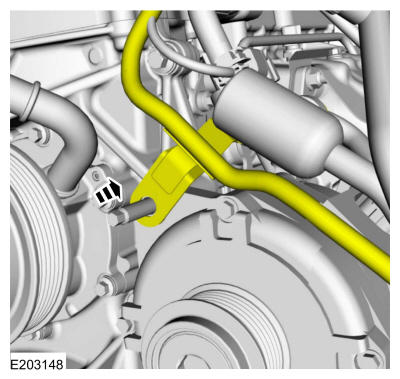

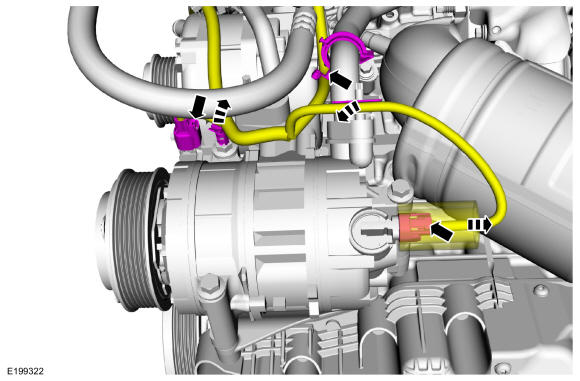

23. Connect the wiring harness retainers, connect the electrical connectors and slide up the insulator.

    Courtesy of FORD MOTOR COMPANY

24. Install the accessory drive belt tensioner. Refer to: Accessory Drive Belt Tensioner .

    Vehicles with front wheel drive (FWD)

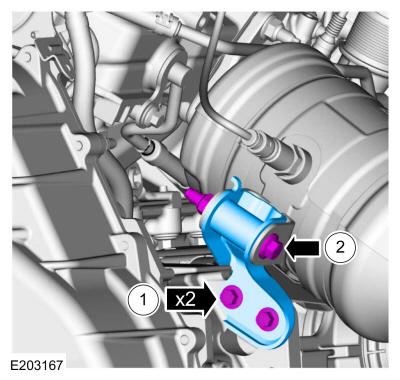

25. Install the catalytic converter bracket and the bolts.
    1. Torque

       : 22 lb.ft (30 Nm)

    2. Torque

       : 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

26. 1. Inspect the RH halfshaft seal surface.
    2. Inspect the dust shield.
    3. Inspect the differential side gear splines.

    Courtesy of FORD MOTOR COMPANY

27. NOTE: If the transmission has been replaced or overhauled, the halfshaft seals do not need to be replaced.

    Install a new RH halfshaft seal. Refer to: Halfshaft Seal RH - FWD .

28. NOTE: Do not fully install the shaft at this time.

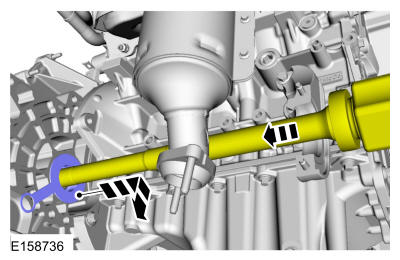

    Using part: 4W1W-4N206-A, install the inboard splines of the RH halfshaft through the halfshaft seal protector and the new halfshaft seal.

    Courtesy of FORD MOTOR COMPANY

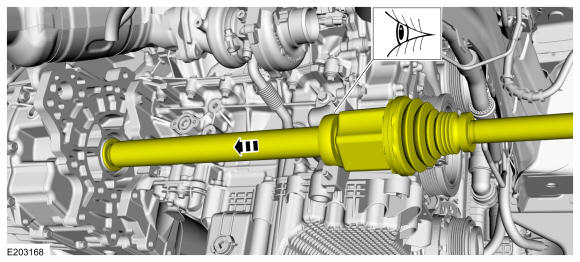

29. Install the RH halfshaft until the intermediate shaft bearing is centered in the intermediate shaft bearing support bracket.

    Courtesy of FORD MOTOR COMPANY

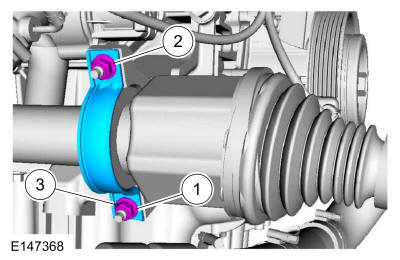

30. Install the new halfshaft retaining strap and the new halfshaft retaining strap nuts.

    Torque

    :Stage 1: 44 lb.in (5 Nm) Stage 2: 18 lb.ft (25 Nm) Stage 3: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

    All vehicles

31. Inspect the halfshaft hub for wear or damage and install a new halfshaft, if necessary.
    1. Inspect the dust shield.
    2. Inspect the LH halfshaft seal surface.
    3. Inspect the differential side gear splines.

    Courtesy of FORD MOTOR COMPANY

32. NOTE: Make sure new component is installed.

    Install the new inner halfshaft retaining circlip.

    Courtesy of FORD MOTOR COMPANY

33. NOTE: If the transmission has been replaced or overhauled, the halfshaft seals do not need to be replaced.

    Install a new LH halfshaft seal. Refer to: Halfshaft Seal LH .

34. NOTE: Do not fully install shaft at this time.

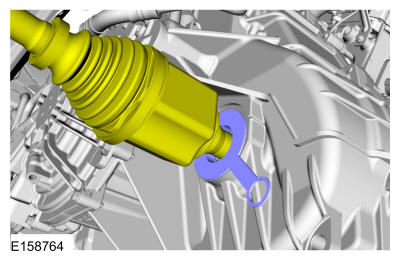

    Using part: AA5P-4N206-A, install the splines of the LH halfshaft through the halfshaft seal protector and the new halfshaft seal.

    Courtesy of FORD MOTOR COMPANY

35. NOTE: Insert shaft until circlip is fully seated. When checking if circlip is seated do not pull on CV joints or damage can result.
    NOTE: Pull on the inner CV joint to ensure the halfshaft circlip is seated properly.

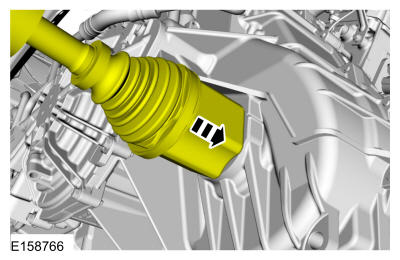

    Insert the LH halfshaft until the halfshaft retaining clip is fully seated.

    Courtesy of FORD MOTOR COMPANY

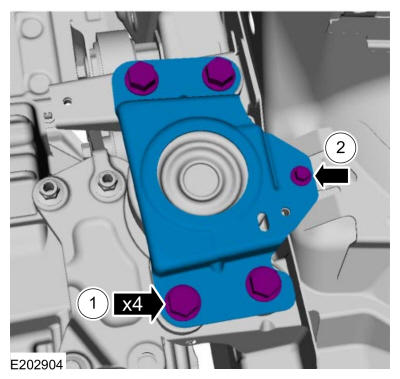

36. Install the transmission support insulator and new bolts.

    Torque

    : 59 lb.ft (80 Nm)

    Courtesy of FORD MOTOR COMPANY

37. Install the new rear roll restrictor bolt.

    Torque

    : 111 lb.ft (150 Nm)

    Courtesy of FORD MOTOR COMPANY

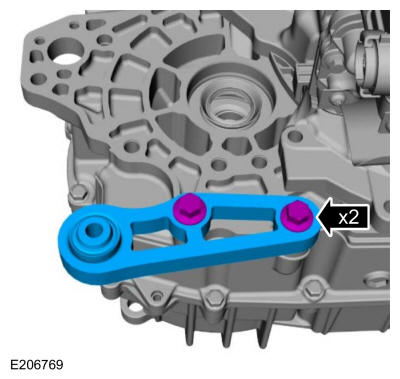

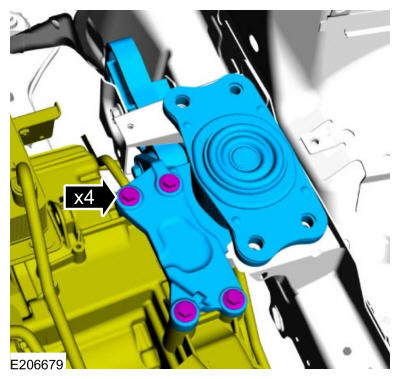

38. 1. Install the transmission support insulator bracket and new bolts.

       Torque

       : 66 lb.ft (90 Nm)

    2. Install the transmission support insulator bracket bolt.

       Torque

       : 97 lb.in (11 Nm)

    Courtesy of FORD MOTOR COMPANY

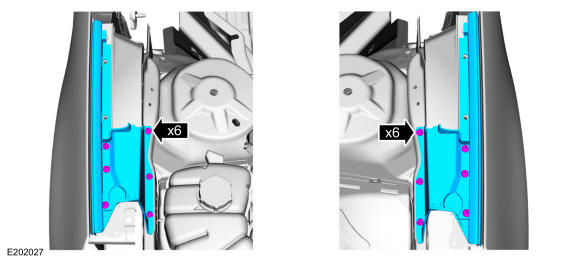

39. Install the RH and LH cowl filler panels and the retainers.

    Courtesy of FORD MOTOR COMPANY

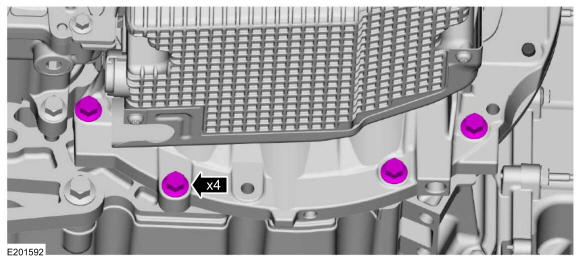

40. Install the upper transmission-to-engine bolts.

    Torque

    : 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

41. Install the starter motor. Refer to: Starter Motor .
42. If equipped with active warm up install the bolts.

    Torque

    : 80 lb.in (9 Nm)

    Courtesy of FORD MOTOR COMPANY

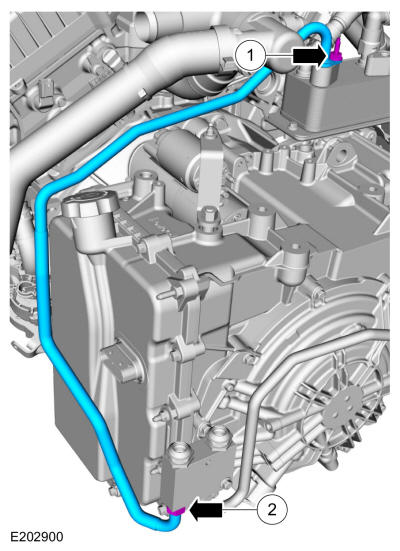

43. Install the transmission fluid cooler tube.
    1. Install a new bolt.

       Torque

       : 97 lb.in (11 Nm)

    2. Tighten the fitting.

       Torque

       : 22 lb.ft (30 Nm)

    Courtesy of FORD MOTOR COMPANY

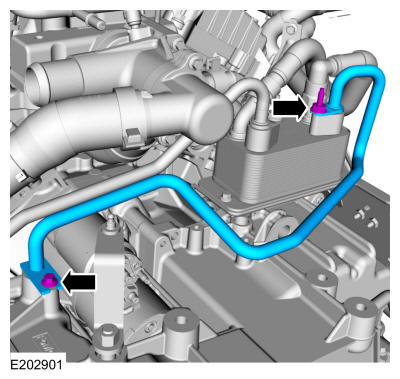

44. Install the transmission fluid cooler tube and the new bolts.

    Torque

    : 97 lb.in (11 Nm)

    Courtesy of FORD MOTOR COMPANY

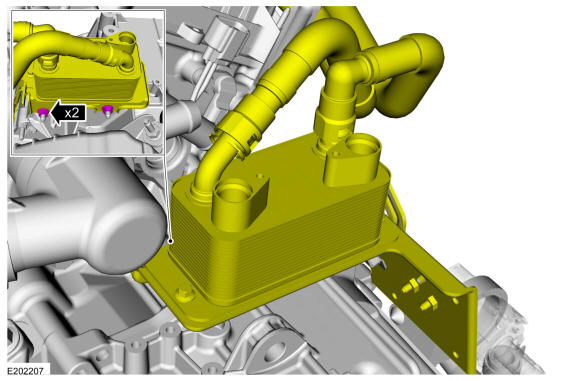

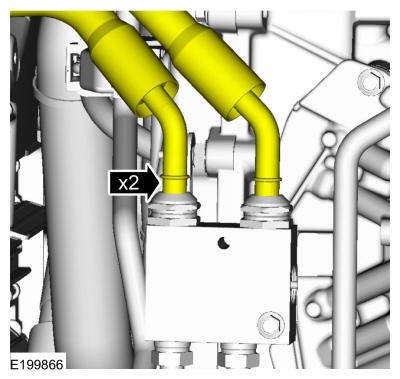

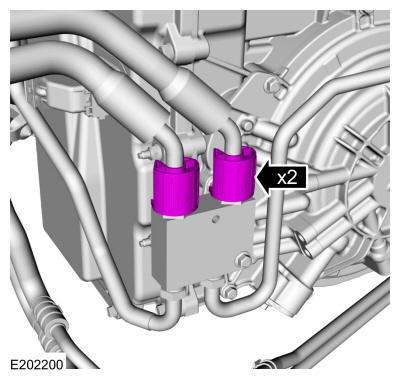

45. Connect the transmission fluid cooler tubes to the transmission fluid cooler thermal bypass valve.

    Courtesy of FORD MOTOR COMPANY

46. Install the transmission fluid cooler tube secondary latches.

    Courtesy of FORD MOTOR COMPANY

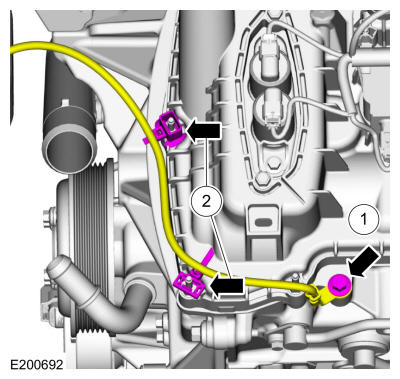

47. 1. Install the ground wire and the bolt.

       Torque

       : 159 lb.in (18 Nm)

    2. Attach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

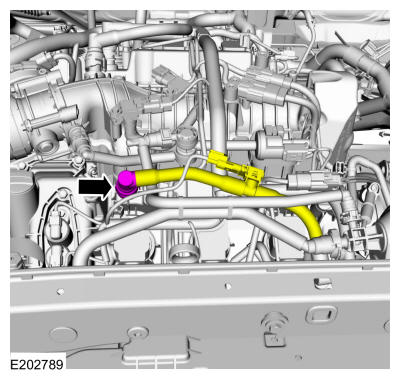

48. Connect the PCV tube.

    Courtesy of FORD MOTOR COMPANY

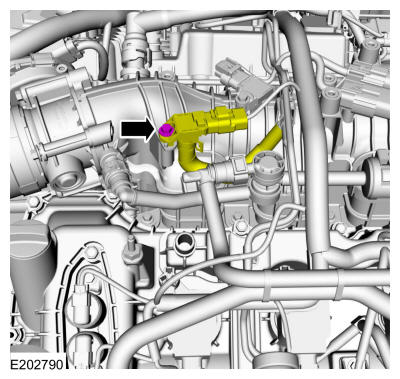

49. Install the vacuum harness pressure sensor and the bolt.

    Torque

    : 62 lb.in (7 Nm)

    Courtesy of FORD MOTOR COMPANY

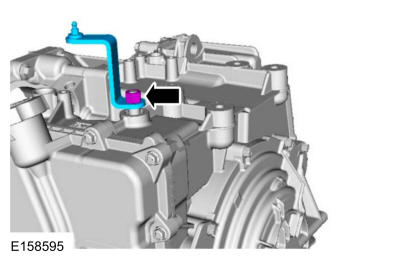

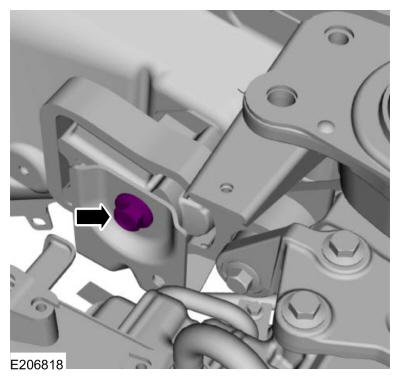

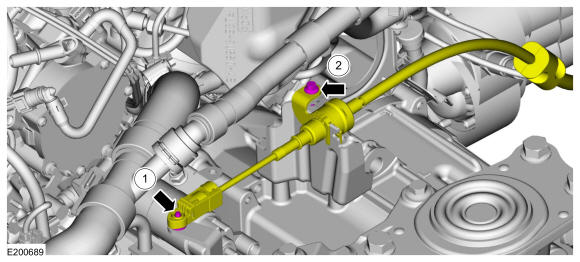

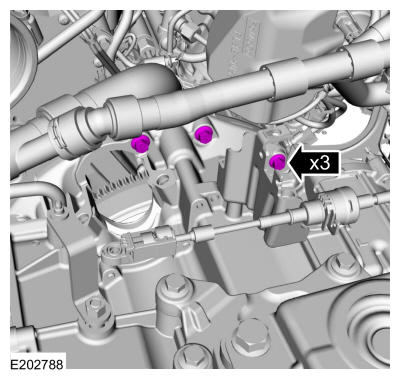

50. 1. Attach the cable to the transmission control lever.
    2. Position the cable and install the bolt.

       Torque

       : 62 lb.in (7 Nm)

    Courtesy of FORD MOTOR COMPANY

51. Connect the LH HO2S and the LH catalyst monitor sensor electrical connectors.

    Courtesy of FORD MOTOR COMPANY

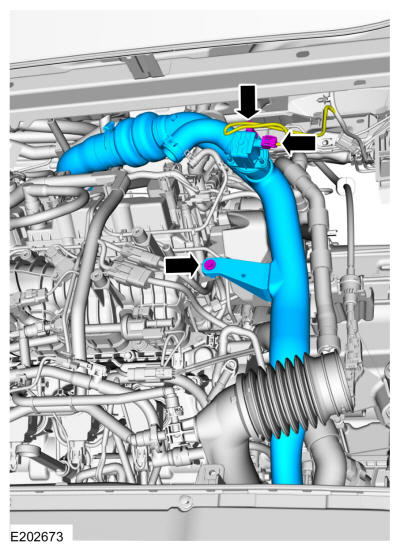

52. Install the RH CAC intake pipe, install the bolt and connect the electrical connectors.

    Torque

    : 71 lb.in (8 Nm)

    Courtesy of FORD MOTOR COMPANY

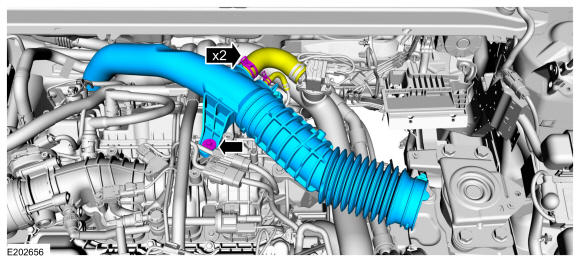

53. Install the RH air cleaner outlet pipe, install the bolt and connect the tubes.

    Torque

    : 71 lb.in (8 Nm)

    Courtesy of FORD MOTOR COMPANY

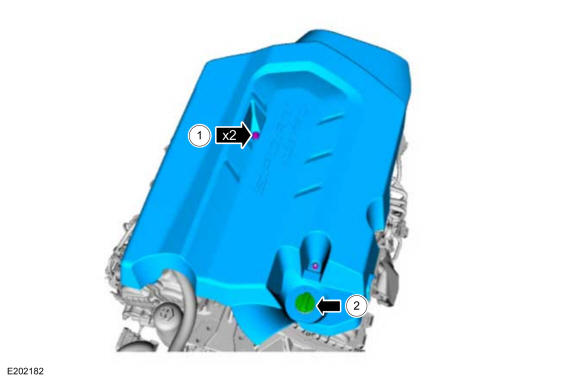

54. 1. Install the engine appearance cover and the fasteners.

       Torque

       : 44 lb.in (5 Nm)

    2. Install the oil filler cap.

    Courtesy of FORD MOTOR COMPANY

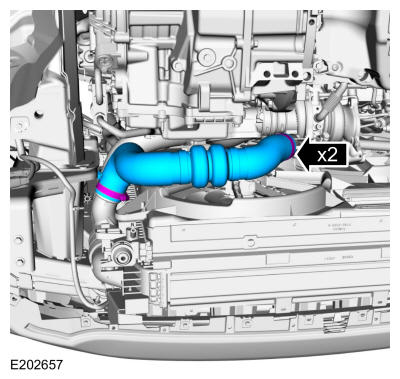

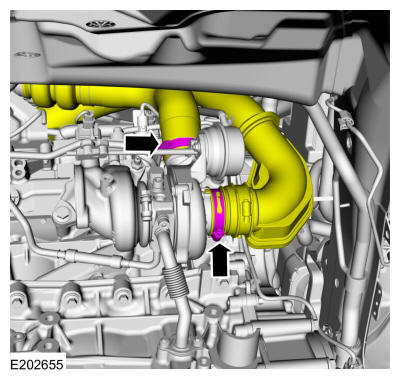

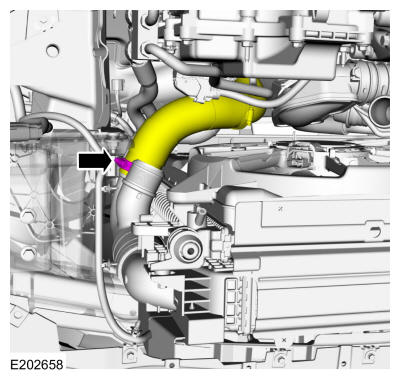

55. Connect the RH CAC intake pipe and tighten the clamp.

    Torque

    : 42 lb.in (4.8 Nm)

    Courtesy of FORD MOTOR COMPANY

56. Install the LH CAC intake pipe.

    Torque

    : 42 lb.in (4.8 Nm)

    Courtesy of FORD MOTOR COMPANY

57. Connect the RH air cleaner outlet pipe and the RH CAC intake pipe and tighten the clamps.

    Torque

    : 42 lb.in (4.8 Nm)

    Courtesy of FORD MOTOR COMPANY

    All wheel drive (AWD)

58. Install the transfer case. Refer to: Transfer Case .

    Vehicles with front wheel drive (FWD)

59. Install the front subframe. Refer to: Front Subframe .

    All vehicles

60. Install the following items:
    1. Refer to: Battery Tray .
    2. Refer to: Cowl Panel .

61. Adjust the selector lever cable. Refer to: Selector Lever Cable Adjustment - 6-Speed Automatic Transmission - 6F50/6F55 .
62. Fill the transmission with transmission fluid. Refer to: Transmission Fluid Drain and Refill .
63. After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure using a diagnostic scan tool.
64. If a new solenoid body is installed, the solenoid body strategy must be updated. Refer to: Transmission Strategy Download .
