Removal And Installation: Transmission: Installation

All vehicles

1. NOTE: If removed, inspect the transmission mounted transmission fluid cooler tube backing rings and seals for damage and install new backing rings or seals if necessary.
   1. Install the backing ring (7J324)
   2. Lubricate and install the seal (7D285)

      Material

      : Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV,)

   Courtesy of FORD MOTOR COMPANY

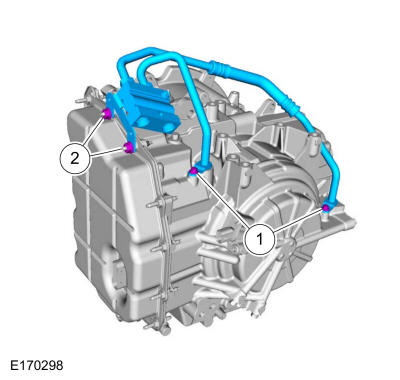

2. Install the transmission mounted transmission fluid cooler tubes, the new bolts and the nuts.
   1. Torque

      : 97 lb.in (11 Nm)

   2. Torque

      : 80 lb.in (9 Nm)

   Courtesy of FORD MOTOR COMPANY

3. Lubricate the torque converter pilot hub with Multi-Purpose Grease.

   Material

   : Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

   Courtesy of FORD MOTOR COMPANY

4. NOTE: If the transmission is not positioned on the dowel pins, damage to the transmission may occur.

   If the dowel pins were pulled out of the engine block during removal, install new dowel pins in the engine block.

   Courtesy of FORD MOTOR COMPANY

5. NOTE: Secure the transmission to the transmission jack with a safety strap.

   Position the transmission behind the engine and remove the special tool. Use Special Service Tool: 307-566 Retainer, Torque Converter. Use the General Equipment: Transmission Jack

   Courtesy of FORD MOTOR COMPANY

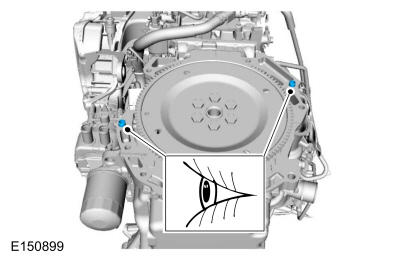

6. Align the index-mark made during removal.

   Courtesy of FORD MOTOR COMPANY

7. Install the LH and the RH transmission-to-engine bolts.

   Torque

   : 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

8. Install the lower transmission-to-engine bolts.

   Torque

   : 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

9. NOTE: Only rotate the crankshaft in a clockwise direction.

   Using a magnetic socket install the new torque converter nuts. Use the General Equipment: Magnetic Socket

   Torque

   : 30 lb.ft (40 Nm)

   Courtesy of FORD MOTOR COMPANY

10. Install the upper transmission-to-engine bolts.

    Torque

    : 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

11. Install the transmission support insulator bracket and the bolts.

    Torque

    : 59 lb.ft (80 Nm)

    Courtesy of FORD MOTOR COMPANY

12. Install the transmission support insulator damper and the bolts.

    Torque

    : 80 lb.in (9 Nm)

    Courtesy of FORD MOTOR COMPANY

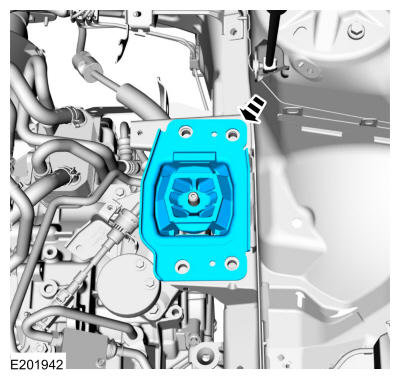

13. Install the transmission support insulator.

    Courtesy of FORD MOTOR COMPANY

14. 1. Install the bracket and the new bolts.

       Torque

       : 66 lb.ft (90 Nm)

    2. Install the new nut.

       Torque

       : 98 lb.ft (133 Nm)

    3. If equipped, install the screw.

       Torque

       : 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

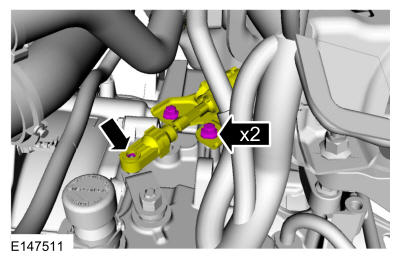

15. Connect the transmission fluid cooler tubes to the transmission fluid cooler thermal bypass valve.

    Courtesy of FORD MOTOR COMPANY

16. Install the transmission fluid cooler tube secondary latches.

    Courtesy of FORD MOTOR COMPANY

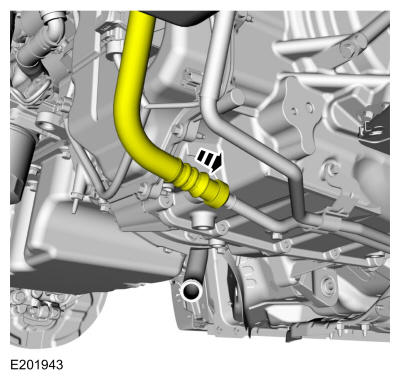

17. Install the crankcase vent tube, connect the electrical connector and wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

18. Install the RH and LH cowl filler panels and the retainers.

    Courtesy of FORD MOTOR COMPANY

19. Install the stater motor insulator.

    Courtesy of FORD MOTOR COMPANY

20. Install the starter motor. Refer to: Starter Motor .
21. Inspect and replace the oil filter adapter gasket if damaged.

    Courtesy of FORD MOTOR COMPANY

22. Install the oil filter adapter and the bolts.

    Torque

    : 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

23. Attach the wiring harness retainers. Connect the electrical connectors.

    Courtesy of FORD MOTOR COMPANY

24. Lubricate the new oil filter sealing surface and install.

    Material

    : Motorcraft® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

    Torque

    :Stage 1: 71 lb.in (8 Nm) Stage 2: 180 deg.

    Courtesy of FORD MOTOR COMPANY

25. Connect the electrical connectors and the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

26. Connect the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

27. If equipped with active warm up install the bolts.

    Torque

    : 97 lb.in (11 Nm)

    Courtesy of FORD MOTOR COMPANY

28. Connect the transmission fluid cooler tube.

    Courtesy of FORD MOTOR COMPANY

29. Install the transmission fluid cooler tube secondary latch.

    Courtesy of FORD MOTOR COMPANY

    Auto-Start-Stop

30. Connect the transmission fluid auxiliary pump electrical connector.

    Courtesy of FORD MOTOR COMPANY

    All vehicles

31. Inspect the LH halfshaft hub for wear or damage and install a new halfshaft, if necessary.
    1. Inspect the differential seal surface.
    2. Inspect the halfshaft bushing surface. If this surface is damaged, inspect the halfshaft bushing for damage.
    3. Inspect the differential side gear splines.

    Courtesy of FORD MOTOR COMPANY

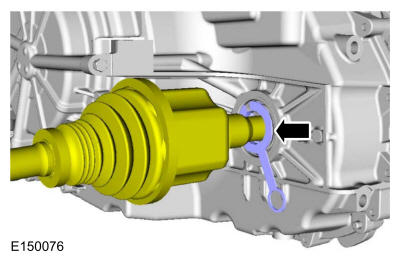

32. Install the new inner halfshaft retaining circlip.

    Courtesy of FORD MOTOR COMPANY

33. NOTE: If the transmission has been replaced or overhauled, the halfshaft seals do not need to be replaced.

    Install a new LH halfshaft seal. Refer to: Halfshaft Seal LH .

34. Install the seal protector.

    Courtesy of FORD MOTOR COMPANY

35. NOTE: Do not fully install shaft at this time.

    Using the seal protector, insert the splines of the halfshaft through the halfshaft seal and remove the seal protector.

    Courtesy of FORD MOTOR COMPANY

36. NOTE: Insert shaft until circlip is fully seated. When checking if circlip is seated do not pull on CV joints or damage can result.
    NOTE: Pull on the inner CV joint to ensure the halfshaft circlip is seated properly.

    Insert the halfshaft until the halfshaft retaining clip is fully seated.

    Courtesy of FORD MOTOR COMPANY

    All wheel drive (AWD)

37. Install the transfer case. Refer to: Transfer Case .

    Vehicles with front wheel drive (FWD)

38. 1. Inspect the RH halfshaft seal surface.
    2. Inspect the dust shield.
    3. Inspect the differential side gear splines.

    Courtesy of FORD MOTOR COMPANY

39. NOTE: If the transmission has been replaced or overhauled, the halfshaft seals do not need to be replaced.

    Install a new RH halfshaft seal. Refer to: Halfshaft Seal RH - FWD .

40. Install the seal protector.

    Courtesy of FORD MOTOR COMPANY

41. Push the RH halfshaft into the transmission so the splines go through the seal protector and remove the seal protector.

    Courtesy of FORD MOTOR COMPANY

42. Install the RH halfshaft assembly.

    Courtesy of FORD MOTOR COMPANY

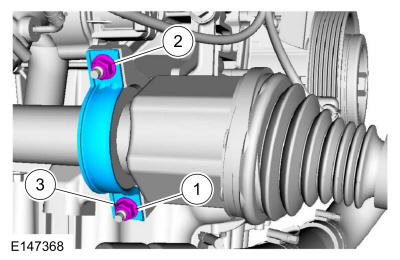

43. Install the new halfshaft retaining strap and the new halfshaft retaining strap nuts.

    Torque

    :Stage 1: 44 lb.in (5 Nm) Stage 2: 18 lb.ft (25 Nm) Stage 3: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

44. 1. Install the CAC tube and the nuts.

       Torque

       : 97 lb.in (11 Nm)

    2. Tighten the clamp.

       Torque

       : 44 lb.in (5 Nm)

    Courtesy of FORD MOTOR COMPANY

45. Connect the CAC hose, electrical connector and the wire retainer.

    Courtesy of FORD MOTOR COMPANY

46. Position the CAC tube and tighten the clamp.

    Torque

    : 44 lb.in (5 Nm)

    Courtesy of FORD MOTOR COMPANY

    All vehicles

47. Install the roll restrictor bracket and bolts.
    • Tighten the bolts in the sequence shown.

      Torque

      : 92 lb.ft (125 Nm)

    Fig 1: Roll Restrictor Bolt Tightening Sequence

    Courtesy of FORD MOTOR COMPANY
48. Install the catalytic converter bracket and the bolts.
    1. Torque

       : 18 lb.ft (25 Nm)

    2. Torque

       : 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

49. Connect the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

50. Install the front subframe. Refer to: Front Subframe .
51. Connect the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

52. Install the cable and nut.

    Torque

    : 80 lb.in (9 Nm)

    Courtesy of FORD MOTOR COMPANY

53. If equipped with active warm up install the bolts.

    Torque

    : 97 lb.in (11 Nm)

    Courtesy of FORD MOTOR COMPANY

54. Install the selector lever cable bracket and the bolts.

    Torque

    : 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

55. Install the following items:
    1. Refer to: Battery Tray .
    2. Refer to: Air Cleaner Outlet Pipe .
    3. Refer to: Cowl Panel .

56. Adjust the selector lever cable. Refer to: Selector Lever Cable Adjustment - 6-Speed Automatic Transmission - 6F35 .
57. Compress the constant tension clamp and remove the transmission vent from the fill tube.

    Courtesy of FORD MOTOR COMPANY

58. NOTE: The following fluid amounts listed below are for initial fill only. The transmission fluid must be even with the oil leveling plug hole and the transmission must be at normal operating temperature 85-93 deg.C (185-200 deg.F) or transmission damage can occur.
    1. Transmission overhaul (includes main control and torque converter drain)

       Volume

       : 6.34 qt (6 L)

    2. Main control overhaul or replace (with out transmission overhaul)

       Volume

       : 5.28 qt (5 L)

    3. Transmission draining and filling (for engine and halfshaft related repairs)

       Volume

       : 4.23 qt (4 L)

    • Material

      : Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV,)

59. Start the engine and slowly select each gear, stopping in each position and allowing the transmission to engage.
60. With the vehicle on a level hoist, the engine running in PARK, remove the oil leveling plug and allow the transmission fluid to drain until its even with the oil leveling plug hole. If the transmission fluid does not drain from the oil leveling plug hole add transmission fluid in increments of .25 L (0.264 qt) until the transmission fluid is even with the oil leveling plug hole. Install the oil leveling plug.
    1. Standard transmission case (M10 plug)

       Torque

       : 71 lb.in (8 Nm)

    2. Fuel economy transmission case (M20 plug)

       Torque

       : 26 lb.ft (35 Nm)

    Courtesy of FORD MOTOR COMPANY

61. With the clamp facing the front of the vehicle, compress the constant tension clamp and install the transmission vent on the fill tube.

    Courtesy of FORD MOTOR COMPANY

62. NOTE: Only download the solenoid strategy at this time. The Adaptive Learning Drive Cycle will be completed later in this procedure.

    If a new solenoid body is installed, the solenoid body strategy must be updated. Refer to: Transmission Strategy Download .

    Auto-Start-Stop

63. NOTE: TFT must be greater than 38°C (100°F) for the PCM to command the pump on.

    Using the scan tool verify the TFT is above 38°C (100°F).

    • If TFT is below 38°C (100°F), run engine at 3000 RPM until specified temperature is achieved (approximately 2-4 minutes).

64. Prime the Transmission Fluid Auxiliary Pump.
    1. Key ON, Engine OFF.
    2. Using the scan tool, command TRANS_PMP_CMD to 80% for 30 seconds. If the pump cannot be commanded on, verify TFT is above 38°C (100°F).
    3. Clear DTCs.

65. Carry out a road test until there is a stop / start event. If the restart is harsh, repeat the Transmission Fluid Pump prime procedure.
66. Continue road test and evaluate each stop / start event. Repeat prime procedure until three consecutive normal stop / start events are achieved.

    All vehicles

67. Using a scan tool, drive the vehicle until the transmission is at normal operating temperature 85-93 deg.C (185-200 deg.F).
68. After completing the repairs perform the Misfire Monitor Neutral Profile Correction procedure.
69. If a new solenoid body is installed, complete the Adaptive Learning Drive Cycle. Refer to: Adaptive Learning Drive Cycle .
70. Check the transmission fluid level. Refer to: Transmission Fluid Level Check .
