Transmission Fluid Level Check

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Materials

Name	Specification
Motorcraft® MERCON® LV Automatic Transmission Fluid XT-10-QLVC	WSS-M2C938-A MERCON® LV,

Check

Connect the diagnostic scan tool to the vehicle. Monitor the TFT PID.
With the engine running in PARK on a level surface make sure the transmission is at normal operating temperature 85-93 deg. C (185-200 deg. F). If necessary, drive the vehicle until the transmission is at normal operating temperature 85-93 deg.C (185-200 deg.F).
With the vehicle in NEUTRAL, position it on a hoist. Refer to: JACKING AND LIFTING - OVERVIEW .

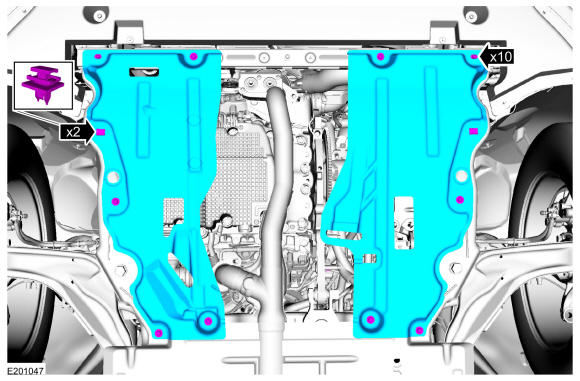

Remove the bolts, grommets and the engine undershield.

Courtesy of FORD MOTOR COMPANY
Start the engine and slowly select each gear position, stopping in each position and allowing the transmission to engage.

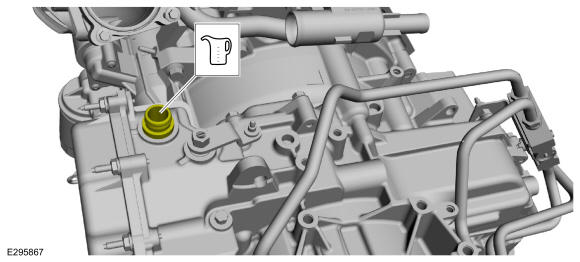

With the engine running in PARK on a level hoist make sure the transmission is at normal operating temperature 85-93 deg. C (185-200 deg. F). Check the transmission fluid is even with the oil leveling plug hole.
1. Standard transmission case (M10 plug)
2. Fuel economy transmission case (M20 plug)
Courtesy of FORD MOTOR COMPANY
If the transmission fluid is not even with the oil leveling plug hole, remove the transmission vent on the oil fill tube.

Courtesy of FORD MOTOR COMPANY
Add clean transmission fluid in increments of 0.25L (0.5 pt) until the transmission fluid is even with the oil leveling plug hole.
Material

: Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV,)

Courtesy of FORD MOTOR COMPANY
Install the oil leveling plug.
1. Standard transmission case (M10 plug)
  Torque

  : 71 lb.in (8 Nm)
2. Fuel economy transmission case (M20 plug)
  Torque

  : 26 lb.ft (35 Nm)
Courtesy of FORD MOTOR COMPANY
With the clamp facing the front of the vehicle, compress the constant tension clamp and install the transmission vent on the fill tube.

Courtesy of FORD MOTOR COMPANY
Install the bolts, grommets and the engine undershield.
Torque

: 13 lb.in (1.5 Nm)

Courtesy of FORD MOTOR COMPANY
