Transfer Case

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Hose Clamp Remover/Installer

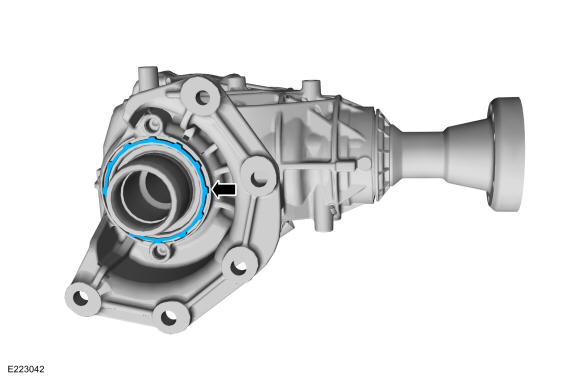

Install the new PTU to transmission compression seal.

Courtesy of FORD MOTOR COMPANY

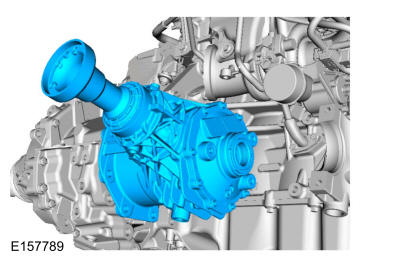

Install the PTU.

Courtesy of FORD MOTOR COMPANY
NOTE: Limited access, this step may take more than 4-41/2 minutes to complete.

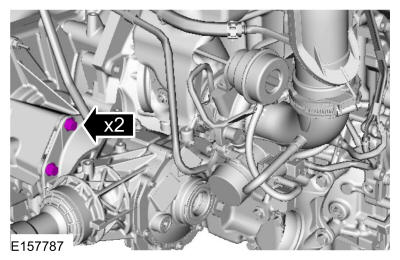

Install the new upper PTU bolts.

Torque

: 59 lb.ft (80 Nm)

Courtesy of FORD MOTOR COMPANY

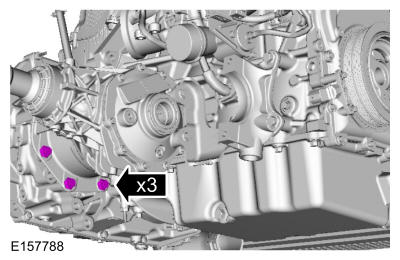

Install the new lower PTU bolts.
Torque

: 59 lb.ft (80 Nm)

Courtesy of FORD MOTOR COMPANY

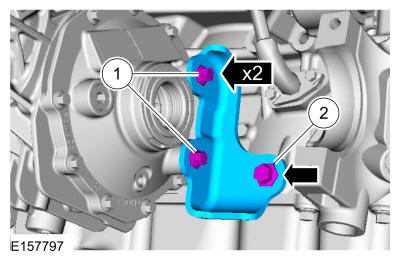

Install the PTU support bracket and bolts.
Torque

: 1: 18 lb.ft (25 Nm) 2: 46 lb.ft (63 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: The PTU vent hose should be replaced whenever a new PTU is installed.

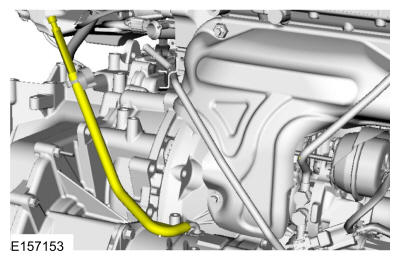

Connect the PTU vent hose.

Courtesy of FORD MOTOR COMPANY

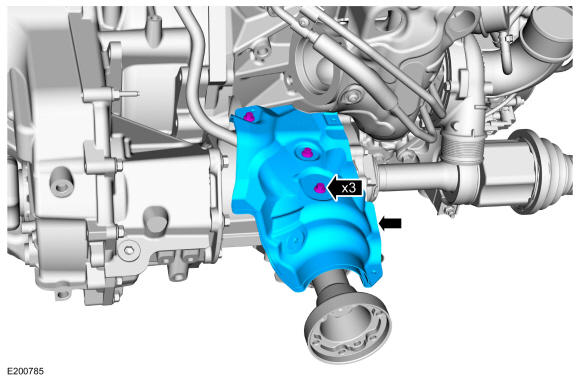

Install the PTU heat shield bolts and the heat shield.
Torque

: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
Install the PTU cooling fan. Refer to: Power Transfer Unit Cooling Fan .

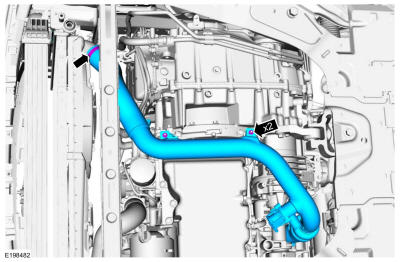

Install the CAC tube and the nuts, tighten the clamp.

Courtesy of FORD MOTOR COMPANY

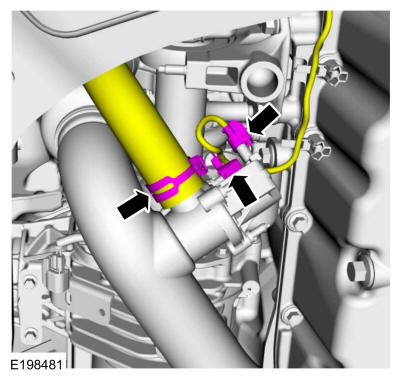

Connect the CAC hose, electrical connector and the wire retainer. Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

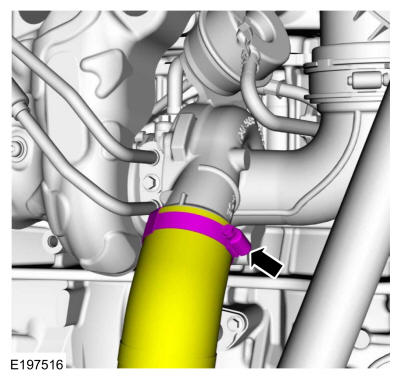

Position the CAC tube and tighten the clamp.

Courtesy of FORD MOTOR COMPANY

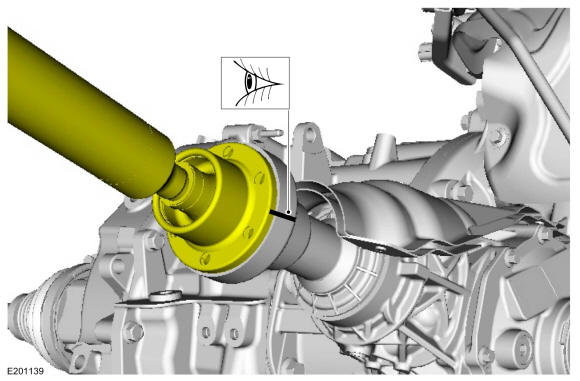

Align the index-mark and position the driveshaft coupling into the PTU pinion coupling.

Courtesy of FORD MOTOR COMPANY

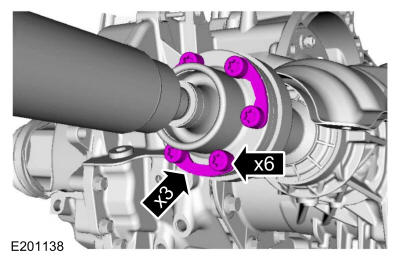

Install the new driveshaft to PTU bolt and washer assemblies.
Torque

: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY

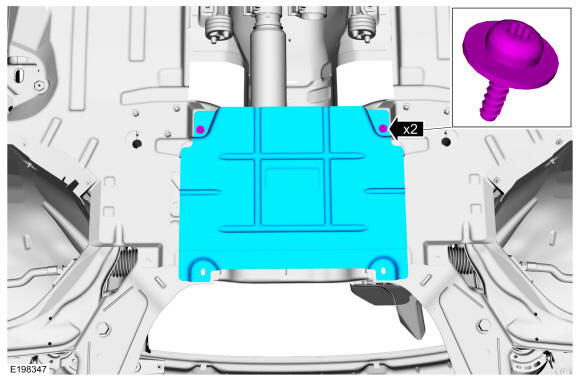

If equipped, Install the center under body shield and the retainers.

Courtesy of FORD MOTOR COMPANY
Install the RH halfshaft. Refer to: Front Halfshaft RH - 2.0L EcoBoost (184kW/250PS) - MI4, All-Wheel Drive (AWD) .
