Section 37 (ENGINE - 3.5L DURATEC (212kW/278PS)): Installation: Engine

For information on Ford Color Coded Illustrations refer to OEM Color Coding

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	303-1245 Engine Lift Eye TKIT-2006UF-FLM TKIT-2006UF-ROW
Courtesy of FORD MOTOR COMPANY	303-1529 Lift Eye, Engine TKIT-2010A-F TKIT-2010A-LM TKIT-2010A-ROW
Courtesy of FORD MOTOR COMPANY	307-346 (T97T-7902-A) Retainer, Torque Converter TKIT-1998-LM (NavigatoR) TKIT-1997-F/FLM/LT
Floor Crane
Adjustable Mounting Arm
Hose Clamp Remover/Installer
Powertrain Jack
Wooden Block

Materials

2WD/4WD

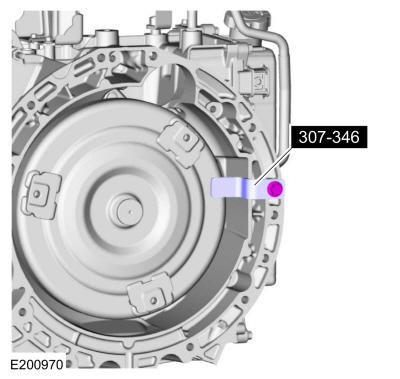

1. Remove Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.

   Courtesy of FORD MOTOR COMPANY

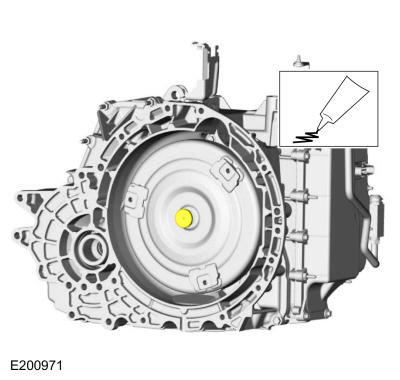

2. Lubricate the torque converter pilot hub.

   Material: Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

   Courtesy of FORD MOTOR COMPANY

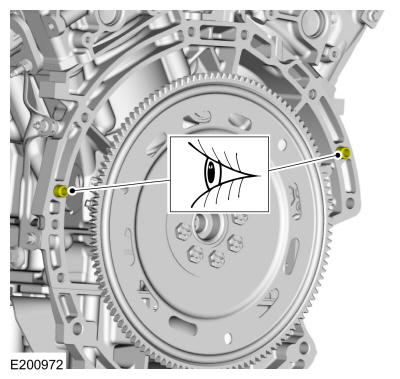

3. Inspect the dowel pins and replace if necessary.

   Courtesy of FORD MOTOR COMPANY

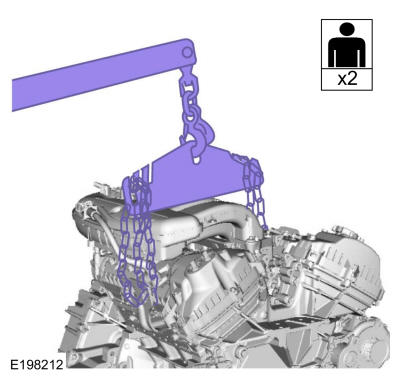

4. Using the floor crane and spreader bar, align the engine to the transaxle. Use the General Equipment: Floor Crane

   Courtesy of FORD MOTOR COMPANY

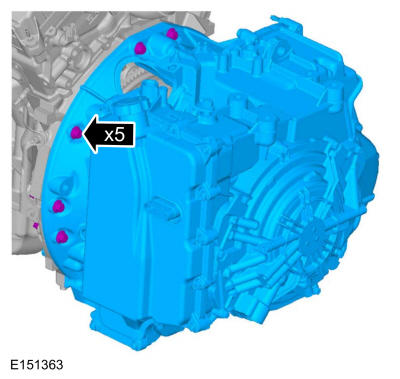

5. Install the transaxle-to-engine bolts.

   Torque: 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

6. Install the transaxle-to-engine and engine-to-transaxle bolts.

   Torque: 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

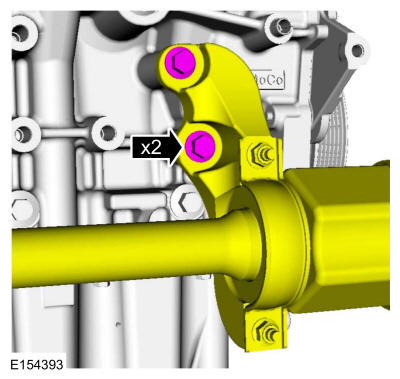

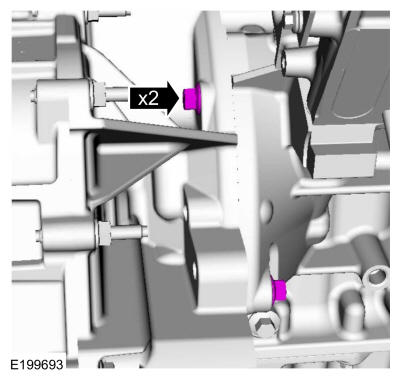

7. Install the bolts for the RH halfshaft bracket.

   Torque: 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

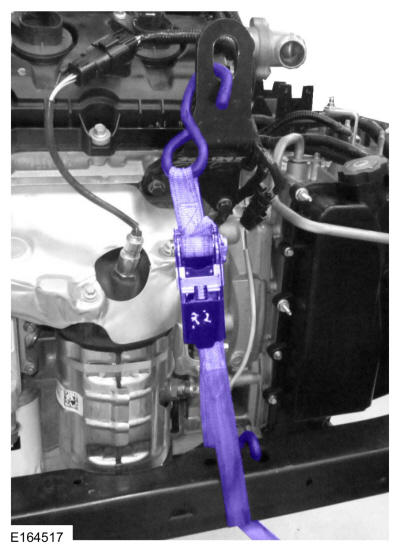

8. NOTE: LH shown, RH similar.

   Install the ratchet strap from the front subframe to the LH engine lift eye and from the rear of the subframe to the RH engine lift eye.

   Courtesy of FORD MOTOR COMPANY

9. Using the floor crane and the spreader bar, install the powertrain and subframe as an assembly on the powertrain jack. Use the General Equipment: Powertrain Jack. Use the General Equipment: Floor Crane. Use the General Equipment: Wooden Block

   Courtesy of FORD MOTOR COMPANY

10. NOTE: LH shown, RH similar.

    Remove the ratchet strap from the front subframe to the LH engine lift eye and from the rear of the subframe to the RH engine lift eye.

    Courtesy of FORD MOTOR COMPANY

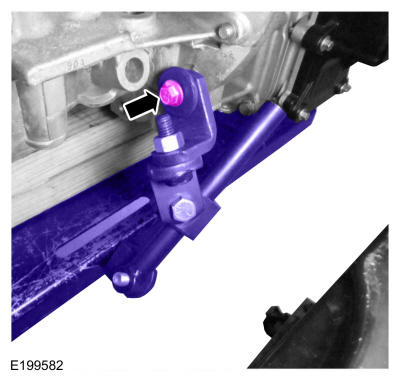

11. Install the adjustable mounting arm. Use the General Equipment: Adjustable Mounting Arm

    Courtesy of FORD MOTOR COMPANY

12. Install a ratchet strap from the front of the subframe under the powertrain jack to the rear of the subframe, to secure the subframe to the powertrain jack.

    4WD

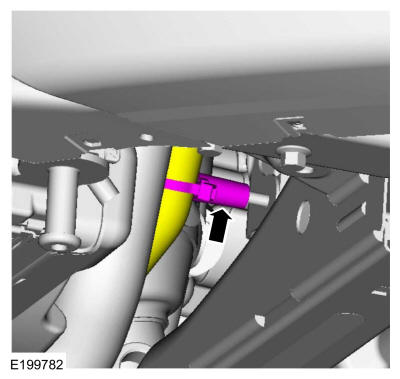

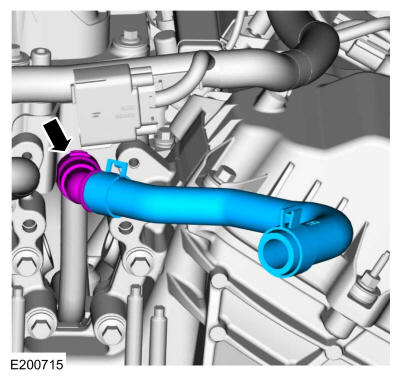

13. Connect the PTU (power takeoff unit) vent hose.

    Courtesy of FORD MOTOR COMPANY

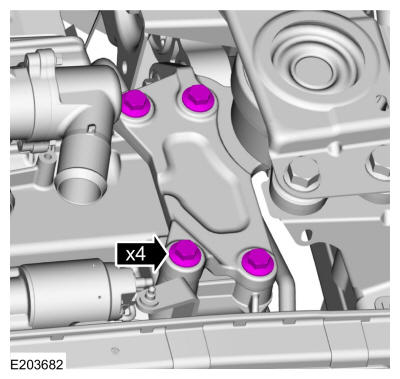

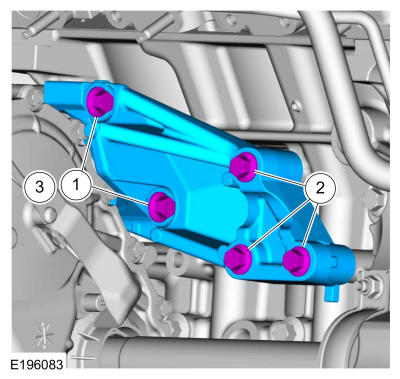

14. • Install the PTU bracket and hand start the bolts at the PTU.
    • Install the bolts at the cylinder block.

      Torque: 35 lb.ft (48 Nm)

    • Tighten the bolts at the PTU.

      Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

    2WD/4WD

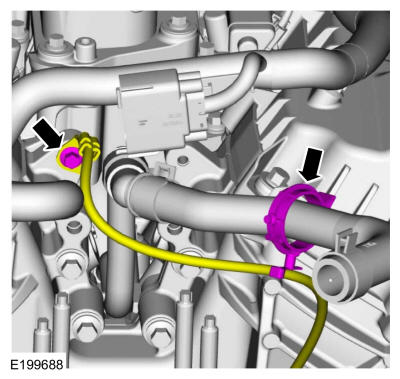

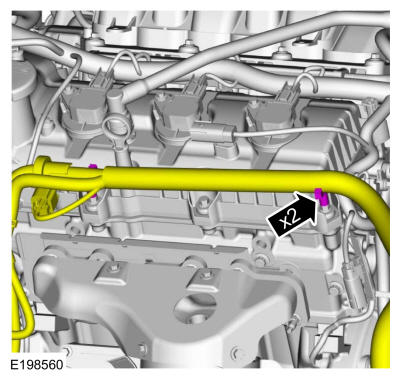

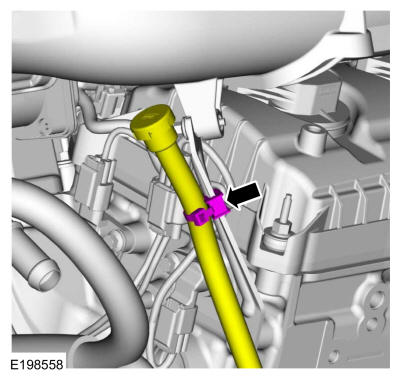

15. Position back the wire harness and connect the wire harness retainers.

    Courtesy of FORD MOTOR COMPANY

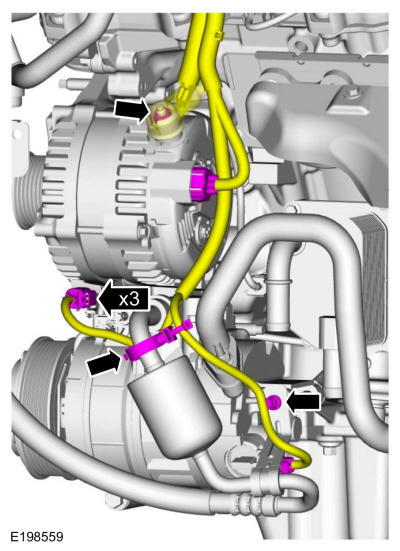

16. • Connect the electrical connectors and the wire retainers.
    • Install the generator nut and position back the boot.

      Torque: 150 lb.in (17 Nm)

    Courtesy of FORD MOTOR COMPANY

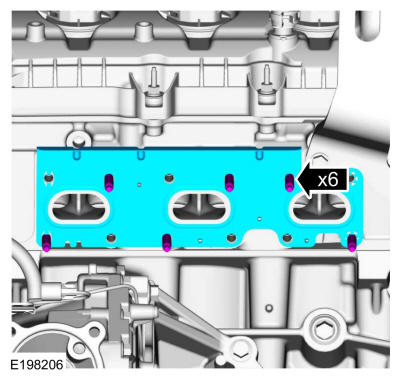

17. • Install the new exhaust manifold studs.

      Torque: 106 lb.in (12 Nm)

    • Install the new exhaust manifold gasket.

    Courtesy of FORD MOTOR COMPANY

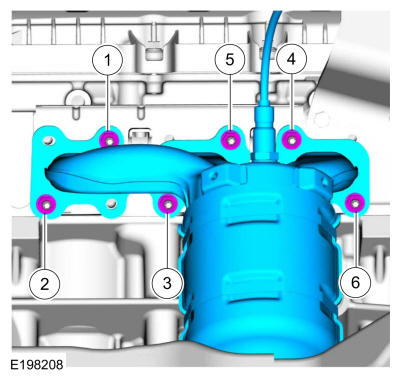

18. NOTE: Failure to tighten the exhaust manifold nuts to specification a second time will cause the exhaust manifold to develop an exhaust leak.

    Install the RH catalytic converter and new nuts.

    Torque: Stage 1: 18 lb.ft (25 Nm) Stage 2: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

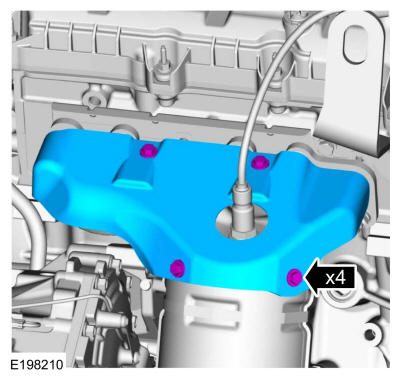

19. Install the heat shield and the bolts.

    Torque: 97 lb.in (11 Nm)

    Courtesy of FORD MOTOR COMPANY

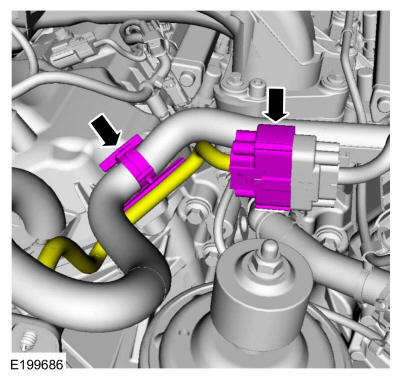

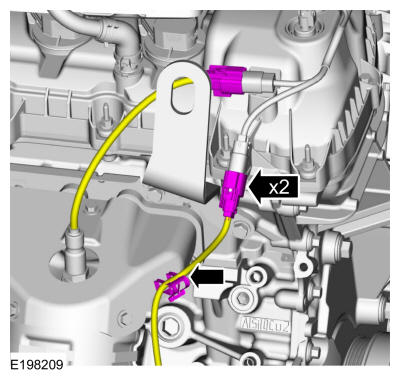

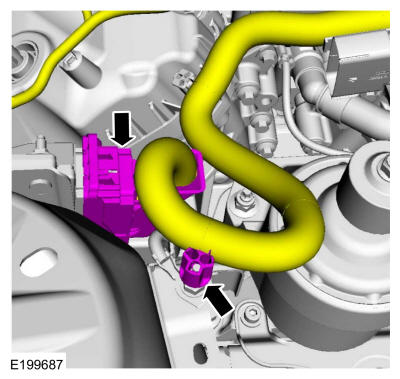

20. Connect the RH electrical connectors and the wire retainer.

    Courtesy of FORD MOTOR COMPANY

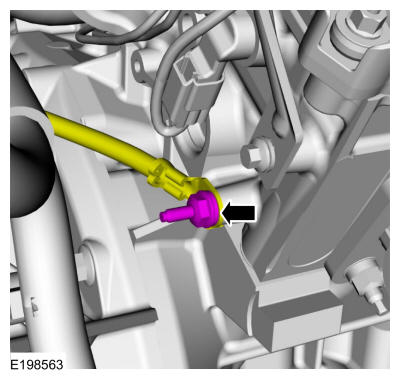

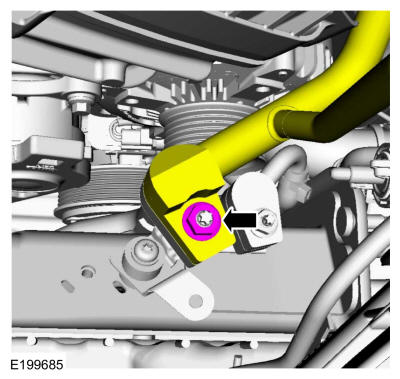

21. Position back the ground cable and install the stud bolt.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

22. Connect the wire retainer and the transmission electrical connector.

    Courtesy of FORD MOTOR COMPANY

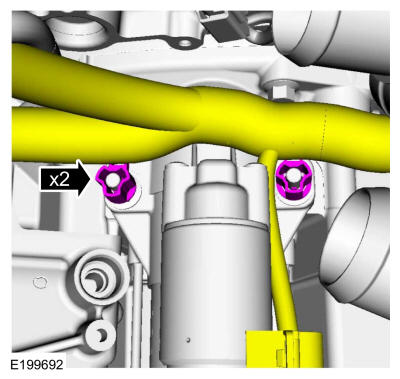

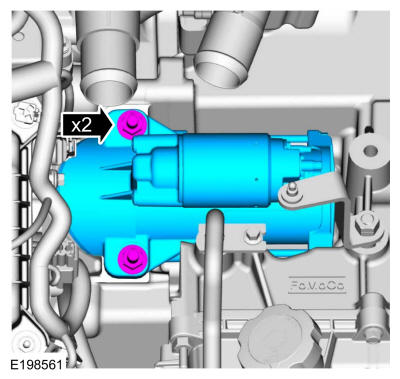

23. Install the starter and the stud bolts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

24. NOTE: Make sure the starter wiring is on the starter terminals.

    Position back the wire harness and connect the retainers.

    Courtesy of FORD MOTOR COMPANY

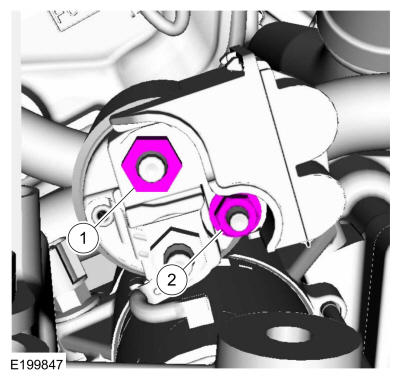

25. 1. Install the starter positive cable nut.

       Torque: 106 lb.in (12 Nm)

    2. Install the starter control nut.

       Torque: 53 lb.in (6 Nm)

    Courtesy of FORD MOTOR COMPANY

26. Remove the ratchet strap from the RH knuckle to subframe.
27. Remove the floor crane and the spreader bar. Use the General Equipment: Floor Crane

    Courtesy of FORD MOTOR COMPANY

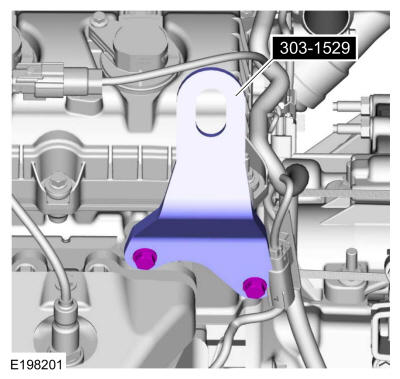

28. Remove Special Service Tool: 303-1529 Lift Eye, Engine.

    Courtesy of FORD MOTOR COMPANY

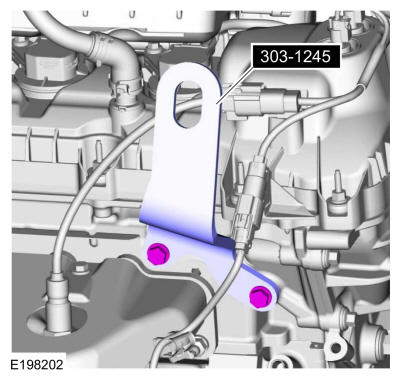

29. Remove Special Service Tool: 303-1245 Engine Lift Eye.

    Courtesy of FORD MOTOR COMPANY

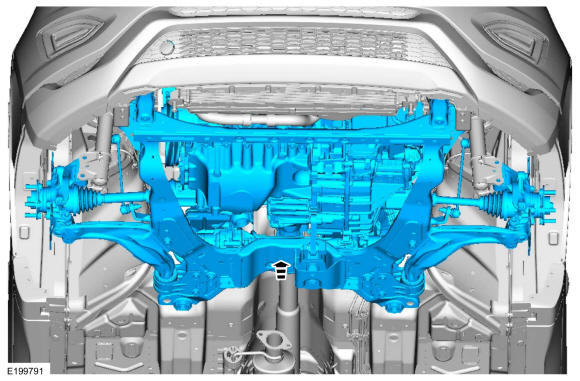

30. Using the powertrain jack, raise the subframe and powertrain assembly into the vehicle. Use the General Equipment: Powertrain Jack. Use the General Equipment: Wooden Block

    Courtesy of FORD MOTOR COMPANY

31. Install the transmission mount bolts.

    Torque: 59 lb.ft (80 Nm)

    Courtesy of FORD MOTOR COMPANY

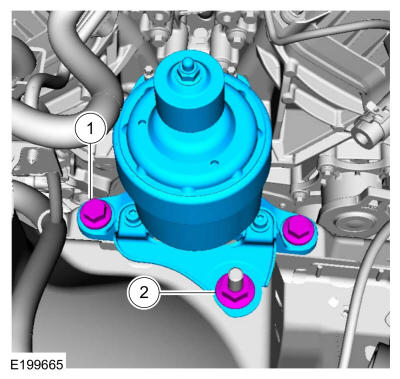

32. 1. Install the engine mount bolts.

       Torque: 81 lb.ft (110 Nm)

    2. Install the engine mount nut.

       Torque: 66 lb.ft (90 Nm)

    Courtesy of FORD MOTOR COMPANY

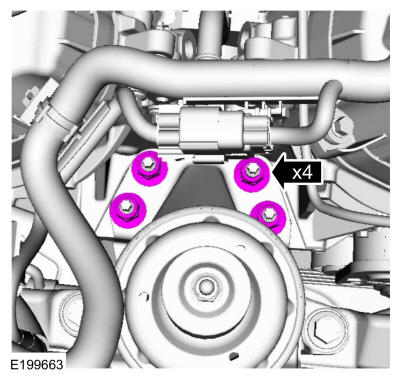

33. Install the engine mount nuts.

    Torque: 59 lb.ft (80 Nm)

    Courtesy of FORD MOTOR COMPANY

34. NOTE: Align the reference marks made during removal.

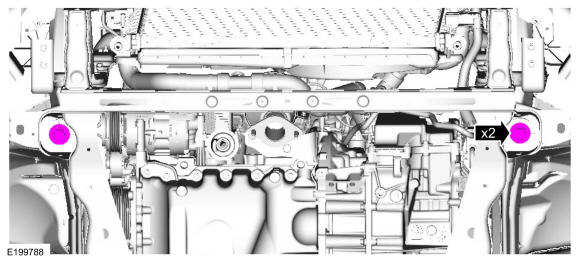

    Install the subframe front bolts finger tight.

    Courtesy of FORD MOTOR COMPANY

35. NOTE: Align the reference marks made during removal.

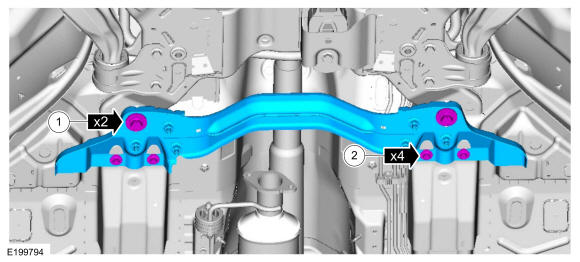

    • Install the crossmember and the subframe rear bolts finger tight.
    • Install the subframe bolts finger tight.

    Courtesy of FORD MOTOR COMPANY

36. NOTE: While tightening the subframe bolts, make sure the front subframe does not move.

    Tighten the subframe front bolts.

    Torque: 173 lb.ft (235 Nm)

    Courtesy of FORD MOTOR COMPANY

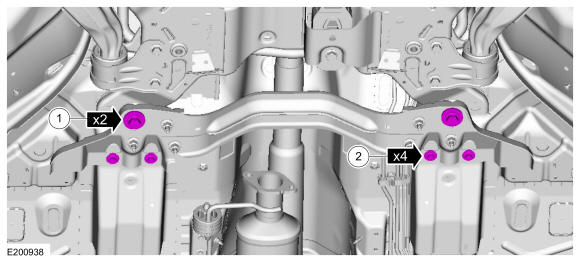

37. • Tighten the subframe rear bolts.

      Torque: Stage 1: 76 lb.ft (103 Nm) Stage 2: 270 deg.

    • Tighten the subframe bolts.

      Torque: 44 lb.ft (60 Nm)

    Courtesy of FORD MOTOR COMPANY

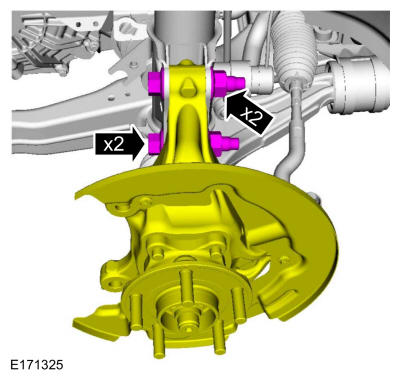

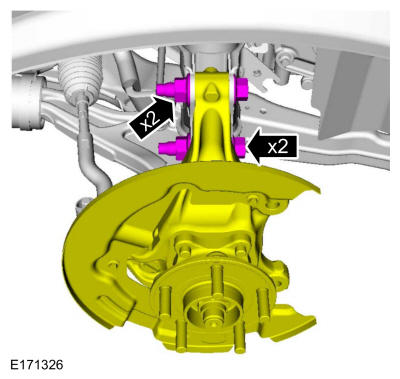

38. Install the RH strut-to-wheel knuckle nuts and bolts.

    Torque: 173 lb.ft (235 Nm)

    Courtesy of FORD MOTOR COMPANY

39. Install the LH strut-to-wheel knuckle nuts and bolts.

    Torque: 173 lb.ft (235 Nm)

    Courtesy of FORD MOTOR COMPANY

40. Remove the ratchet strap from the front of the subframe to the rear of the subframe.
41. Remove the adjustable mounting arm and the powertrain jack. Use the General Equipment: Powertrain Jack. Use the General Equipment: Wooden Block. Use the General Equipment: Adjustable Mounting Arm

    Courtesy of FORD MOTOR COMPANY

    4WD

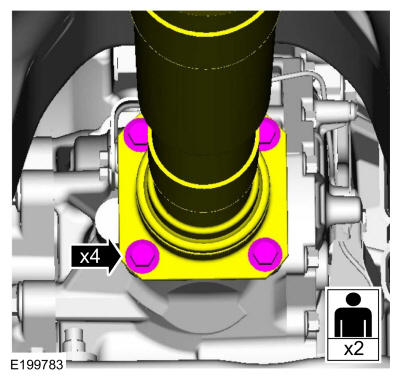

42. Line up the index marks on the rear driveshaft to the index marks on the PTU flange made during removal and install the bolts.

    Torque: 52 lb.ft (70 Nm)

    Courtesy of FORD MOTOR COMPANY

    2WD/4WD

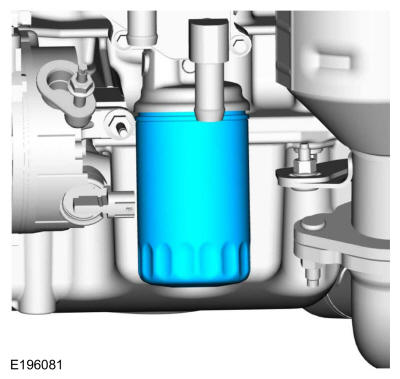

43. NOTE: Do not lubricate the engine oil filter seal.

    Install the new engine oil filter.

    Torque: Stage 1: 44 lb.in (5 Nm) Stage 2: 180 deg.

    Courtesy of FORD MOTOR COMPANY

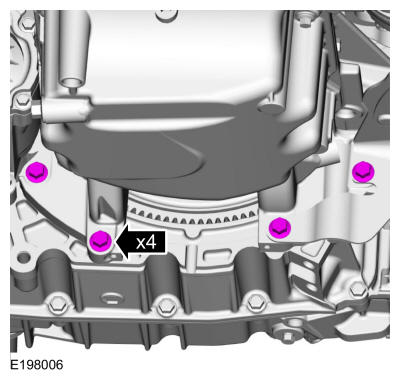

44. Install the oil pan-to-transaxle bolts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

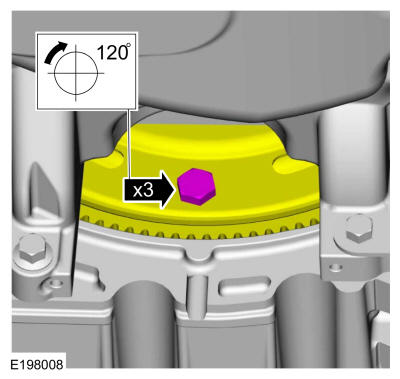

45. Install the new torque converter bolts.

    Torque: 41 lb.ft (55 Nm)

    Courtesy of FORD MOTOR COMPANY

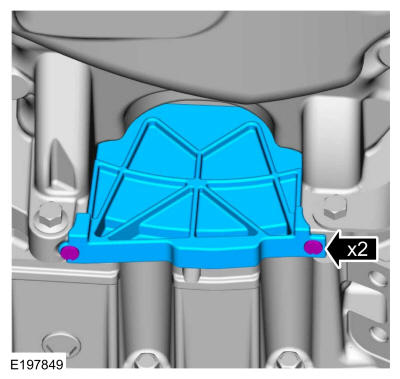

46. Install the inspection cover and the retainers.

    Courtesy of FORD MOTOR COMPANY

47. Install the exhaust Y-pipe. Refer to: Exhaust Y-Pipe .
48. Connect the coolant hose retainer.

    Courtesy of FORD MOTOR COMPANY

49. If equipped, connect the oil cooler hoses. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

50. Install the front brake discs. Refer to: Brake Disc .
51. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

    Position back the RH sway bar link and install the nut.

    Torque: 85 lb.ft (115 Nm)

    Courtesy of FORD MOTOR COMPANY

52. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

    Position back the LH sway bar link and install the nut.

    Torque: 85 lb.ft (115 Nm)

    Courtesy of FORD MOTOR COMPANY

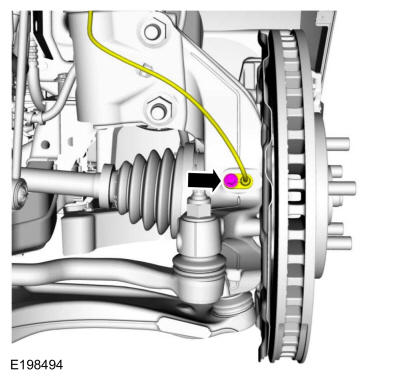

53. Install the RH anti-lock sensor and bolt.

    Torque: 80 lb.in (9 Nm)

    Courtesy of FORD MOTOR COMPANY

54. Install the LH anti-lock sensor and bolt.

    Torque: 80 lb.in (9 Nm)

    Courtesy of FORD MOTOR COMPANY

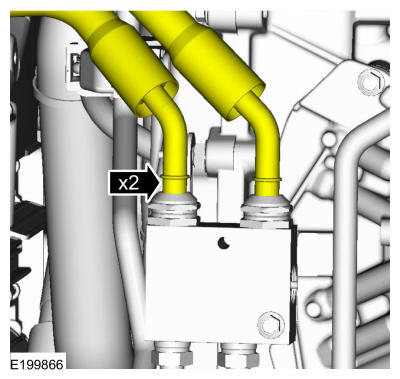

55. Connect the transmission cooling tubes.

    Courtesy of FORD MOTOR COMPANY

56. Install the transmission cooler tube secondary latches.

    Courtesy of FORD MOTOR COMPANY

57. Connect and attach the engine harness electrical connector.

    Courtesy of FORD MOTOR COMPANY

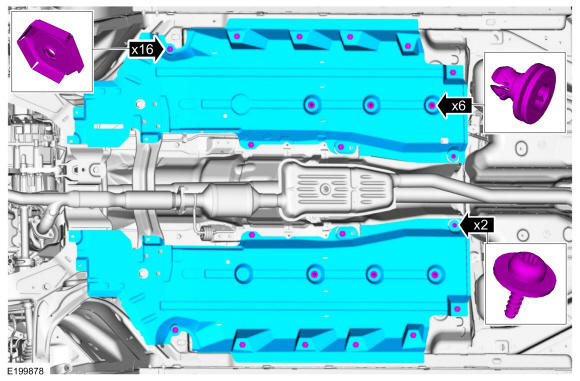

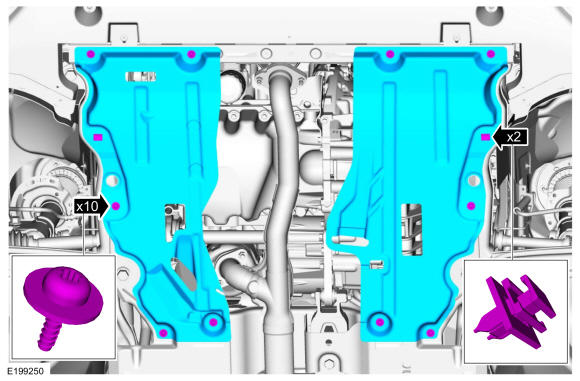

58. Install the underbody shields and retainers.

    Courtesy of FORD MOTOR COMPANY

59. Install the underbody shields and retainers.

    Courtesy of FORD MOTOR COMPANY

60. Install the following items:
    1. Install the accessory drive belt. Refer to: Accessory Drive Belt .
    2. Install the fender splash shields. Refer to: Fender Splash Shield .
    3. Install the front wheels and tires. Refer to: Wheel and Tire .
    4. Install the cooling fan motor and shroud. Refer to: Cooling Fan Motor and Shroud .

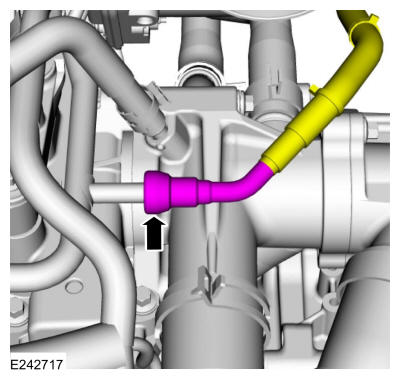

61. Install the degas bottle hose.

    Courtesy of FORD MOTOR COMPANY

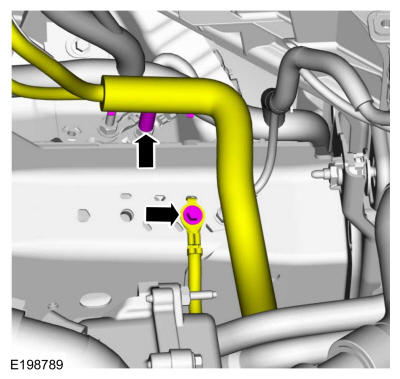

62. Position back the ground wire and install the bolt. Connect the wire retainer.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

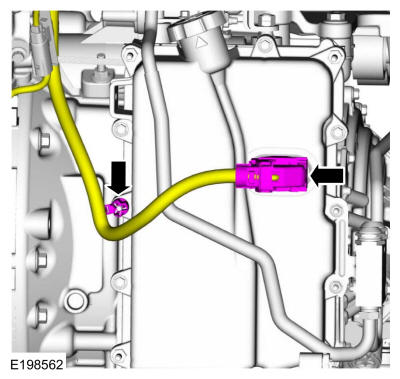

63. Connect the PCM electrical connector and the wire harness retainer.

    Courtesy of FORD MOTOR COMPANY

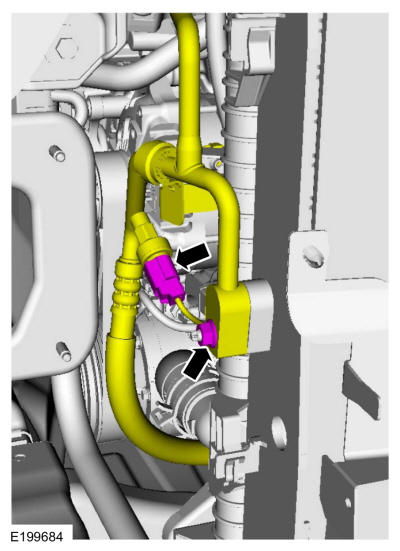

64. Connect the electrical connector and the wire harness retainer.

    Courtesy of FORD MOTOR COMPANY

65. Using a new O-ring, connect the A/C tube fitting and install the nut.

    Torque: 159 lb.in (18 Nm)

    Courtesy of FORD MOTOR COMPANY

66. • Using a new O-ring, connect the A/C hose and install the nut.

      Torque: 159 lb.in (18 Nm)

    • Connect the A/C pressure switch.

    Courtesy of FORD MOTOR COMPANY

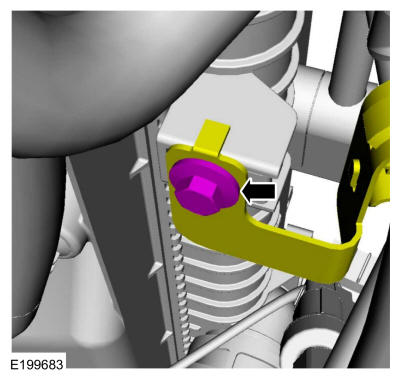

67. Install the bolt for the A/C tube bracket.

    Torque: 62 lb.in (7 Nm)

    Courtesy of FORD MOTOR COMPANY

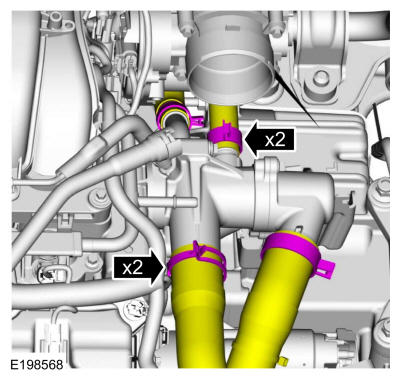

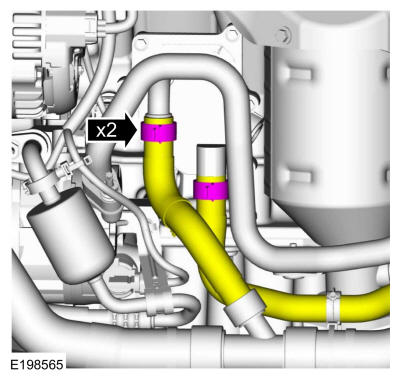

68. • Connect the heater hoses. Use the General Equipment: Hose Clamp Remover/Installer
    • Connect the upper and lower radiator hoses. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

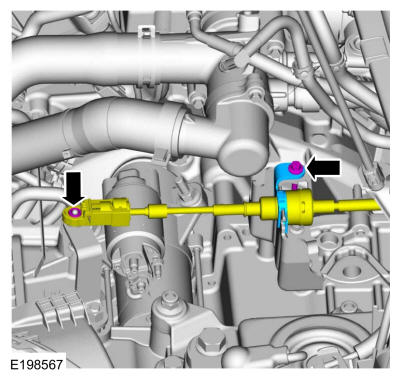

69. Position back the transaxle control cable and connect the cable. Install the bolt.

    Torque: 62 lb.in (7 Nm)

    Courtesy of FORD MOTOR COMPANY

70. Connect the fuel supply tube. Refer to: Spring Lock Couplings .

    Courtesy of FORD MOTOR COMPANY

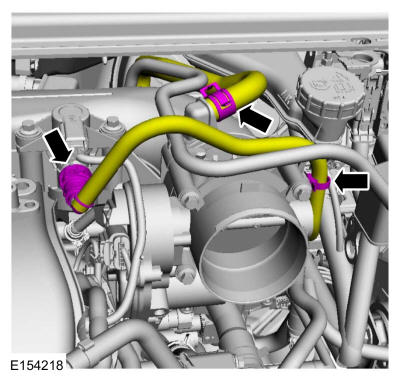

71. Connect the vacuum hose and the EVAP hose. Refer to: Quick Release Coupling . Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

72. Position back the wire harness and connect the wire harness retainer. Install the bolt.

    Torque: 106 lb.in (12 Nm)

    Courtesy of FORD MOTOR COMPANY

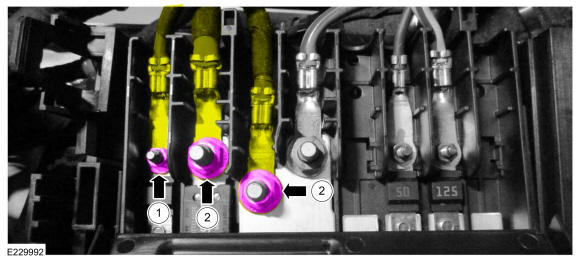

73. Position the electrical wiring harness cables and install the nuts.
    1. Torque: 71 lb.in (8 Nm)
    2. Torque: 106 lb.in (12 Nm)

    Courtesy of FORD MOTOR COMPANY

74. Close the cover.

    Courtesy of FORD MOTOR COMPANY

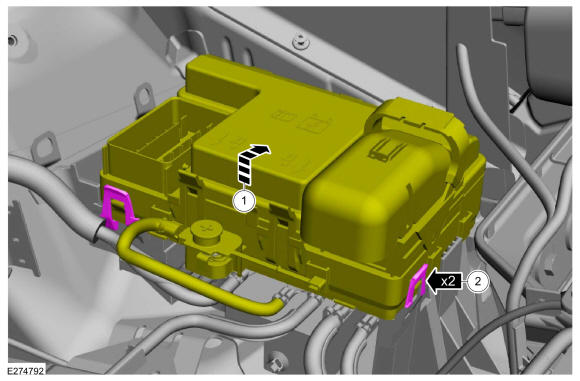

75. • Position the top part of junction box.
    • Latch the tabs.

    Courtesy of FORD MOTOR COMPANY

76. Connect the junction box electrical connector.

    Courtesy of FORD MOTOR COMPANY

77. Position back the ground cable and install the stud bolt.

    Torque: 106 lb.in (12 Nm)

    Courtesy of FORD MOTOR COMPANY

78. Check the selector lever cable adjustment. Refer to: Selector Lever Cable Adjustment - 6-Speed Automatic Transmission - 6F50/6F55 .
79. Install the following items:
    1. Install the battery tray. Refer to: Battery Tray .
    2. Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
    3. Install the air cleaner. Refer to: Air Cleaner .
    4. Install the degas bottle. Refer to: Degas Bottle .

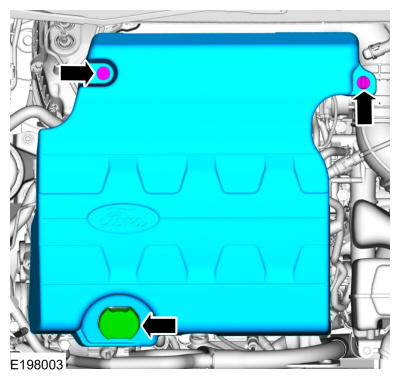

80. Install the engine appearance cover.

    Courtesy of FORD MOTOR COMPANY

81. NOTE: Do not allow the intermediate shaft to rotate while it is connecting the gear or damage to the clockspring can occur. If there is evidence that the intermediate shaft has rotated, the clockspring must be removed and recentered. Refer to Clockspring or Clockspring - Vehicles With: Adaptive Steering

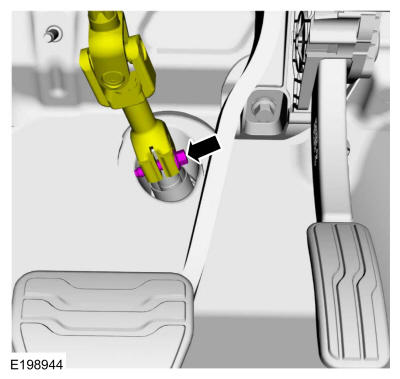

    Position back the steering shaft and install the new bolt.

    Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

82. Remove the steering wheel holding tool.

    Courtesy of FORD MOTOR COMPANY

83. Fill the engine with clean engine oil. Refer to: Specifications .

    Material: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)

84. Fill and bleed the engine cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
85. Recharge the A/C system. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging .
86. Check the transmission fluid level. Refer to: Transmission Fluid Level Check .
87. After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure.
