Transmission Fluid Level Check

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Materials

Name	Specification
Motorcraft® MERCON® LV Automatic Transmission Fluid XT-10-QLVC	WSS-M2C938-A MERCON® LV,

Check

Vehicles equipped with a 2.7L GTDI engine

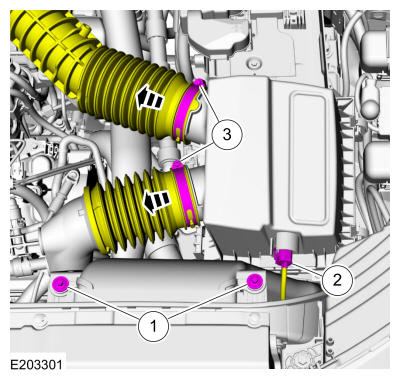

1. Remove the bolts.
2. Disconnect the MAF sensor electrical connector.
3. Loosen clamps and disconnect the air outlet tubes.
Courtesy of FORD MOTOR COMPANY
NOTE: Connect the air outlet tubes and MAF sensor connector with the air cleaner positioned aside, to prevent DTC's to be set and dust or dirt from entering the intake while running the engine.
1. Position aside the air cleaner.
2. Connect the air outlet tubes.
3. Connect the MAF sensor electrical connector.
Courtesy of FORD MOTOR COMPANY

All vehicles

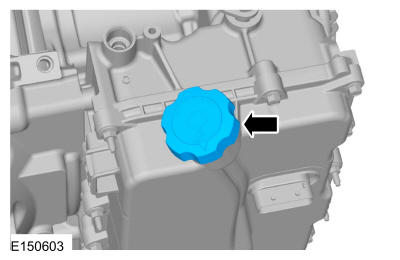

Remove the transmission fluid level indicator,

Courtesy of FORD MOTOR COMPANY
NOTE: With the selector in PARK, the engine at idle and foot pressed on the brake, select the gears into each position and allow engagement for a minimum of ten seconds. Check the transmission fluid level by installing and removing the transmission fluid level indicator. Adjust the transmission fluid level.

NOTE: Correct transmission fluid level at normal operating temperature is 82 deg.C-93 deg.C (180 deg.F-200 deg.F).
1. Correct transmission fluid level at normal operating temperature 82 deg.C-93 deg.C (180 deg.F-200 deg.F).
  Material

  : Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV,)
2. Low transmission fluid level or below operating temperature.
3. High transmission fluid level.
Courtesy of FORD MOTOR COMPANY

Vehicles equipped with a 2.7L GTDI engine

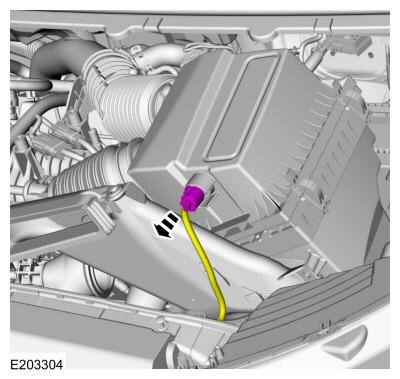

Disconnect the MAF sensor electrical connector.

Courtesy of FORD MOTOR COMPANY
Install the air cleaner. Refer to: Air Cleaner .
