Front Halfshaft RH - FWD: Installation

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect the inboard end of the halfshaft.
    GFD284274Courtesy of FORD MOTOR COMPANY

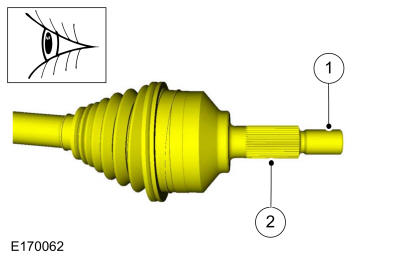

  2. Inspect the outboard end of the halfshaft.
    GFD284275Courtesy of FORD MOTOR COMPANY
  3. Install a new halfshaft seal. For 6F35 transmission, refer to: Halfshaft Seal RH - FWD . For 6F50/6F55 transmission, refer to: Halfshaft Seal RH - FWD .

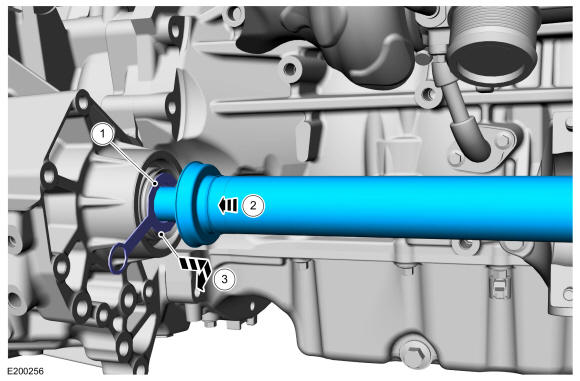

    1. NOTE: Do not fully install the shaft at this time.

      Install the special tool. Use Special Service Tool: 205-461 Protector, Differential Oil Seal (pair).

    2. Insert the halfshaft splines through the special tool.
    3. Remove the special tool.
    GFD284276Courtesy of FORD MOTOR COMPANY

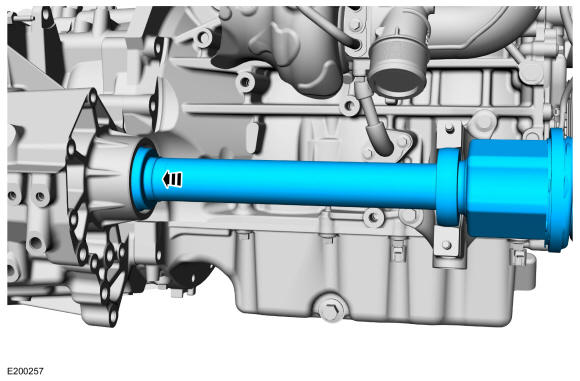

  5. Insert the intermediate shaft until the intermediate shaft bearing is centered in the concave groove of the intermediate shaft bearing bracket.
    GFD284277Courtesy of FORD MOTOR COMPANY

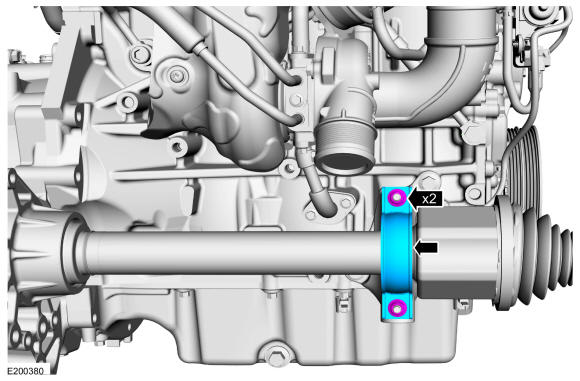

  6. Install the new halfshaft retaining strap and nuts.

    Torque:

    Stage 1: Tighten lower nut to: 44 lb.in (5 Nm)

    Stage 2: Tighten upper nut to: 18 lb.ft (25 Nm)

    Stage 3: Tighten lower nut to: 18 lb.ft (25 Nm)

    GFD284278Courtesy of FORD MOTOR COMPANY

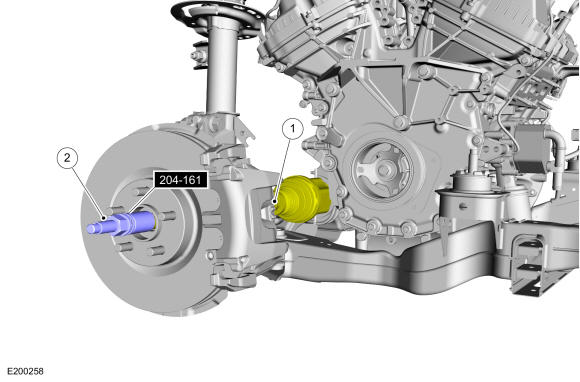

  7. NOTE: Do not install the halfshaft any deeper than the centerline of the bearing with the centerline of the bracket. Over-installation of the halfshaft and pulling the halfshaft back out to align the bearing in the bracket could damage the intermediate shaft seal.

    • Insert halfshaft through the wheel bearing.

    • Using the special tool, seat the halfshaft splines in the wheel bearing. Use Special Service Tool: 204-161 (T97P-1175-A) Installer, Halfshaft.

    GFD284279Courtesy of FORD MOTOR COMPANY

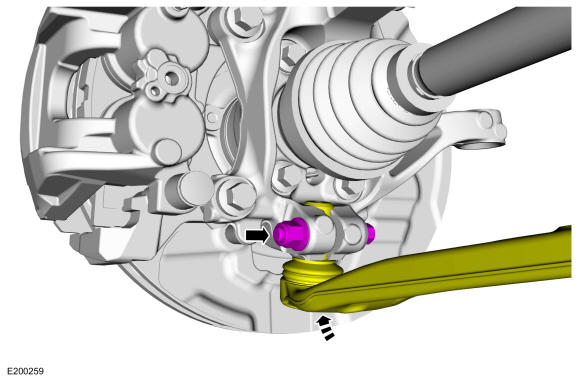

  8. Position the ball joint into the wheel knuckle and install the new ball joint pinch bolt and nut.

    Torque: 76 lb.ft (103 Nm)

    GFD284280Courtesy of FORD MOTOR COMPANY
  9. Position the brake flexible hose and install the brake flexible hose bracket bolt.

    Torque: 159 lb.in (18 Nm)

    GFD284268Courtesy of FORD MOTOR COMPANY

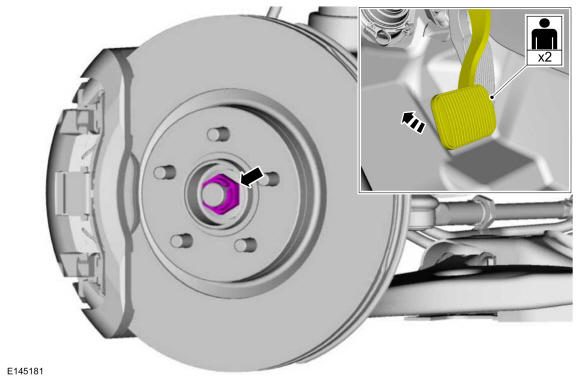

  10. NOTE: Do not tighten the front wheel hub nut with the vehicle on the ground. The nut must be tightened to specification before the vehicle is lowered onto the wheels. Wheel bearing damage will occur if the wheel bearing is loaded with the weight of the vehicle applied.
    NOTE: Install and tighten the new wheel hub nut to specification in a continuous rotation. Always install a new wheel hub nut after loosening or when not tightened to specification in a continuous rotation or damage to the components may occur.
    NOTE: Apply the brake to keep the halfshaft from rotating.

    While an assistant applies the brake, install the new wheel hub nut.

    Torque: 148 lb.ft (200 Nm)

    GFD284281Courtesy of FORD MOTOR COMPANY
  11. Check the transmission fluid level. For 6F35 transmission, refer to: Transmission Fluid Level Check . For 6F50/6F55 transmission, refer to: Transmission Fluid Level Check .
  12. If equipped, install the underbody shield and the retainers.
    GFD284271Courtesy of FORD MOTOR COMPANY
  13. Install the wheel and tire. Refer to: Wheel and Tire .
