Fuel Rail: Removal

WARNING: This page is about a different variant/trim than selected.

Release the fuel system pressure. Refer to: Fuel System Pressure Release .
Disconnect the battery negative cable. Refer to: Battery Disconnect and Connect .
Remove the Ignition Coil-On-Plugs. Refer to: Ignition Coil-On-Plug .
NOTE: To release the fuel pressure in the high-pressure fuel pump-to-fuel rail high-pressure fuel tube, wrap the high-pressure fuel pump flare nut with a shop towel to absorb any residual fuel pressure during the loosening of high-pressure fuel pump flare nut.

Remove and discard the high-pressure fuel pump-to-fuel rail high-pressure fuel tube.

Courtesy of FORD MOTOR COMPANY

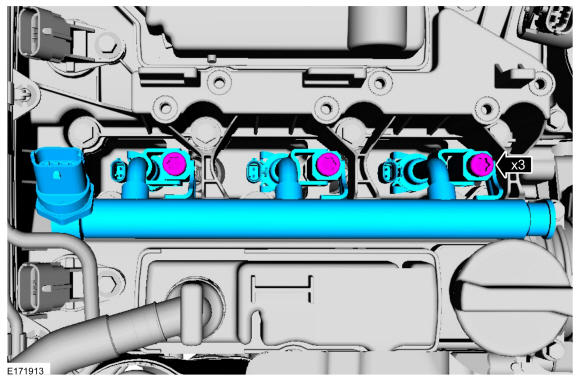

Disconnect the fuel injector electrical connectors.

Courtesy of FORD MOTOR COMPANY
NOTE: Pull out the fuel rails in the direction of the fuel injector axis or damage may occur to the fuel injectors.

NOTE: Use compressed air to remove any dirt or foreign material from the cylinder head, block and general surrounding area of the fuel rail and the fuel injectors.

NOTE: When removing the fuel rails, the fuel injectors may remain in the cylinder head and require the use of a Fuel Injector Remover tool to extract.

Remove the fuel rail bolts, then remove the fuel rail.

Courtesy of FORD MOTOR COMPANY

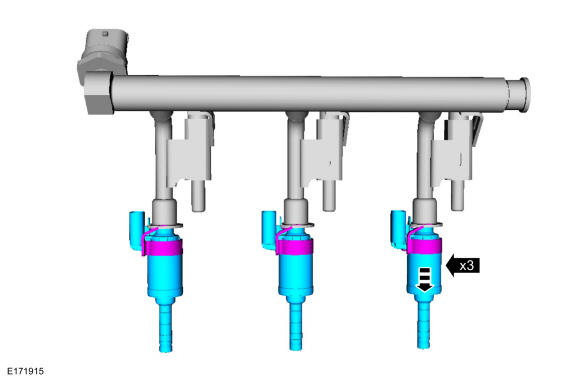

Remove the fuel injectors from the fuel rail.

Courtesy of FORD MOTOR COMPANY
Remove and discard the fuel injector clips.

Courtesy of FORD MOTOR COMPANY

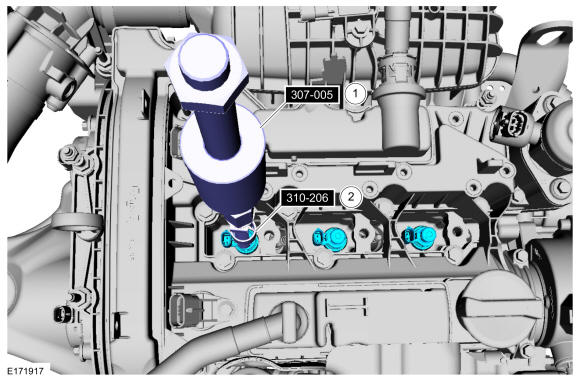

Using the special tools, remove any of the fuel injectors that remained in the cylinder head.
1. Use Special Service Tool: 307-005 (T59L-100-B) Slide Hammer.
2. Use Special Service Tool: 310-206 Remover, Fuel Injector.
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure to thoroughly clean any residual fuel or foreign material from the cylinder head, block and the general surrounding area of the fuel rails and the fuel injectors.

NOTE: Do not use compressed air to clean the tip of the fuel injector.

NOTE: Do not use a brush to clean the tip of the fuel injector.

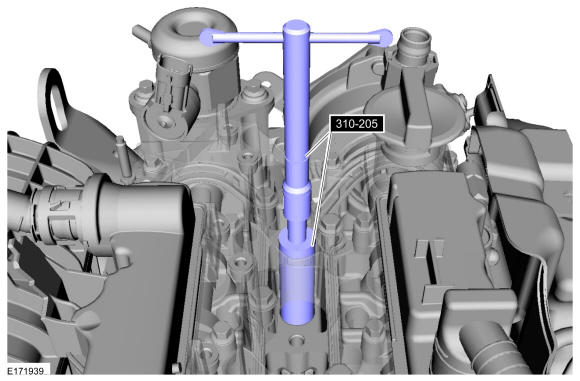

Using the special tool, clean the cylinder head fuel injector bores. Use Special Service Tool: 310-205 Fuel Injector Brush.

Courtesy of FORD MOTOR COMPANY
NOTE: Note the correct orientation of the fuel injector support rings for correct installation of the fuel injector support rings.

Remove and discard the fuel injector O-rings. Remove and discard the fuel injector support rings.

Courtesy of FORD MOTOR COMPANY
NOTE: Use care when removing the lower Teflon® seals, not to scratch, nick or gouge the fuel injectors.

NOTE: Do not attempt to cut the lower Teflon® seal without first pulling it away from the fuel injector or damage to the injector may occur.
1. Pull the lower Teflon® seal away from the injector with narrow tip pliers.
2. Carefully cut, remove and discard the lower fuel injector Teflon® seals.

Courtesy of FORD MOTOR COMPANY
