Fuel System Pressure Release
WARNING: This page is about a different variant/trim than selected.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
Pressure release

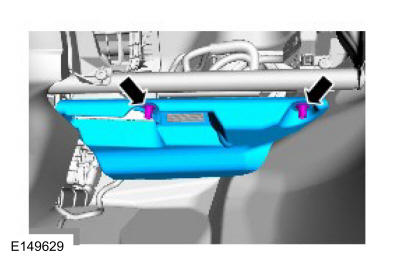

- Remove the 2 instrument panel insulator retainers and the instrument panel insulator.
-

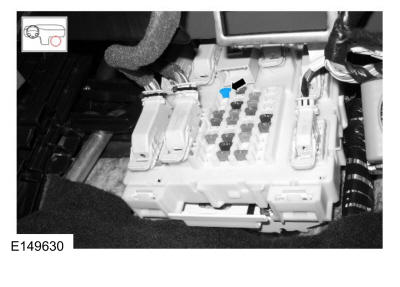

NOTE: The Fuel Pump (FP) Control Module fuse is located in the Body Control Module (BCM), location F56.
Remove the Fuel Pump (FP) control module fuse.
-
NOTE: A message center warning display 'engine malfunction service now' may display on the Instrument Panel Cluster (IPC). Reset the message center by pressing the OK button on the steering wheel controls.
Start the engine and allow it to idle until it stalls.
- After the engine stalls, crank the engine for approximately 20 seconds to make sure the fuel system pressure has been released.
- Turn the ignition switch to the OFF position.
- When fuel system service is complete, install the Fuel Pump (FP) control module fuse.
-
NOTE: It may take more than one key cycle to pressurize the fuel system.
Cycle the ignition key and wait 3 seconds to pressurize the fuel system. Check for leaks before starting the engine.
- When service on the high pressure fuel system (high pressure pump, fuel injectors and fuel rail) is completed, start the engine and check for leaks.
- Install the instrument panel insulator and retainers.
