Section 37 (Manual Transmission - 5-Speed Manual Transmission - MTX75): Installation: Transmission

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	303-1554 Engine Support Bar
Ford Diagnostic Equipment
Transmission Jack
Retaining Strap
Wooden Block

Materials

1. Lubricate the input shaft with a thin coating of grease.

   Material

   : Motorcraft® High Temperature 4x4 Front Axle and Wheel Bearing Grease / XG-11 (WSS-M1C267-A1)

   Courtesy of FORD MOTOR COMPANY

2. Install the following items:

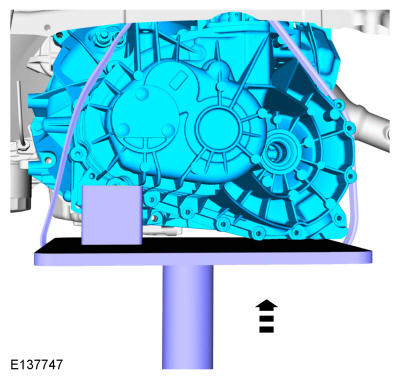

   • Use the General Equipment: Transmission Jack
   • Use the General Equipment: Wooden Block
   • Use the General Equipment: Retaining Strap

   Courtesy of FORD MOTOR COMPANY

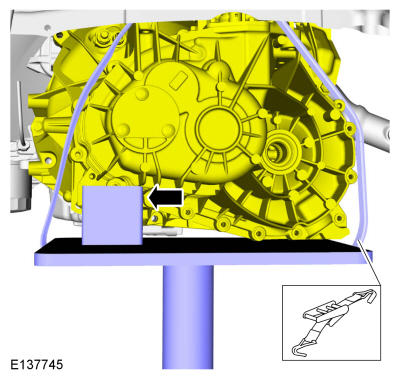

3. Install the transmission.

   Courtesy of FORD MOTOR COMPANY

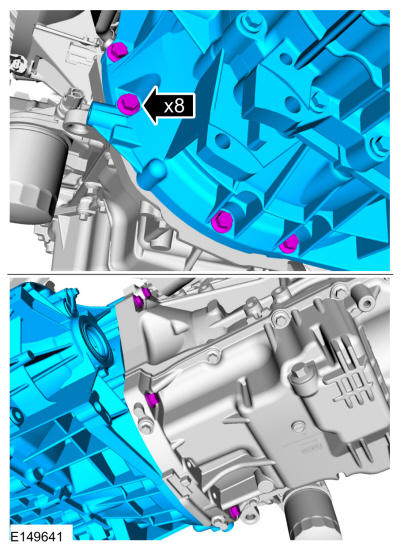

4. Install the bellhousing bolts. Tighten on both sides simultaneously.

   Torque

   : 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

5. Remove the Transmission Jack.

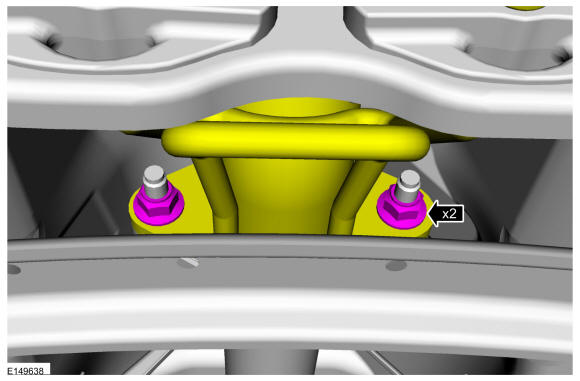

6. Install the transmission support insulator bracket.

   Torque

   : 59 lb.ft (80 Nm)

   Courtesy of FORD MOTOR COMPANY

7. Raise the engine and transmission assembly.

   Courtesy of FORD MOTOR COMPANY

8. WARNING: Make sure that a new bolt is installed.

   Install the transmission support insulator and the bolt.

   Torque

   : 109 lb.ft (148 Nm)

   Courtesy of FORD MOTOR COMPANY

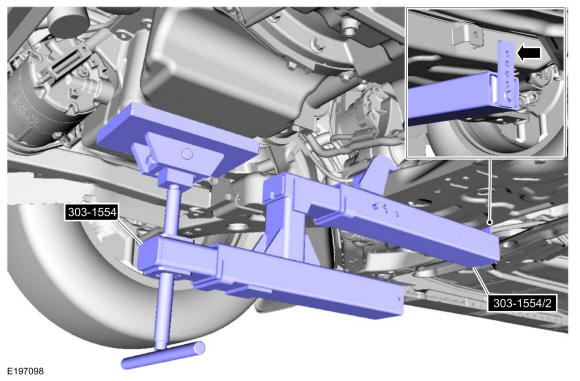

9. Remove the special tool. Use Special Service Tool: 303-1554 Engine Support Bar.

   Courtesy of FORD MOTOR COMPANY

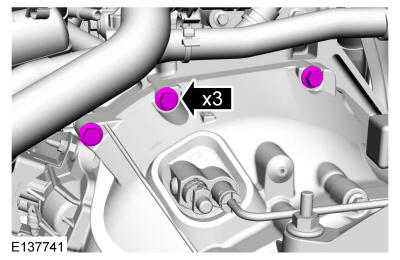

10. 1. Install the catalytic converter support bracket. Tighten the bolts.

       Torque

       : 37 lb.ft (50 Nm)

    2. Tighten the bolts.

       Torque

       : 19 lb.ft (26 Nm)

    Courtesy of FORD MOTOR COMPANY

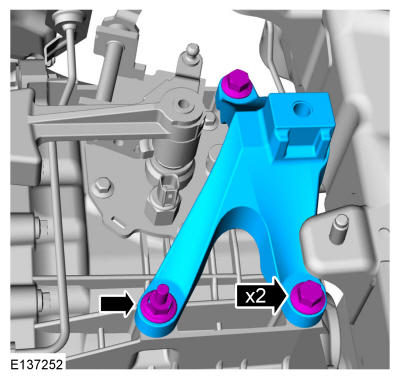

11. Install the exhaust hanger bolts.

    Torque

    : 19 lb.ft (26 Nm)

    Courtesy of FORD MOTOR COMPANY

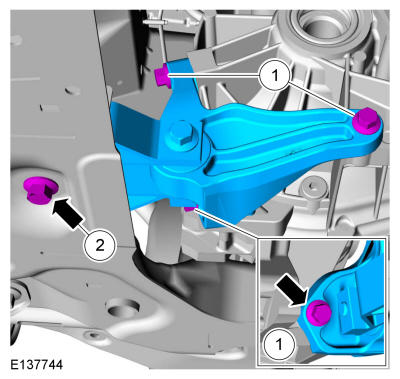

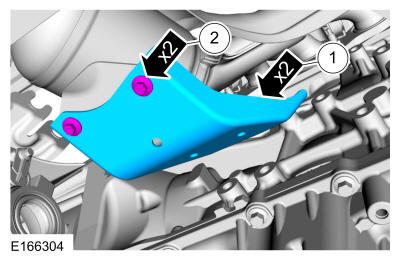

12. 1. Install the roll restrictor and roll restrictor bracket. Install the roll restrictor bracket bolts.

       Torque

       : 35 lb.ft (48 Nm)

    2. Install the roll restrictor-to-subframe bolt.

       Torque

       : 92 lb.ft (125 Nm)

    Courtesy of FORD MOTOR COMPANY

13. NOTE: Make sure that new components are installed.

    Install the muffler and tailpipe gasket and nuts.

    Torque

    : 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

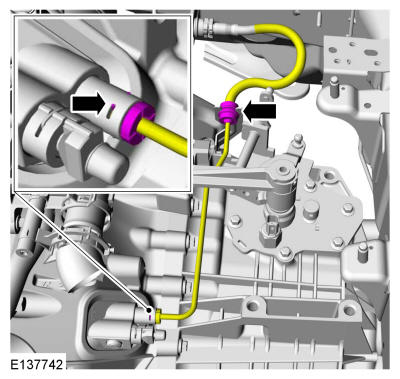

14. Install the clutch hydraulic tube in the slave cylinder.

    Courtesy of FORD MOTOR COMPANY

15. NOTE: Make sure that the wiring harness does not catch.

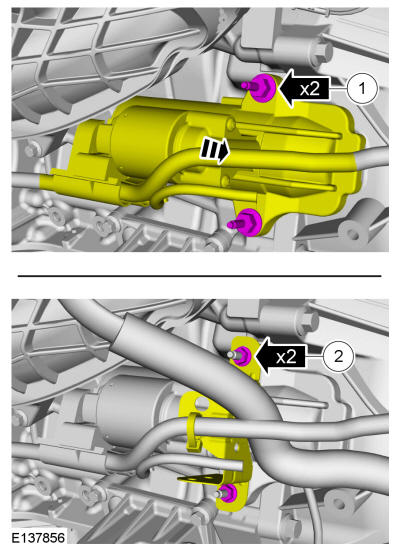

    1. Install the starter and the bolts.

       Torque

       : 26 lb.ft (35 Nm)

    2. Install the wiring retainer and the nuts.

       Torque

       : 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

16. Install a new halfshaft seal. Refer to: Front Halfshaft RH .
17. NOTE: Do not fully install the halfshaft at this time.

    Using part: 97ZT-7M181-A Seal Protector, install the intermediate shaft into the transmission.

    Courtesy of FORD MOTOR COMPANY

18. NOTE: Insert the intermediate shaft until the intermediate shaft bearing is centered in the concave groove of the intermediate shaft bearing bracket.

    Remove the seal protector and install the intermediate shaft into the transmission.

    Courtesy of FORD MOTOR COMPANY

19. Install the intermediate shaft bearing strap and tighten the nuts.

    Torque

    :Stage 1: Lower nut:: 44 lb.in (5 Nm) Stage 2: Upper nut:: 18 lb.ft (25 Nm) Stage 3: Lower nut:: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

20. Install the lower control arm in the steering knuckle and install the bolt and nut.

    Torque

    : 61 lb.ft (83 Nm)

    Courtesy of FORD MOTOR COMPANY

21. Install the brake hose on the steering knuckle and install the bolt.

    Torque

    : 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

22. If equipped, Install the ride height sensor bolt.

    Courtesy of FORD MOTOR COMPANY

23. Install the following items:
    • Refer to: Front Halfshaft LH .
    • Install both front wheels. Refer to: Wheel and Tire .

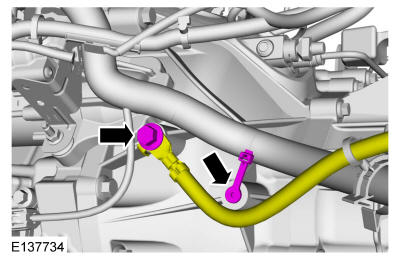

24. Install the ground strap and the wiring retainer.

    Torque

    : 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

25. Fill the transmission. Refer to: Transmission Draining and Filling  .
26. Install the engine undershield and screws.

    Courtesy of FORD MOTOR COMPANY

    Engine Undershield

27. Install the bellhousing bolts.

    Torque

    : 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

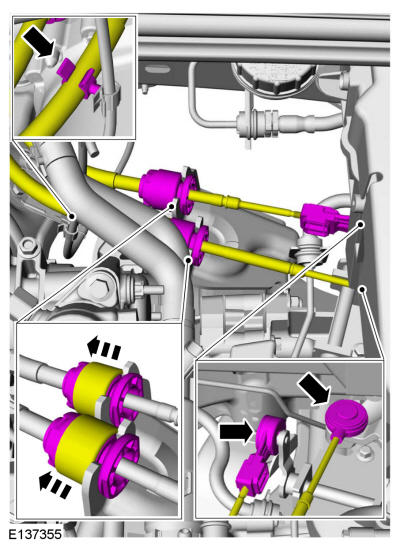

28. Install the gearshift cables.

    Courtesy of FORD MOTOR COMPANY

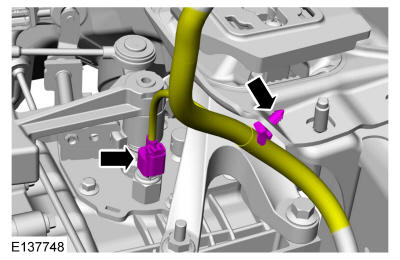

29. Connect the reverse switch electrical connector.

    Courtesy of FORD MOTOR COMPANY

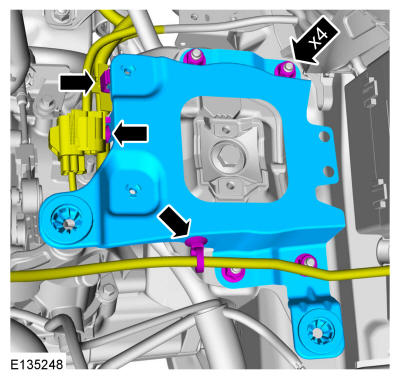

30. Install the battery tray support bracket and the nuts and connect the wiring retainers.

    Torque

    : 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

31. Install the following items:
    • Refer to: Battery Tray .
    • Refer to: Battery .
    • Refer to: Air Cleaner .

32. Refer to: Gearshift Cable Adjustment - 5-Speed Manual Transmission - MTX75 .
33. Refer to: Clutch System Bleeding - 5-Speed Manual Transmission - MTX75 .
34. After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure. Use the General Equipment: Ford Diagnostic Equipment
35. Start and check the exhaust for leaks.
