Transmission Draining and Filling

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Materials

Name	Specification
Motorcraft® Dual Clutch Transmission Fluid XT-11-QDC	WSS-M2C200-D2

Filling

With the vehicle in NEUTRAL, position it on a hoist. Refer to: JACKING AND LIFTING - OVERVIEW .
1. Remove the air deflector.
2. Remove the underbody shield.
Courtesy of FORD MOTOR COMPANY

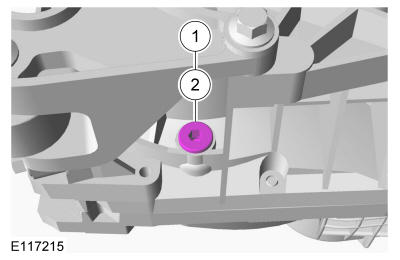

1. NOTE: Be prepared to collect escaping fluid.

  Remove the drain plug and drain the transmission fluid.
2. Install the drain plug.
  Torque

  : 26 lb.ft (35 Nm)
Courtesy of FORD MOTOR COMPANY

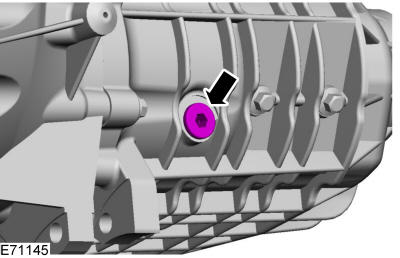

Remove the fill plug.

Courtesy of FORD MOTOR COMPANY

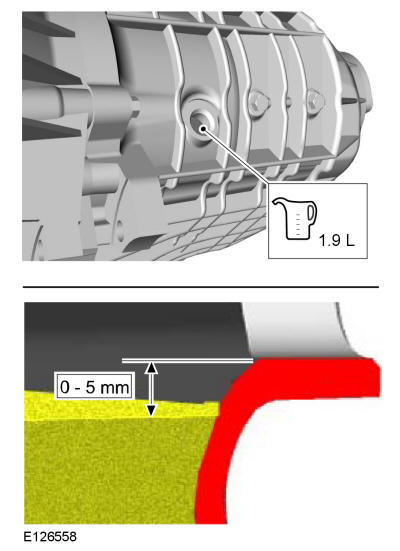

Add or remove transmission fluid as necessary. Refer to: Specifications .
Material

: Motorcraft® Dual Clutch Transmission Fluid / XT-11-QDC (WSS-M2C200-D2)

Courtesy of FORD MOTOR COMPANY
Install the fill plug.
Torque

: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY
1. Install the underbody shield.
2. Install the air deflector.

Courtesy of FORD MOTOR COMPANY
