Clutch System Bleeding - 5-Speed Manual Transmission - MTX75

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Fluid Suction Gun
Brake/Clutch System Pressure Bleeder/Filler

Materials

Name	Specification
Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid PM-20	WSS-M6C65-A2

Bleeding

NOTE: Make sure that the brake fluid level does not drop below the MIN mark.

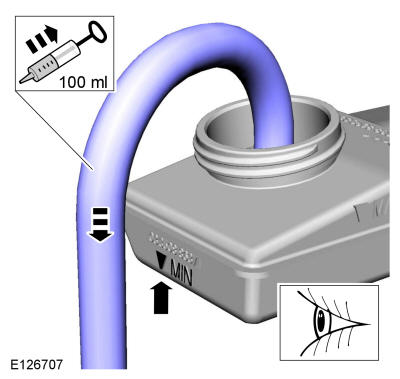

Using a suction gun, drain the brake fluid reservoir to the MIN mark. Use the General Equipment: Fluid Suction Gun

Courtesy of FORD MOTOR COMPANY

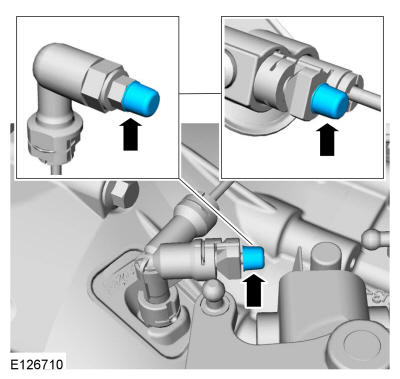

Remove the bleeder cap.

Courtesy of FORD MOTOR COMPANY

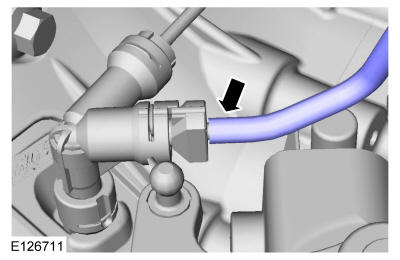

Install the following items:
- Install a brake bleeder and fill the tool reservoir with brake fluid. Use the General Equipment: Brake/Clutch System Pressure Bleeder/Filler
  Material

  : Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid / PM-20 (WSS-M6C65-A2)
Courtesy of FORD MOTOR COMPANY

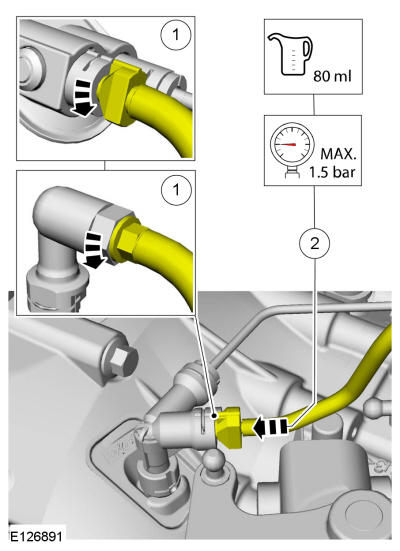

1. Open the clutch bleeder.
2. Pump brake fluid into the hydraulic system using the brake bleeder. Use the General Equipment: Brake/Clutch System Pressure Bleeder/Filler
Courtesy of FORD MOTOR COMPANY

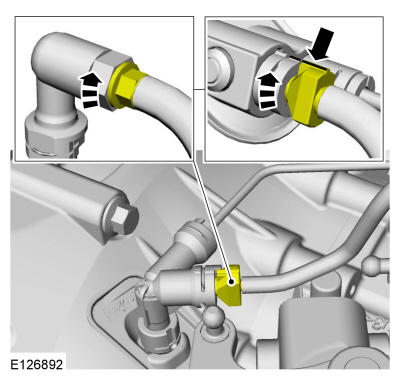

Close the clutch bleeder.

Courtesy of FORD MOTOR COMPANY
Install the clutch bleeder cap.

Courtesy of FORD MOTOR COMPANY
Pump the clutch pedal 5 times, using the full clutch pedal travel to remove any trapped air from the hydraulic system.

Courtesy of FORD MOTOR COMPANY

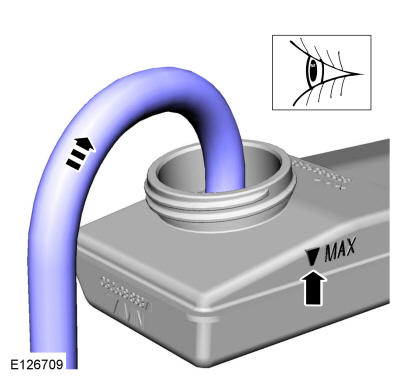

NOTE: Make sure that fluid level is to the MAX mark.

Fill the reservoir.

Courtesy of FORD MOTOR COMPANY
Start the engine and check the operation of the clutch. If reverse gear engagement is excessively noisy, operate the clutch pedal 5 times, using the full clutch pedal travel.

Courtesy of FORD MOTOR COMPANY
After waiting approx. 30sec., check the operation of the clutch again. If reverse gear engagement is still excessively noisy, repeat the bleeding procedure.
