Fuel Rail Pressure (FRP) Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Release the fuel system pressure. Refer to: Fuel System Pressure Release .
- Disconnect the battery. Refer to: Battery Disconnect and Connect .

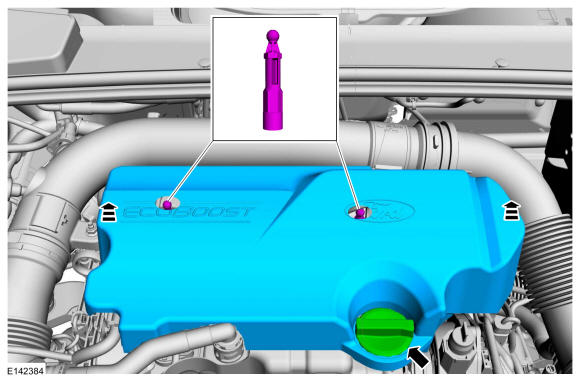

- Remove the engine appearance cover.
-
NOTE: Some residual fuel may remain in the fuel lines after releasing the fuel system pressure. Wrap the FRP sensor with a shop towel to absorb any residual fuel during the loosening of the FRP sensor.

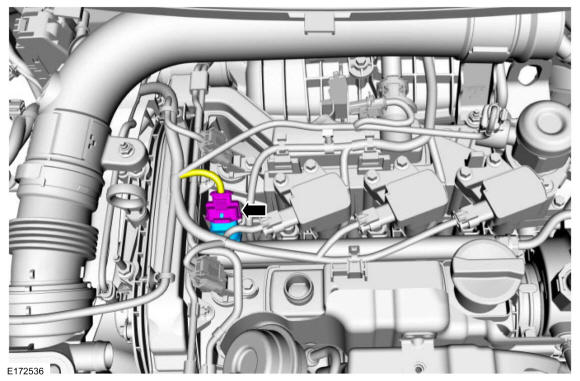

Disconnect the electrical connector and remove the FRP sensor.
Torque
: 24 lb.ft (32.5 Nm)
